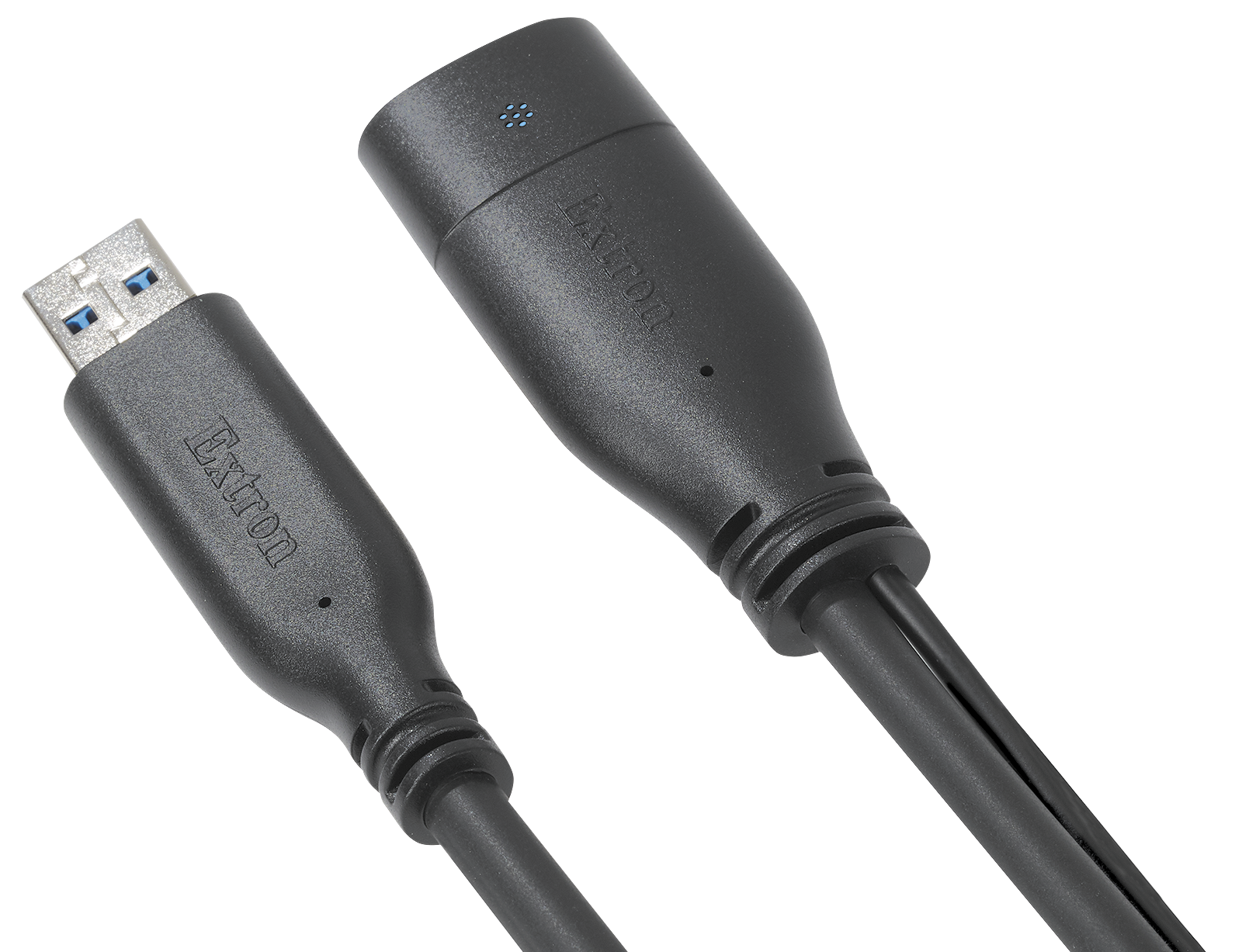

Extron USBA Pro P/65 (part number 26-728-65) — at 65 ft (19.8 m) this is the longest cable in the USBA Pro Plenum Series, extending SuperSpeed USB and power in one lead.

Sixty-five feet is the full reach of the series and the point where a single cable genuinely replaces an extender system. Glass multimode fibre carries the 5 Gbps SuperSpeed lanes while integrated copper handles USB 2.0 signalling and the 5 V rail, and the built-in optical-to-electrical conversion draws its power from the host rather than an adapter. Terminated as a straightforward USB-A extension, male to female, with a plenum-rated jacket for ceiling routing.

Key Capabilities

• Longest length in the series at 65 ft (19.8 m).
• SuperSpeed USB data at 5 Gbps, backwards compatible with USB 2.0 and 1.1.
• Still delivers 5 V and up to 900 mA (4.5 W) to the peripheral at this distance.
• NEC CMP plenum jacket for installation in open air spaces.

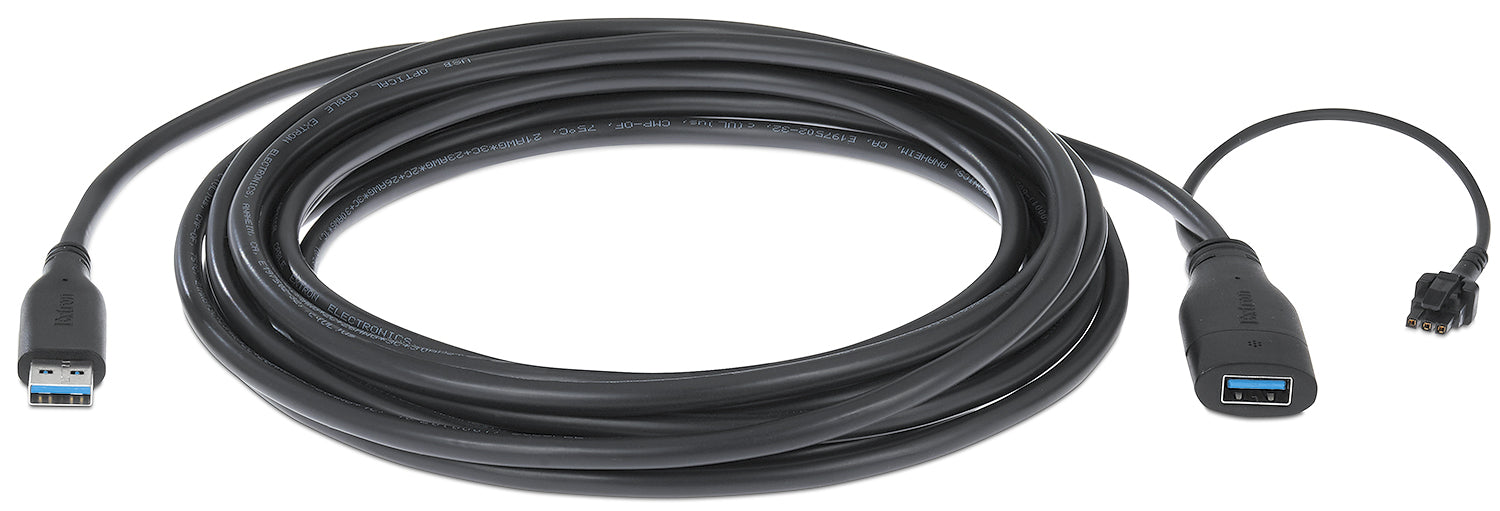

• External power pigtail included for peripherals that need more than the cable supplies.
• Blue host-power LED on the female connector.
• Ultra-thin 0.24 in (6 mm) jacket with a 0.79 in (20 mm) bend radius.

Where It Is Used

Auditoriums and large lecture theatres with rear-wall or ceiling cameras, multi-purpose halls, control rooms with remote USB panels, telemedicine and simulation suites, and manufacturing environments where interference rules out ordinary copper.

Specifications at a Glance

• Length: 65 ft (19.8 m)
• USB: 3.2 Gen1 at 5 Gbps
• Power to peripheral: 5 V at up to 900 mA (4.5 W)
• Connectors: 1 USB A male to 1 USB A female
• Rating: NEC CMP plenum, 0.24 in (6 mm) diameter

Also referenced as Extron USBAProP65, USBA-Pro-P-65, part number 2672865.
