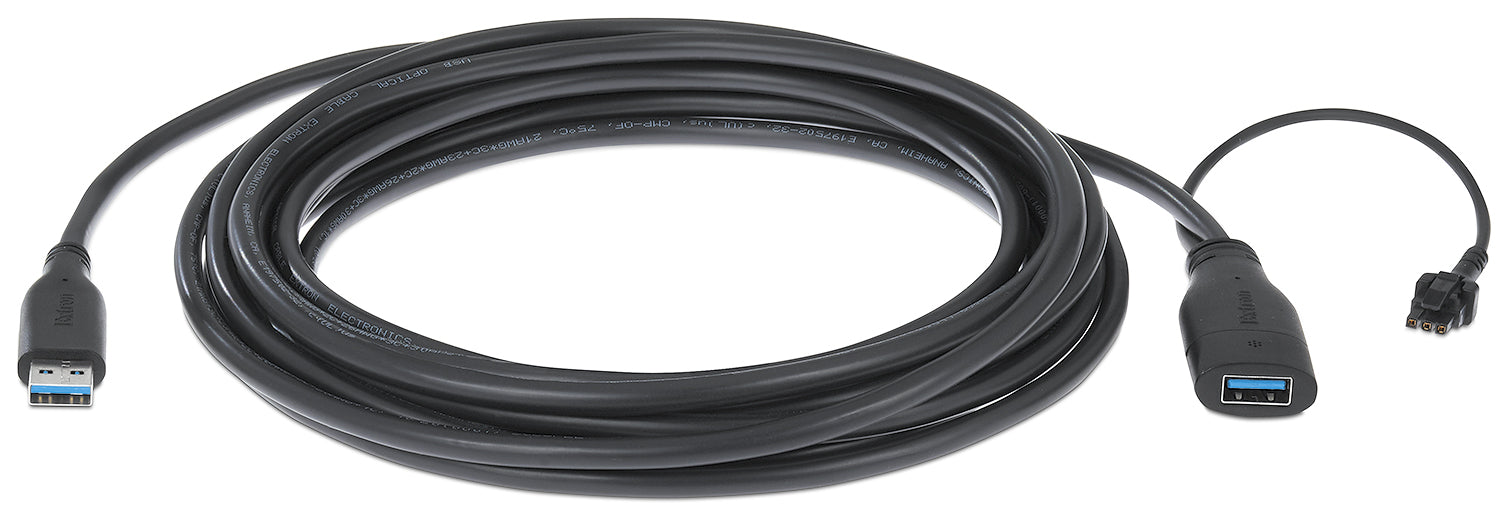

Extron USBA Pro P/50 (part number 26-728-50) - a 50 ft (15.2 m) plenum-rated active USB-A extension carrying SuperSpeed data and power in one continuous cable.
Fifty feet takes a USB peripheral out of the room the host lives in. Because the SuperSpeed lanes run on glass multimode fibre, the 5 Gbps rate survives the distance, and the copper conductors bundled alongside keep USB 2.0 traffic and the 5 V supply intact. There is no transmitter, no receiver and no power brick to find space for. The CMP-rated jacket means the cable can go the direct way through a plenum ceiling rather than following a conduit path around the building.
Key Capabilities
- Extends USB 3.2 Gen1, USB 2.0 and USB 1.1 signals across a 50 ft run.
- SuperSpeed data rate of 5 Gbps end to end.
- Delivers 5 V and up to 900 mA (4.5 W) of power to the peripheral.
- NEC CMP plenum rated, so no conduit is needed in most jurisdictions.
- Optional external power pigtail for higher-draw peripherals.
- Host power status LED at the female end.
- Rated to 100 N tensile, 200 N compression and 111 N pull strength.
Where It Is Used

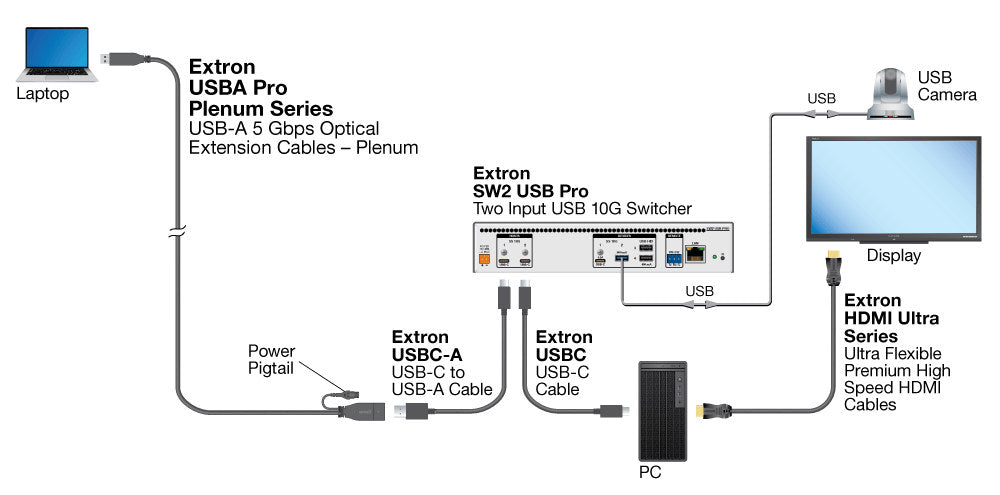

Divisible conference spaces and auditoriums with distant cameras, boardrooms where the codec rack sits in an adjacent room, houses of worship, digital signage with touch overlays, and clinical or industrial areas where the instrument and its host PC are far apart.
Specifications at a Glance
- Length: 50 ft (15.2 m)
- USB: 3.2 Gen1 at 5 Gbps
- Power to peripheral: 5 V at up to 900 mA (4.5 W)
- Connectors: 1 USB A male to 1 USB A female
- Rating: NEC CMP plenum, 0.24 in (6 mm) diameter
Frequently asked questions about the Extron USBA Pro P/50 USB-A Plenum Optical Extension 50 ft
Does Ampronix sell the Extron USBA Pro P/50 USB-A Plenum Optical Extension 50 ft?
Yes. Ampronix is an authorized Extron distributor and sells the Extron USBA Pro P/50 USB-A Plenum Optical Extension 50 ft (26-728-50). Call Ampronix for a quote.
Does Ampronix offer replacement and exchange for the Extron USBA Pro P/50 USB-A Plenum Optical Extension 50 ft?
Yes. Ampronix provides sales, replacement and exchange for the Extron USBA Pro P/50 USB-A Plenum Optical Extension 50 ft. Call Ampronix for a quote.
Is the Extron USBA Pro P/50 USB-A Plenum Optical Extension 50 ft listed under other names?
Yes. The Extron USBA Pro P/50 USB-A Plenum Optical Extension 50 ft is also referenced as Extron USBAProP50, USBA-Pro-P-50, part number 2672850.
What are the key features of the Extron USBA Pro P/50 USB-A Plenum Optical Extension 50 ft?
Key points: Extends USB 3.2 Gen1, USB 2.0 and USB 1.1 signals across a 50 ft run; SuperSpeed data rate of 5 Gbps end to end; Delivers 5 V and up to 900 mA (4.5 W) of power to the peripheral; NEC CMP plenum rated, so no conduit is needed in most jurisdictions. Call Ampronix to confirm details for your application.
Also referenced as Extron USBAProP50, USBA-Pro-P-50, part number 2672850.
