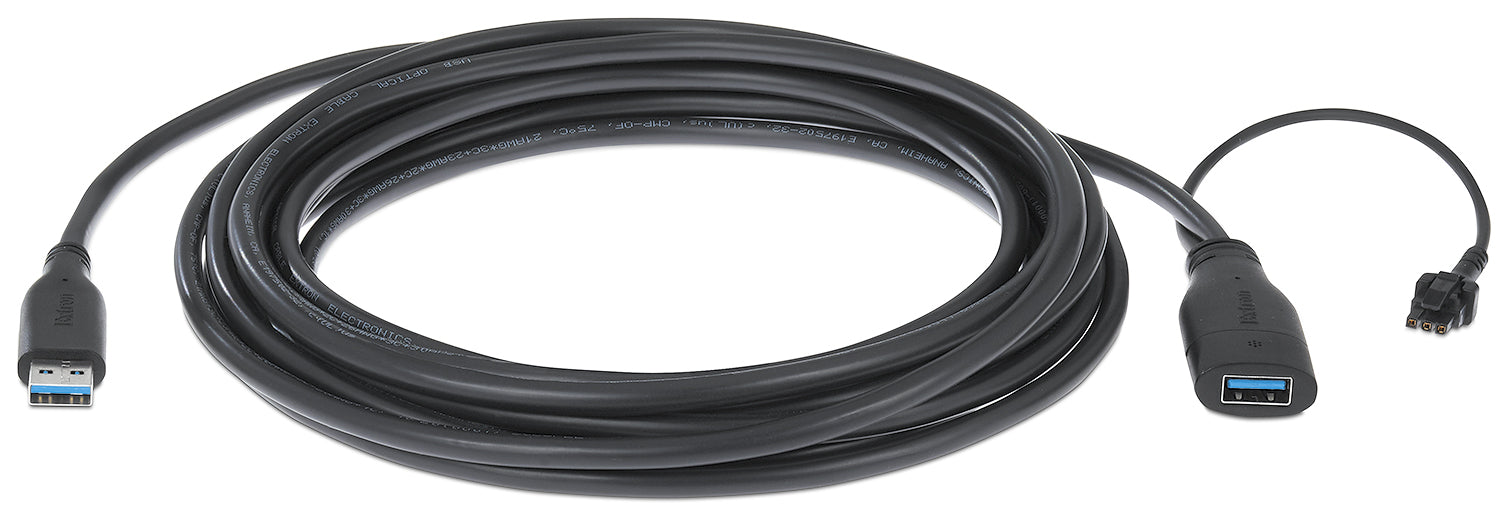

Extron USBA Pro P/25 (part number 26-728-25) — a 25 ft (7.6 m) plenum-rated USB-A male to female active extension carrying SuperSpeed USB and peripheral power.

Twenty-five feet is a common gap between a rack or credenza and a wall-mounted camera, and it is far beyond what a passive USB cable will hold at 5 Gbps. Extron bridges it with a hybrid build: fibre for the SuperSpeed lanes, copper for the USB 2.0 path and the 5 V rail. Nothing needs to be racked or powered separately, because the conversion circuitry runs on the host's own supply. The CMP-rated jacket lets the cable be routed through plenum space without conduit in most jurisdictions.

Key Capabilities

• Extends USB 3.2, 2.0 and 1.1 signals across 25 ft with a 5 Gbps SuperSpeed rate.
• Delivers 5 V and up to 900 mA (4.5 W) to the USB peripheral.
• Plenum, NEC CMP rated cable for open air space installation.
• Optional external power pigtail for peripherals with a larger appetite.
• Host power status LED on the female connector.
• Gold-plated contacts, 0.24 in (6 mm) jacket, 0.79 in (20 mm) bend radius.
• Rated to 100 N tensile, 200 N compression and 111 N pull strength.

Where It Is Used

Meeting rooms and lecture spaces with ceiling or wall cameras, huddle spaces with USB speakerphones, digital signage with attached touch overlays, testing and QA benches, and clinical or industrial areas where the instrument and the host computer are in different parts of the room.

Specifications at a Glance

• Length: 25 ft (7.6 m)
• USB: 3.2 Gen1 at 5 Gbps
• Power to peripheral: 5 V at up to 900 mA (4.5 W)
• Connectors: 1 USB A male to 1 USB A female
• Rating: NEC CMP plenum, 0.24 in (6 mm) diameter

Also referenced as Extron USBAProP25, USBA-Pro-P-25, part number 2672825.
