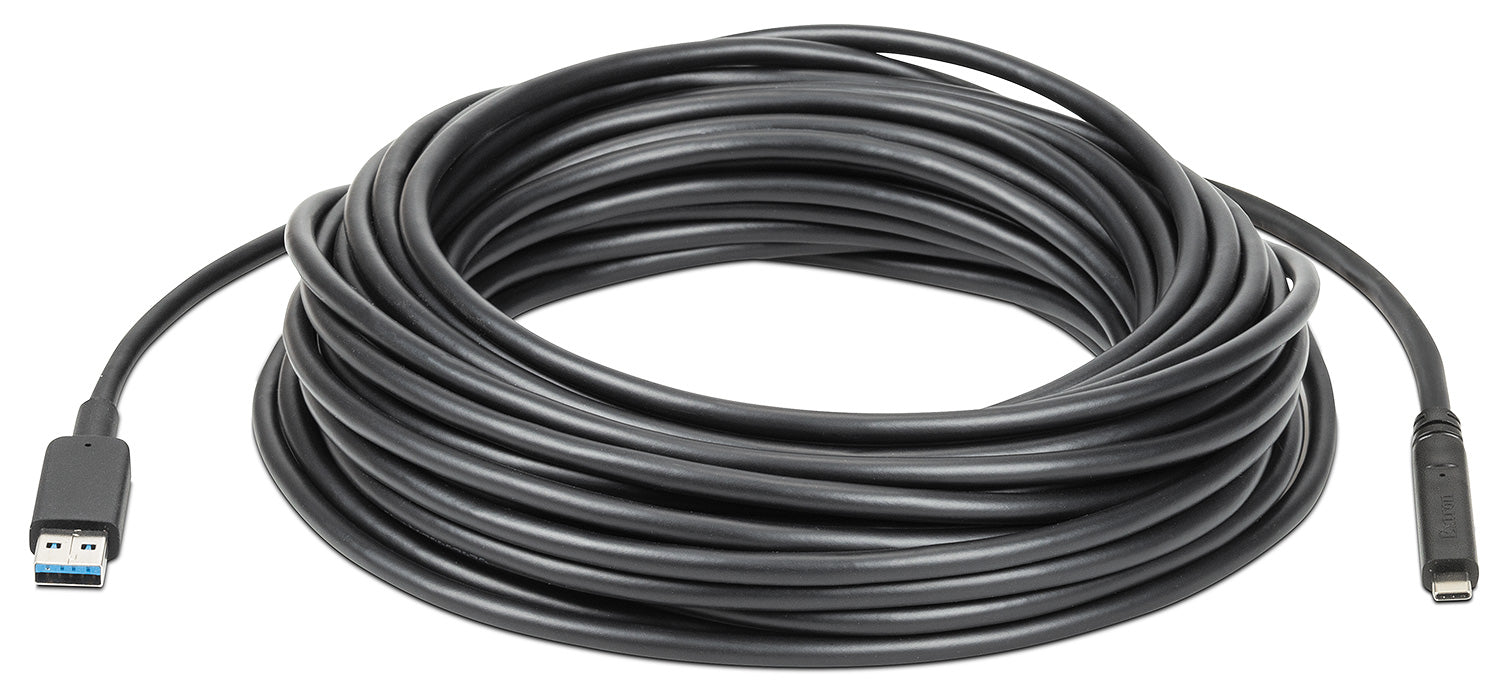

Extron USBA-C ProMax P/65 (part number 26-758-65) — a 65 ft (19.8 m) plenum-rated active optical cable connecting a USB-A host to a USB-C peripheral at 10 Gbps.

Sixty-five feet is the longest length in this series that still delivers the full 4.5 W to the peripheral, which matters when the far end is a powered camera or a touch controller rather than a passive device. High-speed data crosses on multimode fibre while integrated copper carries the supply, and the conversion circuitry at each end feeds itself from the connected equipment. An NEC CMP jacket lets the run pass through plenum air space, so the cable can take the direct route above the ceiling instead of a conduit path.

Key Capabilities

• USB 3.2 Gen2 at 10 Gbps, and USB 5 Gbps, across the full 65 ft.
• Still supplies the full 4.5 W (5 V at 900 mA) at this length.
• NEC CMP plenum jacket rated for in-wall and ceiling installation.
• No power supply, transmitter or receiver to install anywhere on the run.
• 0.24 in (6.0 mm) outer diameter with a 1.92 in (49 mm) bend radius.
• Highly resistant to EMI and RFI in electrically noisy buildings.
• Gold-plated contacts; the USB-C end is reversible.

Where It Is Used

Large conference rooms and lecture theatres with ceiling cameras, divisible rooms where the codec rack is remote, courtrooms and council chambers, clinical and laboratory suites with distant USB instruments, and industrial spaces with significant electrical interference.

Specifications at a Glance

• Length: 65 ft (19.8 m)
• USB: 3.2 Gen2 at 10 Gbps
• Power to peripheral: up to 4.5 W
• Connectors: 1 USB Type A male to 1 USB-C male
• Rating: NEC CMP plenum, 0.24 in (6.0 mm) diameter

Also referenced as Extron USBACProMaxP65, USBA-C-ProMax-P-65, part number 2675865.
