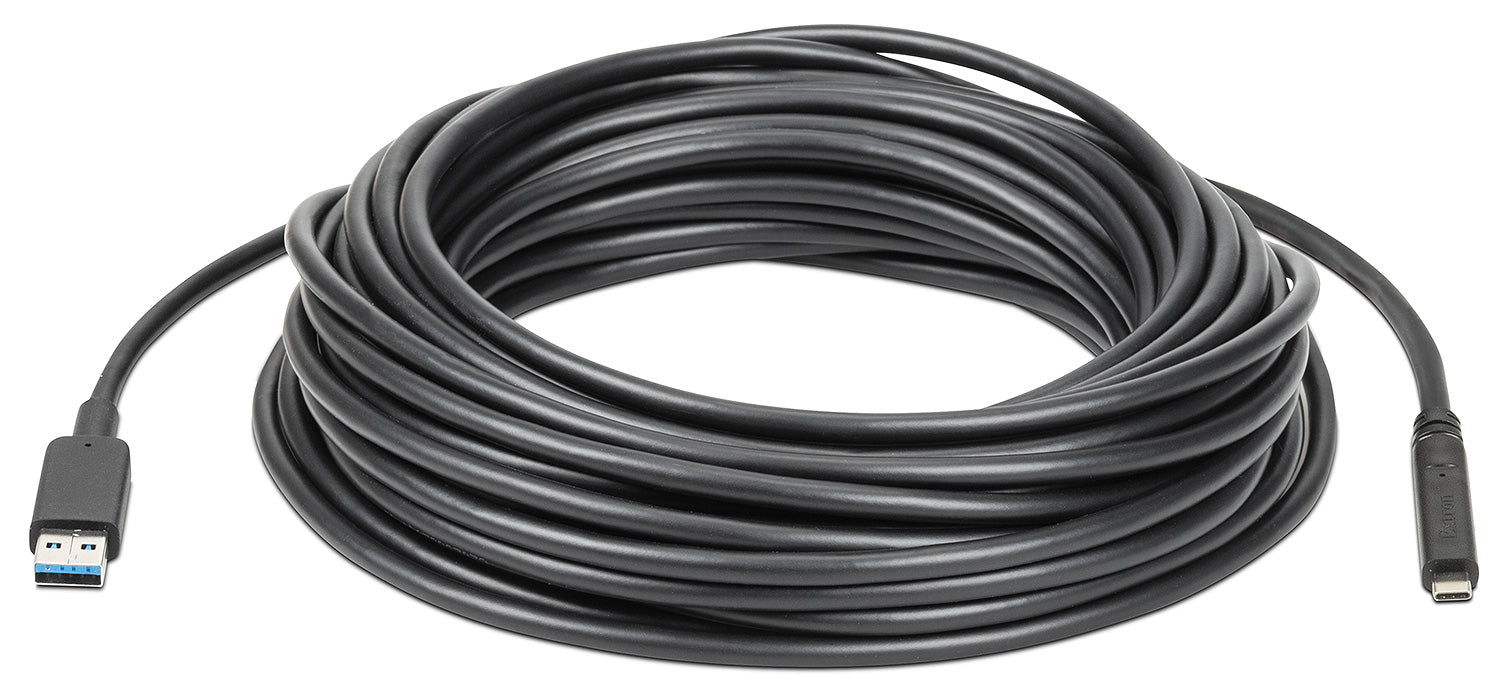

Extron USBA-C ProMax P/100 (part number 26-758-100) — the longest cable in the series at 100 ft (30.4 m), carrying USB 10 Gbps data and peripheral power in a plenum-rated jacket.

A hundred feet of SuperSpeed USB in a single cable is the point of this product. Multimode fibre carries the data, copper carries the supply, and the active circuitry at both ends is fed by the connected equipment rather than a wall adapter. Note the one difference from the shorter members of the family: at this length the peripheral receives 3 W rather than 4.5 W, delivered at 5 V and 600 mA — worth checking against the power budget of whatever hangs on the far end.

Key Capabilities

• USB 10 Gbps and 5 Gbps connections over a 100 ft (30.4 m) run.
• Delivers up to 3.0 W to the peripheral at 5 V and 600 mA.
• NEC CMP plenum jacket, rated for in-wall and ceiling installation.
• Built-in active circuitry needs no external power supply.
• 0.24 in (6.0 mm) diameter with a 1.92 in (49 mm) bend radius.
• Rated to 100 N tensile, 200 N compression and 111 N pull strength.
• Gold-plated contacts and a reversible USB-C connector.

Where It Is Used

Auditoriums and large lecture halls with distant camera positions, multi-room facilities where the host equipment lives in a central rack, courtrooms, houses of worship, and industrial or clinical installations that need USB across a building without an extender chassis.

Specifications at a Glance

• Length: 100 ft (30.4 m)
• USB: 3.2 Gen2 at 10 Gbps
• Power to peripheral: up to 3.0 W (5 V, 600 mA)
• Connectors: 1 USB Type A male to 1 USB-C male
• Rating: NEC CMP plenum, 0.24 in (6.0 mm) diameter

Also referenced as Extron USBACProMaxP100, USBA-C-ProMax-P-100, part number 26758100.
