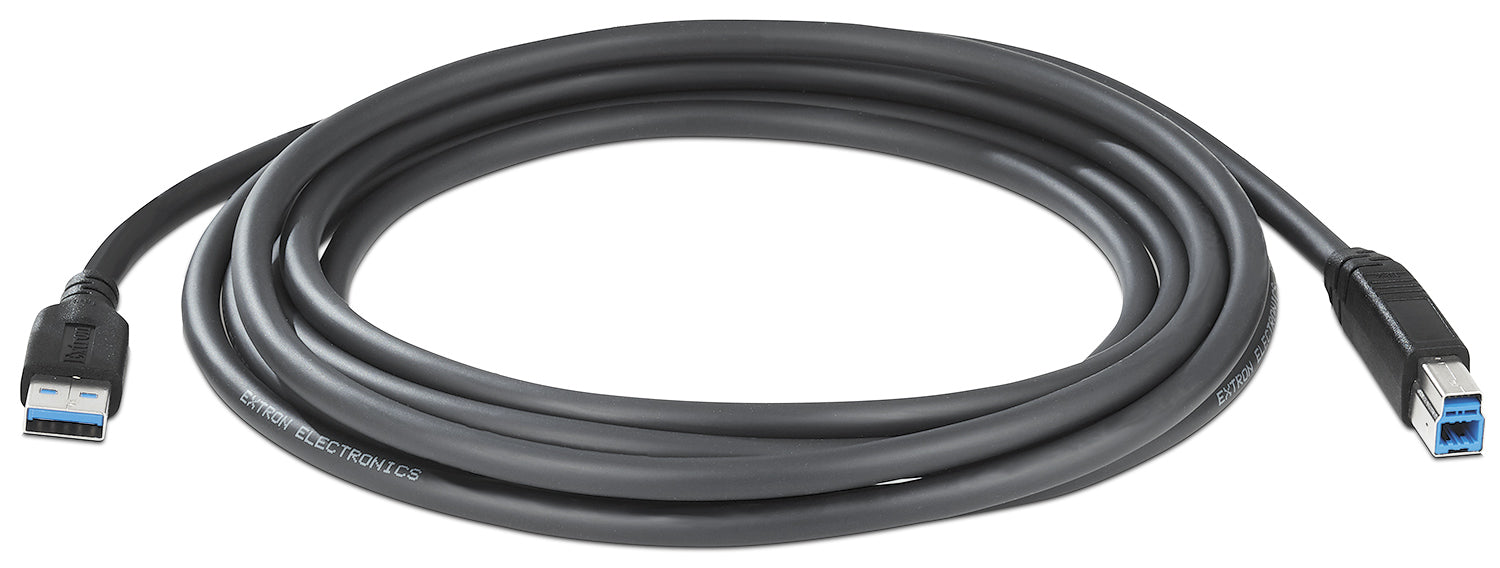

Extron USBA-B/9 (part number 26-751-09) — at 9 ft (2.7 m) this is the longest cable in the USBA-B Series, linking a host computer to a USB-B peripheral at SuperSpeed rates.

Nine feet is what you reach for when the peripheral will not sit next to the computer: a USB audio interface at the far end of a desk, a control processor in an adjacent rack bay, a document camera on a separate trolley. The extra length does not cost anything in performance, since the cable is still rated for 5 Gbps under USB 3.2 Gen1 and still passes 5 V at 0.9 A for bus-powered devices. The 28 AWG UltraFlex construction keeps it flexible over the longer run.

Key Capabilities

• Longest cable in the USBA-B Series at 9 ft (2.7 m).
• USB 3.2 Gen1 SuperSpeed at up to 5 Gbps, with USB 2.0 and 1.1 compatibility.
• Delivers up to 900 mA at 5 V for bus-powered peripherals.
• 28 AWG conductors, UltraFlex PVC jacket, 0.24 in (6.0 mm) diameter.
• 0.96 in (24 mm) bend radius keeps the routing tidy despite the length.
• Gold-plated contacts for a tarnish-free, long-lasting connection.
• Extron Limited Lifetime Performance warranty.

Where It Is Used

Studio and production desks, larger equipment racks where the host and the peripheral sit in different bays, classroom and lecture-capture rigs, laboratory instrument stations, and clinical or industrial workstations with a peripheral positioned away from the computer.

Specifications at a Glance

• Length: 9 ft (2.7 m)
• USB: 3.2 Gen1 at up to 5 Gbps
• Power: up to 5 V at 0.9 A
• Connectors: 1 USB A male to 1 USB B male
• Cable: 28 AWG, 0.24 in (6.0 mm) diameter, UltraFlex PVC jacket

Also referenced as Extron USBAB9, USBA-B-9, part number 2675109.
