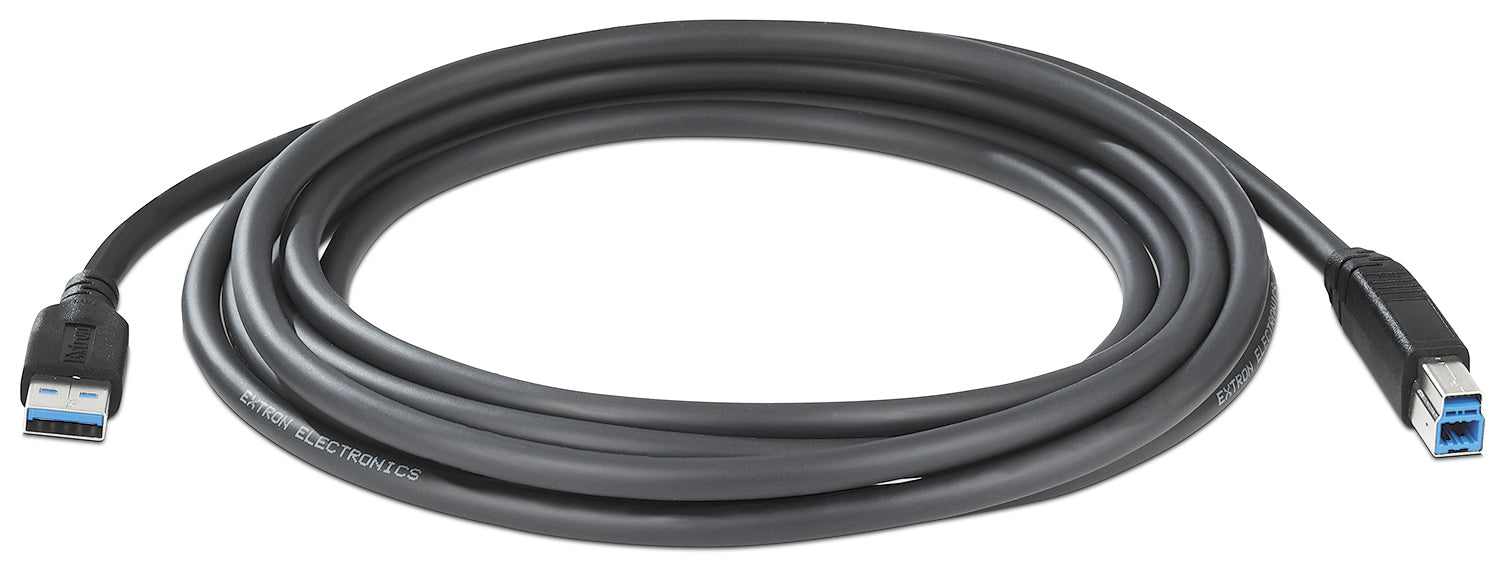

Extron USBA-B/3 (part number 26-751-03) — a 3 ft (0.9 m) USB-A male to USB-B male cable for connecting a host computer to a peripheral at SuperSpeed rates.

USB-B is still the connector of choice on audio interfaces, printers, document cameras, control processors and countless pieces of rack gear. This is the short cable for that job: three feet, long enough to reach the next rack unit or across a desk, short enough not to leave a coil behind the equipment. Extron builds it on 28 AWG conductors inside an UltraFlex PVC jacket, which is what makes a cable this stiff-connectored still easy to dress.

Key Capabilities

• USB 3.2 Gen1 with data rates to 5 Gbps, and full USB 2.0 and 1.1 compatibility.
• Carries up to 5 V at 0.9 A, delivering up to 900 mA of bus power to the peripheral.
• Gold-plated contacts resist tarnish for a durable connection over years of service.
• UltraFlex PVC jacket over 28 AWG conductors, 0.24 in (6.0 mm) in diameter.
• 0.96 in (24 mm) bend radius suits tight rack and furniture routing.
• Rated for operation from 0 to 50 degrees C.
• Covered by Extron Limited Lifetime Performance warranty.

Where It Is Used

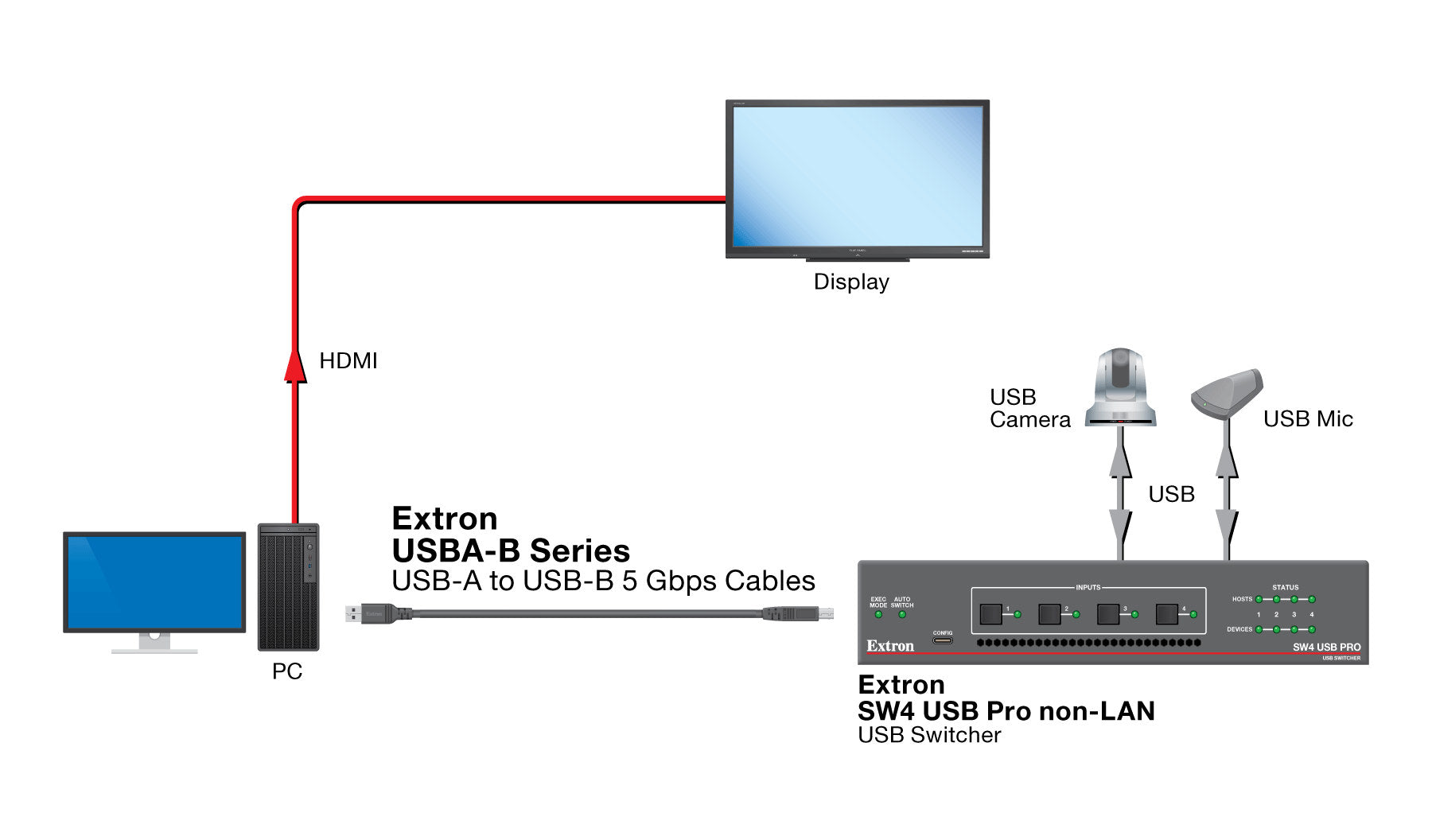

Equipment racks connecting control processors and audio DSPs to a host PC, lectern and credenza bays, recording and production desks with USB audio interfaces, laboratory instrument benches, and clinical carts where a peripheral sits alongside its computer.

Specifications at a Glance

• Length: 3 ft (0.9 m)
• USB: 3.2 Gen1 at up to 5 Gbps
• Power: up to 5 V at 0.9 A
• Connectors: 1 USB A male to 1 USB B male
• Cable: 28 AWG, 0.24 in (6.0 mm) diameter, UltraFlex PVC jacket

Also referenced as Extron USBAB3, USBA-B-3, part number 2675103.
