Manufacturer: Extron | Model: USB PowerPlate 411 AAP | Part number: 60-2086-02 (also written 60208602)

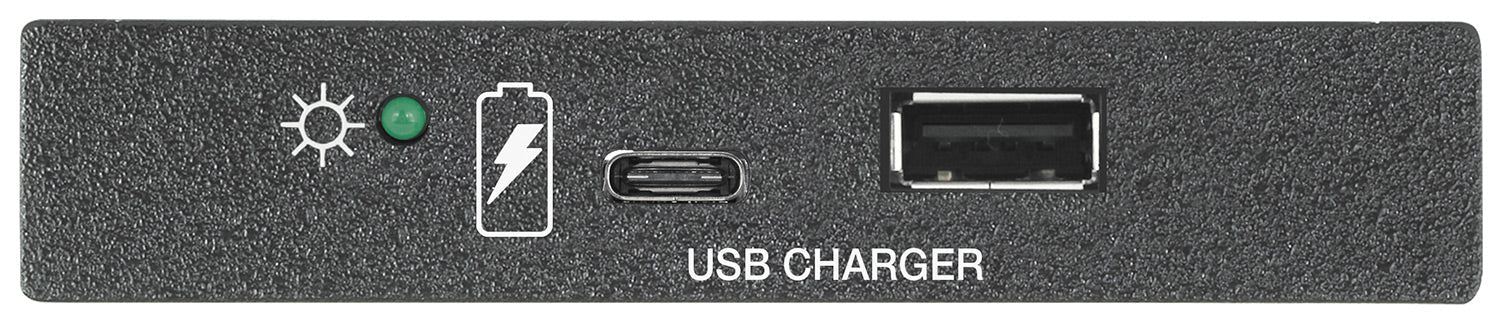

The Extron USB PowerPlate 411 AAP (part number 60-2086-02, 60208602) is a new, single-space black AAP module available through Ampronix that delivers USB-C and USB-A device charging from within Cable Cubby enclosures, compatible wallplates, and TouchLink enclosures. The USB-C port supplies up to 100 W of power when a single high-draw device is connected, while the USB-A port provides up to 10 W. When only one port is active, the module routes the full available power to that port, making it well suited for laptops and tablets with higher charging demands.

Key capabilities

• USB-C up to 100 W — delivers full power to a single connected laptop or tablet; USB-A up to 10 W for smartphones and accessories

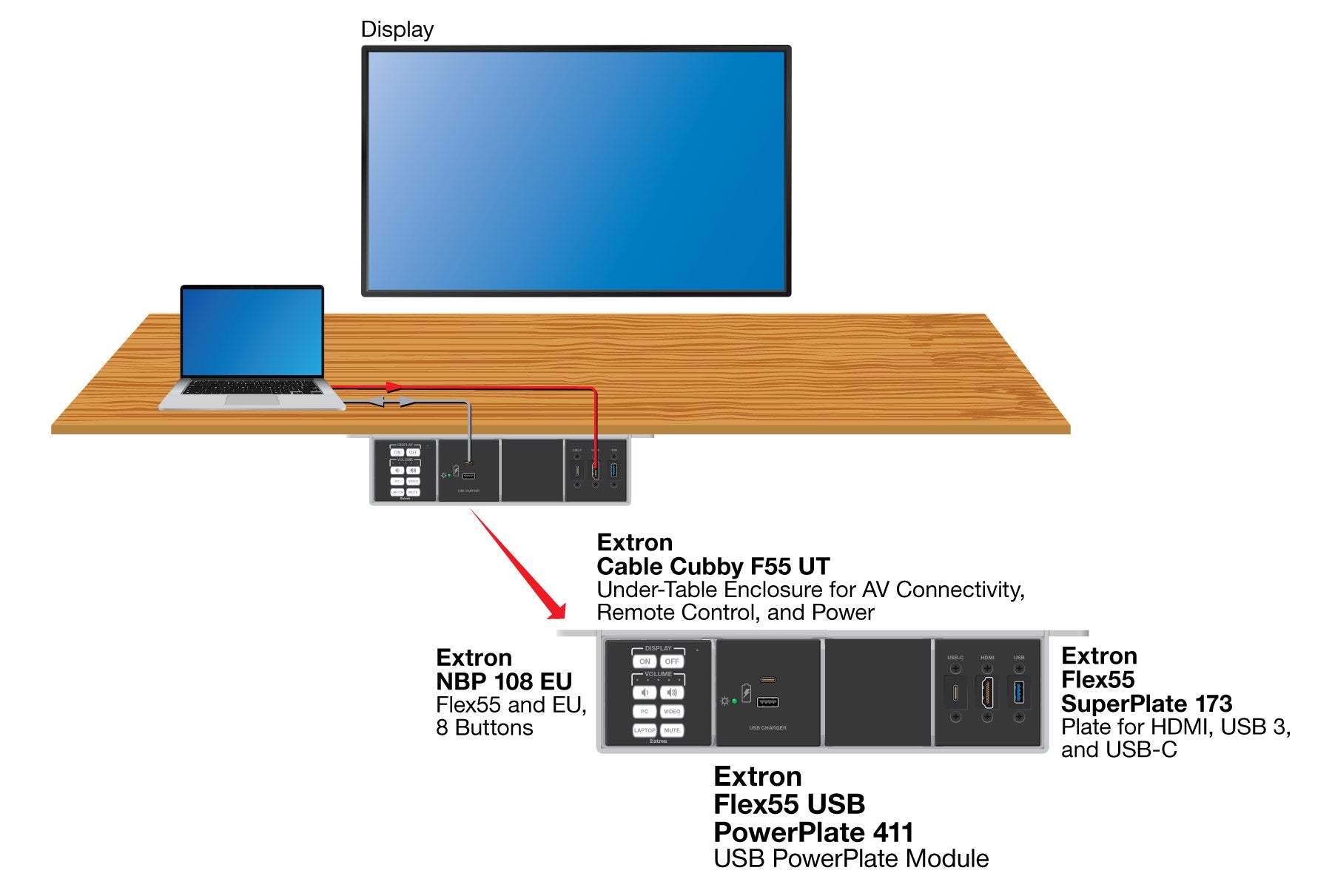

• Single-space AAP form factor — installs directly into Cable Cubby Series enclosures and AAP-compatible wallplates without additional brackets
• Included UPI 100 power inserter — external Level VI efficient power supply routes up to 109.1 W to connected devices; ZipClip 200 mounting kit included for surface attachment

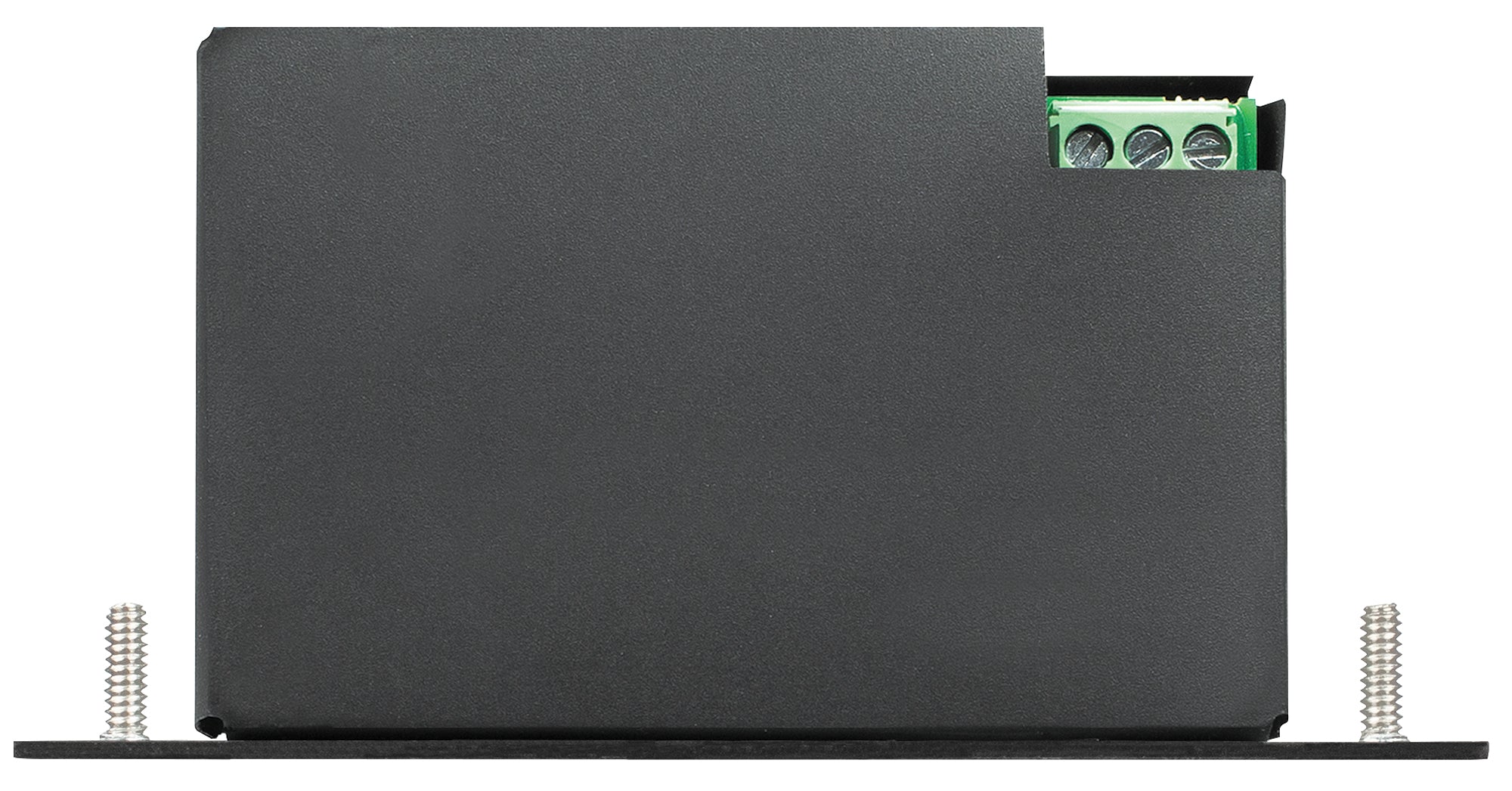

• Compact aluminum enclosure — convection cooled, no vents, measures 4.0 in (10.2 cm); designed for continuous commercial use
• Wide environmental rating — operates from 32 to 122 degrees F (0 to 50 degrees C); stores from -40 to 158 degrees F at up to 90% noncondensing humidity

Where it is used

Integrators specify the Extron USB PowerPlate 411 AAP in conference rooms, boardrooms, huddle spaces, classrooms, and lecture halls where USB-C and USB-A charging must be available at the table or lectern without a separate AC power module. Its single-space footprint conserves panel space inside Cable Cubby enclosures.

Specifications at a glance

• USB-C power output: up to 100 W
• USB-A power output: up to 10 W
• Total device draw: 109.1 W; with supply: 122.9 W
• Form factor: Single-space AAP, black
• Enclosure: Aluminum, convection cooled, 4.0 in (10.2 cm)

Frequently asked questions

• Is the Extron USB PowerPlate 411 AAP available new or refurbished? — Ampronix stocks the USB PowerPlate 411 AAP (60-2086-02) as a new unit. Ampronix is an authorized Extron distributor supplying new Extron products.
• What enclosures is the USB PowerPlate 411 AAP compatible with? — The 60-2086-02 installs into Extron Cable Cubby Series enclosures and any AAP-compatible wallplate or TouchLink enclosure.
• Does Ampronix offer support for the Extron USB PowerPlate 411 AAP? — Yes. Ampronix provides repair, exchange, and replacement services for the USB PowerPlate 411 AAP and the broader Extron PowerPlate line.

Ampronix is an authorized distributor of Extron products. Need support for your Extron USB PowerPlate 411 AAP? Ampronix offers professional repair, exchange, and replacement services for this product and the broader Extron PowerPlate line.

Also referenced as Extron USBPowerPlate411AAP, USB-PowerPlate-411-AAP, part number 60208602.
