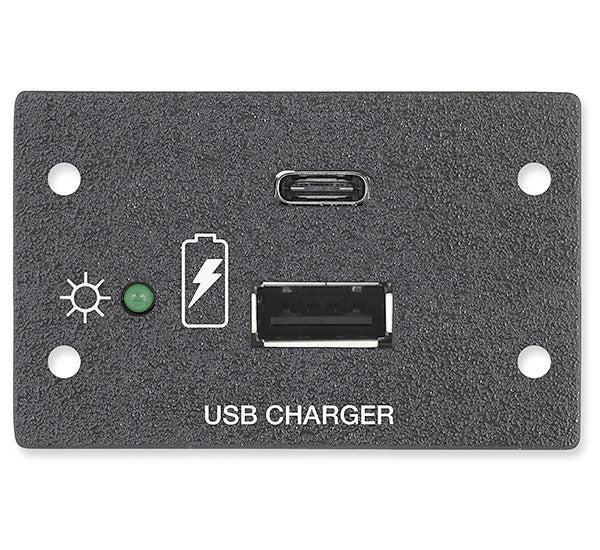

Extron USB PowerPlate 311 MAAP (part number 60-1785-02, Black) — a double-space USB-C and USB-A charging module for MAAP connectivity plates.

Compact MAAP openings can now carry the same fast-charging capability as a full AAP plate. This MAAP module puts a 45 W USB-C outlet and a 10 W USB-A outlet into a double-space Mini AV opening, with full power delivered to either outlet when only one device is connected, so integrators get real charging capacity without a full-size AAP module.

Key Capabilities

• USB-C outlet delivers up to 45 W, USB-A outlet up to 10 W, 47.5 W combined
• Fits any double-space MAAP opening in Extron connectivity products
• Full power to a single connected device when only one port is in use
• External Extron Everlast power supply backed by a 7-year warranty
• Metal enclosure engineered for continuous commercial use

Where It Is Used

Fits boardrooms and huddle spaces where the plate already carries MAAP video, network or control modules and fast USB-C charging is needed in the same compact footprint.

Specifications at a Glance

• 1x USB-C (45 W), 1x USB-A (10 W), 47.5 W combined maximum
• Double-space MAAP faceplate, metal enclosure
• External Everlast power supply, Level VI efficiency
• 3-year product warranty, 7-year Everlast power supply warranty

Also referenced as Extron USBPOWERPLATE311MAAP, USB-PowerPlate-311-MAAP, part number 60178502.
