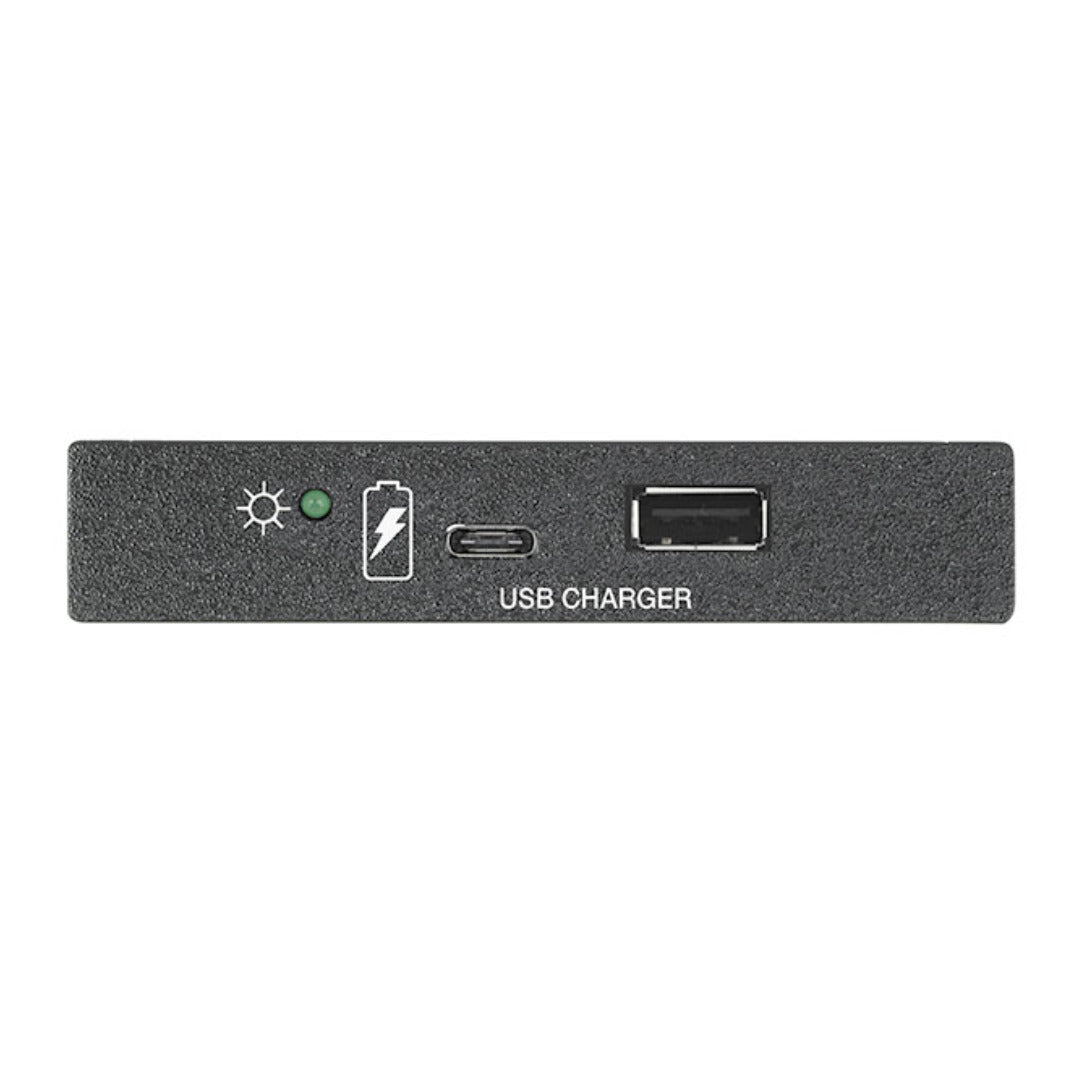

Extron USB PowerPlate 311 AAP (part number 60-1783-02, Black) — a single-space USB-C and USB-A charging module for AAP connectivity plates.

Laptops and tablets increasingly need higher wattage than a legacy USB-A port can deliver. This AAP module puts a 45 W USB-C outlet and a 10 W USB-A outlet in one single-space AAP opening, with the design able to deliver full power to either outlet when only one device is connected, so integrators can add real charging capacity without giving up a second plate position.

Key Capabilities

• USB-C outlet delivers up to 45 W, USB-A outlet up to 10 W, 47.5 W combined
• Fits any single-space AAP opening in Extron connectivity products
• Full power to a single connected device when only one port is in use
• External Extron Everlast power supply backed by a 7-year warranty
• Metal enclosure engineered for continuous commercial use

Where It Is Used

Specified for boardrooms, huddle rooms and classroom lecterns where laptops and tablets need fast USB-C charging alongside existing AAP video, network or control modules on the same plate.

Specifications at a Glance

• 1x USB-C (45 W), 1x USB-A (10 W), 47.5 W combined maximum
• Single-space AAP faceplate, metal enclosure
• External Everlast power supply, Level VI efficiency
• 3-year product warranty, 7-year Everlast power supply warranty

Also referenced as Extron USBPOWERPLATE311AAP, USB-PowerPlate-311-AAP, part number 60178302.
