Extron USB Plus Matrix Controller 42-267-01

Details

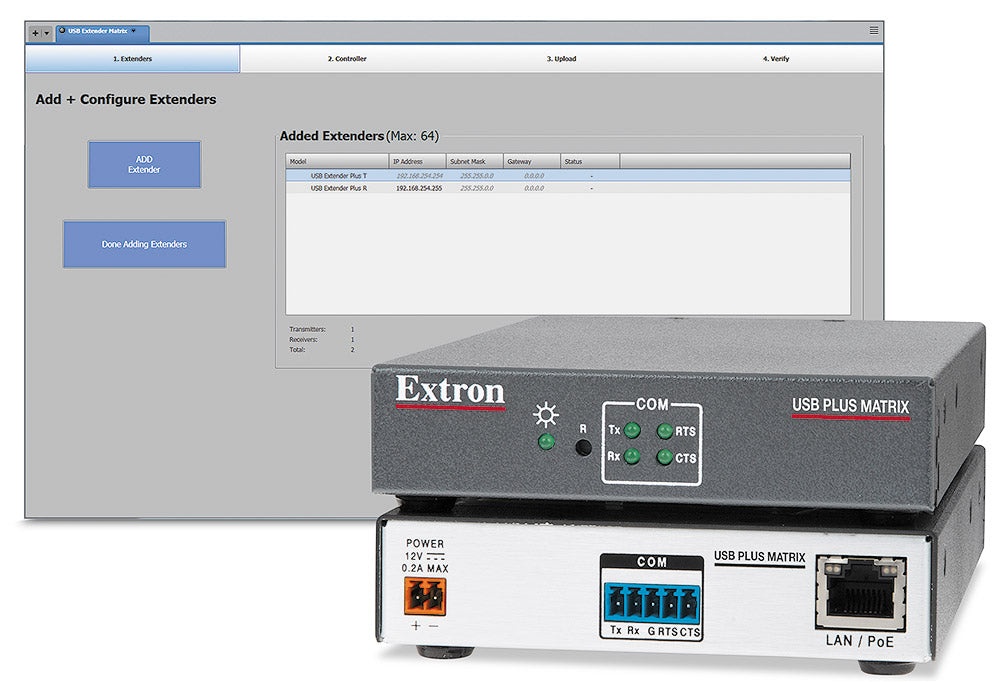

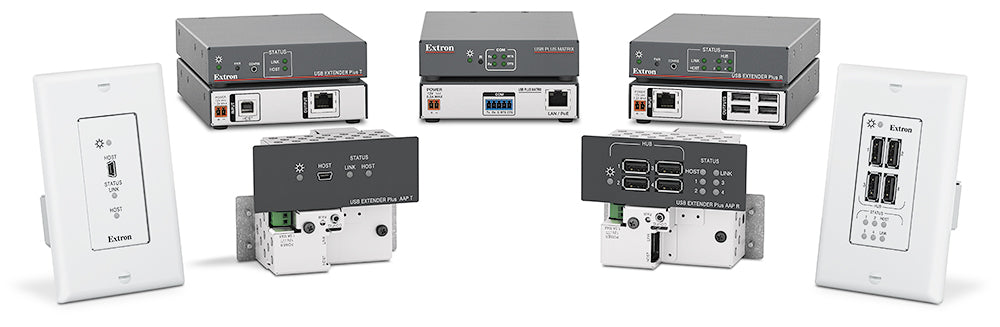

Extron USB Plus Matrix Controller (part number 42-267-01) — the management engine behind a distributed USB Extender Plus deployment.

Large facilities that need to route keyboards, mice, storage, webcams and other USB peripherals to shared host computers cannot rely on point-to-point cabling alone. The USB Plus Matrix Controller sits on the network and coordinates USB Extender Plus transmitters and receivers, letting an integrator build a switchable USB matrix over standard Ethernet infrastructure instead of running dedicated USB cable to every endpoint.

Key Capabilities

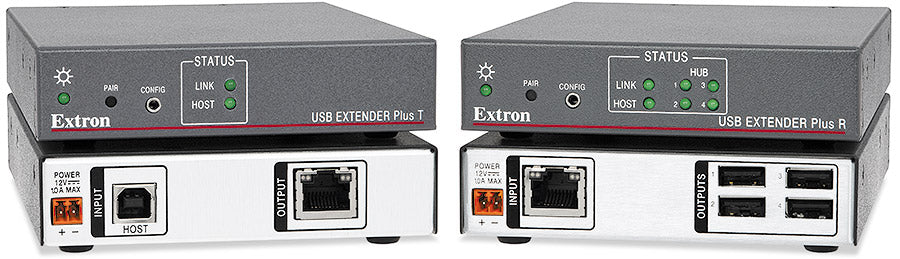

Coordinates USB Extender Plus transmitter and receiver pairs over Ethernet
512 MB SDRAM and 512 MB flash for onboard control processing
Gigabit Ethernet control port, 10/100/1000Base-T with autodetect
Bidirectional RS-232 serial port for third-party control integration
Powers over standard 12 VDC supply or Power over Ethernet, PoE 802.3af Class 3
Quarter-rack 1U metal chassis for equipment room mounting

Where It Is Used

Deployed in control rooms, trading floors, simulation and training centers, and multi-room facilities where operators need to reassign USB peripherals between multiple host computers without physically re-cabling desks.

Specifications at a Glance

512 MB SDRAM, 512 MB flash memory
1 Gigabit Ethernet NIC, RJ-45 connector
1 bidirectional RS-232 serial control port
External 12 VDC power or PoE Class 3
3-year product warranty, 7-year Everlast power supply warranty

Also referenced as Extron USBPLUSMATRIXCONTROLLER, USB-Plus-Matrix-Controller, part number 4226701.

Specifications

Part Number: 42-267-01

Manufacturer: Extron

Model: USB Plus Matrix Controller

Condition: New

SDRAM: 512 MB

Flash: 512 MB

Network Interface Controllers (NICs): 1

Ethernet Connector: 1 female RJ-45

Data Rate: 10/100/1000Base-T, half/full duplex with autodetect

Protocols: DHCP, DNS, HTTP, HTTPS, ICMP, NTP, SFTP, SMTP, SNMP, SSH, TCP/IP, UDP/IP

Default Network Settings: Link speed/duplex autodetected; IP address 192.168.254.250; subnet mask 255.255.255.0; gateway 0.0.0.0; DHCP off; DNS 127.0.0.1

Serial Control: 1 bidirectional RS-232, (1) 3.5 mm captive screw connector, 5-pole

Baud Rate and Protocol: 300 to 115200 baud (9600 default); 8 or 7 data bits; 1 or 2 stop bits; no, even, or odd parity

Power: External supply; input 100-240 VAC, 50-60 Hz; output 12 VDC, 0.5 A, 6 W

Power Input Requirements: 12 VDC, 1 A, 12 W max, or Power over Ethernet (PoE, complies with 802.3af Class 3)

Power Consumption (Device): 1.5 W, 12 VDC

Power Consumption (Device and Power Supply): 2.0 W, 100-240 VAC, 50-60 Hz

Temperature (Storage): -40 to +158 °F (-40 to +70 °C), 10% to 90% RH noncondensing

Temperature (Operating): +32 to +122 °F (0 to +50 °C), 10% to 90% RH noncondensing

Cooling: Convection, no vents

Thermal Dissipation (Device): 5.2 BTU/hr

Thermal Dissipation (Device and Power Supply): 6.8 BTU/hr

Rack Mount: Yes, with optional 1U rack shelf or back-of-rack mounting kit

Furniture Mount: Yes, with optional bracket kit

Enclosure Type: Metal

Enclosure Dimensions: 1.0" H x 4.3" W x 6.0" D (1U high, quarter rack wide) (25 mm H x 109 mm W x 152 mm D); depth excludes connectors

Product Weight: 0.6 lbs (0.3 kg)

Regulatory Compliance: CE, c-UL, UL, C-tick, FCC Class A, ICES, RoHS, WEEE

Product Warranty: 3 years parts and labor

Everlast Power Supply Warranty: 7 years parts and labor
