Manufacturer: Extron | Model: USB Matrix Controller xi | Part number: 60-2022-01 (also written 60202201)

The Extron USB Matrix Controller xi (part number 60-2022-01 / 60202201) is the network-based USB switching controller for the USB Extender xi Series, enabling many-to-many USB routing between multiple USB Extender xi transmitters and receivers across a Gigabit Ethernet network. Rather than a fixed point-to-point pair, the USB Matrix Controller xi allows any USB host to connect to any USB peripheral at any remote location on the network, enabling flexible USB sharing in multi-room facilities, collaborative workspaces, and large Pro AV installs. Configured via Global Configurator Plus/Professional; controlled via Extron Control, TouchLink Pro touchpanels, or eBUS button panels. Ampronix is an authorized Extron distributor and carries a full range of Extron USB extension products.

Key capabilities

• Network USB matrix switching: any host to any peripheral across all xi Series extenders on the network
• Gigabit Ethernet (10/100/1000Base-T); supports USB 2.0/1.1/1.0; up to 1,980 ft (600 m) per extender link
• Control via TouchLink Pro, eBUS panels, or Extron Control app; programmed via Global Scripter
• PoE 802.3af Class 3 or external 12 VDC; RS-232/422/485; fanless metal quarter-rack enclosure
• 0.7 lbs; 3-year warranty; 7-year Everlast PSU warranty. Part# 60-2022-01 / 60202201

Where it is used

The Extron USB Matrix Controller xi (60-2022-01) is deployed in multi-room university campuses, enterprise campuses, government facilities, and large corporate AV networks where USB peripheral sharing across rooms and floors is required — enabling shared USB drives, printers, control devices, and BYOD peripherals to be accessed from any connected location.

System components and compatible part numbers

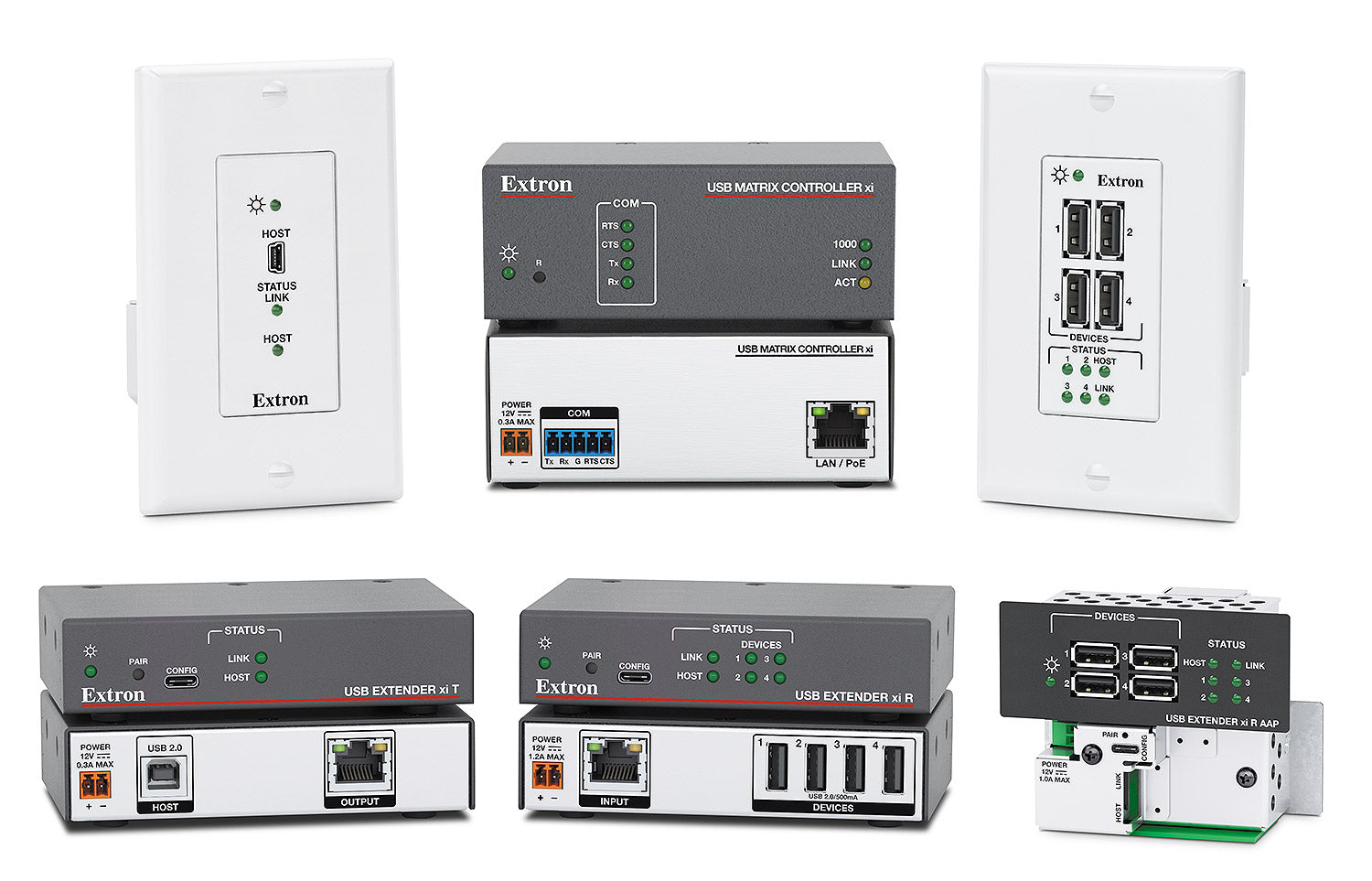

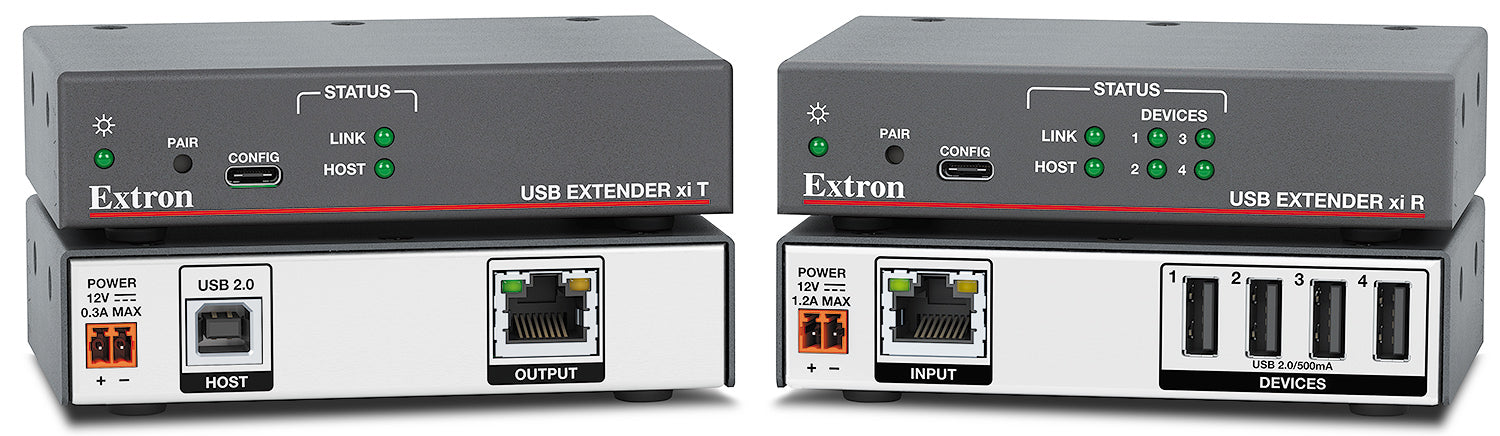

• Transmitters: Extron USB Extender xi T (60-1964-12), xi T D (60-1966-12), xi T HID (60-1967-12) - any xi Series transmitter on the network
• Receivers: Extron USB Extender xi R (60-1964-13), xi R D (60-1966-13), xi R AAP (60-1965-22), xi R HID (60-1967-13) - any xi Series receiver on the network

Specifications at a glance

• Part number: 60-2022-01 / 60202201; type: USB matrix network controller; USB: 2.0/1.1/1.0
• Network: 10/100/1000Base-T; control: TouchLink Pro, eBUS, Extron Control, Global Scripter
• Power: PoE 802.3af or 12 VDC; weight: 0.7 lbs; dims: 1.7" x 4.3" x 6.0"

Frequently asked questions

• Is the Extron USB Matrix Controller xi 60-2022-01 available new? - Yes, the Extron USB Matrix Controller xi (60-2022-01) is available new from Ampronix, an authorized Extron distributor.
• Do I need the USB Matrix Controller xi for a simple point-to-point USB extension? - No, a single xi T and xi R pair extends USB point-to-point without a controller; the USB Matrix Controller xi (60-2022-01) is only needed for network-based many-to-many USB routing between multiple xi Series units.
• Does Ampronix support the Extron USB Matrix Controller xi? - Yes, as an authorized Extron distributor Ampronix offers sales and support for the USB Matrix Controller xi and the full USB Extender xi Series.
• Which xi Series units work with the USB Matrix Controller xi? - It works with all USB Extender xi transmitters and receivers on the network, including the xi T, xi T D, xi T HID transmitters and xi R, xi R D, xi R AAP, xi R HID receivers.

Also referenced as: ExtronUSBMatrixControllerxi, USB Matrix Controller xi, Extron USB network matrix, part number 60202201, 60-2022-01.
