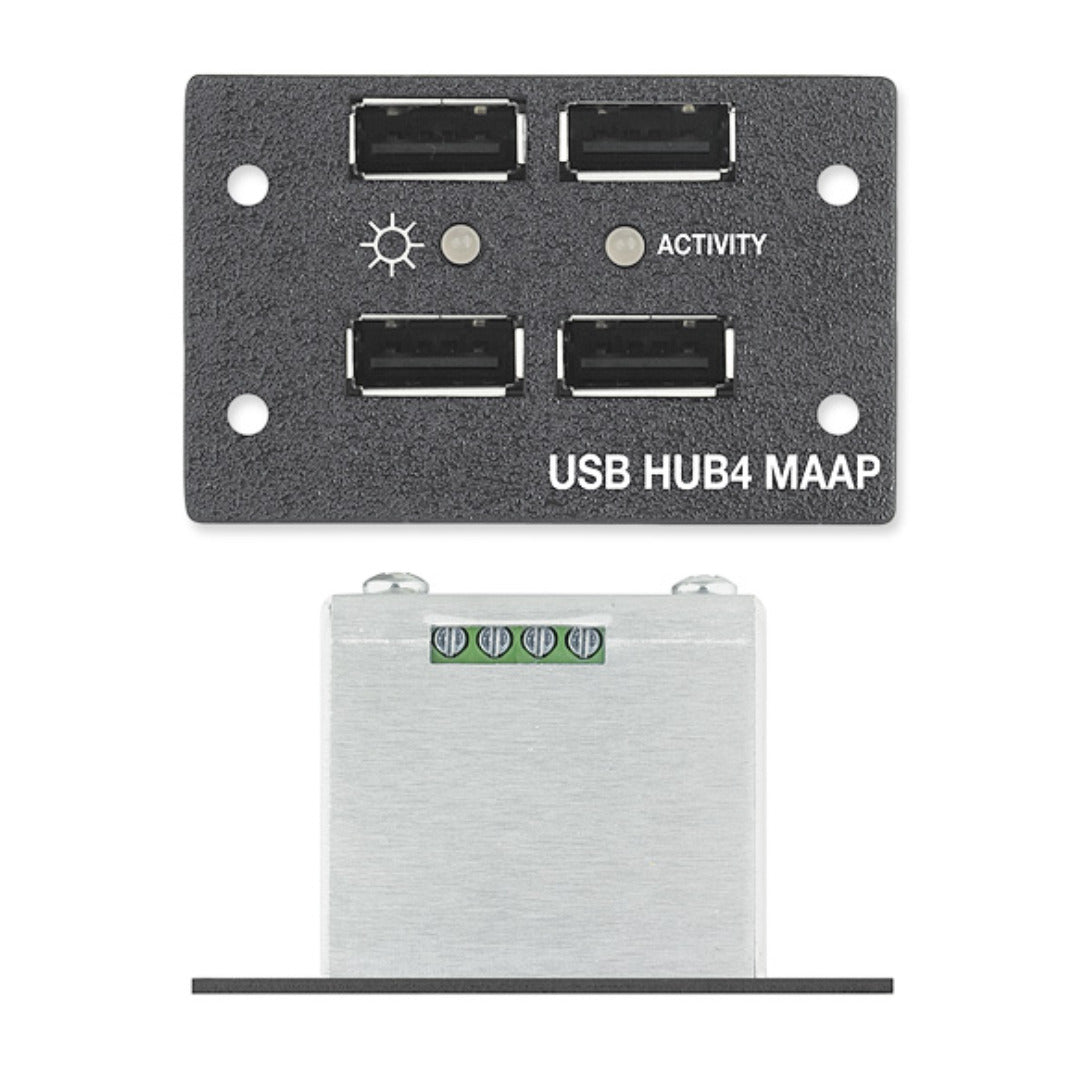

Extron USB HUB4 MAAP (part number 60-1030-51, RAL9010 White) — a compact four-port USB 2.0 hub built for architectural integration.

This RAL9010-finish variant of the USB HUB4 MAAP gives specifiers a European standard white match for plate systems built to that color reference. Functionally it is the same Mini AV module: one upstream USB host connection is split into four downstream ports, all built into a housing sized for a double-space MAAP opening so the hub disappears into the wall or furniture plate rather than sitting as a separate desktop accessory.

Key Capabilities

• Four female USB 2.0 Type A downstream ports from one host connection
• High-speed data transfer up to 480 Mbps
• 500 mA of shared USB power across all four ports with external supply

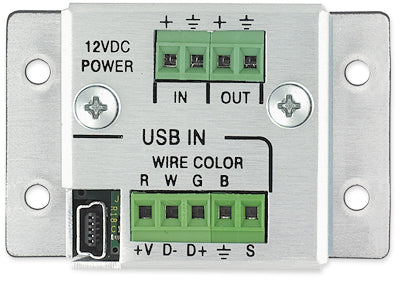

• Host input via USB mini B or 5-pole 3.5 mm captive screw terminal
• RAL9010 white finish for color-matched European plate specifications
• Fits any double-space MAAP opening in Extron connectivity products

Where It Is Used

Specified on projects that standardize on RAL9010 plates and enclosures — European boardrooms, control rooms and collaboration spaces — where the 60-1030-51 unit adds USB access without breaking the finish scheme.

Specifications at a Glance

• USB 2.0, 1.1, and 1.0 compatible, high speed to 480 Mbps
• 4x USB Type A device ports, 1x host connector
• 500 mA shared power, external 100-240 VAC supply
• Metal enclosure, double-space MAAP faceplate
• 3-year parts and labor warranty

Also referenced as Extron USBHUB4MAAP, USB-HUB4-MAAP, part number 60103051.
