Extron USB HUB4 MAAP White Four-Port USB Hub 60-1030-21
Extron USB HUB4 MAAP White Four-Port USB Hub 60-1030-21
Extron USB HUB4 MAAP Four-Port USB Hub
- • Extron USB HUB4 MAAP white four-port USB hub
- • Four USB 2.0 Type A ports from one host connection
- • 480 Mbps data, 500 mA shared across all ports
- • Sales, replacement and exchange
- • Part# 60-1030-21 / 60103021
Product discontinued.
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details
Extron USB HUB4 MAAP (part number 60-1030-21, White) - a compact four-port USB 2.0 hub built for architectural integration.
Rooms with a single computer or laptop input often still need several accessible USB ports for cameras, keyboards, or storage. This White-finish USB HUB4 MAAP takes one upstream host link and fans it out to four downstream ports, housed in a Mini AV module sized to slot into any double-space MAAP opening. That keeps hub electronics out of sight inside the plate assembly rather than sitting loose on a table.
Key Capabilities
- Four female USB 2.0 Type A downstream ports from one host connection
- High-speed data transfer up to 480 Mbps
- 500 mA of shared USB power across all four ports with external supply

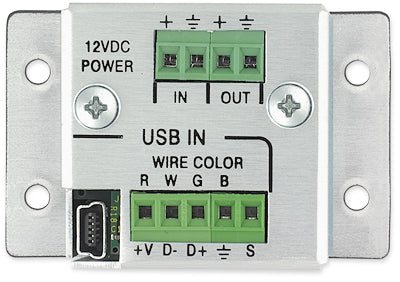

- Host input via USB mini B or 5-pole 3.5 mm captive screw terminal
- White finish matches light-colored architectural plates and furniture
- Fits any double-space MAAP opening in Extron connectivity products
Where It Is Used

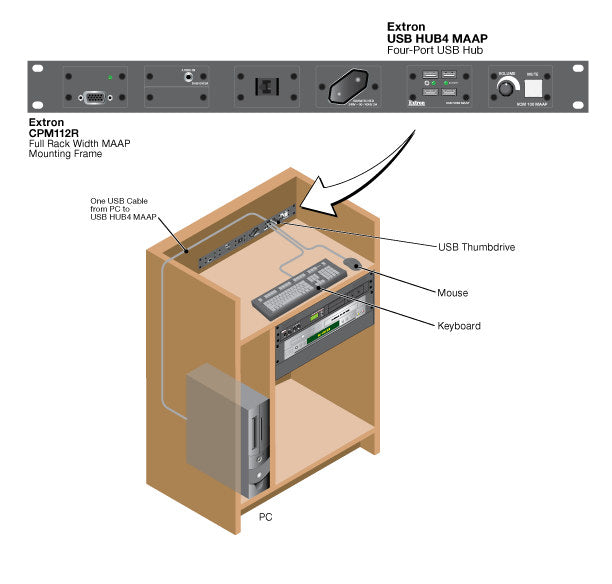

Integrators choose the White 60-1030-21 unit for training rooms, classrooms and huddle spaces finished in light-colored furniture, giving presenters a matching USB expansion point next to their existing video and audio connectors.
Specifications at a Glance
- USB 2.0, 1.1, and 1.0 compatible, high speed to 480 Mbps
- 4x USB Type A device ports, 1x host connector
- 500 mA shared power, external 100-240 VAC supply
- Metal enclosure, double-space MAAP faceplate
- 3-year parts and labor warranty
Frequently asked questions about the Extron USB HUB4 MAAP White Four-Port USB Hub
Does Ampronix sell the Extron USB HUB4 MAAP White Four-Port USB Hub?
Yes. Ampronix is an authorized Extron distributor and sells the Extron USB HUB4 MAAP White Four-Port USB Hub (60-1030-21). Call Ampronix for a quote.
Does Ampronix offer replacement and exchange for the Extron USB HUB4 MAAP White Four-Port USB Hub?
Yes. Ampronix provides sales, replacement and exchange for the Extron USB HUB4 MAAP White Four-Port USB Hub. Call Ampronix for a quote.
Is the Extron USB HUB4 MAAP White Four-Port USB Hub listed under other names?
Yes. The Extron USB HUB4 MAAP White Four-Port USB Hub is also referenced as Extron USBHUB4MAAP, USB-HUB4-MAAP, part number 60103021.
What are the key features of the Extron USB HUB4 MAAP White Four-Port USB Hub?
Key points: Four female USB 2.0 Type A downstream ports from one host connection; High-speed data transfer up to 480 Mbps; 500 mA of shared USB power across all four ports with external supply; Host input via USB mini B or 5-pole 3.5 mm captive screw terminal. Call Ampronix to confirm details for your application.
Also referenced as Extron USBHUB4MAAP, USB-HUB4-MAAP, part number 60103021.
Related: Extron products, Video Solutions.
