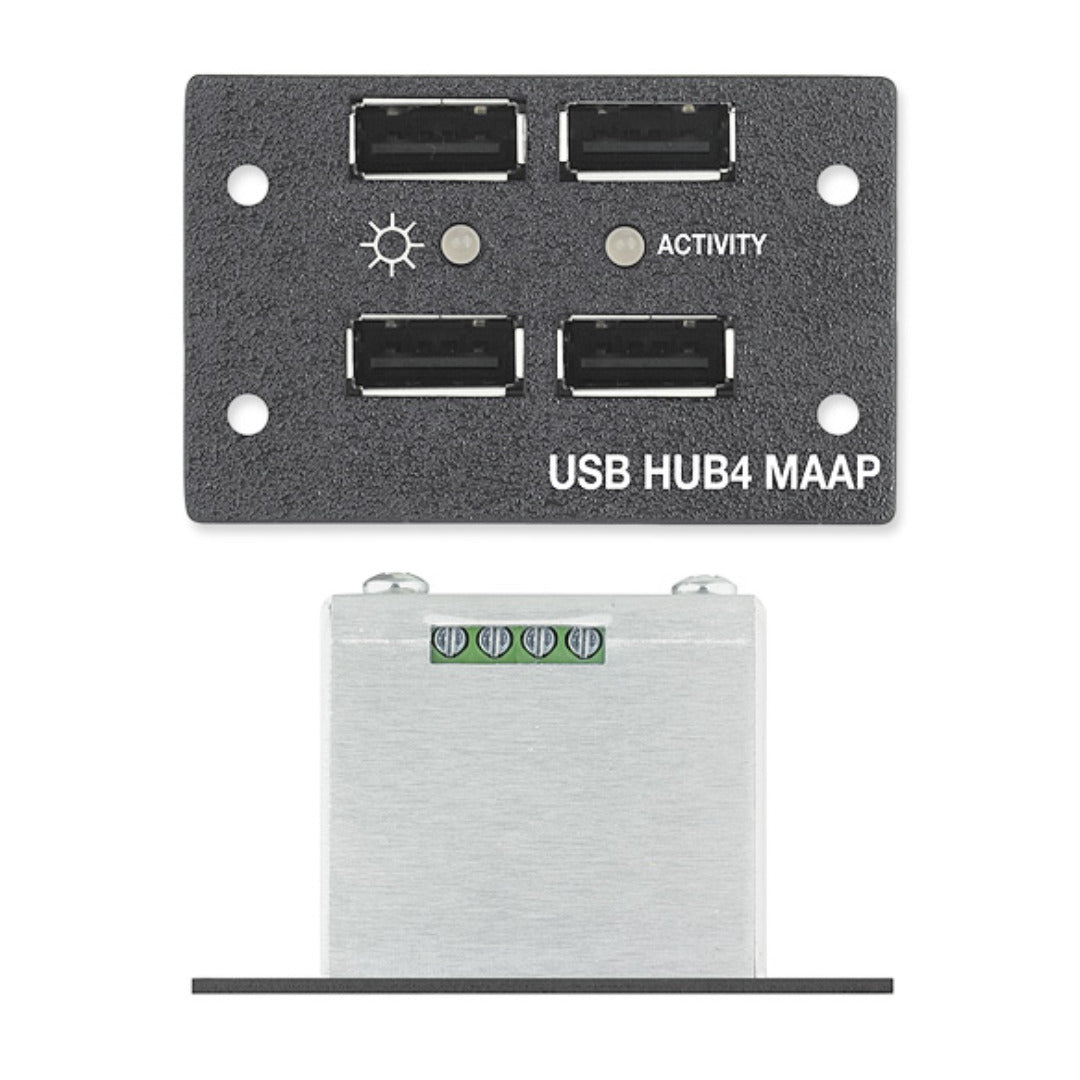

Extron USB HUB4 MAAP (part number 60-1030-11, Black) — a compact four-port USB 2.0 hub built for architectural integration.

Meeting rooms and control positions often need more USB access points than a single host port provides. The USB HUB4 MAAP solves that by taking one upstream USB connection and splitting it into four downstream ports, all packaged inside a Mini AV module that drops into any Extron device or plate with a double-space MAAP opening. Because the module lives inside the furniture or wall plate itself, integrators avoid loose external hubs cluttering the tabletop.

Key Capabilities

• Four female USB 2.0 Type A downstream ports from a single host connection
• High-speed data transfer up to 480 Mbps
• 500 mA of shared USB power across all four ports with external supply

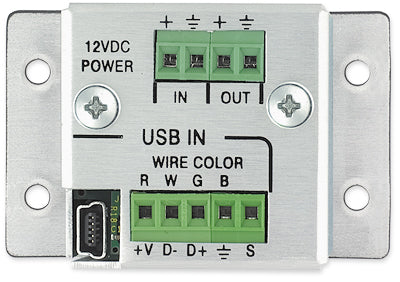

• Host input via USB mini B or 5-pole 3.5 mm captive screw terminal
• Fits any double-space MAAP opening in Extron connectivity products
• Compact metal device housing at 1.4" H x 1.4" W x 1.2" D

Where It Is Used

Designers specify the Black 60-1030-11 unit for huddle rooms, BYOD conference tables and lecterns where a discreet, color-matched USB expansion point is needed alongside HDMI, network or audio connectors already built into an AAP or MAAP plate assembly.

Specifications at a Glance

• USB 2.0, 1.1, and 1.0 compatible, high speed to 480 Mbps
• 4x USB Type A device ports, 1x host connector
• 500 mA shared power, external 100-240 VAC supply
• Metal enclosure, double-space MAAP faceplate
• 3-year parts and labor warranty

Also referenced as Extron USBHUB4MAAP, USB-HUB4-MAAP, part number 60103011.
