Extron USB HUB4 AAP 60-1031-22
Extron USB HUB4 AAP 60-1031-22
Extron USB HUB4 AAP 60-1031-22 White
- • Extron USB HUB4 AAP white four-port USB 2.0 hub
- • Expands one USB host port into four device ports
- • Fits Extron architectural mounting systems
- • Sales, replacement and exchange
- • Part# 60-1031-22 / 60103122
Product discontinued.
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details
Manufacturer: Extron; Model: USB HUB4 AAP; Part number: 60-1031-22 (also written 60103122)
The Extron USB HUB4 AAP (60-1031-22) is a four-port USB 2.0 hub in a white double-space AAP module. It mounts in Extron AAP frames alongside other AV connectivity modules, providing clean in-frame USB expansion for table boxes and lecterns. The white finish complements light-colored furniture and AAP frames. A 6 ft USB A Male to Mini B Male cable is included and an external 12 VDC supply is needed to power the hub ports.
Key capabilities
- Four USB 2.0 Type A ports at up to 480 Mbps per port, 500 mA each when externally powered
- White double-space AAP module mounts in any Extron AAP-compatible frame

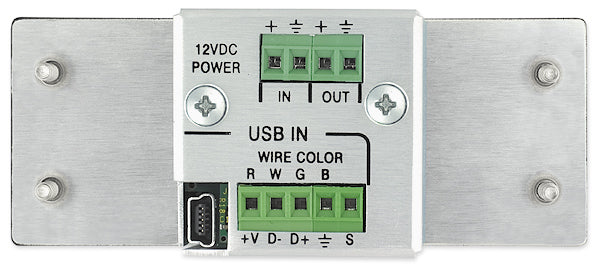

- Accepts host connection via USB Mini B or 5-pole 3.5 mm captive screw (one at a time)
- 6 ft USB A to Mini B cable included
- Requires optional external 12 VDC power supply for port power delivery
Where it is used

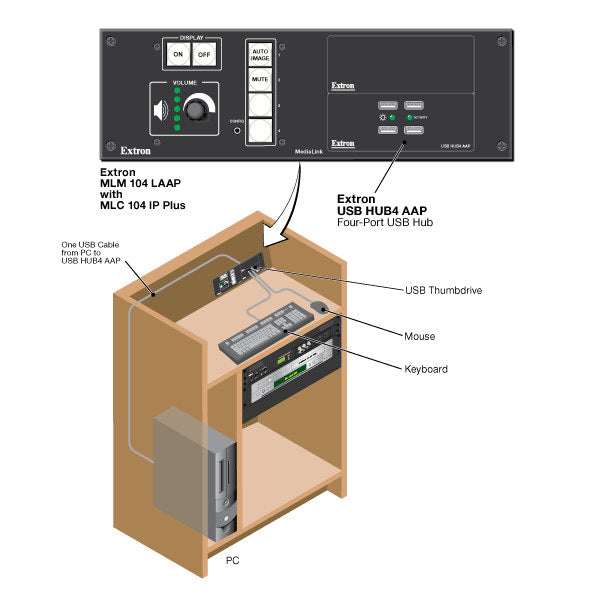

White-finish table boxes, wall frames, and lecterns where a clean integrated USB hub is needed alongside other Extron AAP modules.
Specifications at a glance
- Faceplate: 1.4 in H x 3.5 in W, white finish
- Device enclosure: 1.4 in H x 1.4 in W x 1.2 in D
- Operating temperature: +32 to +122 F
- Warranty: 3-year Extron parts and labor
Frequently asked questions about the Extron USB HUB4 AAP
Does Ampronix sell the Extron USB HUB4 AAP?
Yes. Ampronix is an authorized Extron distributor and sells the Extron USB HUB4 AAP (60-1031-22). Call Ampronix for a quote.
Does Ampronix offer replacement and exchange for the Extron USB HUB4 AAP?
Yes. Ampronix provides sales, replacement and exchange for the Extron USB HUB4 AAP. Call Ampronix for a quote.
Is the Extron USB HUB4 AAP listed under other names?
Yes. The Extron USB HUB4 AAP is also referenced as Extron USBHUB4AAP, USB-HUB4-AAP, part number 60103122.
What are the key features of the Extron USB HUB4 AAP?
Key points: Four USB 2.0 Type A ports at up to 480 Mbps per port, 500 mA each when externally powered; White double-space AAP module mounts in any Extron AAP-compatible frame; Accepts host connection via USB Mini B or 5-pole 3.5 mm captive screw (one at a time); 6 ft USB A to Mini B cable included. Call Ampronix to confirm details for your application.
Also referenced as Extron USBHUB4AAP, USB-HUB4-AAP, part number 60103122.
Related: Extron products, Video Solutions.
