Details

Manufacturer: Extron | Model: USB Extender xi T HID | Part number: 60-1967-12 (also written 60196712)

The Extron USB Extender xi T HID (part number 60-1967-12 / 60196712) is the HID-only transmitter of Extron's USB Extender xi Series, limited to Human Interface Device (HID) class USB peripherals — keyboards, mice, touchscreens, and control panels. Where the standard xi T supports all USB 2.0 device types, the HID variant is purpose-built for AV control and BYOD scenarios where only HID device support is required, and is priced and sized accordingly. Extension up to 1,980 feet over Gigabit Ethernet or 330 feet point-to-point. PoE 802.3af or external 12 VDC. Ampronix is an authorized Extron distributor and carries a full range of Extron USB extension products.

Key capabilities

HID-only USB transmitter: keyboards, mice, touchscreens, AV control panels — ideal for control-focused installs
Extension: 1,980 ft (600 m) over Gigabit Ethernet; 330 ft (100 m) point-to-point; USB 2.0 HID class
USB device emulation: reliable host booting even when HID device is disconnected
PoE 802.3af Class 3 or external 12 VDC, 1 A; RJ-45 Gigabit + RS-232/422/485; fanless
Quarter rack, 1U, 0.7 lbs; 3-year warranty; 7-year Everlast PSU warranty. Part# 60-1967-12 / 60196712

Where it is used

The Extron USB Extender xi T HID (60-1967-12) is deployed in classrooms, conference rooms, and control rooms where only HID USB peripherals need extending — keyboard/mouse for a presentation PC, touchscreen control at a remote position, or button panel access across a facility network.

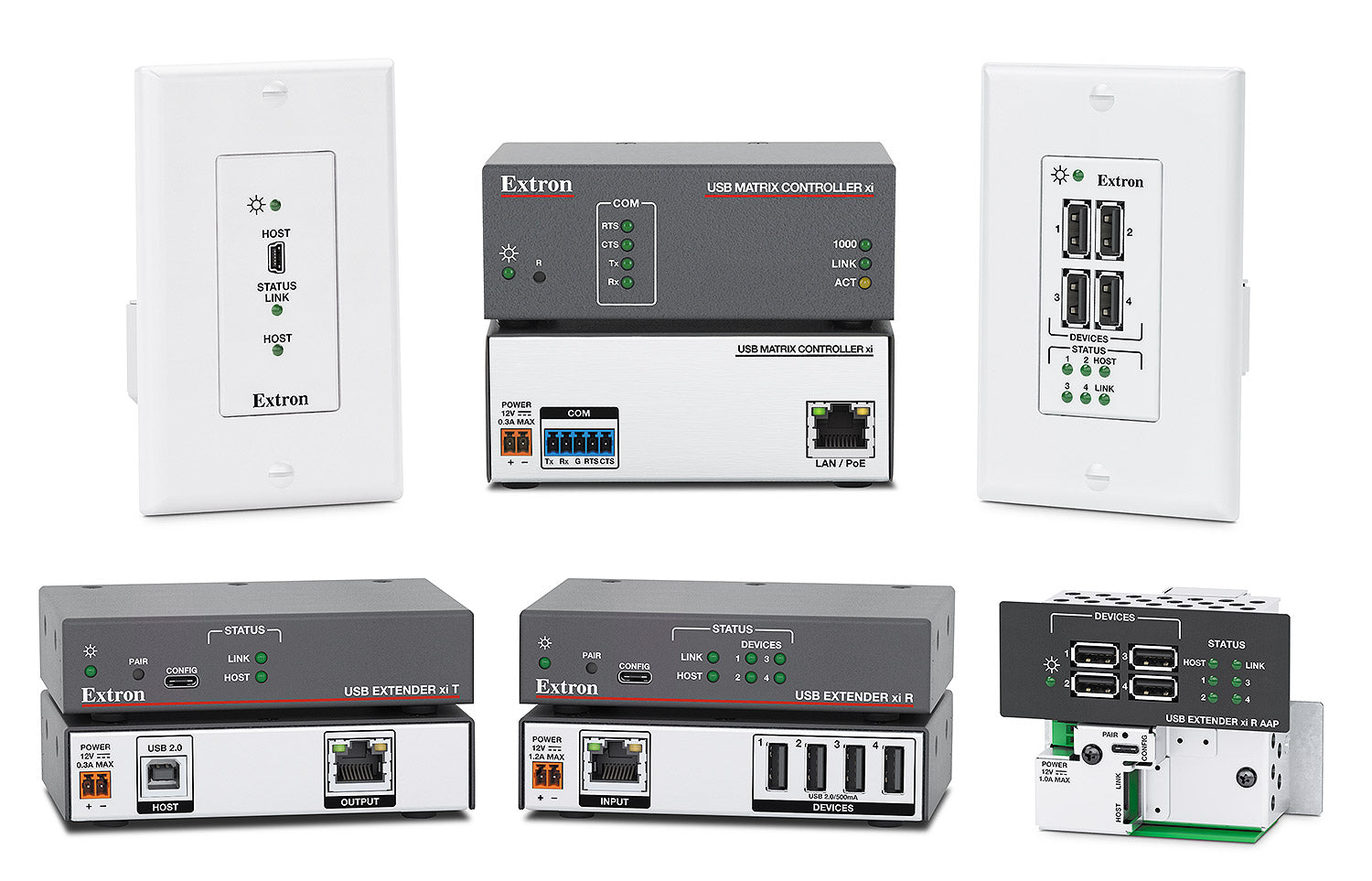

System components and compatible part numbers

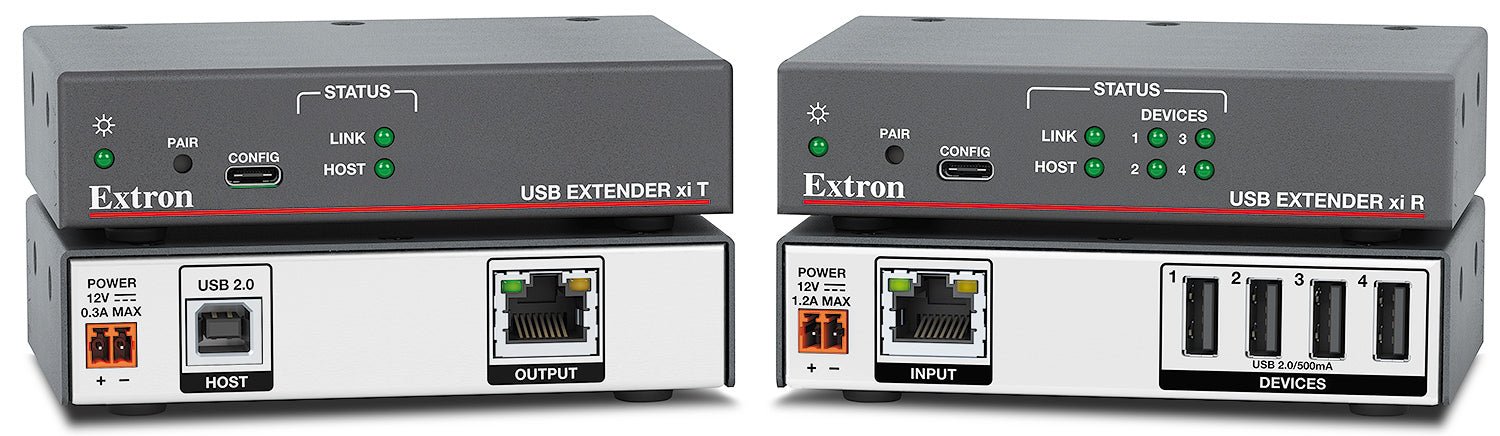

Receiver (remote side): Extron USB Extender xi R HID, part# 60-1967-13 - matching HID-only receiver
Network switching: Extron USB Matrix Controller xi, part# 60-2022-01 - enables many-to-many USB routing across multiple links

Specifications at a glance

Part number: 60-1967-12 / 60196712; USB class: HID only; role: transmitter
Range: 330 ft P2P; 1,980 ft networked; power: PoE 802.3af or 12 VDC; weight: 0.7 lbs

Frequently asked questions

Is the Extron USB Extender xi T HID 60-1967-12 available new? - Yes, the Extron USB Extender xi T HID (60-1967-12) is available new from Ampronix, an authorized Extron distributor.
What is the difference between the xi T HID and the standard xi T? - The xi T HID (60-1967-12) is limited to HID-class USB peripherals such as keyboards, mice, and touchscreens, while the standard xi T (60-1964-12) supports all USB 2.0 device types including storage and audio.
Does Ampronix support the Extron USB Extender xi T HID? - Yes, as an authorized Extron distributor Ampronix offers sales and support for the full USB Extender xi Series, including the xi T HID (60-1967-12) and xi R HID (60-1967-13).
What is the xi T HID used for? - It is used to extend keyboard, mouse, touchscreen, and AV control panel connections in installs where only HID-class devices need to be extended, at a lower cost than the full USB 2.0 xi T.

Also referenced as: ExtronUSBExtenderxiTHID, USB Extender xi T HID, Extron HID USB transmitter, part number 60196712, 60-1967-12.

Specifications

Part Number: 60-1967-12

Manufacturer: Extron

Condition: New

All supported: IPv4, UDP, DHCP, Unicast

Available USB power: 500 mA per port

Baud rate and protocol: 300 to 115200 baud (9600 baud = default); 8 (default) or 7 data bits; 1 (default) or 2 stop bits;no parity (default), even, or odd parity

Configuration software: Global Configurator® Plus and Professional

Connector: 1 female RJ-45 connector

Connectors: 1 female USB type B

Control apps: Extron Control

Cooling: Convection, no vents

Data rate: 10/100/1000Base-T, half/full duplex with autodetect

Data transfer types: Bulk, control, interrupt, and isochronous

Default settings: Link speed and duplex level = autodetectedIP address = 192.168.254.250Subnet mask = 255.255.255.0Gateway = 0.0.0.0DHCP = offDNS = 127.0.0.1

Device: 2.5 watts

Device and power supply: 3.4 watts

Enclosure dimensions: 1.7" H x 4.3" W x 6.0" D (1U high, quarter rack wide) (43 mm H x 109 mm W x 152 mm D) (Depth excludes connectors.)

Enclosure type: Metal

Everlast power supply warranty: 7 years parts and labor

Faceplate: 1.4" H x 3.5" W x 0.1 " D (36 mm H x 89 mm W x 2.5 mm D) Double-space AAP

Flash: 8 GB

Furniture mount: Yes, with optional bracket kit

Hardware: TouchLink® Pro touchpanels, Network Button Panels, or eBUS® button panels

IP Configuration: Static IP (default) or DHCP

Maximum built-in USB hubs: 2

Minimum built-in USB hubs: 0

Network interface controllers (NICs): 1: 1 LAN

Number/signal type: 1 USB

Optional built-in USB hubs: Peripheral emulation enabled: 1 1:n network pairing enabled: 1

Over the network: Up to 1980' (600 m)**

Point to point: Up to 330' (100 m)

Power input requirements: 12 VDC, 1 A, 12 watts, max. Or power over Ethernet (PoE) (complies with PoE 802.3af, class 3)

Power supply: External

Product warranty: 3 years parts and labor

Product weight: 0.7 lbs (0.3 kg)

Programming software: Global Scripter®

Protocol: Ethernet

Protocols: DHCP, DNS, HTTP, HTTPS (redirect), ICMP, IEEE 802.1X , NTP, SFTP, SMTP, SNMP, SSH, TCP/IP, UDP/IP

Quantity/type: 1 bidirectional RS-232, RS-422, RS-485

RS-232 (default): Pin 1 = Tx, 2 = Rx, 3 = Gnd, 4 = RTS, 5 = CTS

RS-422: Pin 1 = Tx-, 2 = Rx-, 3 = Gnd, 4 = Tx+, 5 = Rx+

RS-485: Pins 1 and 2 (tied together) = data-, 3 = Gnd, 4 and 5 (tied together) = data+

Rack mount: Yes, with optional 1U rack shelf or back of the rack mounting kit

Receiver: Input: 100-240 VAC, 50-60 Hz Output: 12 VDC, 1.5 A, 18 watts

Receiver HUB power output: 5 VDC, 500 mA per port

Regulatory compliance: CE, c-UL, KCC, C-tick, FCC Class A, ICES, RoHS, VCCI Class AUL, WEEE

Resource management software: GlobalViewer® Enterprise

SDRAM: 1 GB

Standards: IEEE 802.3u (100Base-T), IEEE 802.3ab (1000Base-T)

Temperature/humidity: Storage: -40 to +158°F (-40 to +70°C) / 10% to 90%, noncondensing Operating: +32 to +122°F (0 to +50°C) / 10% to 90%, noncondensing

Termination standards: TIA 568B

Transmitter: Input: 100-240 VAC, 50-60 Hz Output: 12 VDC, 0.5 A, 6 watts

Transport: TCP/IP, UDP

USB Extender xi Rack Mount: 1.0" H x 4.3" W x 3.0" D (quarter rack width) (25 mm H x 109 mm W x 76 mm D) (Depth excludes connectors.)

USB data rates: Low speed (1.5 Mbps), full speed (12 Mbps), high speed (480 Mbps)

USB host support: xHCI (USB 3.0), EHCI (USB 2.0), OHCI/UHCI (USB 1.1)

USB standards: USB 2.0, USB 1.1, USB 1.0 compatible

Utilities: Toolbelt, embedded web page

Vibration: ISTA 1A in carton (International Safe Transit Association)

Diagram

Resources

Brochure | USB Extender xi T HID 60-1967-12 | USB Extender xi Series

Specifications | USB Extender xi T HID 60-1967-12 | USB Extender xi T/R Series

Panel Drawing | USB Extender xi T HID 60-1967-12 | USB Extender xi Series
