Manufacturer: Extron | Model: USB Extender xi T | Part number: 60-1964-12 (also written 60196412)

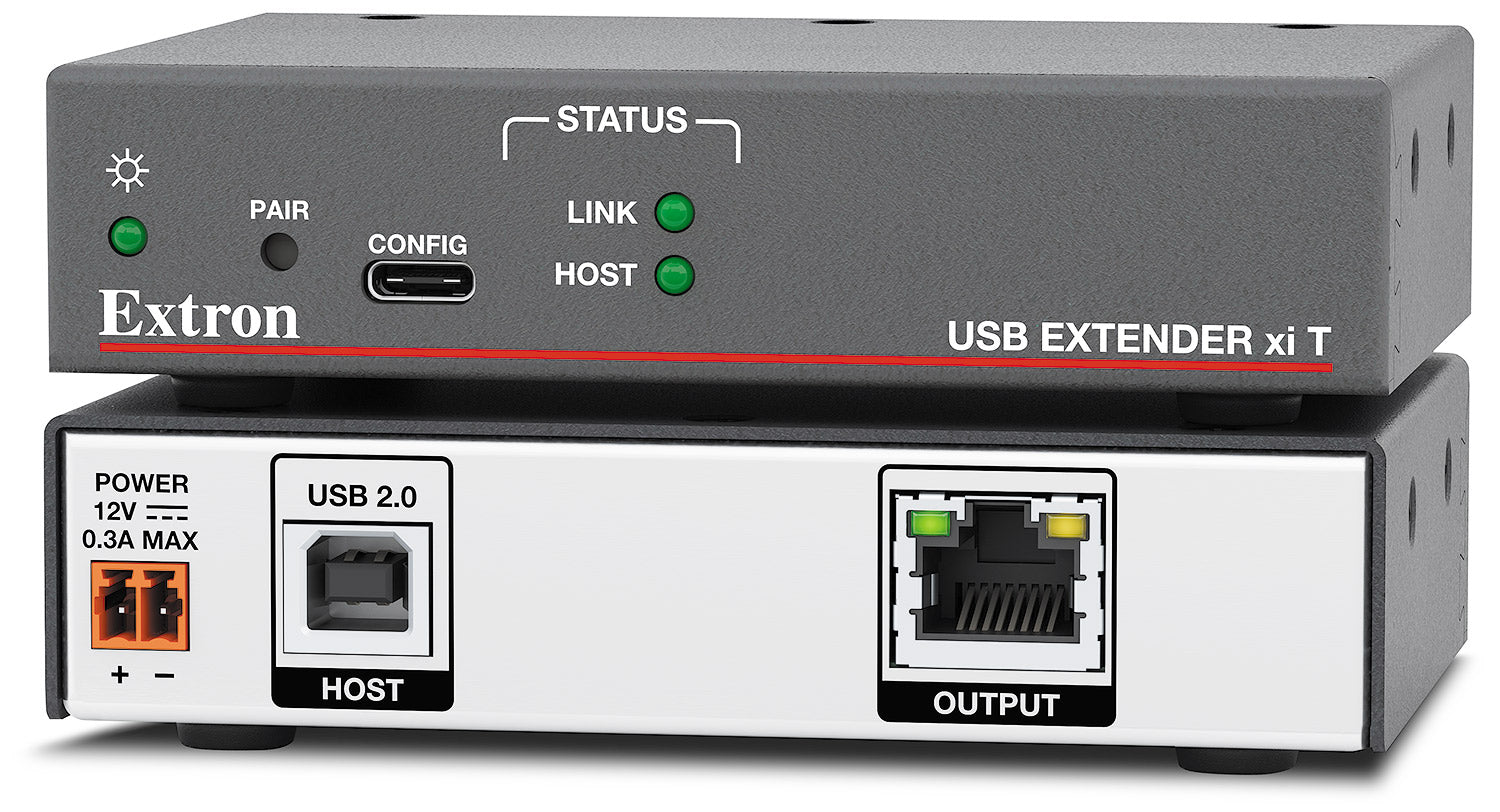

The Extron USB Extender xi T (part number 60-1964-12 / 60196412) is the transmitter unit of Extron's USB Extender xi Series, extending USB 2.0 signals from a host computer to a remote USB Extender xi R receiver over a standard Gigabit Ethernet network. The Extron USB Extender xi T supports point-to-point extension up to 330 feet (100 m) and network-based extension up to 1,980 feet (600 m), enabling USB peripheral access across classrooms, conference rooms, and Pro AV installations. USB device emulation maintains reliable host booting and enumeration even when the remote device is temporarily unavailable. Power via PoE 802.3af (Class 3) or external 12 VDC supply. Ampronix is an authorized Extron distributor and carries a full range of Extron USB extension products.

Key capabilities

• USB 2.0 extension up to 1,980 ft (600 m) over Gigabit Ethernet network; point-to-point up to 330 ft (100 m) via Cat 5e/6
• USB device emulation: ensures reliable host booting and enumeration; supports bulk, control, interrupt, and isochronous transfer types
• PoE 802.3af Class 3 or external 12 VDC, 1 A power; 2.5 W device only, 3.4 W with power supply
• 1 USB Type-B female input; 1 RJ-45 Gigabit Ethernet port (10/100/1000Base-T); RS-232/422/485 serial port; convection cooled, fanless metal enclosure
• Quarter rack, 1U: 1.7" H x 4.3" W x 6.0" D, 0.7 lbs; rack, furniture, or wall mountable with optional accessories
• 3-year product warranty; 7-year Everlast power supply warranty. Configured via Global Configurator Plus/Professional. Part# 60-1964-12 / 60196412

Where it is used

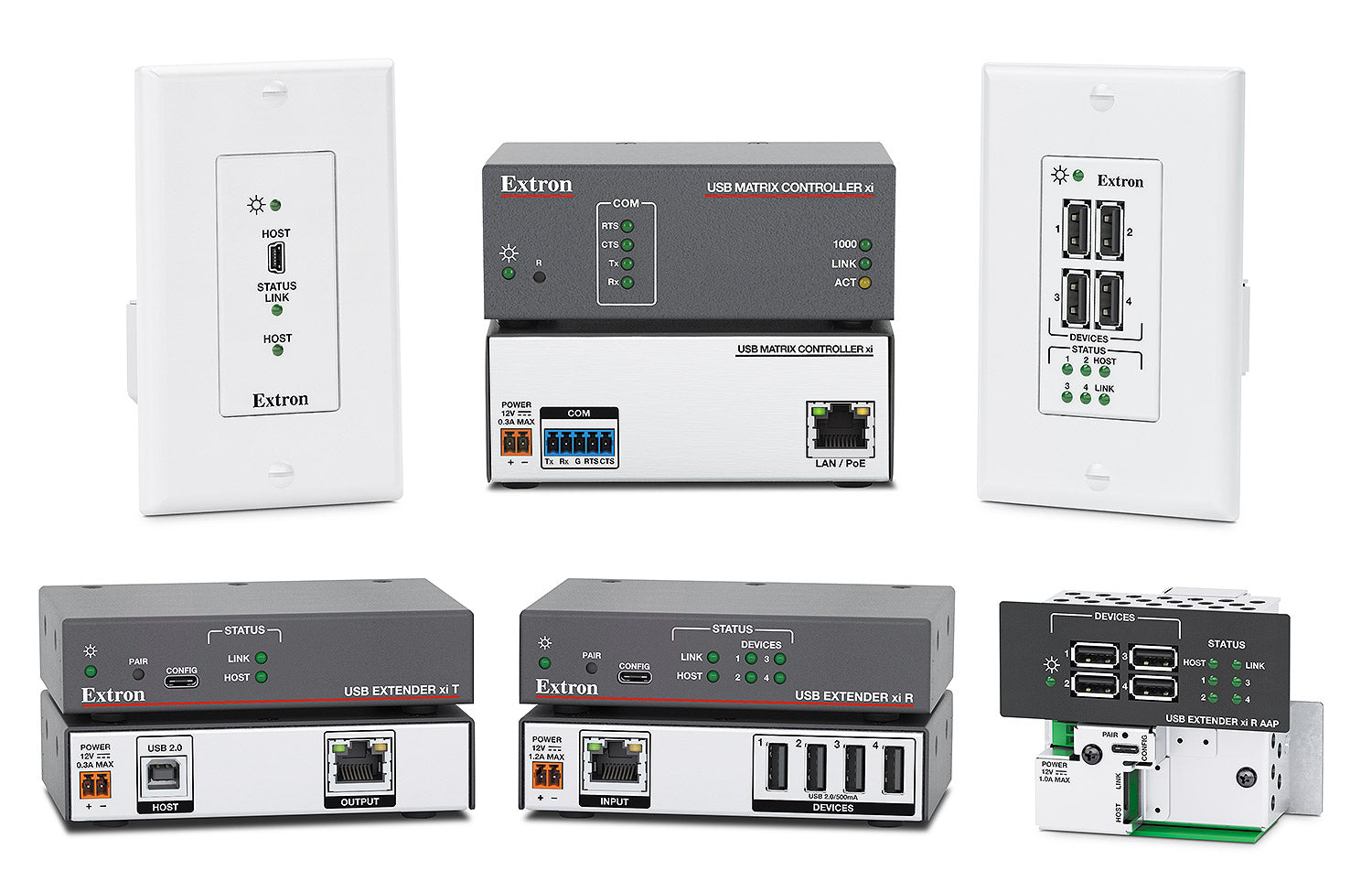

The Extron USB Extender xi T (60-1964-12) is deployed in university classrooms, corporate conference rooms, government AV installations, and healthcare facilities for remote USB keyboard, mouse, touchscreen, and peripheral access. Paired with the USB Extender xi R (60-1964-13) for point-to-point runs, or networked with the USB Matrix Controller xi (60-2022-01) for multi-source, multi-destination USB switching across large facilities.

System components and compatible part numbers

• Receiver (remote side): Extron USB Extender xi R, part# 60-1964-13 - standard point-to-point receiver pair
• Network switching: Extron USB Matrix Controller xi, part# 60-2022-01 - enables many-to-many USB routing across multiple xi T/xi R links

Specifications at a glance

• Part number: 60-1964-12 / 60196412; USB standard: 2.0 (1.1 and 1.0 compatible)
• Extension range: 330 ft (100 m) point-to-point; 1,980 ft (600 m) over network
• Power: PoE 802.3af Class 3 or 12 VDC, 1 A; weight: 0.7 lbs (0.3 kg); dims: 1.7" x 4.3" x 6.0"

Frequently asked questions

• Is the Extron USB Extender xi T 60-1964-12 available new? - Yes, the Extron USB Extender xi T (60-1964-12) is available new from Ampronix, an authorized Extron distributor.

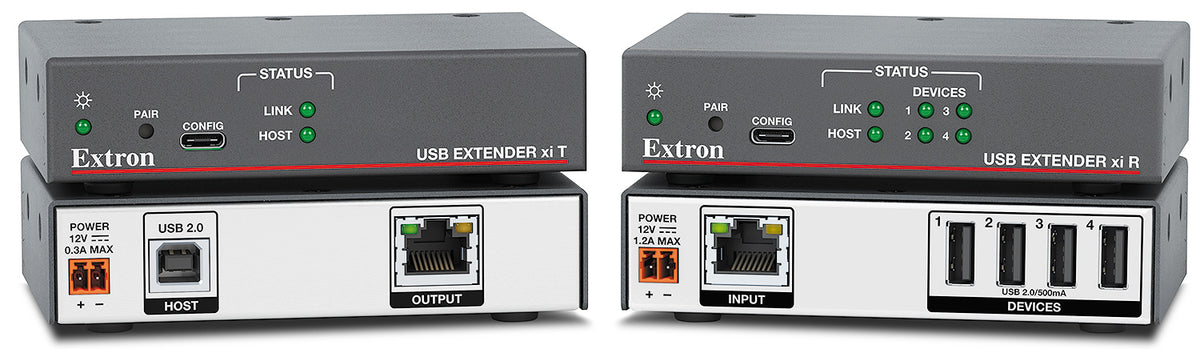

• What is the difference between the Extron USB Extender xi T and xi R? - The xi T (60-1964-12) is the transmitter that connects to the host computer, while the xi R (60-1964-13) is the receiver that connects to remote USB peripherals; the two are sold as a matched pair.
• Does Ampronix support the Extron USB Extender xi T? - Yes, as an authorized Extron distributor Ampronix offers sales and support for the full USB Extender xi Series, including the xi T (60-1964-12) and xi R (60-1964-13).
• Can the Extron USB Extender xi T be used with the USB Matrix Controller xi? - Yes, the xi T works with the USB Matrix Controller xi (60-2022-01) for network-based many-to-many USB routing instead of a fixed point-to-point pair.

Also referenced as: ExtronUSBExtenderxiT, Extron-USB-Extender-xi-T, USB Extender xi Transmitter, part number 60196412, 60-1964-12.
