Details

Manufacturer: Extron | Model: USB Extender xi R HID | Part number: 60-1967-13 (also written 60196713)

The Extron USB Extender xi R HID (part number 60-1967-13 / 60196713) is the HID-only receiver of Extron's USB Extender xi Series, supporting Human Interface Device class USB peripherals — keyboards, mice, and touchscreens — at the remote location. Pairs with the USB Extender xi T HID transmitter (60-1967-12) or any xi Series transmitter configured for HID mode. Extension up to 1,980 feet over Gigabit Ethernet; 500 mA USB power per port for connected HID devices. Ampronix is an authorized Extron distributor and carries a full range of Extron USB extension products.

Key capabilities

HID-only USB receiver: keyboards, mice, touchscreens; pairs with xi T HID (60-1967-12)
1,980 ft (600 m) over Gigabit Ethernet; 330 ft (100 m) P2P; 500 mA USB power per port
USB device emulation for reliable host enumeration; USB 2.0 HID class
PoE 802.3af Class 3 or external 12 VDC; RJ-45 Gigabit + RS-232/422/485; fanless metal
0.7 lbs; 3-year warranty; 7-year Everlast PSU warranty. Part# 60-1967-13 / 60196713

Where it is used

The Extron USB Extender xi R HID (60-1967-13) is installed at the display or control position in classrooms, boardrooms, and AV control rooms where only keyboard, mouse, or touchscreen access is required at the remote end of a USB extension run.

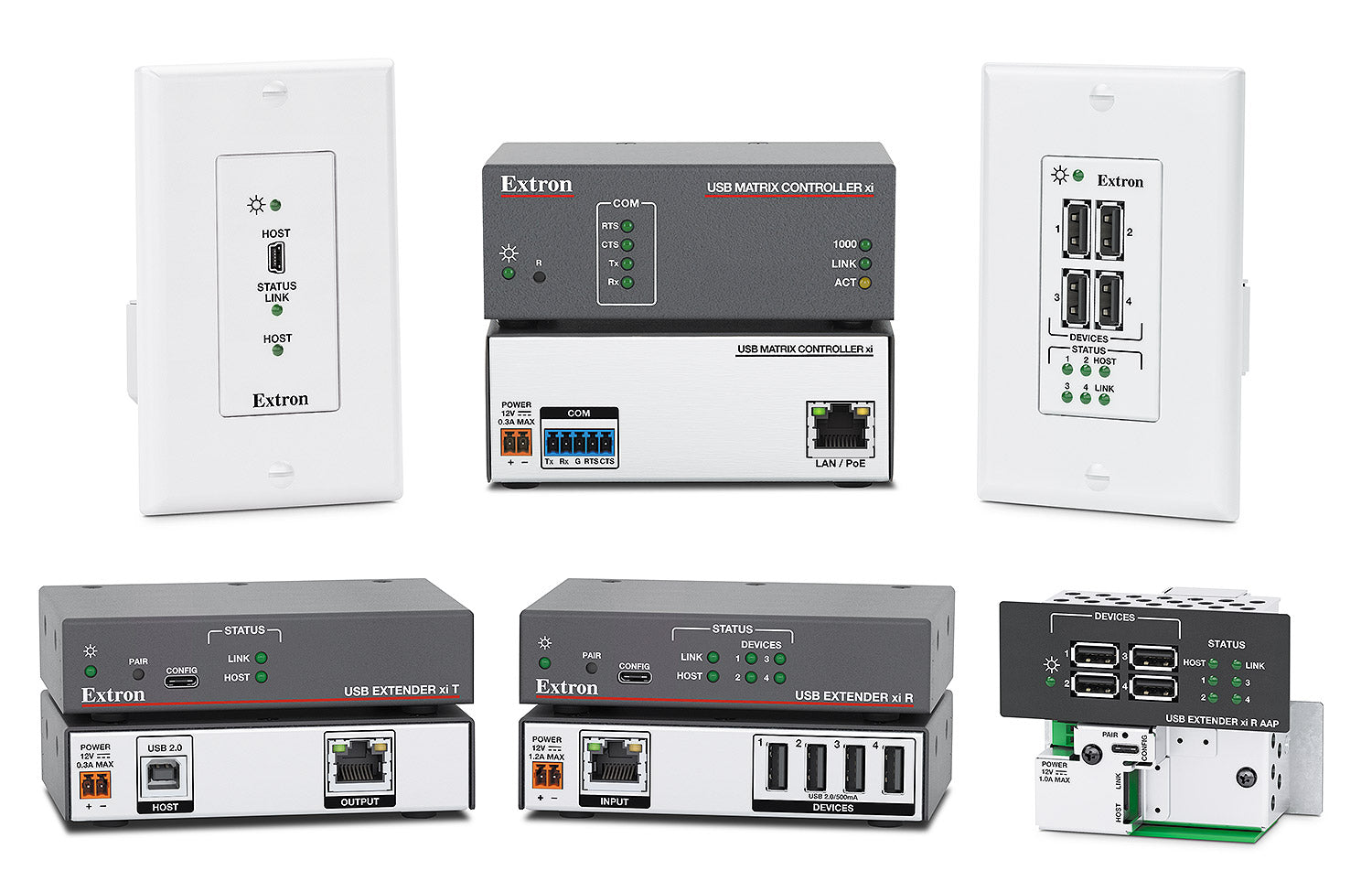

System components and compatible part numbers

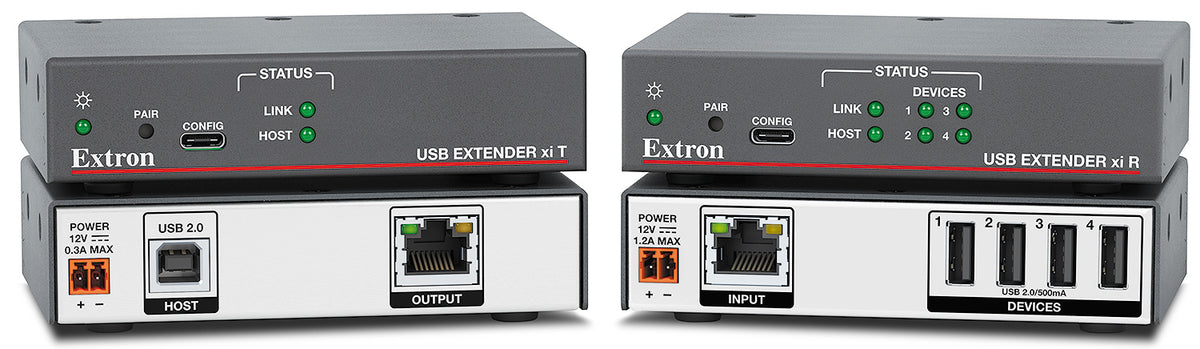

Transmitter (host side): Extron USB Extender xi T HID, part# 60-1967-12 - matching HID-only transmitter
Network switching: Extron USB Matrix Controller xi, part# 60-2022-01 - enables many-to-many USB routing across multiple links

Specifications at a glance

Part number: 60-1967-13 / 60196713; USB class: HID only; role: receiver; USB power: 500 mA/port
Range: 330 ft P2P; 1,980 ft networked; power: PoE 802.3af or 12 VDC; weight: 0.7 lbs

Frequently asked questions

Is the Extron USB Extender xi R HID 60-1967-13 available new? - Yes, the Extron USB Extender xi R HID (60-1967-13) is available new from Ampronix, an authorized Extron distributor.
What is the difference between the xi R HID and the standard xi R? - The xi R HID (60-1967-13) is limited to HID-class USB peripherals such as keyboards, mice, and touchscreens, while the standard xi R (60-1964-13) supports all USB 2.0 device types including storage and audio.
Does Ampronix support the Extron USB Extender xi R HID? - Yes, as an authorized Extron distributor Ampronix offers sales and support for the full USB Extender xi Series, including the xi R HID (60-1967-13) and xi T HID (60-1967-12).
What is the xi R HID used for? - It receives extended keyboard, mouse, touchscreen, and AV control panel connections at the remote location in installs where only HID-class devices need to be extended.

Also referenced as: ExtronUSBExtenderxiRHID, USB Extender xi R HID, Extron HID USB receiver, part number 60196713, 60-1967-13.

Specifications

Part Number: 60-1967-13

Manufacturer: Extron

Condition: New

Height: 3.0" (7.6 cm)

All supported: IPv4, UDP, DHCP, Unicast

Available USB power: 500 mA per port

Baud rate and protocol: 300 to 115200 baud (9600 baud = default); 8 (default) or 7 data bits; 1 (default) or 2 stop bits;no parity (default), even, or odd parity

Configuration software: Global Configurator® Plus and Professional

Connector: 1 female RJ-45 connector

Connectors: 1 female USB type B

Control apps: Extron Control

Cooling: Convection, no vents

Data rate: 10/100/1000Base-T, half/full duplex with autodetect

Data transfer types: Bulk, control, interrupt, and isochronous

Default settings: Link speed and duplex level = autodetectedIP address = 192.168.254.250Subnet mask = 255.255.255.0Gateway = 0.0.0.0DHCP = offDNS = 127.0.0.1

Device: 2.5 watts

Device and power supply: 3.4 watts

Enclosure dimensions: 1.7" H x 4.3" W x 6.0" D (1U high, quarter rack wide) (43 mm H x 109 mm W x 152 mm D) (Depth excludes connectors.)

Enclosure type: Metal

Everlast power supply warranty: 7 years parts and labor

Faceplate: 1.4" H x 3.5" W x 0.1 " D (36 mm H x 89 mm W x 2.5 mm D) Double-space AAP

Flash: 8 GB

Furniture mount: Yes, with optional bracket kit

Hardware: TouchLink® Pro touchpanels, Network Button Panels, or eBUS® button panels

IP Configuration: Static IP (default) or DHCP

Maximum built-in USB hubs: 2

Minimum built-in USB hubs: 0

Network interface controllers (NICs): 1: 1 LAN

Number/signal type: 1 USB

Optional built-in USB hubs: Peripheral emulation enabled: 1 1:n network pairing enabled: 1

Over the network: Up to 1980' (600 m)**

Point to point: Up to 330' (100 m)

Power input requirements: 12 VDC, 1 A, 12 watts, max. Or power over Ethernet (PoE) (complies with PoE 802.3af, class 3)

Power supply: External

Product warranty: 3 years parts and labor

Product weight: 0.7 lbs (0.3 kg)

Programming software: Global Scripter®

Protocol: Ethernet

Protocols: DHCP, DNS, HTTP, HTTPS (redirect), ICMP, IEEE 802.1X , NTP, SFTP, SMTP, SNMP, SSH, TCP/IP, UDP/IP

Quantity/type: 1 bidirectional RS-232, RS-422, RS-485

RS-232 (default): Pin 1 = Tx, 2 = Rx, 3 = Gnd, 4 = RTS, 5 = CTS

RS-422: Pin 1 = Tx-, 2 = Rx-, 3 = Gnd, 4 = Tx+, 5 = Rx+

RS-485: Pins 1 and 2 (tied together) = data-, 3 = Gnd, 4 and 5 (tied together) = data+

Rack mount: Yes, with optional 1U rack shelf or back of the rack mounting kit

Receiver: Input: 100-240 VAC, 50-60 Hz Output: 12 VDC, 1.5 A, 18 watts

Receiver HUB power output: 5 VDC, 500 mA per port

Regulatory compliance: CE, c-UL, KCC, C-tick, FCC Class A, ICES, RoHS, VCCI Class AUL, WEEE

Resource management software: GlobalViewer® Enterprise

SDRAM: 1 GB

Standards: IEEE 802.3u (100Base-T), IEEE 802.3ab (1000Base-T)

Temperature/humidity: Storage: -40 to +158°F (-40 to +70°C) / 10% to 90%, noncondensing Operating: +32 to +122°F (0 to +50°C) / 10% to 90%, noncondensing

Termination standards: TIA 568B

Transmitter: Input: 100-240 VAC, 50-60 Hz Output: 12 VDC, 0.5 A, 6 watts

Transport: TCP/IP, UDP

USB Extender xi Rack Mount: 1.0" H x 4.3" W x 3.0" D (quarter rack width) (25 mm H x 109 mm W x 76 mm D) (Depth excludes connectors.)

USB data rates: Low speed (1.5 Mbps), full speed (12 Mbps), high speed (480 Mbps)

USB host support: xHCI (USB 3.0), EHCI (USB 2.0), OHCI/UHCI (USB 1.1)

USB standards: USB 2.0, USB 1.1, USB 1.0 compatible

Utilities: Toolbelt, embedded web page

Vibration: ISTA 1A in carton (International Safe Transit Association)

Diagram

Resources

Brochure | USB Extender xi R HID 60-1967-13 | USB Extender xi Series

Specifications | USB Extender xi R HID 60-1967-13 | USB Extender xi T/R Series

Panel Drawing | USB Extender xi R HID 60-1967-13 | USB Extender xi Series

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Extron USB Extender xi R HID 60-1967-13

Name: Extron USB Extender xi R HID 60-1967-13
Brand: Extron
SKU: EXTRON-USBEXTENDERXIRHID-60-1967-13
Availability: InStock

Manufacturer: Extron

Type: USB for Pro AV

Extron USB Extender xi R HID | Part# 60-1967-13

• HID-Only USB Receiver | Keyboard, Mouse & Touchscreen
• 1,980 ft (600 m) Over Gigabit Ethernet | 500 mA USB Power Per Port
• USB Device Emulation | Reliable Enumeration for HID Peripherals
• PoE 802.3af or 12 VDC | RS-232/422/485 | Fanless | 0.7 lbs
• 3-Year Warranty | 7-Year Everlast PSU | New | Authorized Extron Distributor
• Part# 60-1967-13 / 60196713 | Pairs with xi T HID (60-1967-12)
