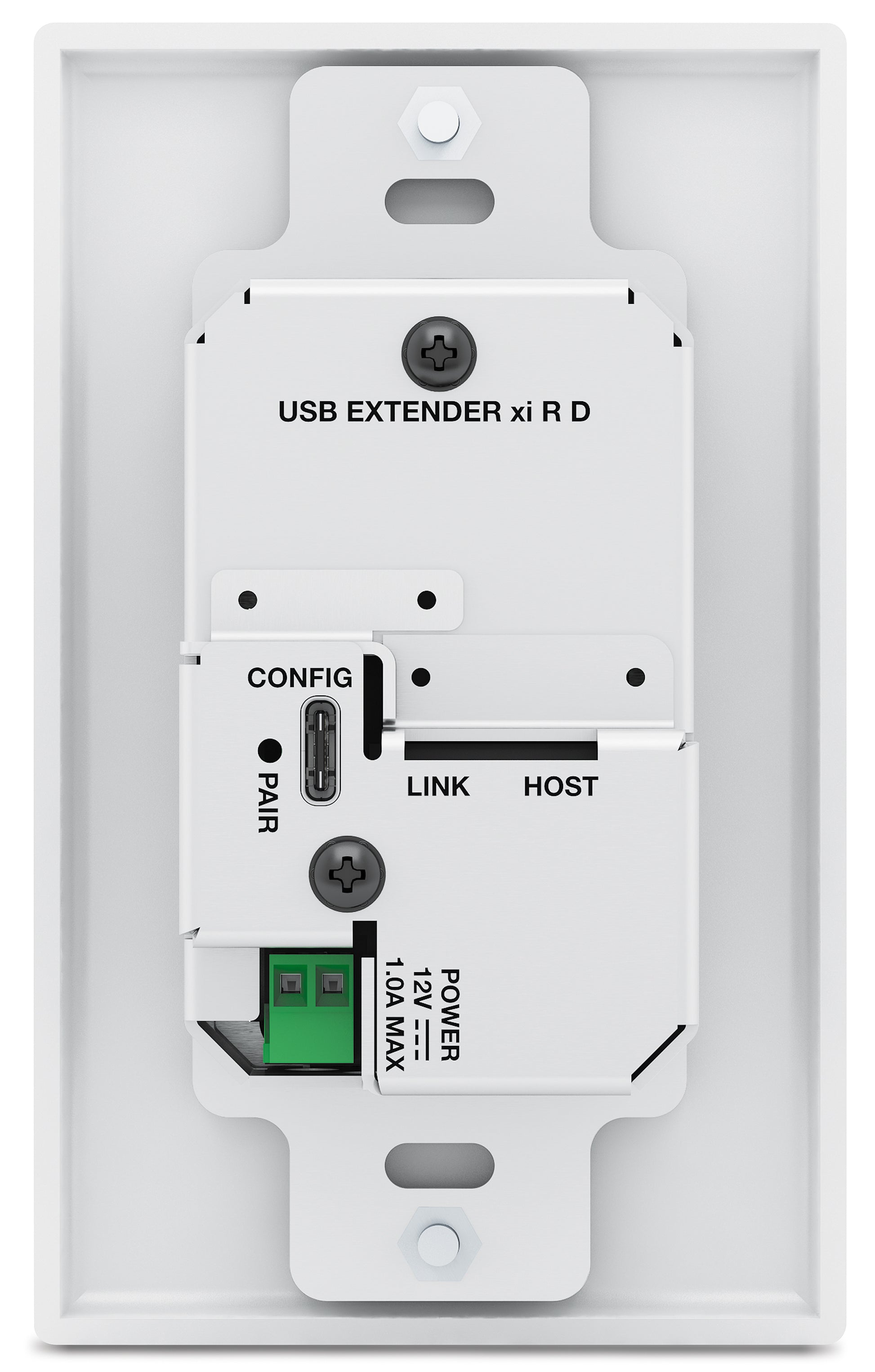

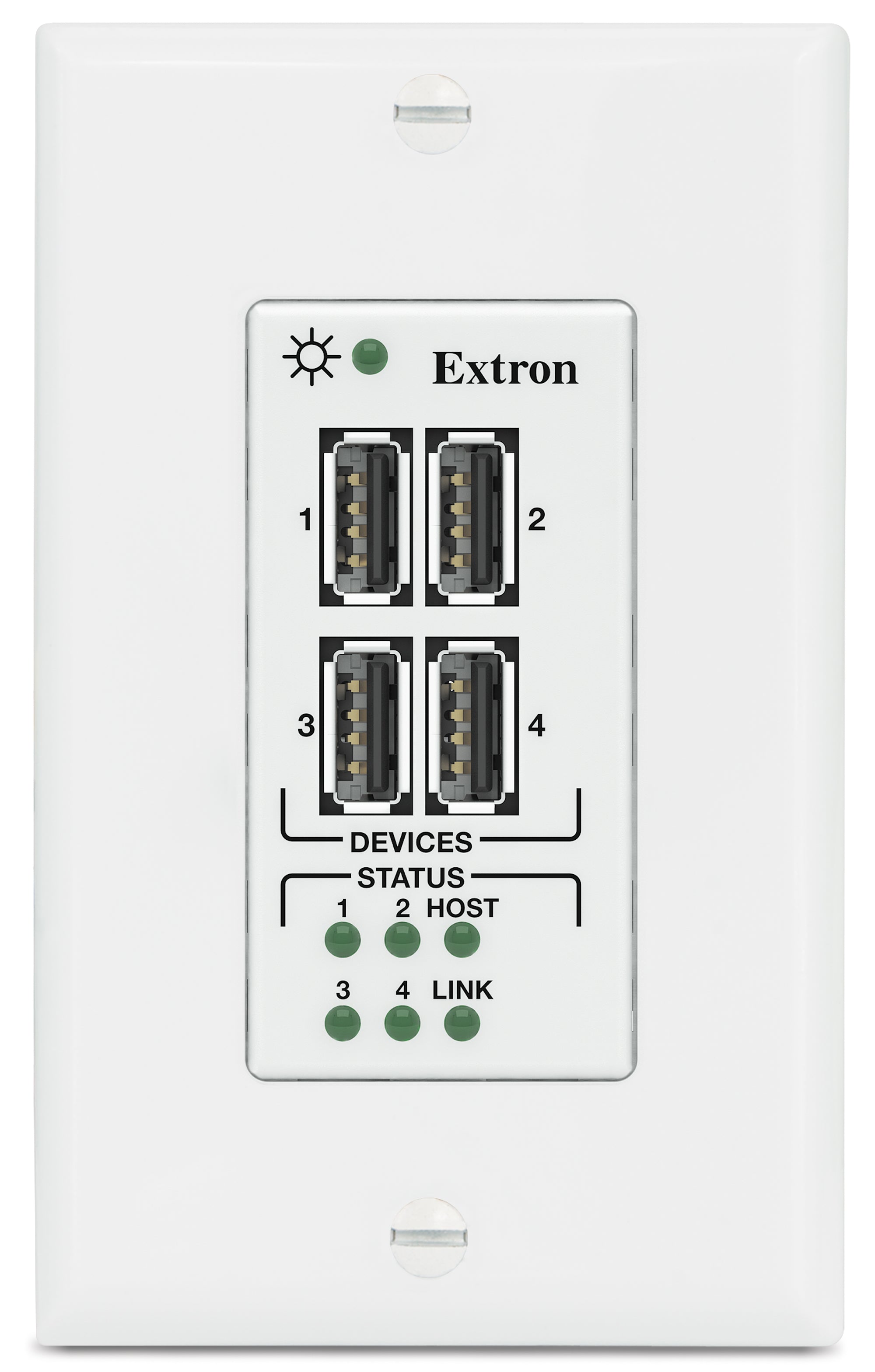

Manufacturer: Extron | Model: USB Extender xi R D | Part number: 60-1966-13 (also written 60196613)

The Extron USB Extender xi R D (part number 60-1966-13 / 60196613) is the Decorator-form receiver of Extron's USB Extender xi Series, designed for wall plate and furniture mounting in single-gang Decorator openings. Pairs with the USB Extender xi T D transmitter (60-1966-12) or standard xi T (60-1964-12) to extend USB 2.0 up to 1,980 feet over a Gigabit Ethernet network, providing 500 mA USB power per port for connected peripherals at the remote location. USB device emulation maintains reliable enumeration. Ampronix is an authorized Extron distributor and carries a full range of Extron USB extension products.

Key capabilities

Decorator form factor: single-gang wall plate install; Extron cable cubby and Decorator compatible
USB 2.0 receiver: 1,980 ft (600 m) over Gigabit Ethernet; 330 ft (100 m) point-to-point
500 mA USB power per port; USB 2.0/1.1/1.0 compatible; device emulation enabled
PoE 802.3af Class 3 or external 12 VDC, 1 A; RJ-45 Gigabit + RS-232/422/485
0.7 lbs; 3-year warranty; 7-year Everlast PSU warranty. Part# 60-1966-13 / 60196613

Where it is used

Installed in cable cubbies, conference table Decorator outlets, and wall plates in classrooms, boardrooms, and collaboration spaces for remote USB peripheral access without exposed cabling at the display end.

System components and compatible part numbers

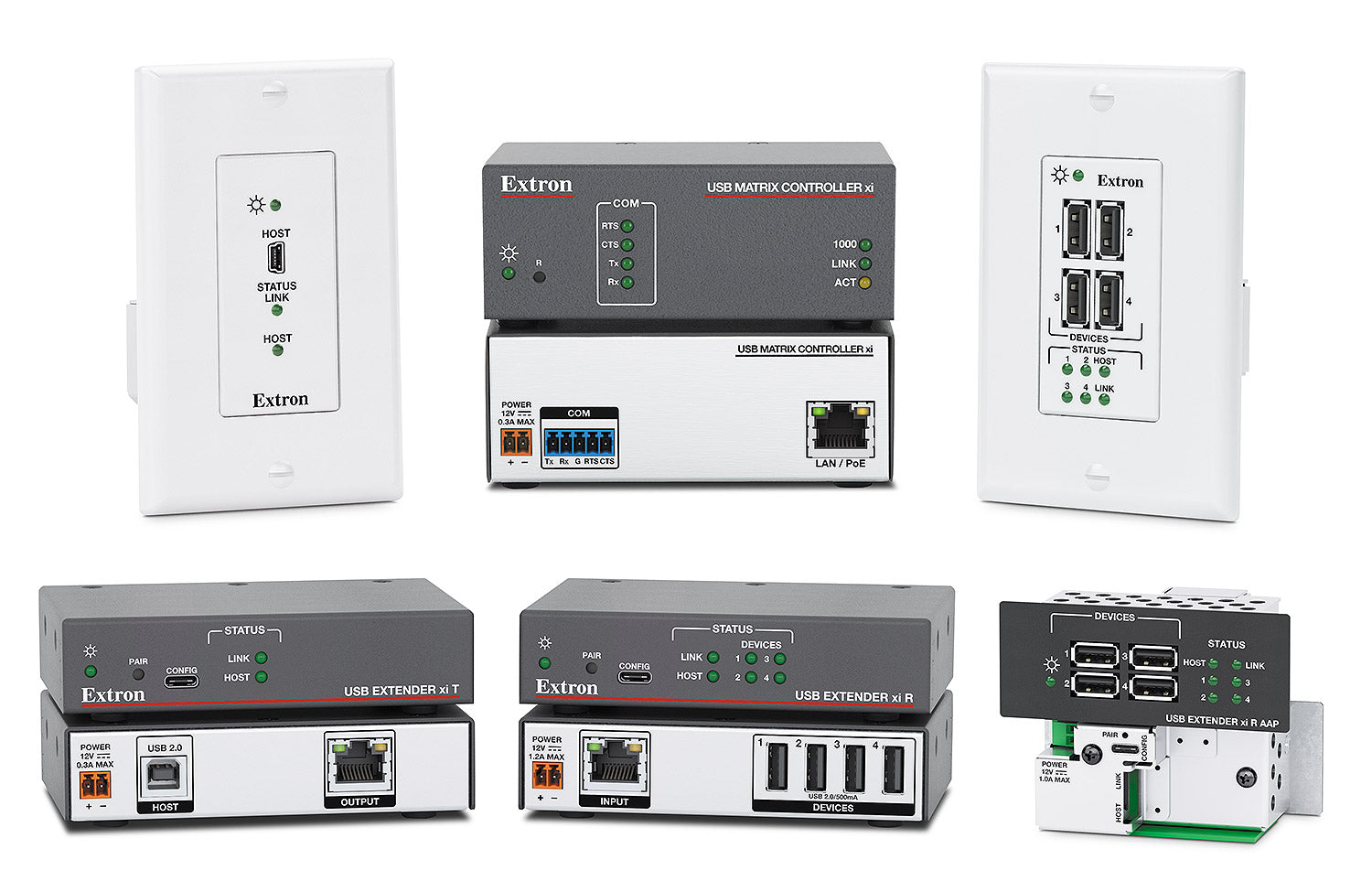

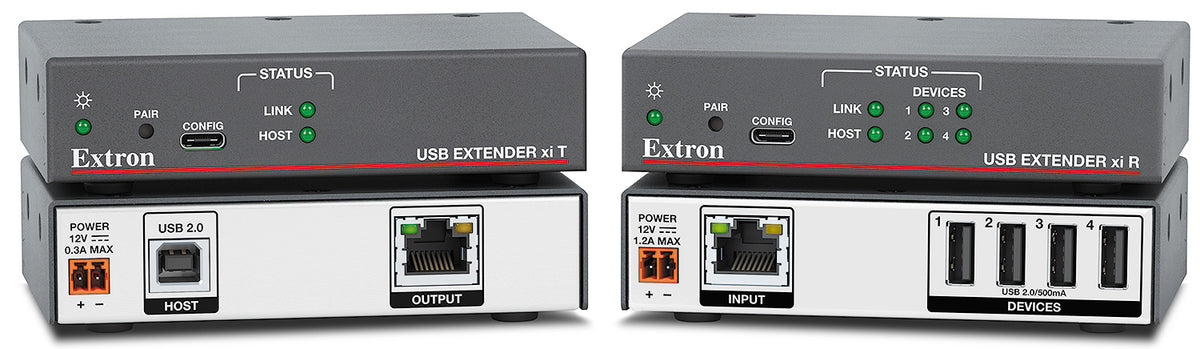

Transmitter (host side): Extron USB Extender xi T D, part# 60-1966-12 - matching Decorator-form transmitter, or the standard xi T (60-1964-12)
Network switching: Extron USB Matrix Controller xi, part# 60-2022-01 - enables many-to-many USB routing across multiple links

Specifications at a glance

Part number: 60-1966-13 / 60196613; form: Decorator; role: receiver; USB: 2.0
Range: 330 ft P2P; 1,980 ft networked; USB power: 500 mA/port; power: PoE 802.3af or 12 VDC

Frequently asked questions

Is the Extron USB Extender xi R D 60-1966-13 available new? - Yes, the Extron USB Extender xi R D (60-1966-13) is available new from Ampronix, an authorized Extron distributor.
What is the difference between the Extron USB Extender xi R D and the standard xi R? - The xi R D (60-1966-13) fits a single-gang Decorator wall plate opening for flush installs, while the standard xi R (60-1964-13) is a quarter-rack chassis; both share the same USB 2.0 receiver performance and 500 mA per-port power.
Does Ampronix support the Extron USB Extender xi R D? - Yes, as an authorized Extron distributor Ampronix offers sales and support for the full USB Extender xi Series, including the xi R D (60-1966-13) and xi T D (60-1966-12).
Does the Extron USB Extender xi R D work with the standard xi T? - Yes, the xi R D pairs with either the Decorator-form xi T D (60-1966-12) or the standard xi T (60-1964-12).

Also referenced as: ExtronUSBExtenderxiRD, USB Extender xi R Decorator, Extron Decorator USB receiver, part number 60196613, 60-1966-13.

Specifications

Part Number: 60-1966-13

Manufacturer: Extron

Condition: New

Height: 3.0" (7.6 cm)

All supported: IPv4, UDP, DHCP, Unicast

Available USB power: 500 mA per port

Baud rate and protocol: 300 to 115200 baud (9600 baud = default); 8 (default) or 7 data bits; 1 (default) or 2 stop bits;no parity (default), even, or odd parity

Configuration software: Global Configurator® Plus and Professional

Connector: 1 female RJ-45 connector

Connectors: 1 female USB type B

Control apps: Extron Control

Cooling: Convection, no vents

Data rate: 10/100/1000Base-T, half/full duplex with autodetect

Data transfer types: Bulk, control, interrupt, and isochronous

Default settings: Link speed and duplex level = autodetectedIP address = 192.168.254.250Subnet mask = 255.255.255.0Gateway = 0.0.0.0DHCP = offDNS = 127.0.0.1

Device: 2.5 watts

Device and power supply: 3.4 watts

Enclosure dimensions: 1.7" H x 4.3" W x 6.0" D (1U high, quarter rack wide) (43 mm H x 109 mm W x 152 mm D) (Depth excludes connectors.)

Enclosure type: Metal

Everlast power supply warranty: 7 years parts and labor

Faceplate: 1.4" H x 3.5" W x 0.1 " D (36 mm H x 89 mm W x 2.5 mm D) Double-space AAP

Flash: 8 GB

Furniture mount: Yes, with optional bracket kit

Hardware: TouchLink® Pro touchpanels, Network Button Panels, or eBUS® button panels

IP Configuration: Static IP (default) or DHCP

Maximum built-in USB hubs: 2

Minimum built-in USB hubs: 0

Network interface controllers (NICs): 1: 1 LAN

Number/signal type: 1 USB

Optional built-in USB hubs: Peripheral emulation enabled: 1 1:n network pairing enabled: 1

Over the network: Up to 1980' (600 m)**

Point to point: Up to 330' (100 m)

Power input requirements: 12 VDC, 1 A, 12 watts, max. Or power over Ethernet (PoE) (complies with PoE 802.3af, class 3)

Power supply: External

Product warranty: 3 years parts and labor

Product weight: 0.7 lbs (0.3 kg)

Programming software: Global Scripter®

Protocol: Ethernet

Protocols: DHCP, DNS, HTTP, HTTPS (redirect), ICMP, IEEE 802.1X , NTP, SFTP, SMTP, SNMP, SSH, TCP/IP, UDP/IP

Quantity/type: 1 bidirectional RS-232, RS-422, RS-485

RS-232 (default): Pin 1 = Tx, 2 = Rx, 3 = Gnd, 4 = RTS, 5 = CTS

RS-422: Pin 1 = Tx-, 2 = Rx-, 3 = Gnd, 4 = Tx+, 5 = Rx+

RS-485: Pins 1 and 2 (tied together) = data-, 3 = Gnd, 4 and 5 (tied together) = data+

Rack mount: Yes, with optional 1U rack shelf or back of the rack mounting kit

Receiver: Input: 100-240 VAC, 50-60 Hz Output: 12 VDC, 1.5 A, 18 watts

Receiver HUB power output: 5 VDC, 500 mA per port

Regulatory compliance: CE, c-UL, KCC, C-tick, FCC Class A, ICES, RoHS, VCCI Class AUL, WEEE

Resource management software: GlobalViewer® Enterprise

SDRAM: 1 GB

Standards: IEEE 802.3u (100Base-T), IEEE 802.3ab (1000Base-T)

Temperature/humidity: Storage: -40 to +158°F (-40 to +70°C) / 10% to 90%, noncondensing Operating: +32 to +122°F (0 to +50°C) / 10% to 90%, noncondensing

Termination standards: TIA 568B

Transmitter: Input: 100-240 VAC, 50-60 Hz Output: 12 VDC, 0.5 A, 6 watts

Transport: TCP/IP, UDP

USB Extender xi Rack Mount: 1.0" H x 4.3" W x 3.0" D (quarter rack width) (25 mm H x 109 mm W x 76 mm D) (Depth excludes connectors.)

USB data rates: Low speed (1.5 Mbps), full speed (12 Mbps), high speed (480 Mbps)

USB host support: xHCI (USB 3.0), EHCI (USB 2.0), OHCI/UHCI (USB 1.1)

USB standards: USB 2.0, USB 1.1, USB 1.0 compatible

Utilities: Toolbelt, embedded web page

Vibration: ISTA 1A in carton (International Safe Transit Association)

Diagram

Resources

Brochure | USB Extender xi R D 60-1966-13 | USB Extender xi Series

Specifications | USB Extender xi R D 60-1966-13 | USB Extender xi T/R Series

Panel Drawing | USB Extender xi R D 60-1966-13 | USB Extender xi Series
