Details

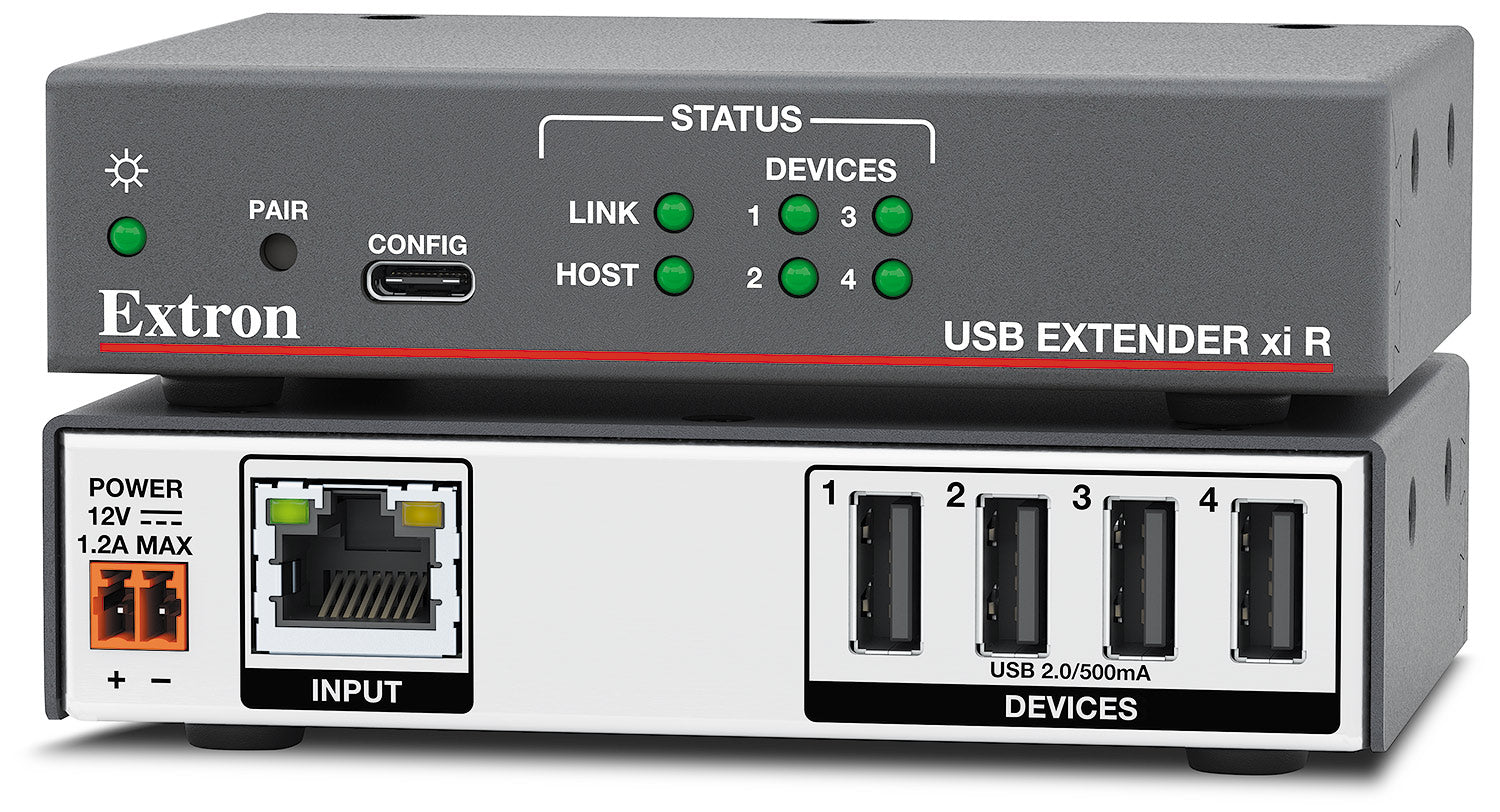

Manufacturer: Extron | Model: USB Extender xi R | Part number: 60-1964-13 (also written 60196413)

The Extron USB Extender xi R (part number 60-1964-13 / 60196413) is the receiver unit of Extron's USB Extender xi Series, connecting remote USB peripherals back to a host computer via a standard Gigabit Ethernet network. Paired with the USB Extender xi T transmitter (60-1964-12), the xi R extends USB 2.0 up to 330 feet point-to-point or 1,980 feet over network, and provides 500 mA USB power per port for powering connected devices. USB device emulation ensures reliable host enumeration even when the remote host is temporarily unavailable. PoE 802.3af or external 12 VDC. Ampronix is an authorized Extron distributor and carries a full range of Extron USB extension products.

Key capabilities

USB 2.0 receiver: 1,980 ft (600 m) over Gigabit Ethernet; point-to-point 330 ft (100 m); pairs with USB Extender xi T (60-1964-12)
500 mA USB power per port for connected peripherals; USB 2.0/1.1/1.0 compatible; bulk, control, interrupt, isochronous transfers
USB device emulation: maintains host enumeration when remote host is unavailable
PoE 802.3af Class 3 or external 12 VDC, 1 A; 2.5 W device, 3.4 W with PSU; RJ-45 Gigabit + RS-232/422/485
Quarter rack, 1U: 1.7" H x 4.3" W x 6.0" D, 0.7 lbs; rack, furniture, or wall mountable
3-year product warranty; 7-year Everlast power supply warranty. Part# 60-1964-13 / 60196413

Where it is used

The Extron USB Extender xi R (60-1964-13) is installed at the remote end of USB extension runs in classrooms, conference rooms, control rooms, and healthcare facilities, providing USB hub connectivity for keyboards, mice, touchscreens, and AV control devices at the display or operator location.

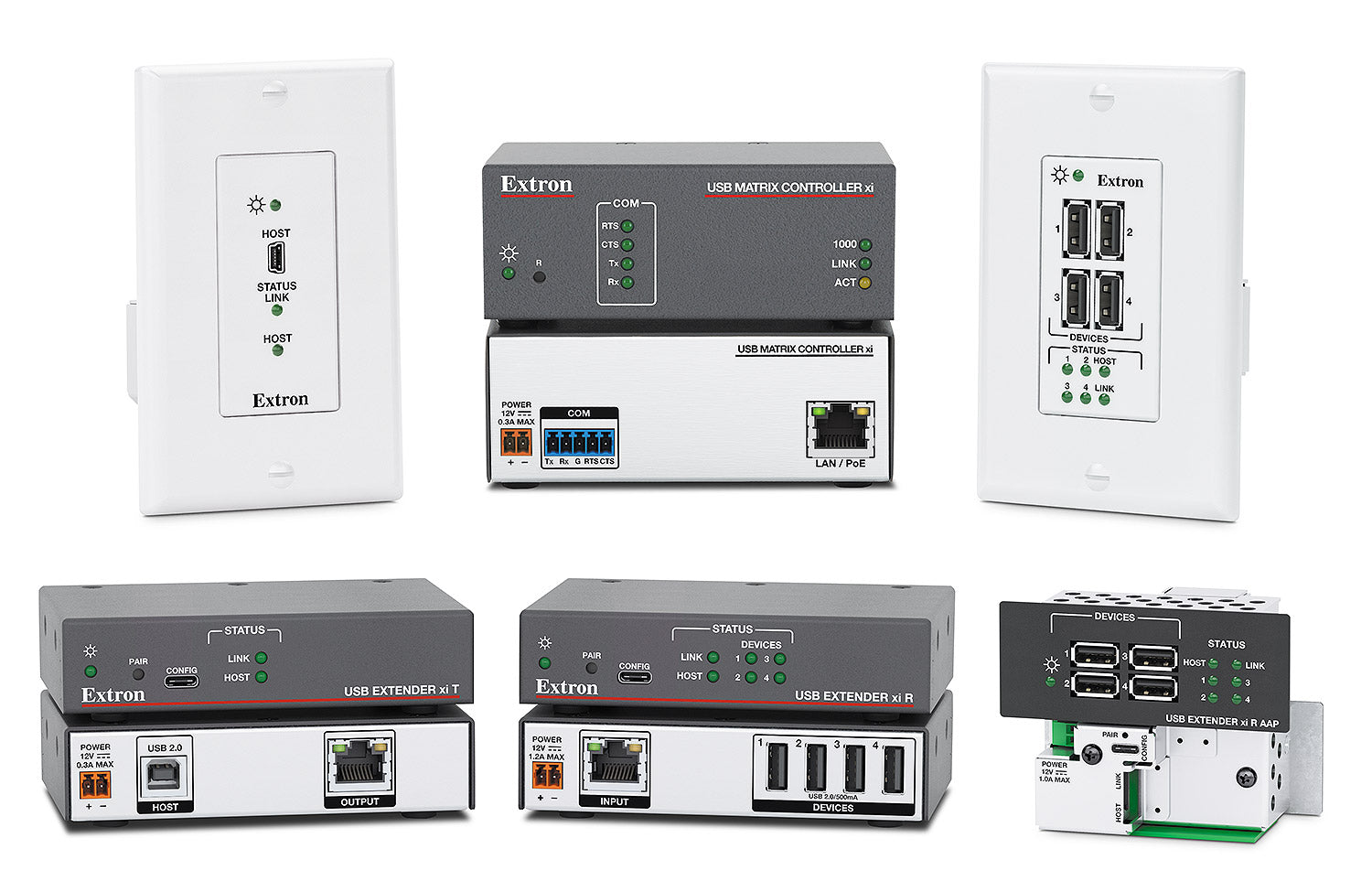

System components and compatible part numbers

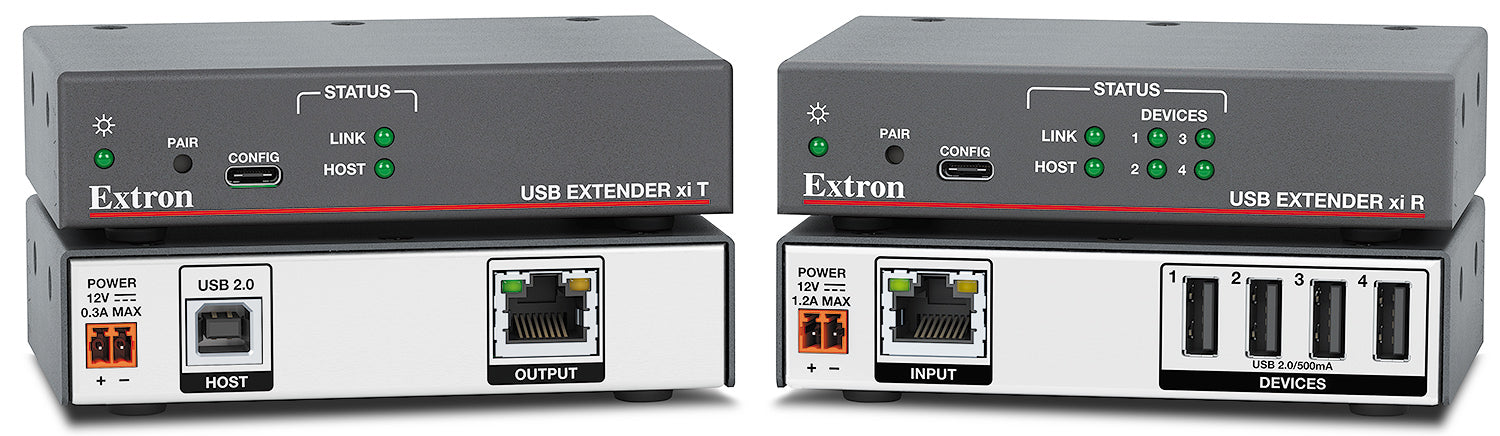

Transmitter (host side): Extron USB Extender xi T, part# 60-1964-12 - connects to the host computer and pairs with the xi R at the remote end
Power supply: External 12 VDC, 1 A, or PoE 802.3af Class 3 injector/switch port

Specifications at a glance

Part number: 60-1964-13 / 60196413; role: receiver; USB: 2.0 (1.1/1.0 compatible)
Range: 330 ft (100 m) P2P; 1,980 ft (600 m) networked; USB power: 500 mA/port
Power: PoE 802.3af Class 3 or 12 VDC; weight: 0.7 lbs; dims: 1.7" x 4.3" x 6.0"

Frequently asked questions

Is the Extron USB Extender xi R 60-1964-13 available new? - Yes, the Extron USB Extender xi R (60-1964-13) is available new from Ampronix, an authorized Extron distributor.
What is the difference between the Extron USB Extender xi R and xi T? - The xi R (60-1964-13) is the receiver unit that connects to remote USB peripherals, while the xi T (60-1964-12) is the transmitter that connects to the host computer; the two are sold as a matched pair.
Does Ampronix support the Extron USB Extender xi R? - Yes, as an authorized Extron distributor Ampronix offers sales and support for the full USB Extender xi Series, including the xi R (60-1964-13) and xi T (60-1964-12).
Can the Extron USB Extender xi R be powered without PoE? - Yes, the xi R accepts either PoE 802.3af Class 3 or an external 12 VDC, 1 A power supply.

Also referenced as: ExtronUSBExtenderxiR, Extron-USB-Extender-xi-R, USB Extender xi Receiver, part number 60196413, 60-1964-13.

Specifications

Part Number: 60-1964-13

Manufacturer: Extron

Condition: New

Height: 3.0" (7.6 cm)

All supported: IPv4, UDP, DHCP, Unicast

Available USB power: 500 mA per port

Baud rate and protocol: 300 to 115200 baud (9600 baud = default); 8 (default) or 7 data bits; 1 (default) or 2 stop bits;no parity (default), even, or odd parity

Configuration software: Global Configurator® Plus and Professional

Connector: 1 female RJ-45 connector

Connectors: 1 female USB type B

Control apps: Extron Control

Cooling: Convection, no vents

Data rate: 10/100/1000Base-T, half/full duplex with autodetect

Data transfer types: Bulk, control, interrupt, and isochronous

Default settings: Link speed and duplex level = autodetectedIP address = 192.168.254.250Subnet mask = 255.255.255.0Gateway = 0.0.0.0DHCP = offDNS = 127.0.0.1

Device: 2.5 watts

Device and power supply: 3.4 watts

Enclosure dimensions: 1.7" H x 4.3" W x 6.0" D (1U high, quarter rack wide) (43 mm H x 109 mm W x 152 mm D) (Depth excludes connectors.)

Enclosure type: Metal

Everlast power supply warranty: 7 years parts and labor

Faceplate: 1.4" H x 3.5" W x 0.1 " D (36 mm H x 89 mm W x 2.5 mm D) Double-space AAP

Flash: 8 GB

Furniture mount: Yes, with optional bracket kit

Hardware: TouchLink® Pro touchpanels, Network Button Panels, or eBUS® button panels

IP Configuration: Static IP (default) or DHCP

Maximum built-in USB hubs: 2

Minimum built-in USB hubs: 0

Network interface controllers (NICs): 1: 1 LAN

Number/signal type: 1 USB

Optional built-in USB hubs: Peripheral emulation enabled: 1 1:n network pairing enabled: 1

Over the network: Up to 1980' (600 m)**

Point to point: Up to 330' (100 m)

Power input requirements: 12 VDC, 1 A, 12 watts, max. Or power over Ethernet (PoE) (complies with PoE 802.3af, class 3)

Power supply: External

Product warranty: 3 years parts and labor

Product weight: 0.7 lbs (0.3 kg)

Programming software: Global Scripter®

Protocol: Ethernet

Protocols: DHCP, DNS, HTTP, HTTPS (redirect), ICMP, IEEE 802.1X , NTP, SFTP, SMTP, SNMP, SSH, TCP/IP, UDP/IP

Quantity/type: 1 bidirectional RS-232, RS-422, RS-485

RS-232 (default): Pin 1 = Tx, 2 = Rx, 3 = Gnd, 4 = RTS, 5 = CTS

RS-422: Pin 1 = Tx-, 2 = Rx-, 3 = Gnd, 4 = Tx+, 5 = Rx+

RS-485: Pins 1 and 2 (tied together) = data-, 3 = Gnd, 4 and 5 (tied together) = data+

Rack mount: Yes, with optional 1U rack shelf or back of the rack mounting kit

Receiver: Input: 100-240 VAC, 50-60 Hz Output: 12 VDC, 1.5 A, 18 watts

Receiver HUB power output: 5 VDC, 500 mA per port

Regulatory compliance: CE, c-UL, KCC, C-tick, FCC Class A, ICES, RoHS, VCCI Class AUL, WEEE

Resource management software: GlobalViewer® Enterprise

SDRAM: 1 GB

Standards: IEEE 802.3u (100Base-T), IEEE 802.3ab (1000Base-T)

Temperature/humidity: Storage: -40 to +158°F (-40 to +70°C) / 10% to 90%, noncondensing Operating: +32 to +122°F (0 to +50°C) / 10% to 90%, noncondensing

Termination standards: TIA 568B

Transmitter: Input: 100-240 VAC, 50-60 Hz Output: 12 VDC, 0.5 A, 6 watts

Transport: TCP/IP, UDP

USB Extender xi Rack Mount: 1.0" H x 4.3" W x 3.0" D (quarter rack width) (25 mm H x 109 mm W x 76 mm D) (Depth excludes connectors.)

USB data rates: Low speed (1.5 Mbps), full speed (12 Mbps), high speed (480 Mbps)

USB host support: xHCI (USB 3.0), EHCI (USB 2.0), OHCI/UHCI (USB 1.1)

USB standards: USB 2.0, USB 1.1, USB 1.0 compatible

Utilities: Toolbelt, embedded web page

Vibration: ISTA 1A in carton (International Safe Transit Association)

Diagram

Resources

Brochure | USB Extender xi R 60-1964-13 | USB Extender xi Series

Specifications | USB Extender xi R 60-1964-13 | USB Extender xi T/R Series

Panel Drawing | USB Extender xi R 60-1964-13 | USB Extender xi Series

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Extron USB Extender xi R 60-1964-13

Name: Extron USB Extender xi R 60-1964-13
Brand: Extron
SKU: EXTRON-USBEXTENDERXIR-60-1964-13
Availability: InStock

Manufacturer: Extron

Type: USB for Pro AV

Extron USB Extender xi R | Part# 60-1964-13

• USB 2.0 Receiver | 1,980 ft (600 m) Over Gigabit Ethernet
• 330 ft (100 m) Point-to-Point | PoE 802.3af or 12 VDC
• 500 mA USB Power Per Port | Device Emulation | All Transfer Types
• RS-232/422/485 Serial | Fanless Quarter Rack | 0.7 lbs
• 3-Year Warranty | 7-Year Everlast PSU | New | Authorized Extron Distributor
• Part# 60-1964-13 / 60196413 | Pairs with xi T (60-1964-12)
