Extron USB Extender Plus T HID 60-1539-12

Details

Manufacturer: Extron | Model: USB Extender Plus T HID | Part number: 60-1539-12 (also written 60153912)

The Extron USB Extender Plus T HID (60-1539-12) is the HID-only desktop transmitter that forms the host end of a HID-restricted USB extension pair. It forwards signals from HID-class peripherals — keyboards, mice, and similar devices — over Gigabit Ethernet or CATx to the matching HID receiver, while device class filtering prevents mass storage, cameras, and other non-HID devices from passing through the link. This restriction is intentional in secure environments where only input devices should be accessible remotely.

Key capabilities

HID device class filtering: restricts the extension link to keyboards, mice, and HID peripherals only
Extends USB at up to 480 Mbps to 1,980 ft over Gigabit Ethernet or 330 ft over CATx
Peripheral emulation at the host end for reliable boot
Pairs with the USB Extender Plus R HID (60-1539-13) receiver
Powered by PoE or optional 12 VDC external supply

Where it is used

Secure AV installations — government, finance, healthcare — where keyboards and mice must extend to a rack-mounted host but USB storage and video capture devices must not traverse the same link.

Specifications at a glance

Host connector: 1 USB Type B female
Network: 10/100/1000Base-T, IPv4, UDP, DHCP and unicast supported
Operating temperature: +32 to +122 F
Warranty: 3-year Extron parts and labor

Also referenced as Extron USBExtenderPlusTHID, USB-Extender-Plus-T-HID, part number 60153912.

Specifications

Part Number: 60-1539-12

Manufacturer: Extron

Condition: New

Height: 10.5" (26.7 cm)

All supported: IPv4, UDP, DHCP, Unicast

Ambient temperature/humidity: Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensingOperating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing

Available USB power: 500 mA per port

Baud rate and protocol: 300 to 115200 baud (9600 baud = default); 8 (default) or 7 data bits; 1 (default) or 2 stop bits;no parity (default), even, or odd parity

Connectors: 1 female USB type B

Cooling: Convection, no vents

Data rate: 10/100/1000Base-T, half/full duplex with autodetect

Data transfer types: Bulk, Control, Interrupt, and Isochronous

Default settings: Link speed and duplex level = autodetected IP address = 192.168.254.250 Subnet mask = 255.255.255.0 Gateway = 0.0.0.0 DHCP = off DNS: 127.0.0.1

Device: 2.5 watts

Device and power supply: 3.4 watts

Enclosure dimensions: 1.0" H x 4.3" W x 6.0" D (1U high, quarter rack wide) (25 mm H x 109 mm W x 152 mm D) (Depth excludes connectors.)

Enclosure type: Metal

Everlast power supply warranty: 7 years parts and labor

Faceplate: 1.4" H x 3.5" W x 0.1 " D (36 mm H x 89 mm W x 2.5 mm D) Double-space AAP

Flash: 512 MB

Furniture mount: Yes, with optional bracket kit

IP Configuration: Static IP (default) or DHCP

Maximum built-in USB hubs: 2

Minimum built-in USB hubs: 0

Network interface controllers (NICs): 1

Number/signal type: 1 USB

Optional built-in USB hubs: Peripheral emulation enabled: 1 1:n network pairing enabled: 1

Over the network: Up to 1980' (600 m)**

Point to point: Up to 330' (100 m)

Power input requirements: 12 VDC, 1 A, 12 watts, max. Or power over Ethernet (PoE) (complies with PoE 802.3af, class 3)

Power supply: External

Product warranty: 3 years parts and labor

Product weight: 0.6 lbs (0.3 kg)

Protocol: Ethernet

Protocols: DHCP, DNS, HTTP, HTTPS, ICMP, NTP, SFTP, SMTP, SNMP, SSH, TCP/IP, UDP/IP

Quantity/type: 1 bidirectional RS-232

Rack mount: Yes, with optional 1U rack shelf or back of the rack mounting kit

Receiver: Input: 100-240 VAC, 50-60 Hz Output: 12 VDC, 1.5 A, 18 watts

Receiver HUB power output: 5 VDC, 500 mA per port

Regulatory compliance: UL, c-UL, CE, FCC Class A, C-Tick, RoHS, WEEE, KC* *Only USB Extender Plus T, USB Extender Plus R, and USB Extender Plus AAP R models

SDRAM: 512 MB

Standards: IEEE 802.3u (100Base-T), IEEE 802.3ab (1000Base-T)

Termination standards: TIA 568B

Transmitter: Input: 100-240 VAC, 50-60 Hz Output: 12 VDC, 0.5 A, 6 watts

Transport: TCP/IP, UDP

USB Extender Plus Rack Mount: 1.0" H x 4.3" W x 6.0" D (quarter rack width) (25 mm H x 109 mm W x 152 mm D) (Depth excludes connectors.)

USB data rates: Low speed (1.5 Mbps), full speed (12 Mbps), high speed (480 Mbps)

USB host support: xHCI (USB 3.0), EHCI (USB 2.0), OHCI/UHCI (USB 1.1)

USB standards: USB 2.0, USB 1.1, USB 1.0 compatible

Vibration: ISTA 1A in carton (International Safe Transit Association)

Diagram

Resources

Brochure | USB Extender Plus T HID 60-1539-12 | USB Extender Plus Series

Brochure | USB Extender Plus T HID 60-1539-12 | Everlast Power Supplies

Brochure | USB Extender Plus T HID 60-1539-12 | Gamme USB Extender Plus

Brochure | USB Extender Plus T HID 60-1539-12 | Serie USB Extender Plus (USB-Extender-Plus-Series_BR_A4_SP_RevA.pdf)

Brochure | USB Extender Plus T HID 60-1539-12 | Serie USB Extender Plus (USB-Extender-Plus-Series_BR_A4_IT_RevA.pdf)

Brochure | USB Extender Plus T HID 60-1539-12 | USB Extender Plus-Serie

Brochure | USB Extender Plus T HID 60-1539-12 | Серия USB Extender Plus

Brochure | USB Extender Plus T HID 60-1539-12 | Alimentatori Everlast

Brochure | USB Extender Plus T HID 60-1539-12 | Everlast 电源

Brochure | USB Extender Plus T HID 60-1539-12 | Everlast-Netzteile

Brochure | USB Extender Plus T HID 60-1539-12 | Fuentes de alimentación Everlast

Brochure | USB Extender Plus T HID 60-1539-12 | Sources d'alimentation Everlast

Brochure | USB Extender Plus T HID 60-1539-12 | USB Extender Plusシリーズ

Manual | USB Extender Plus T HID 60-1539-12 | Cleaning Instruction Card

Manual | USB Extender Plus T HID 60-1539-12 | USB Extender Plus Series User Guide

Manual | USB Extender Plus T HID 60-1539-12 | USB Extender Plus T/R Setup Guide

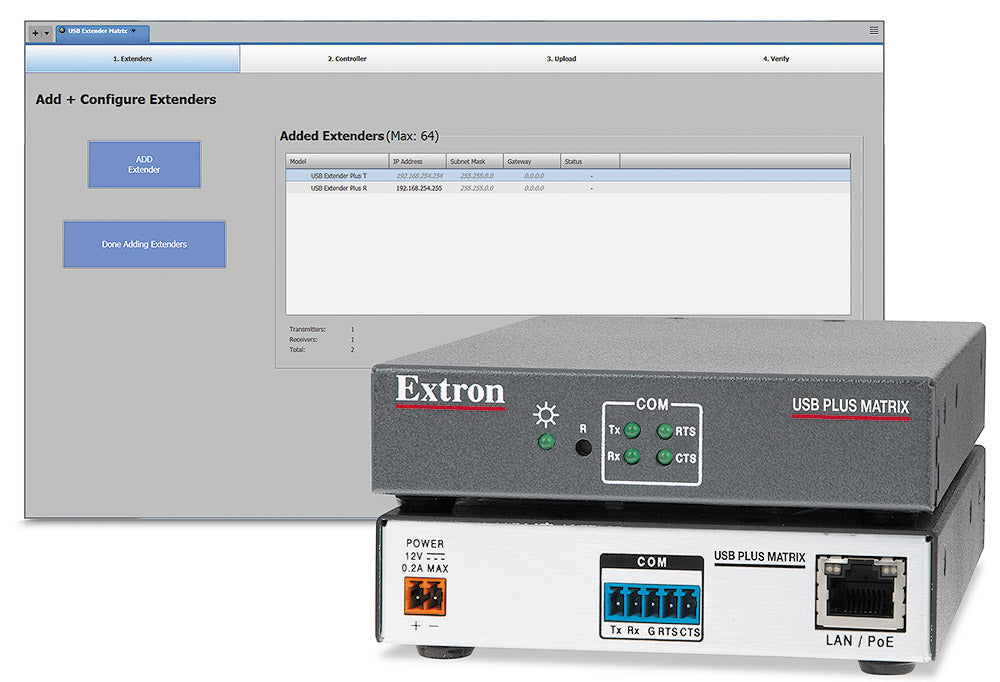

Manual | USB Extender Plus T HID 60-1539-12 | USB Plus Matrix Controller Setup Guide

Specifications | USB Extender Plus T HID 60-1539-12 | USB Extender Plus T/R Series

Panel Drawing | USB Extender Plus T HID 60-1539-12 | USB Extender Plus Series

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Extron USB Extender Plus T HID 60-1539-12

Name: Extron USB Extender Plus T HID 60-1539-12
Brand: Extron
SKU: EXTRON-USBEXTENDERPLUSTHID-60153912
Availability: InStock

Manufacturer: Extron

Type: USB for Pro AV

Extron USB Extender Plus T HID 60-1539-12 HID Transmitter

• Desktop HID transmitter: host end of a HID-only USB extension pair
• Pairs with the USB Extender Plus R HID receiver to restrict to HID devices
• Extends USB to 1,980 ft (600 m) via Gigabit Ethernet or 330 ft via CATx
• Powered by PoE or optional 12 VDC external supply
• For full USB 2.0 extension including storage, use the standard T and R pair
