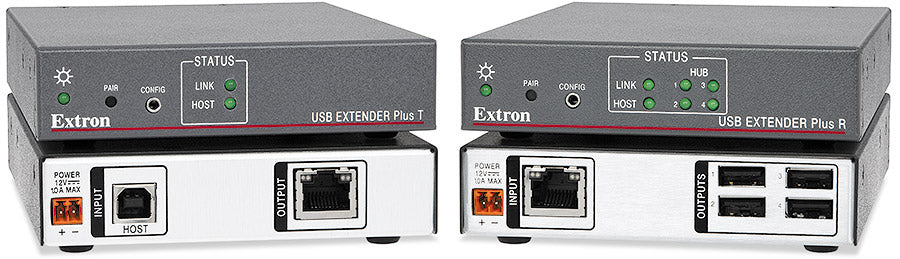

Extron USB Extender Plus R HID 60-1539-13

Details

Manufacturer: Extron | Model: USB Extender Plus R HID | Part number: 60-1539-13 (also written 60153913)

The Extron USB Extender Plus R HID (60-1539-13) is the HID-only desktop receiver that forms the display end of a HID-restricted USB extension pair. It receives USB signals forwarded by the matching HID transmitter and routes them to connected HID peripherals through its integrated hub. Device class filtering at the receiver prevents non-HID devices from connecting, keeping mass storage drives and cameras off the extension link even if a user attempts to plug one in.

Key capabilities

HID device class filtering at the receiver end: keyboards and mice only
Extends USB at up to 480 Mbps to 1,980 ft over Gigabit Ethernet or 330 ft over CATx
Built-in hub with 500 mA per port for connected HID peripherals
Pairs with the USB Extender Plus T HID (60-1539-12) transmitter
Powered by PoE or optional 12 VDC external supply

Where it is used

Secure AV environments where display-end keyboard and mouse access is needed but USB mass storage access must be blocked at the hardware level.

Specifications at a glance

Network: 10/100/1000Base-T, IPv4, UDP, DHCP and unicast supported
Operating temperature: +32 to +122 F
Warranty: 3-year Extron parts and labor

Also referenced as Extron USBExtenderPlusRHID, USB-Extender-Plus-R-HID, part number 60153913.

Specifications

Part Number: 60-1539-13

Manufacturer: Extron

Condition: New

Height: 10.5" (26.7 cm)

All supported: IPv4, UDP, DHCP, Unicast

Ambient temperature/humidity: Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensingOperating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing

Available USB power: 500 mA per port

Baud rate and protocol: 300 to 115200 baud (9600 baud = default); 8 (default) or 7 data bits; 1 (default) or 2 stop bits;no parity (default), even, or odd parity

Connectors: 1 female USB type B

Cooling: Convection, no vents

Data rate: 10/100/1000Base-T, half/full duplex with autodetect

Data transfer types: Bulk, Control, Interrupt, and Isochronous

Default settings: Link speed and duplex level = autodetected IP address = 192.168.254.250 Subnet mask = 255.255.255.0 Gateway = 0.0.0.0 DHCP = off DNS: 127.0.0.1

Device: 2.5 watts

Device and power supply: 3.4 watts

Enclosure dimensions: 1.0" H x 4.3" W x 6.0" D (1U high, quarter rack wide) (25 mm H x 109 mm W x 152 mm D) (Depth excludes connectors.)

Enclosure type: Metal

Everlast power supply warranty: 7 years parts and labor

Faceplate: 1.4" H x 3.5" W x 0.1 " D (36 mm H x 89 mm W x 2.5 mm D) Double-space AAP

Flash: 512 MB

Furniture mount: Yes, with optional bracket kit

IP Configuration: Static IP (default) or DHCP

Maximum built-in USB hubs: 2

Minimum built-in USB hubs: 0

Network interface controllers (NICs): 1

Number/signal type: 1 USB

Optional built-in USB hubs: Peripheral emulation enabled: 1 1:n network pairing enabled: 1

Over the network: Up to 1980' (600 m)**

Point to point: Up to 330' (100 m)

Power input requirements: 12 VDC, 1 A, 12 watts, max. Or power over Ethernet (PoE) (complies with PoE 802.3af, class 3)

Power supply: External

Product warranty: 3 years parts and labor

Product weight: 0.6 lbs (0.3 kg)

Protocol: Ethernet

Protocols: DHCP, DNS, HTTP, HTTPS, ICMP, NTP, SFTP, SMTP, SNMP, SSH, TCP/IP, UDP/IP

Quantity/type: 1 bidirectional RS-232

Rack mount: Yes, with optional 1U rack shelf or back of the rack mounting kit

Receiver: Input: 100-240 VAC, 50-60 Hz Output: 12 VDC, 1.5 A, 18 watts

Receiver HUB power output: 5 VDC, 500 mA per port

Regulatory compliance: UL, c-UL, CE, FCC Class A, C-Tick, RoHS, WEEE, KC* *Only USB Extender Plus T, USB Extender Plus R, and USB Extender Plus AAP R models

SDRAM: 512 MB

Standards: IEEE 802.3u (100Base-T), IEEE 802.3ab (1000Base-T)

Termination standards: TIA 568B

Transmitter: Input: 100-240 VAC, 50-60 Hz Output: 12 VDC, 0.5 A, 6 watts

Transport: TCP/IP, UDP

USB Extender Plus Rack Mount: 1.0" H x 4.3" W x 6.0" D (quarter rack width) (25 mm H x 109 mm W x 152 mm D) (Depth excludes connectors.)

USB data rates: Low speed (1.5 Mbps), full speed (12 Mbps), high speed (480 Mbps)

USB host support: xHCI (USB 3.0), EHCI (USB 2.0), OHCI/UHCI (USB 1.1)

USB standards: USB 2.0, USB 1.1, USB 1.0 compatible

Vibration: ISTA 1A in carton (International Safe Transit Association)

Diagram

Resources

Brochure | USB Extender Plus R HID 60-1539-13 | USB Extender Plus Series

Brochure | USB Extender Plus R HID 60-1539-13 | Everlast Power Supplies

Brochure | USB Extender Plus R HID 60-1539-13 | Gamme USB Extender Plus

Brochure | USB Extender Plus R HID 60-1539-13 | Serie USB Extender Plus (USB-Extender-Plus-Series_BR_A4_SP_RevA.pdf)

Brochure | USB Extender Plus R HID 60-1539-13 | Serie USB Extender Plus (USB-Extender-Plus-Series_BR_A4_IT_RevA.pdf)

Brochure | USB Extender Plus R HID 60-1539-13 | USB Extender Plus-Serie

Brochure | USB Extender Plus R HID 60-1539-13 | Серия USB Extender Plus

Brochure | USB Extender Plus R HID 60-1539-13 | Alimentatori Everlast

Brochure | USB Extender Plus R HID 60-1539-13 | Everlast 电源

Brochure | USB Extender Plus R HID 60-1539-13 | Everlast-Netzteile

Brochure | USB Extender Plus R HID 60-1539-13 | Fuentes de alimentación Everlast

Brochure | USB Extender Plus R HID 60-1539-13 | Sources d'alimentation Everlast

Brochure | USB Extender Plus R HID 60-1539-13 | USB Extender Plusシリーズ

Manual | USB Extender Plus R HID 60-1539-13 | Cleaning Instruction Card

Manual | USB Extender Plus R HID 60-1539-13 | USB Extender Plus Series User Guide

Manual | USB Extender Plus R HID 60-1539-13 | USB Extender Plus T/R Setup Guide

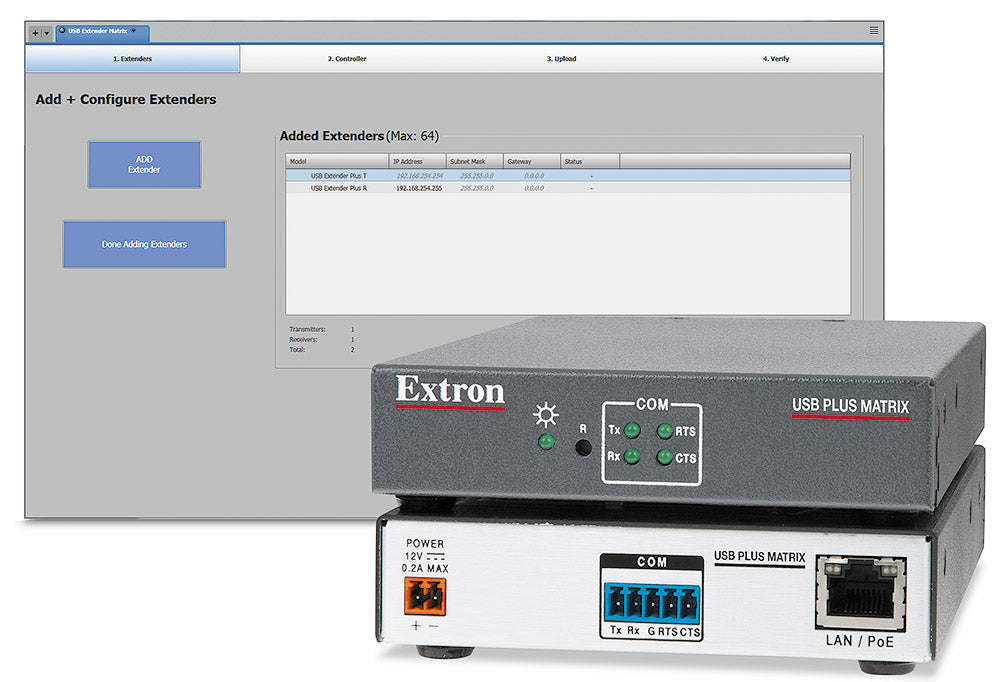

Manual | USB Extender Plus R HID 60-1539-13 | USB Plus Matrix Controller Setup Guide

Specifications | USB Extender Plus R HID 60-1539-13 | USB Extender Plus T/R Series

Panel Drawing | USB Extender Plus R HID 60-1539-13 | USB Extender Plus Series

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Extron USB Extender Plus R HID 60-1539-13

Name: Extron USB Extender Plus R HID 60-1539-13
Brand: Extron
SKU: EXTRON-USBEXTENDERPLUSRHID-60153913
Availability: InStock

Manufacturer: Extron

Type: USB for Pro AV

Extron USB Extender Plus R HID 60-1539-13 HID Receiver

• Desktop HID receiver: limits connected devices to keyboards, mice, and HID devices
• Extends USB to 1,980 ft (600 m) via Gigabit Ethernet or 330 ft via CATx
• Device class filtering prevents unauthorized USB hardware from connecting
• Powered by PoE or optional 12 VDC external supply
• Works with the matching USB Extender Plus T HID transmitter
