Details

Manufacturer: Extron; Model: USB Extender Plus R; Part number: 60-1471-13 (also written 60147113)

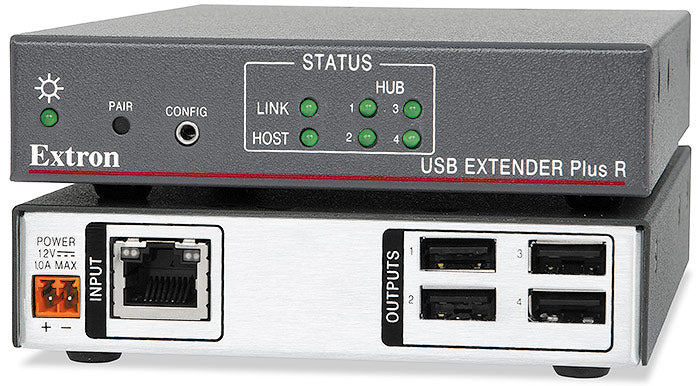

The Extron USB Extender Plus R (60-1471-13) is a new desktop USB receiver available through Ampronix for the display end of a USB Extender Plus extension pair. It receives USB 2.0 signals from the matching transmitter and routes them to connected peripherals through a built-in 4-port active hub with 500 mA per port. Receives over Gigabit Ethernet up to 1,980 ft or over direct CATx up to 330 ft. Powered by PoE or optional 12 VDC.

Key capabilities

Extends USB 2.0 at up to 480 Mbps - 1,980 ft over Gigabit Ethernet or 330 ft over CATx
Built-in 4-port active USB 2.0 hub, 500 mA per port

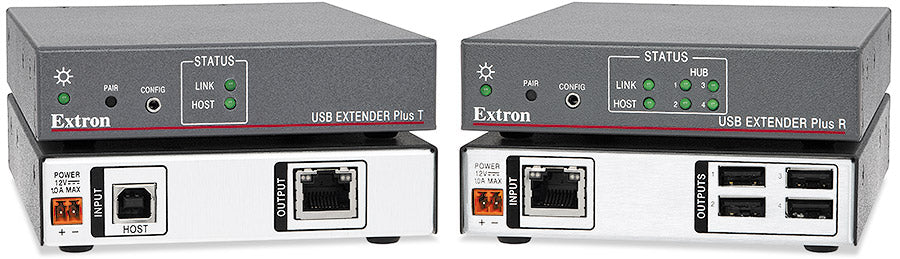

Pairs with the USB Extender Plus T (60-1471-12) transmitter
Powered by PoE or optional 12 VDC external supply
Compatible with USB 3.0 devices at USB 2.0 speeds

Where it is used

Conference rooms, classrooms, and lecture halls where keyboards, mice, cameras, or presenters' USB devices need to reach a rack-mounted host PC over the building network or a single CATx run.

Specifications at a glance

Peripheral ports: 4 x USB Type A female, 500 mA each; network: 10/100/1000Base-T
Warranty: 3-year Extron parts and labor

Frequently asked questions about the Extron USB Extender Plus R

Is the Extron USB Extender Plus R 60-1471-13 available new or refurbished?

Ampronix stocks the USB Extender Plus R (60-1471-13) as a new unit through its authorized Extron distribution agreement.

What transmitter pairs with the USB Extender Plus R 60-1471-13?

The 60-1471-13 receiver pairs with the USB Extender Plus T (60-1471-12) desktop transmitter at the host end to complete the USB extension link.

Does Ampronix offer replacement and exchange for the Extron USB Extender Plus R?

Yes. Ampronix provides sales, replacement and exchange for the USB Extender Plus R and the broader Extron USB extender line.

Ampronix is an authorized Extron distributor. Need a replacement or exchange for your Extron USB Extender Plus R? Ampronix provides sales, replacement and exchange for this product and the broader Extron line.

Also referenced as Extron USBExtenderPlusR, USB-Extender-Plus-R, part number 60147113.

Specifications

Part Number: 60-1471-13

Manufacturer: Extron

Condition: New

Height: 2.94" (7.5 cm)

All supported: IPv4, UDP, DHCP, Unicast

Ambient temperature/humidity: Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensingOperating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing

Available USB power: 500 mA per port

Baud rate and protocol: 300 to 115200 baud (9600 baud = default); 8 (default) or 7 data bits; 1 (default) or 2 stop bits;no parity (default), even, or odd parity

Connectors: 1 female USB type B

Cooling: Convection, no vents

Data rate: 10/100/1000Base-T, half/full duplex with autodetect

Data transfer types: Bulk, Control, Interrupt, and Isochronous

Default settings: Link speed and duplex level = autodetected IP address = 192.168.254.250 Subnet mask = 255.255.255.0 Gateway = 0.0.0.0 DHCP = off DNS: 127.0.0.1

Device: 2.5 watts

Device and power supply: 3.4 watts

Enclosure dimensions: 1.0" H x 4.3" W x 6.0" D (1U high, quarter rack wide) (25 mm H x 109 mm W x 152 mm D) (Depth excludes connectors.)

Enclosure type: Metal

Everlast power supply warranty: 7 years parts and labor

Faceplate: 1.4" H x 3.5" W x 0.1 " D (36 mm H x 89 mm W x 2.5 mm D) Double-space AAP

Flash: 512 MB

Furniture mount: Yes, with optional bracket kit

IP Configuration: Static IP (default) or DHCP

Maximum built-in USB hubs: 2

Minimum built-in USB hubs: 0

Network interface controllers (NICs): 1

Number/signal type: 1 USB

Optional built-in USB hubs: Peripheral emulation enabled: 1 1:n network pairing enabled: 1

Over the network: Up to 1980' (600 m)**

Point to point: Up to 330' (100 m)

Power input requirements: 12 VDC, 1 A, 12 watts, max. Or power over Ethernet (PoE) (complies with PoE 802.3af, class 3)

Power supply: External

Product warranty: 3 years parts and labor

Product weight: 0.6 lbs (0.3 kg)

Protocol: Ethernet

Protocols: DHCP, DNS, HTTP, HTTPS, ICMP, NTP, SFTP, SMTP, SNMP, SSH, TCP/IP, UDP/IP

Quantity/type: 1 bidirectional RS-232

Rack mount: Yes, with optional 1U rack shelf or back of the rack mounting kit

Receiver: Input: 100-240 VAC, 50-60 Hz Output: 12 VDC, 1.5 A, 18 watts

Receiver HUB power output: 5 VDC, 500 mA per port

Regulatory compliance: UL, c-UL, CE, FCC Class A, C-Tick, RoHS, WEEE, KC* *Only USB Extender Plus T, USB Extender Plus R, and USB Extender Plus AAP R models

SDRAM: 512 MB

Standards: IEEE 802.3u (100Base-T), IEEE 802.3ab (1000Base-T)

Termination standards: TIA 568B

Transmitter: Input: 100-240 VAC, 50-60 Hz Output: 12 VDC, 0.5 A, 6 watts

Transport: TCP/IP, UDP

USB Extender Plus Rack Mount: 1.0" H x 4.3" W x 6.0" D (quarter rack width) (25 mm H x 109 mm W x 152 mm D) (Depth excludes connectors.)

USB data rates: Low speed (1.5 Mbps), full speed (12 Mbps), high speed (480 Mbps)

USB host support: xHCI (USB 3.0), EHCI (USB 2.0), OHCI/UHCI (USB 1.1)

USB standards: USB 2.0, USB 1.1, USB 1.0 compatible

Vibration: ISTA 1A in carton (International Safe Transit Association)

Diagram

Resources

Brochure | USB Extender Plus R 60-1471-13 | USB Extender Plus Series

Brochure | USB Extender Plus R 60-1471-13 | Everlast Power Supplies

Brochure | USB Extender Plus R 60-1471-13 | Gamme USB Extender Plus

Brochure | USB Extender Plus R 60-1471-13 | Serie USB Extender Plus (USB-Extender-Plus-Series_BR_A4_SP_RevA.pdf)

Brochure | USB Extender Plus R 60-1471-13 | Serie USB Extender Plus (USB-Extender-Plus-Series_BR_A4_IT_RevA.pdf)

Brochure | USB Extender Plus R 60-1471-13 | USB Extender Plus-Serie

Brochure | USB Extender Plus R 60-1471-13 | Серия USB Extender Plus

Brochure | USB Extender Plus R 60-1471-13 | Alimentatori Everlast

Brochure | USB Extender Plus R 60-1471-13 | Everlast 电源

Brochure | USB Extender Plus R 60-1471-13 | Everlast-Netzteile

Brochure | USB Extender Plus R 60-1471-13 | Fuentes de alimentación Everlast

Brochure | USB Extender Plus R 60-1471-13 | Sources d'alimentation Everlast

Brochure | USB Extender Plus R 60-1471-13 | USB Extender Plusシリーズ

Manual | USB Extender Plus R 60-1471-13 | Cleaning Instruction Card

Manual | USB Extender Plus R 60-1471-13 | USB Extender Plus Series User Guide

Manual | USB Extender Plus R 60-1471-13 | USB Extender Plus T/R Setup Guide

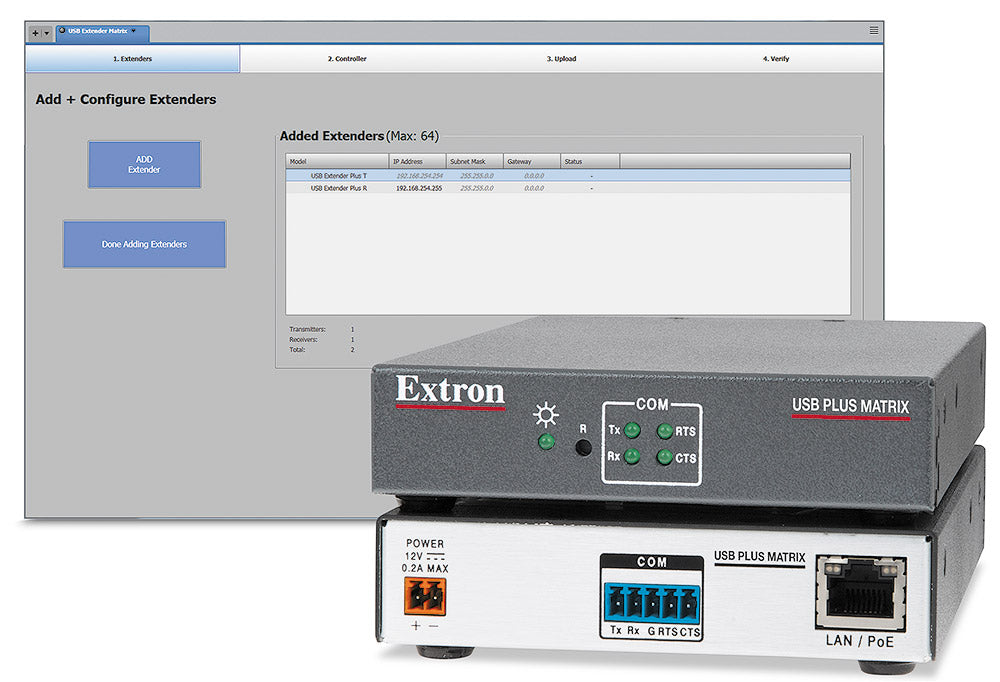

Manual | USB Extender Plus R 60-1471-13 | USB Plus Matrix Controller Setup Guide

Specifications | USB Extender Plus R 60-1471-13 | USB Extender Plus T/R Series

Panel Drawing | USB Extender Plus R 60-1471-13 | USB Extender Plus Series
