Extron USB Extender Plus AAP T 60-1472-12

Details

Manufacturer: Extron | Model: USB Extender Plus AAP T | Part number: 60-1472-12 (also written 60147212)

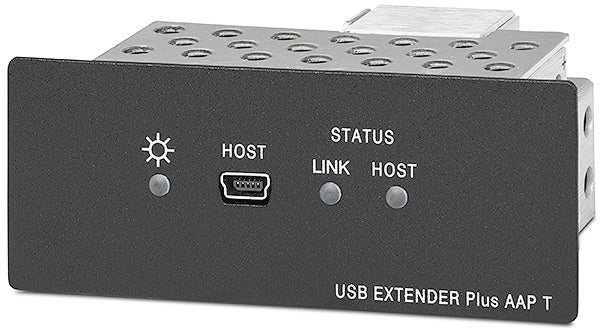

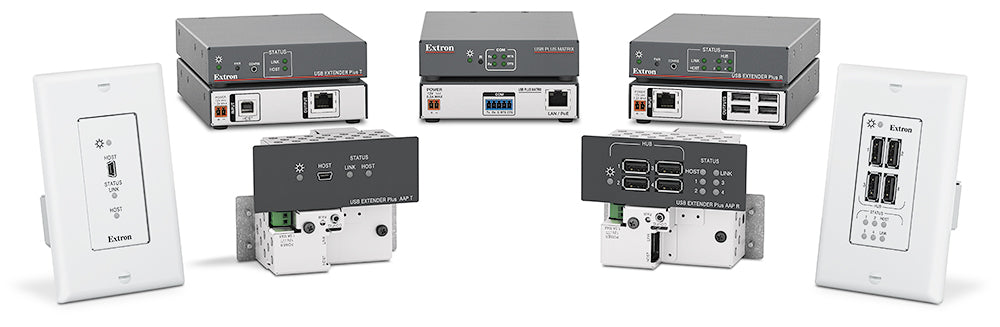

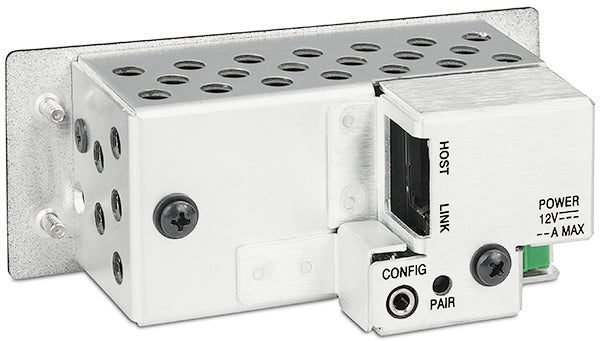

The Extron USB Extender Plus AAP T (60-1472-12) is the host-end transmitter in architectural mounting plate (AAP) form, finished in black. It mounts in an Extron AAP frame alongside other AV connectivity modules and connects to a USB host via a Type B port, forwarding USB signals to the matching AAP receiver over Gigabit Ethernet at up to 1,980 ft or over direct CATx at 330 ft. Peripheral emulation keeps the host booting reliably without a locally attached keyboard.

Key capabilities

AAP form factor mounts in Extron architectural mounting frames alongside HDMI, VGA, and audio modules
Extends USB 2.0 at up to 480 Mbps to 1,980 ft over Gigabit Ethernet or 330 ft over CATx
Black finish; white version is 60-1472-13 (not this part)
Pairs with the USB Extender Plus AAP R (60-1472-22 black or 60-1472-23 white) receiver
Powered by PoE or optional 12 VDC external supply

Where it is used

Table boxes, wall frames, and lecterns where USB source connectivity needs to integrate architecturally with other AV connectors in an Extron AAP mounting system.

Specifications at a glance

Mounting: Extron double-space AAP frame
Host connector: 1 USB Type B female
Network: 10/100/1000Base-T, IPv4, UDP, DHCP and unicast supported
Operating temperature: +32 to +122 F

Also referenced as Extron USBExtenderPlusAAPT, USB-Extender-Plus-AAP-T, part number 60147212.

Specifications

Part Number: 60-1472-12

Manufacturer: Extron

Condition: New

All supported: IPv4, UDP, DHCP, Unicast

Ambient temperature/humidity: Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensingOperating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing

Available USB power: 500 mA per port

Baud rate and protocol: 300 to 115200 baud (9600 baud = default); 8 (default) or 7 data bits; 1 (default) or 2 stop bits;no parity (default), even, or odd parity

Connectors: 1 female USB type B

Cooling: Convection, no vents

Data rate: 10/100/1000Base-T, half/full duplex with autodetect

Data transfer types: Bulk, Control, Interrupt, and Isochronous

Default settings: Link speed and duplex level = autodetected IP address = 192.168.254.250 Subnet mask = 255.255.255.0 Gateway = 0.0.0.0 DHCP = off DNS: 127.0.0.1

Device: 2.5 watts

Device and power supply: 3.4 watts

Enclosure dimensions: 1.0" H x 4.3" W x 6.0" D (1U high, quarter rack wide) (25 mm H x 109 mm W x 152 mm D) (Depth excludes connectors.)

Enclosure type: Metal

Everlast power supply warranty: 7 years parts and labor

Faceplate: 1.4" H x 3.5" W x 0.1 " D (36 mm H x 89 mm W x 2.5 mm D) Double-space AAP

Flash: 512 MB

Furniture mount: Yes, with optional bracket kit

IP Configuration: Static IP (default) or DHCP

Maximum built-in USB hubs: 2

Minimum built-in USB hubs: 0

Network interface controllers (NICs): 1

Number/signal type: 1 USB

Optional built-in USB hubs: Peripheral emulation enabled: 1 1:n network pairing enabled: 1

Over the network: Up to 1980' (600 m)**

Point to point: Up to 330' (100 m)

Power input requirements: 12 VDC, 1 A, 12 watts, max. Or power over Ethernet (PoE) (complies with PoE 802.3af, class 3)

Power supply: External

Product warranty: 3 years parts and labor

Product weight: 0.6 lbs (0.3 kg)

Protocol: Ethernet

Protocols: DHCP, DNS, HTTP, HTTPS, ICMP, NTP, SFTP, SMTP, SNMP, SSH, TCP/IP, UDP/IP

Quantity/type: 1 bidirectional RS-232

Rack mount: Yes, with optional 1U rack shelf or back of the rack mounting kit

Receiver: Input: 100-240 VAC, 50-60 Hz Output: 12 VDC, 1.5 A, 18 watts

Receiver HUB power output: 5 VDC, 500 mA per port

Regulatory compliance: UL, c-UL, CE, FCC Class A, C-Tick, RoHS, WEEE, KC* *Only USB Extender Plus T, USB Extender Plus R, and USB Extender Plus AAP R models

SDRAM: 512 MB

Standards: IEEE 802.3u (100Base-T), IEEE 802.3ab (1000Base-T)

Termination standards: TIA 568B

Transmitter: Input: 100-240 VAC, 50-60 Hz Output: 12 VDC, 0.5 A, 6 watts

Transport: TCP/IP, UDP

USB Extender Plus Rack Mount: 1.0" H x 4.3" W x 6.0" D (quarter rack width) (25 mm H x 109 mm W x 152 mm D) (Depth excludes connectors.)

USB data rates: Low speed (1.5 Mbps), full speed (12 Mbps), high speed (480 Mbps)

USB host support: xHCI (USB 3.0), EHCI (USB 2.0), OHCI/UHCI (USB 1.1)

USB standards: USB 2.0, USB 1.1, USB 1.0 compatible

Vibration: ISTA 1A in carton (International Safe Transit Association)

Diagram

Resources

Brochure | USB Extender Plus AAP T 60-1472-12 | USB Extender Plus Series

Brochure | USB Extender Plus AAP T 60-1472-12 | Everlast Power Supplies

Brochure | USB Extender Plus AAP T 60-1472-12 | Gamme USB Extender Plus

Brochure | USB Extender Plus AAP T 60-1472-12 | Serie USB Extender Plus (USB-Extender-Plus-Series_BR_A4_SP_RevA.pdf)

Brochure | USB Extender Plus AAP T 60-1472-12 | Serie USB Extender Plus (USB-Extender-Plus-Series_BR_A4_IT_RevA.pdf)

Brochure | USB Extender Plus AAP T 60-1472-12 | USB Extender Plus-Serie

Brochure | USB Extender Plus AAP T 60-1472-12 | Серия USB Extender Plus

Brochure | USB Extender Plus AAP T 60-1472-12 | Alimentatori Everlast

Brochure | USB Extender Plus AAP T 60-1472-12 | Everlast 电源

Brochure | USB Extender Plus AAP T 60-1472-12 | Everlast-Netzteile

Brochure | USB Extender Plus AAP T 60-1472-12 | Fuentes de alimentación Everlast

Brochure | USB Extender Plus AAP T 60-1472-12 | Sources d'alimentation Everlast

Brochure | USB Extender Plus AAP T 60-1472-12 | USB Extender Plusシリーズ

Manual | USB Extender Plus AAP T 60-1472-12 | Cleaning Instruction Card

Manual | USB Extender Plus AAP T 60-1472-12 | USB Extender Plus Series User Guide

Manual | USB Extender Plus AAP T 60-1472-12 | USB Extender Plus T/R Setup Guide

Manual | USB Extender Plus AAP T 60-1472-12 | USB Plus Matrix Controller Setup Guide

Specifications | USB Extender Plus AAP T 60-1472-12 | USB Extender Plus T/R Series

Panel Drawing | USB Extender Plus AAP T 60-1472-12 | USB Extender Plus Series
