Extron USB Extender Plus AAP R 60-1472-22

Details

Manufacturer: Extron; Model: USB Extender Plus AAP R; Part number: 60-1472-22 (also written 60147222)

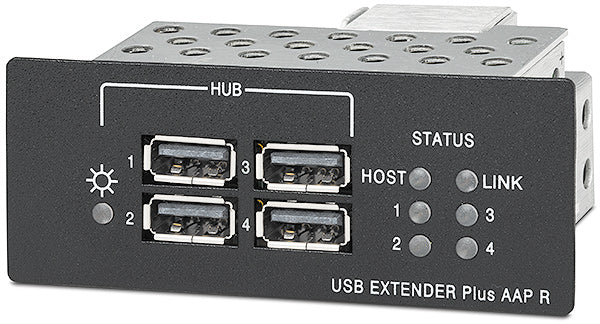

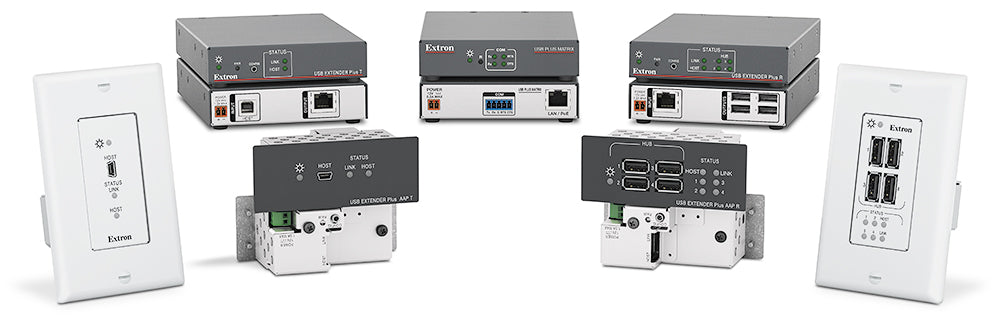

The Extron USB Extender Plus AAP R (60-1472-22) is the display-end receiver in black AAP form. It mounts in an Extron AAP frame and routes USB signals received from the matching transmitter to connected peripherals through its built-in four-port active hub. Each port delivers up to 500 mA. The black finish pairs with the black 60-1472-12 transmitter; a white version (60-1472-23) is also available.

Key capabilities

Black AAP form factor mounts in Extron architectural mounting frames
Extends USB 2.0 at up to 480 Mbps to 1,980 ft over Gigabit Ethernet or 330 ft over CATx
Built-in 4-port active USB 2.0 hub, 500 mA per port
Pairs with USB Extender Plus AAP T (60-1472-12)
Powered by PoE or optional 12 VDC external supply

Where it is used

Display-end USB hub access in table boxes, wall frames, and lecterns where architectural integration with other Extron AAP modules is required.

Specifications at a glance

Mounting: Extron double-space AAP frame
Peripheral ports: 4 x USB Type A female, 500 mA each
Network: 10/100/1000Base-T, IPv4, UDP, DHCP and unicast supported
Operating temperature: +32 to +122 F

Frequently asked questions about the Extron USB Extender Plus AAP R

Does Ampronix sell the Extron USB Extender Plus AAP R?

Yes. Ampronix is an authorized Extron distributor and sells the Extron USB Extender Plus AAP R (60-1472-22). Call Ampronix for a quote.

Does Ampronix offer replacement and exchange for the Extron USB Extender Plus AAP R?

Yes. Ampronix provides sales, replacement and exchange for the Extron USB Extender Plus AAP R. Call Ampronix for a quote.

Is the Extron USB Extender Plus AAP R listed under other names?

Yes. The Extron USB Extender Plus AAP R is also referenced as Extron USBExtenderPlusAAPR, USB-Extender-Plus-AAP-R, part number 60147222.

What are the key features of the Extron USB Extender Plus AAP R?

Key points: Black AAP form factor mounts in Extron architectural mounting frames; Extends USB 2.0 at up to 480 Mbps to 1,980 ft over Gigabit Ethernet or 330 ft over CATx; Built-in 4-port active USB 2.0 hub, 500 mA per port; Pairs with USB Extender Plus AAP T (60-1472-12). Call Ampronix to confirm details for your application.

Also referenced as Extron USBExtenderPlusAAPR, USB-Extender-Plus-AAP-R, part number 60147222.

Specifications

Part Number: 60-1472-22

Manufacturer: Extron

Condition: New

All supported: IPv4, UDP, DHCP, Unicast

Ambient temperature/humidity: Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensingOperating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing

Available USB power: 500 mA per port

Baud rate and protocol: 300 to 115200 baud (9600 baud = default); 8 (default) or 7 data bits; 1 (default) or 2 stop bits;no parity (default), even, or odd parity

Connectors: 1 female USB type B

Cooling: Convection, no vents

Data rate: 10/100/1000Base-T, half/full duplex with autodetect

Data transfer types: Bulk, Control, Interrupt, and Isochronous

Default settings: Link speed and duplex level = autodetected IP address = 192.168.254.250 Subnet mask = 255.255.255.0 Gateway = 0.0.0.0 DHCP = off DNS: 127.0.0.1

Device: 2.5 watts

Device and power supply: 3.4 watts

Enclosure dimensions: 1.0" H x 4.3" W x 6.0" D (1U high, quarter rack wide) (25 mm H x 109 mm W x 152 mm D) (Depth excludes connectors.)

Enclosure type: Metal

Everlast power supply warranty: 7 years parts and labor

Faceplate: 1.4" H x 3.5" W x 0.1 " D (36 mm H x 89 mm W x 2.5 mm D) Double-space AAP

Flash: 512 MB

Furniture mount: Yes, with optional bracket kit

IP Configuration: Static IP (default) or DHCP

Maximum built-in USB hubs: 2

Minimum built-in USB hubs: 0

Network interface controllers (NICs): 1

Number/signal type: 1 USB

Optional built-in USB hubs: Peripheral emulation enabled: 1 1:n network pairing enabled: 1

Over the network: Up to 1980' (600 m)**

Point to point: Up to 330' (100 m)

Power input requirements: 12 VDC, 1 A, 12 watts, max. Or power over Ethernet (PoE) (complies with PoE 802.3af, class 3)

Power supply: External

Product warranty: 3 years parts and labor

Product weight: 0.6 lbs (0.3 kg)

Protocol: Ethernet

Protocols: DHCP, DNS, HTTP, HTTPS, ICMP, NTP, SFTP, SMTP, SNMP, SSH, TCP/IP, UDP/IP

Quantity/type: 1 bidirectional RS-232

Rack mount: Yes, with optional 1U rack shelf or back of the rack mounting kit

Receiver: Input: 100-240 VAC, 50-60 Hz Output: 12 VDC, 1.5 A, 18 watts

Receiver HUB power output: 5 VDC, 500 mA per port

Regulatory compliance: UL, c-UL, CE, FCC Class A, C-Tick, RoHS, WEEE, KC* *Only USB Extender Plus T, USB Extender Plus R, and USB Extender Plus AAP R models

SDRAM: 512 MB

Standards: IEEE 802.3u (100Base-T), IEEE 802.3ab (1000Base-T)

Termination standards: TIA 568B

Transmitter: Input: 100-240 VAC, 50-60 Hz Output: 12 VDC, 0.5 A, 6 watts

Transport: TCP/IP, UDP

USB Extender Plus Rack Mount: 1.0" H x 4.3" W x 6.0" D (quarter rack width) (25 mm H x 109 mm W x 152 mm D) (Depth excludes connectors.)

USB data rates: Low speed (1.5 Mbps), full speed (12 Mbps), high speed (480 Mbps)

USB host support: xHCI (USB 3.0), EHCI (USB 2.0), OHCI/UHCI (USB 1.1)

USB standards: USB 2.0, USB 1.1, USB 1.0 compatible

Vibration: ISTA 1A in carton (International Safe Transit Association)

Diagram

Resources

Brochure | USB Extender Plus AAP R 60-1472-22 | USB Extender Plus Series

Brochure | USB Extender Plus AAP R 60-1472-22 | Everlast Power Supplies

Brochure | USB Extender Plus AAP R 60-1472-22 | Gamme USB Extender Plus

Brochure | USB Extender Plus AAP R 60-1472-22 | Serie USB Extender Plus (USB-Extender-Plus-Series_BR_A4_SP_RevA.pdf)

Brochure | USB Extender Plus AAP R 60-1472-22 | Serie USB Extender Plus (USB-Extender-Plus-Series_BR_A4_IT_RevA.pdf)

Brochure | USB Extender Plus AAP R 60-1472-22 | USB Extender Plus-Serie

Brochure | USB Extender Plus AAP R 60-1472-22 | Серия USB Extender Plus

Brochure | USB Extender Plus AAP R 60-1472-22 | Alimentatori Everlast

Brochure | USB Extender Plus AAP R 60-1472-22 | Everlast 电源

Brochure | USB Extender Plus AAP R 60-1472-22 | Everlast-Netzteile

Brochure | USB Extender Plus AAP R 60-1472-22 | Fuentes de alimentación Everlast

Brochure | USB Extender Plus AAP R 60-1472-22 | Sources d'alimentation Everlast

Brochure | USB Extender Plus AAP R 60-1472-22 | USB Extender Plusシリーズ

Manual | USB Extender Plus AAP R 60-1472-22 | Cleaning Instruction Card

Manual | USB Extender Plus AAP R 60-1472-22 | USB Extender Plus Series User Guide

Manual | USB Extender Plus AAP R 60-1472-22 | USB Extender Plus T/R Setup Guide

Manual | USB Extender Plus AAP R 60-1472-22 | USB Plus Matrix Controller Setup Guide

Specifications | USB Extender Plus AAP R 60-1472-22 | USB Extender Plus T/R Series

Panel Drawing | USB Extender Plus AAP R 60-1472-22 | USB Extender Plus Series
