Details

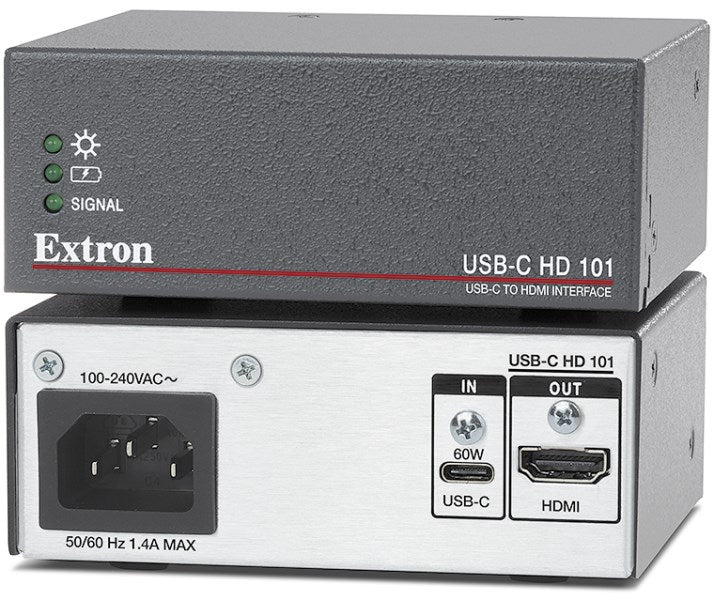

Extron USB-C HD 101 (part number 60-1883-01) — a USB-C to HDMI interface with 60 W power delivery for laptop-based AV rooms.

Modern laptops increasingly ship with a single USB-C port carrying both video and charging, but most conference room displays still expect HDMI. The USB-C HD 101 bridges that gap: it accepts a DisplayPort Alt Mode signal over USB-C and outputs HDMI 2.0, while simultaneously delivering up to 60 W back to the laptop through USB Power Delivery, so a single cable handles video, data and charging together.

Key Capabilities

Converts USB-C DisplayPort Alt Mode input to HDMI 2.0 output
Supports 4096x2160 at 60 Hz with 4:4:4 chroma sampling
Delivers up to 60 W of USB Power Delivery to the source device
HDCP 2.3 and HDCP 1.4 compliant for protected content
Compact quarter-rack metal enclosure with ZipClip 200 mounting clip included

Where It Is Used

Deployed in conference rooms, boardrooms, huddle spaces and classrooms where a USB-C laptop needs to connect to fixed HDMI displays or switchers without an external power brick for the source.

Specifications at a Glance

1x USB-C input (DisplayPort Alt Mode), 1x HDMI output
Up to 4096x2160 @ 60 Hz, 4:4:4 chroma, 18 Gbps max data rate
60 W total USB-C Power Delivery output
Internal power supply, quarter-rack metal chassis
3-year product warranty

Also referenced as Extron USBCHD101, USB-C-HD-101, part number 60188301.

Specifications

Part Number: 60-1883-01

Manufacturer: Extron

Model: USB-C HD 101

Condition: New

Max Resolution (60 Hz, 4:4:4 Chroma): 4096 x 2160

Max Color Bit Depth (4096x2160 at 30 Hz): 12-bit

Signal Type: DisplayPort 1.2 (Alt Mode), HDMI 2.0, HDCP 2.3

Frame Rate: 24, 25, 30, 50, or 60 fps (subject to max data rate)

Chroma Sampling: 4:4:4, 4:2:2, 4:2:0 (subject to max data rate)

Color Bit Depth: 8, 10, or 12 bits per color (subject to max data rate)

Max Video Data Rate: 18 Gbps (6.0 Gbps per color)

Maximum Pixel Clock: 600 MHz

Resolution Range: Up to 4K (4096 x 2160) @ 60 Hz 4:4:4, UHD (3840 x 2160) @ 60 Hz 4:4:4

Formats: RGB and YCbCr digital video

Standards: DisplayPort 1.2 (Alt Mode), HDMI 2.0, HDMI 1.4a, HDCP 2.3, HDCP 1.4

Video Input: 1 DisplayPort (Alt Mode, 4 HBR2 lanes), female USB-C connector

DisplayPort Video: DisplayPort Alt Mode, DP 1.2 (4 lanes), RBR/1.62 Gbps, HBR2/5.4 Gbps

Video Input Maximum Data Rate: 21.6 Gbps (requires USB-C cable supporting 4 DisplayPort lanes)

Horizontal Frequency: 15 kHz to 270 kHz for resolutions up to 18 Gbps

Vertical Frequency: 24 Hz to 240 Hz for resolutions up to 18 Gbps

Video Output: 1 HDMI, female HDMI Type A connector

Output Power for Active Cables: 1.1 W max. for the HDMI port

USB Port: 1-port USB, 1 female USB Type C connector

Built-in USB Hubs: 0 (minimum 0, maximum 0)

Power Supply: Internal; input 100-240 VAC, 50-60 Hz

Power Output (USB Type-C): 5 VDC/9 VDC/15 VDC/20 VDC @ up to 3 A each; 60 W total

Power Consumption (Device): 65.8 W

Thermal Dissipation (Device): 30.7 BTU/hr

Temperature (Storage): -40 to +158 °F (-40 to +70 °C), 10% to 90% RH noncondensing

Temperature (Operating): +32 to +122 °F (0 to +50 °C), 10% to 90% RH noncondensing

Cooling: Convection, no vents

Mounting: Yes, or with optional 1U rack shelf, with the included ZipClip 200 mounting clip

Enclosure Type: Metal

Enclosure Dimensions: 1.7" H x 4.3" W x 3.0" D (1U high, one quarter rack wide) (4.3 cm H x 10.9 cm W x 7.6 cm D); excludes power cords

Product Weight: 0.68 lbs (0.31 kg)

Vibration: ISTA 1A in carton (International Safe Transit Association)

Regulatory Compliance: CE, c-UL, UL, C-Tick, FCC, ICES, VCCI, KC, RoHS, WEEE

MTBF: 155,000 hours

Product Warranty: 3 years parts and labor

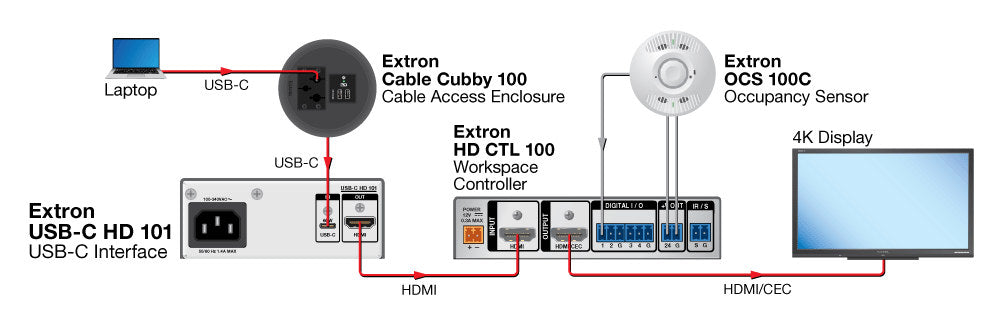

Diagram

Resources

Brochure | USB-C HD 101 60-1883-01 | USB-C HD 101

Manual | USB-C HD 101 60-1883-01 | USB-C HD 101 · Setup Guide

Manual | USB-C HD 101 60-1883-01 | USB-C HD 101 · User Guide

Specifications | USB-C HD 101 60-1883-01 | USB-C HD 101

Panel Drawing | USB-C HD 101 60-1883-01 | USB-C HD 101
