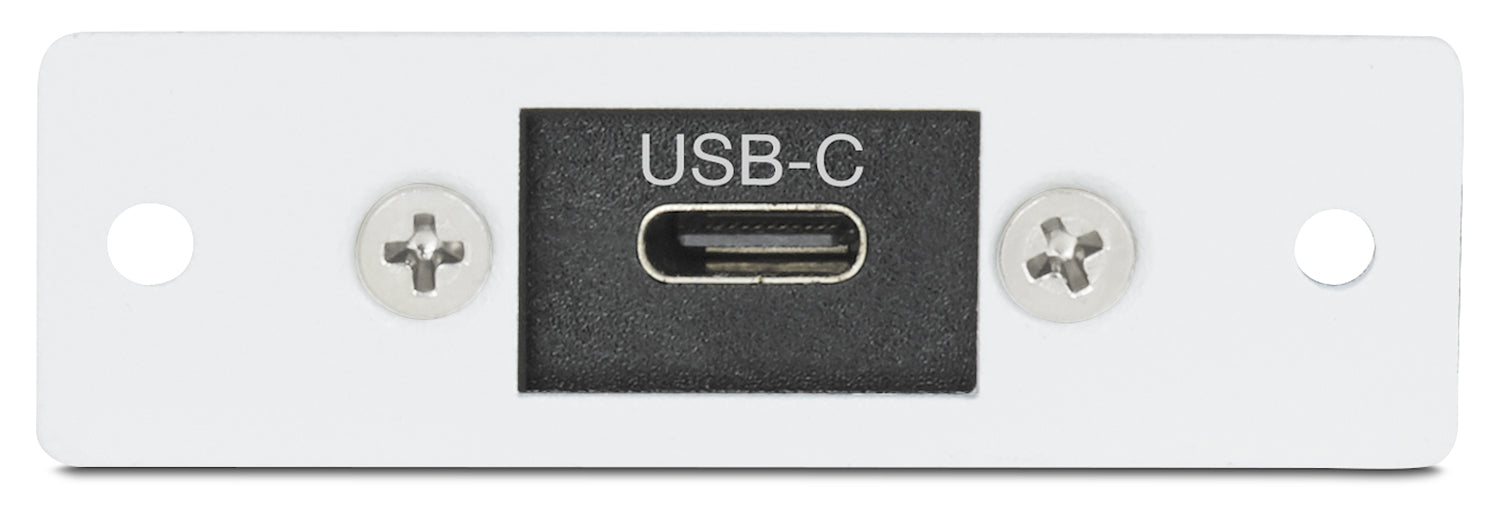

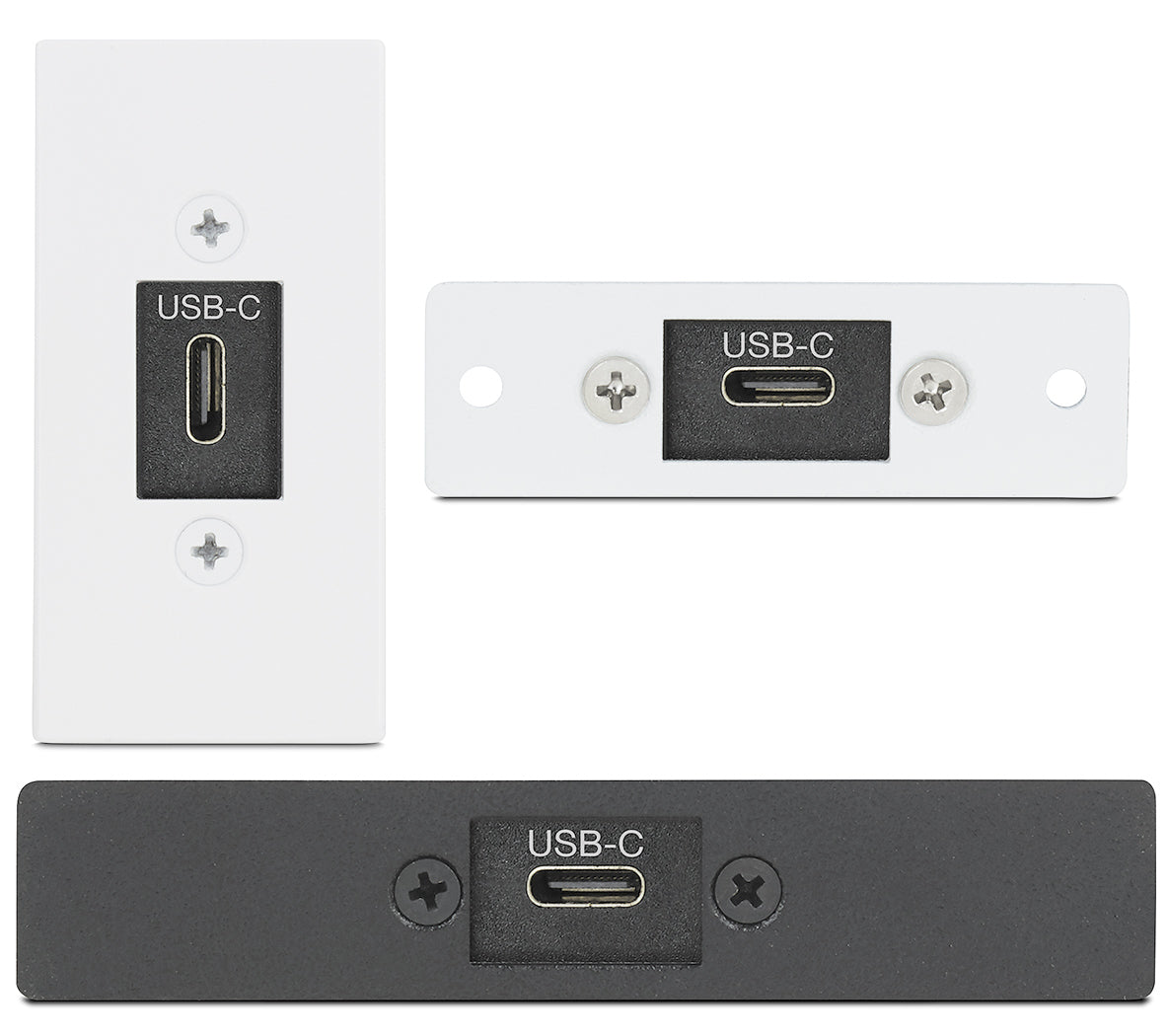

Extron USB-C AVPD 101 MAAP (part number 70-1242-03) — a single space MAAP connectivity module in the USB-C 100 Series, giving a tight cutout one USB-C port for video, data and device power.

Where space at the surface is the constraint, the MAAP format wins: the faceplate measures 17 mm high by 56 mm wide by 3 mm deep, roughly a third narrower than the AAP version. Behind it, a 0.91 m captive cable ends in a USB-C male plug for the switcher or room PC. Nothing in the path is active, so the module simply passes what the endpoints negotiate — DisplayPort Alt Mode video to 4K at 60 Hz, USB 3.2 Gen 1 data at 5 Gbps, and USB Power Delivery to 60 watts. Colour depth reaches 12 bits per colour at 3840 x 2160 and 60 Hz.

Key Capabilities

• Compact 17 x 56 x 3 mm single space MAAP faceplate
• Up to 4096 x 2160 at 60 Hz, or 3840 x 2160 at 60 Hz in 12-bit colour
• Passive USB-C female to USB-C male path, no configuration required
• 5 Gbps USB data, backward compatible to USB 2.0 and 1.1
• Charging support to 60 W at 3 A maximum current
• Under 0.10 lb, mounts to Extron MAAP mounting frames

Where It Is Used

University lecterns, healthcare and imaging workstations, control-room desks and narrow conference table edges. It is the version to specify when a room's connectivity plan calls for USB-C but the available panel real estate is measured in tens of millimetres rather than inches.

Specifications at a Glance

• Signal type: up to DisplayPort 1.2 and HDCP 2.3
• Max video data rate: 21.6 Gbps (5.4 Gbps per lane)
• Frame rates: 24, 25, 30, 50 or 60 fps; RGB and YCbCr
• Faceplate: single space MAAP, 0.69 in. H x 2.2 in. W x 0.1 in. D
• Cable 0.91 m at 5.7 mm OD; RoHS and WEEE; 3 years parts and labor

Also referenced as Extron USBCAVPD101MAAP, USB-C-AVPD-101-MAAP, part number 70124203.
