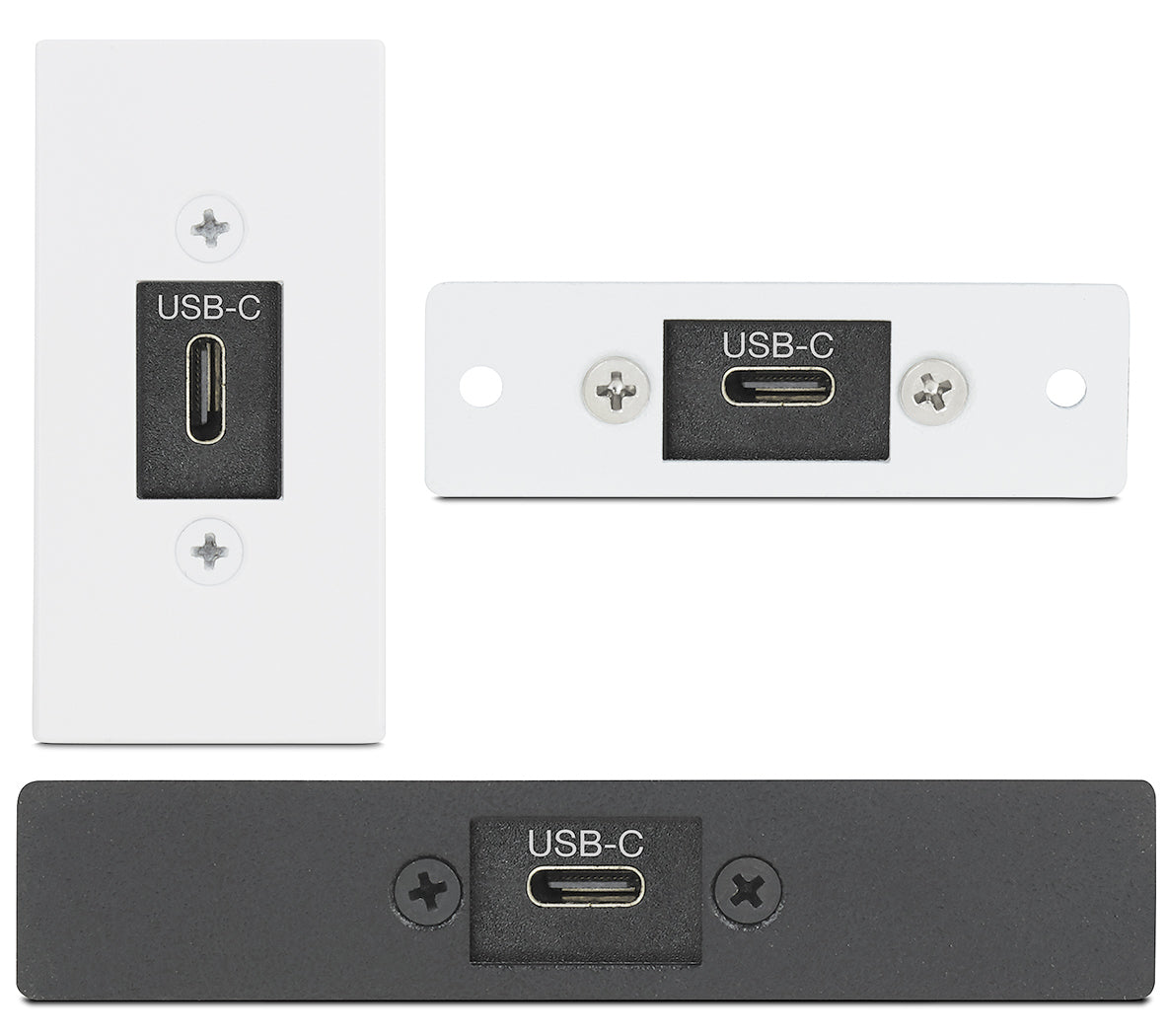

Extron USB-C AVPD 101 MAAP (part number 70-1242-02) — the MAAP-format member of Extron's USB-C 100 Series, a passive module that fits a single MAAP space and carries 4K video, USB data and charging power on one USB-C connection.

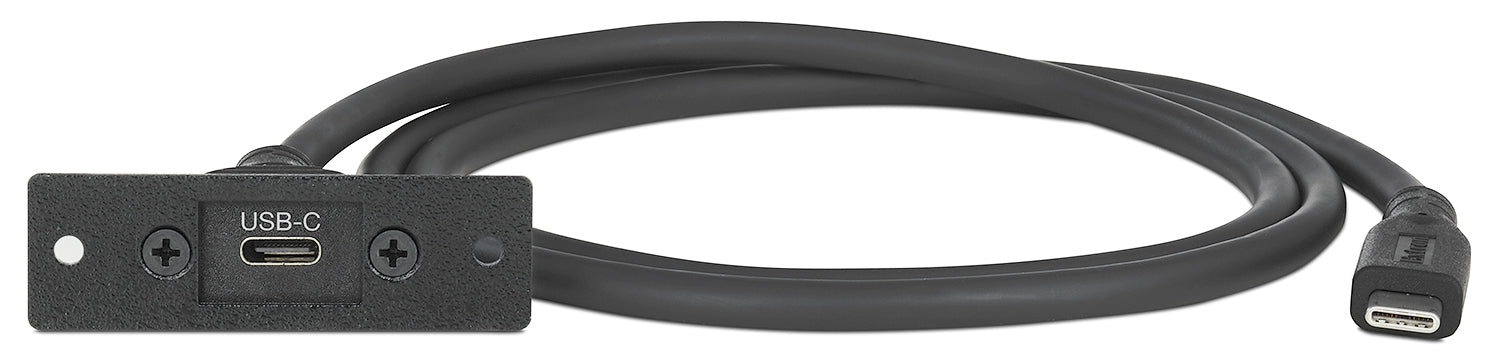

MAAP plates are narrower than AAP plates, and that is the whole reason this variant exists: at 2.2 in. wide it drops into mounting frames and furniture cutouts where a 3.5 in. AAP plate will not go. Electrically it is the same passive path as the rest of the series — a USB-C female socket on the face wired to a USB-C male plug on a 3 ft captive lead. Video runs as DisplayPort Alt Mode over DP 1.2 at up to 21.6 Gbps, data at 5 Gbps under USB 3.2 Gen 1, and the link passes up to 60 watts of USB Power Delivery.

Key Capabilities

• Single space MAAP plate just 2.2 in. (56 mm) wide
• 4K support to 4096 x 2160 at 60 Hz via DisplayPort Alt Mode
• 21.6 Gbps video data rate; HDCP 2.3 handling
• USB 3.2 Gen 1 data up to 5 Gbps
• 60 W Power Delivery at 3 A for laptops and tablets
• Metal enclosure weighing under 0.10 lb

Where It Is Used

Narrow lecterns, slim table edges, equipment furniture and retrofit positions where the available cutout is too small for a full-size AAP plate. It suits classrooms, huddle rooms and clinical workstations that still need a single-cable USB-C connection for a visiting laptop.

Specifications at a Glance

• Faceplate: 0.69 in. H x 2.2 in. W x 0.1 in. D (17 x 56 x 3 mm), single space MAAP
• Video: DisplayPort Alt Mode DP 1.2, up to 4096 x 2160 at 60 Hz
• Data: USB 3.2 Gen 1 up to 5 Gbps; power to 60 W at 3 A
• Cable: 3 ft (0.91 m), 0.23 in. OD; allow 2 in. (51 mm) rear depth
• Metal enclosure, under 0.10 lb; RoHS and WEEE; 3 year warranty

Also referenced as Extron USBCAVPD101MAAP, USB-C-AVPD-101-MAAP, part number 70124202.
