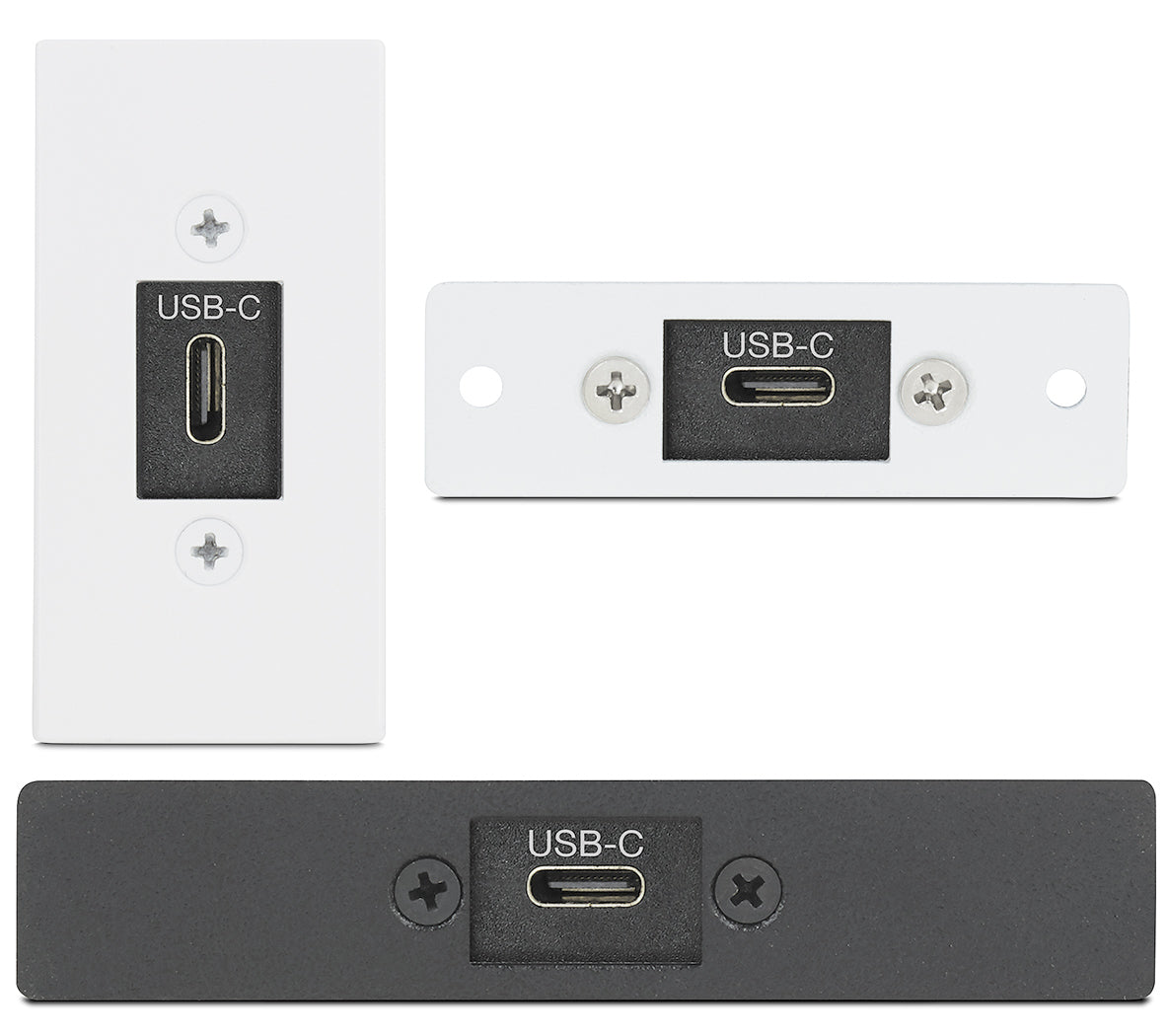

Extron USB-C AVPD 101 Flex55 (part number 70-1243-03) - a passive USB-C connectivity module built to the Flex55 form factor, adding a single USB-C port to a Flex55 frame, junction box or surface mount enclosure.

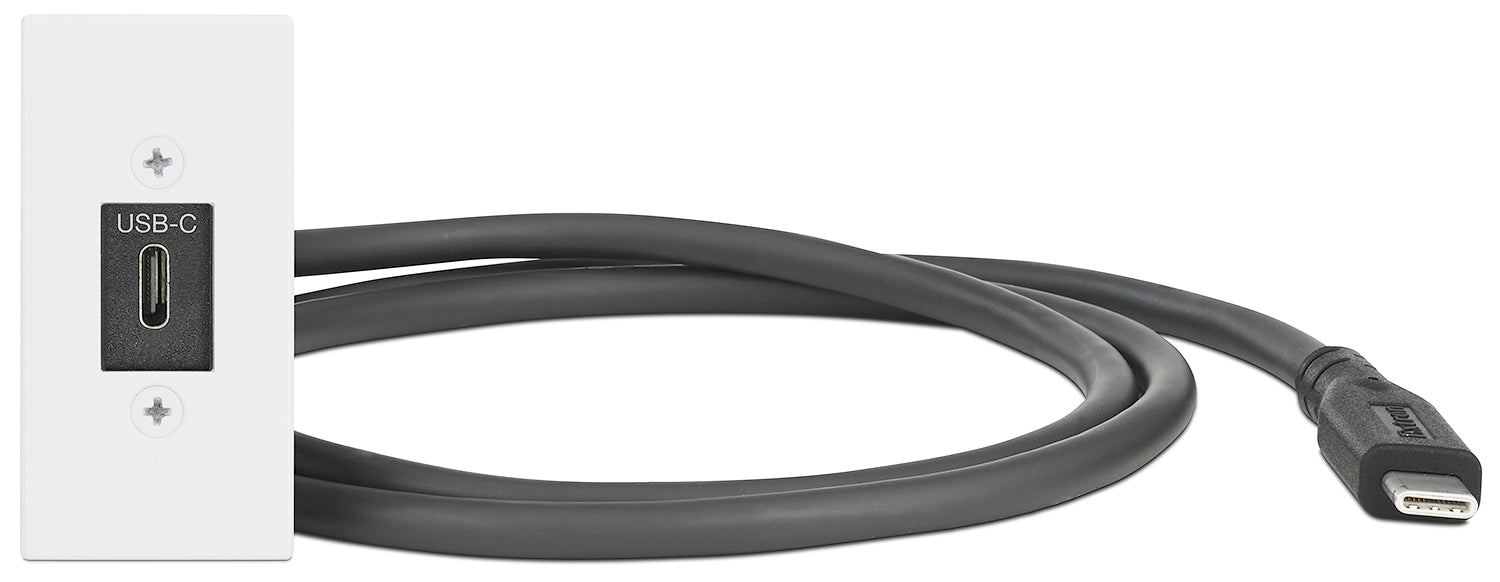

The face measures 55 mm by 28 mm and stands 7.3 mm proud, the standard Flex55 half-size footprint. Its shell is a high-impact plastic blend rather than the metal used on the AAP and MAAP variants, keeping the assembly under 0.04 kg. A 0.91 m captive lead ends in a USB-C male plug for the room's switcher or PC. Because nothing in the module is active, throughput is whatever the endpoints agree: DisplayPort Alt Mode video, up to 12 bits per colour at 3840 x 2160 and 60 Hz, USB data to 5 Gbps, and up to 60 watts of Power Delivery for a connected laptop.

Key Capabilities

• Flex55 half-size face, 55 mm H x 28 mm W x 7.3 mm D
• Mounts to Flex55 frames and enclosures
• Up to 4096 x 2160 at 60 Hz, or 3840 x 2160 at 60 Hz in 12-bit colour
• USB 3.2 Gen 1 data at up to 5 Gbps
• 60 W USB Power Delivery, 3 A maximum current
• Lightest module in the series at under 0.09 lb (0.04 kg)

Where It Is Used

Classroom and lecture-hall lecterns, EU-standard wall boxes, hospitality meeting rooms and conference tables fitted with Extron SMB surface mount boxes. It is the natural USB-C addition to any room already built on Flex55 connectivity plates.

Specifications at a Glance

• Signal type: up to DisplayPort 1.2 and HDCP 2.3
• Max video data rate: 21.6 Gbps (5.4 Gbps per lane)
• Frame rates: 24, 25, 30, 50 or 60 fps; RGB and YCbCr
• Faceplate: 55.0 mm H x 28 mm W x 7.3 mm D; high-impact plastic blend
• Cable 0.91 m at 5.7 mm OD; RoHS and WEEE; 3 years parts and labor
