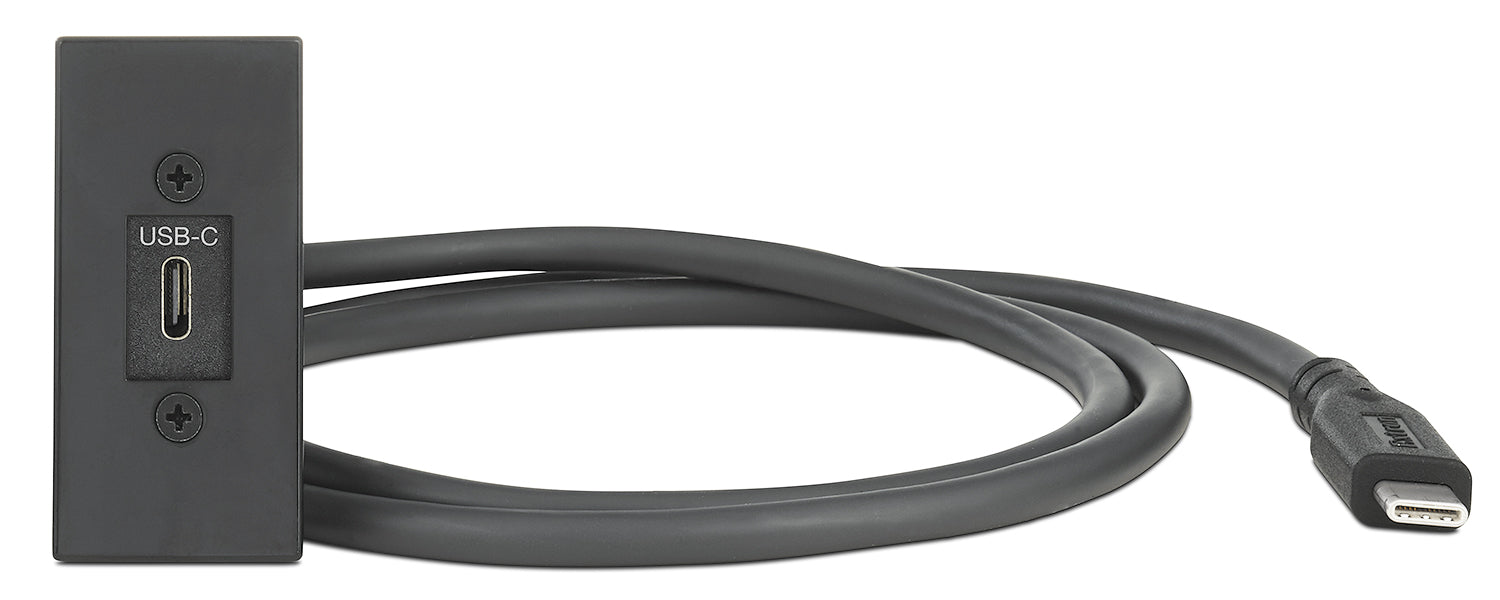

Extron USB-C AVPD 101 Flex55 (part number 70-1243-02) — the Flex55-format module in Extron's USB-C 100 Series, sized to drop into Flex55 frames and enclosures and deliver one USB-C connection for video, data and charging.

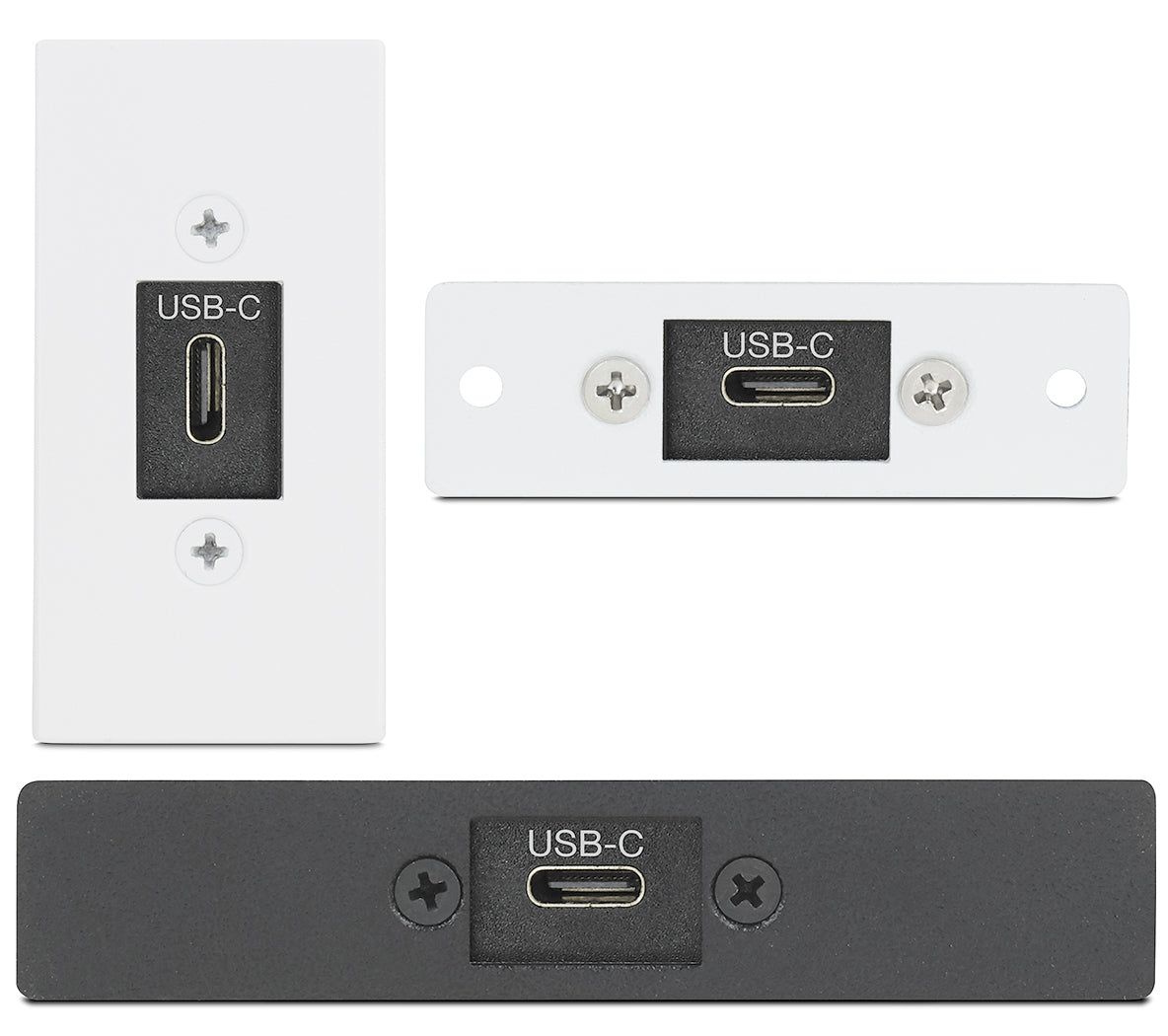

Flex55 modules are portrait-oriented rather than landscape, and this one measures 55 mm tall by 28 mm wide with a 7.3 mm depth at the face. Unlike the metal AAP and MAAP versions, the Flex55 body is moulded from a high-impact plastic blend, which is what lets it clip into Flex55 wall frames, junction boxes and SMB surface mount enclosures. Behind the plate a 0.91 m captive cable terminates in a USB-C male plug. The signal path is passive: DisplayPort Alt Mode video up to 4096 x 2160 at 60 Hz, USB 3.2 Gen 1 data at 5 Gbps, and USB Power Delivery to 60 watts.

Key Capabilities

• Fits Extron Flex55 frames and enclosures, including SMB surface mount boxes
• 2.17 in. H x 1.08 in. W x 0.29 in. D face (55 x 28 x 7.3 mm)
• 4K video to 4096 x 2160 at 60 Hz over DisplayPort Alt Mode
• USB 3.2 Gen 1 data at up to 5 Gbps
• 60 W USB Power Delivery at 3 A maximum current
• High-impact plastic blend body weighing under 0.09 lb

Where It Is Used

European-style junction boxes, Flex55 wall frames, lectern panels and SMB surface mount boxes on conference tables. It is the format to specify where a project has standardised on Flex55 hardware and needs USB-C added alongside existing HDMI, network and power modules.

Specifications at a Glance

• Faceplate: 2.17 in. H x 1.08 in. W x 0.29 in. D (55 x 28 x 7.3 mm)
• Video: DisplayPort Alt Mode DP 1.2, 21.6 Gbps, HDCP 2.3
• Data and power: USB 3.2 Gen 1 to 5 Gbps; 60 W at 3 A

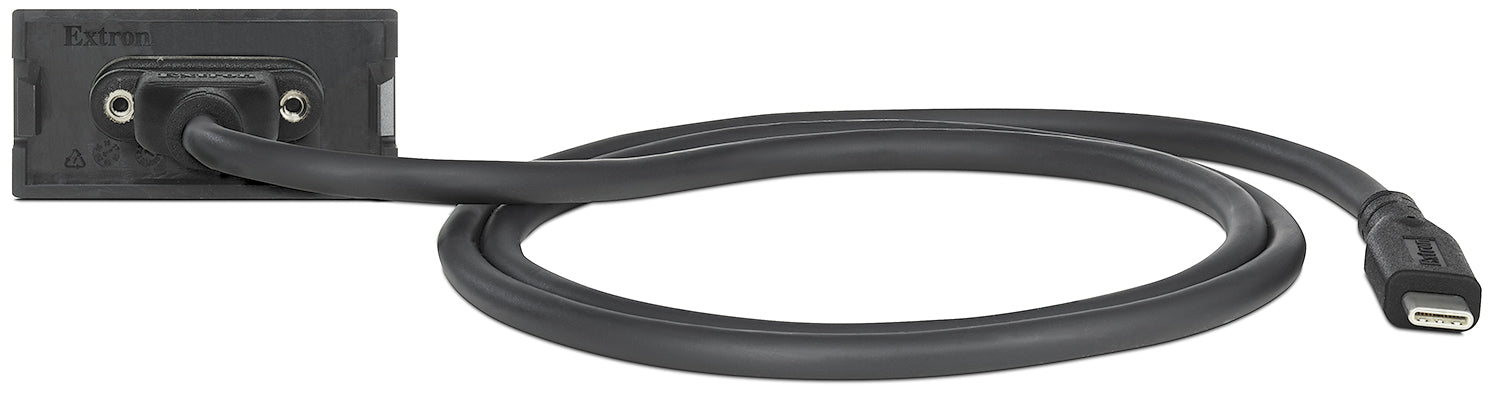

• Cable: 3 ft (0.91 m), 0.23 in. OD; allow 2 in. (51 mm) rear depth
• High-impact plastic blend enclosure, under 0.09 lb; 3 year warranty

Also referenced as Extron USBCAVPD101Flex55, USB-C-AVPD-101-Flex55, part number 70124302.
