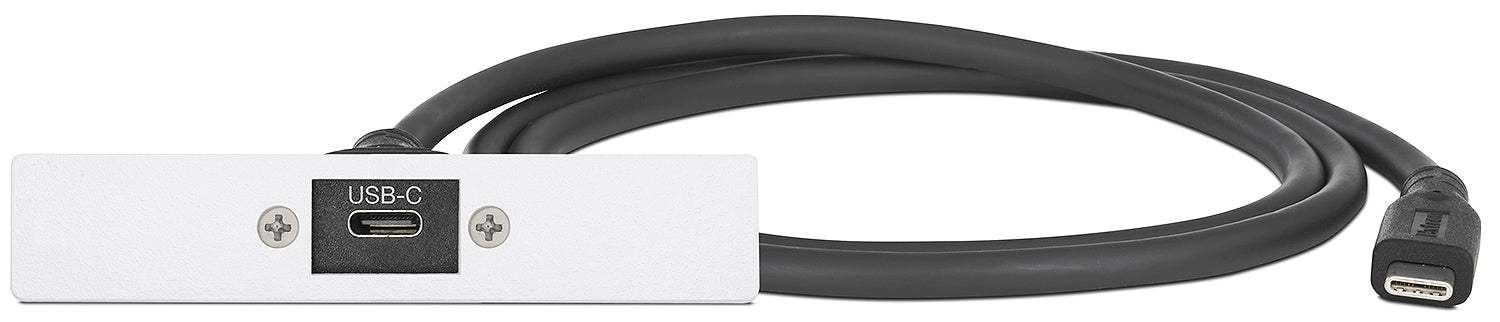

Extron USB-C AVPD 101 AAP (part number 70-1241-03) — a single space AAP connectivity module in Extron's USB-C 100 Series, delivering one USB-C port at the surface for video, data and device charging.

The module is entirely passive. A USB-C female socket sits on the metal AAP plate; behind it, a 0.91 m captive cable ends in a USB-C male plug that goes straight into a switcher, matrix or room PC. Because nothing is converted along the way, the module carries whatever the source and sink negotiate: DisplayPort Alt Mode video to 4096 x 2160 at 60 Hz, USB 3.2 Gen 1 data at 5 Gbps, and USB Power Delivery to 60 W. Colour handling reaches 12 bits per colour at 3840 x 2160 and 60 Hz, with 4:4:4 or 4:2:2 chroma sampling depending on the data budget.

Key Capabilities

• Passive USB-C female to USB-C male path with nothing to configure
• Up to 4096 x 2160 at 60 Hz, 8-bit, or 3840 x 2160 at 60 Hz, 12-bit
• Frame rates of 24, 25, 30, 50 or 60 fps; RGB and YCbCr formats
• 5 Gbps USB data, compatible back to USB 2.0 and USB 1.1
• 60 W Power Delivery at 3 A maximum current
• Mounts to standard Extron AAP mounting frames, 0.1 lb

Where It Is Used

Meeting rooms, university teaching spaces, healthcare conference and reading rooms, and any table where laptops arrive with a single USB-C port and expect the room to handle display, peripherals and charging together. Its passive design also makes it a low-risk choice for rooms with restricted maintenance access.

Specifications at a Glance

• Signal type: up to DisplayPort 1.2 and HDCP 2.3
• Max video data rate: 21.6 Gbps (5.4 Gbps per lane)
• USB: 3.2 Gen 1, up to 5 Gbps; power supply to 60 W

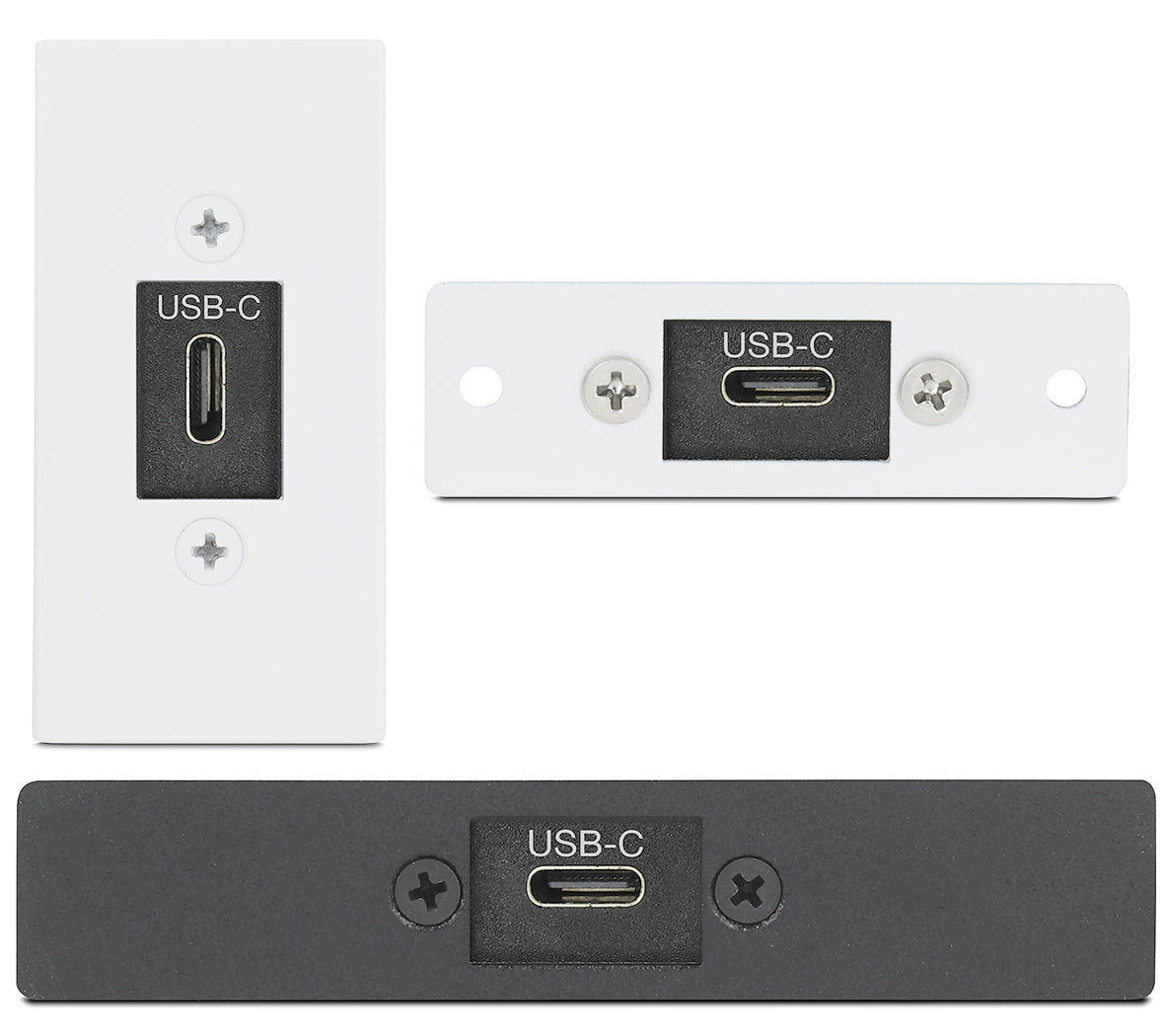

• Faceplate: 17 mm H x 89 mm W x 1.2 mm D, single space AAP, metal
• Cable: 0.91 m, 5.7 mm OD; RoHS and WEEE; 3 years parts and labor

Also referenced as Extron USBCAVPD101AAP, USB-C-AVPD-101-AAP, part number 70124103.
