Details

Manufacturer: Extron | Model: UCS TR 910 Kit | Part number: 42-375-01 (also written 4237501)

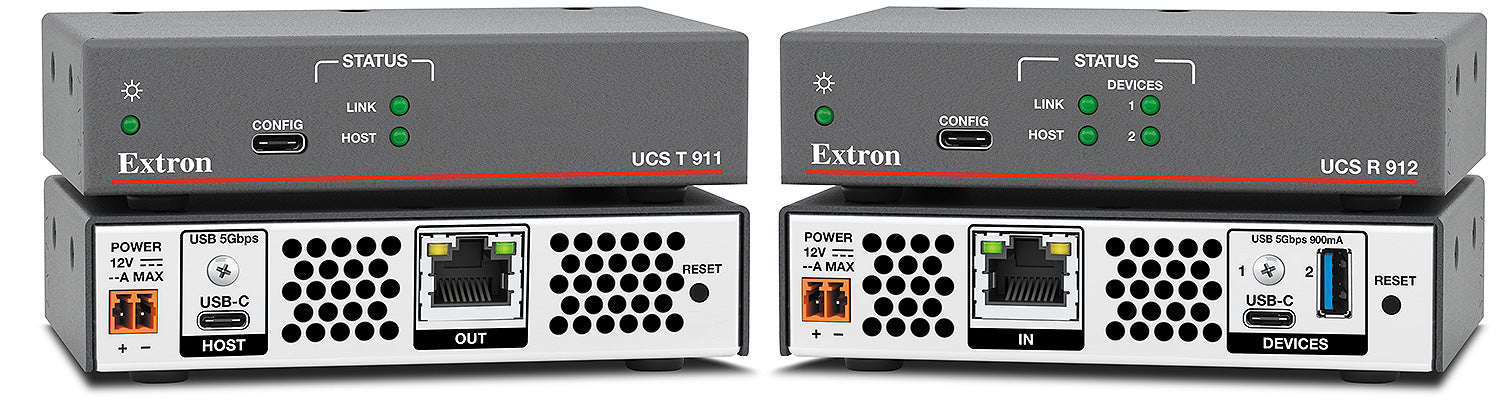

The Extron UCS TR 910 Kit (42-375-01) is a two-unit twisted-pair USB 5 Gbps extender kit for Pro AV. The transmitter connects to a USB-C host and sends USB signals at up to 5 Gbps over solid-conductor shielded CAT 6A cable to the receiver at distances up to 100 m (330 ft). The receiver provides a USB-C and USB-A port for cameras and peripherals plus a 2-port powered hub. Ideal for extending collaboration room peripherals to a rack-mounted conferencing system.

Key capabilities

Complete transmitter and receiver kit with cable and ZipClip mounting brackets
Extends USB 5 Gbps (USB 3.2 Gen 1) over solid-conductor CAT 6A up to 100 m (330 ft)
USB-C transmitter connects to the host; receiver provides USB-C and USB-A peripheral ports
Integrated 2-port powered hub on the receiver end
Backward compatible with USB 2.0 and USB 1.1 devices

Where it is used

Conference rooms and lecture halls where USB cameras and microphones at the table need to reach a rack-mounted conferencing codec over a single CATx cable, without running USB cable the full distance.

Specifications at a glance

Cable: solid-conductor shielded twisted pair, 22 AWG minimum, 400 MHz bandwidth
Max distance: 100 m (330 ft) on CAT 6A
Receiver hub: USB-C (900 mA) and USB-A (900 mA)
Warranty: 3-year Extron parts and labor

Also referenced as Extron UCSTR910Kit, UCS-TR-910-Kit, part number 4237501.

Specifications

Part Number: 42-375-01

Manufacturer: Extron

Condition: New

Height: 8.56" (21.7 cm)

Available USB power: 900 mA per USB port

Cable recommendations: 400 MHz bandwidth, STP (Shielded Twisted Pair)

Cable requirements: Solid Conductor, 22 AWG or better

Connectors: 1 female USB Type-C

Cooling: Convection, no vents

Data transfer types: Bulk, Control, Interrupt, and Isochronous

Device: TBD watts

Device and power supply: TBD watts

Enclosure type: Metal

Everlast power supply warranty: 7 years parts and labor

Furniture or wall mount: Yes, with included ZipClip kits

Maximum built-in USB hubs: 1

Minimum built-in USB hubs: 1

Number/signal type: 1 USB

Power supply: External

Product warranty: 3 years parts and labor

Product weight: TBD lbs (TBD kg)

Program control: Extron Simple Instruction Set (SIS), Extron Product Configuration Software (PCS)

Quantity/type: 1 female USB Type-C

Rack mount: Yes, with optional rack shelf or rack mounting brackets

Receiver: Input: 100-240 VAC, 50-60 HzOutput: 12 VDC, 2.0 A, 24 watts

Regulatory compliance: CE, c-UL, KCC, UL, C-tick, FCC Class A, ICES, VCCI Class A, Complies with the appropriate requirements of RoHS, WEEE

Signal transmission distance: 100 m

Temperature/humidity: Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensingOperating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing

Termination standards: TIA 568B

Transmitter: Input: 100-240 VAC, 50-60 HzOutput: 12 VDC, 0.5 A, 6 watts

Transmitter/Receiver: 1.0" H x 4.3" W x 6.0" D2.5 cm H x 10.9 cm W x 15.2 cm D (depth excludes connectors)

USB 3.2 Type-A: 900 mA

USB Host support: xHCI (USB 3.2), EHCI (USB 2.0), OHCI/UHCI (USB 1.1)

USB Max data rates: up to USB 5Gbps

USB Type-C: 900 mA

USB Type-C features supported: USB data

USB control port: 1 front panel, female, USB Type-C

USB standards: USB 3.2, USB 2.0, USB 1.1

USB version: USB full speed

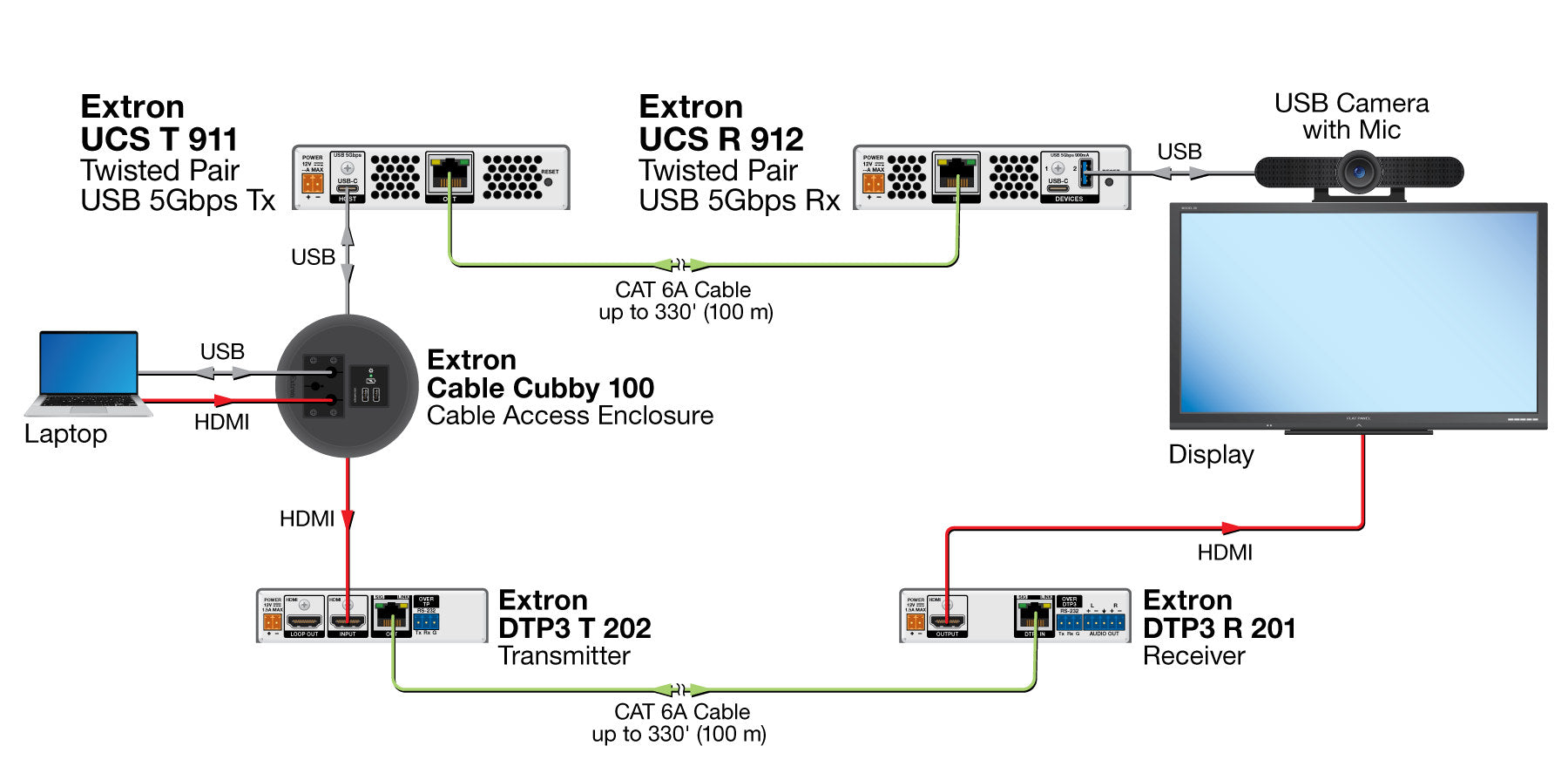

Diagram

Resources

Brochure | UCS TR 910 Kit 42-375-01 | UCS 910 Series

Manual | UCS TR 910 Kit 42-375-01 | UCS T 911 and UCS R 912 Setup Guide

Manual | UCS TR 910 Kit 42-375-01 | UCS T 911 and UCS R 912 User Guide

Specifications | UCS TR 910 Kit 42-375-01 | UCS FT 911 and UCS FR 912

Panel Drawing | UCS TR 910 Kit 42-375-01 | UCS 910 Series
