Manufacturer: Extron | Model: UCS SW 313 | Part number: 60-1797-02 (also written 60179702)

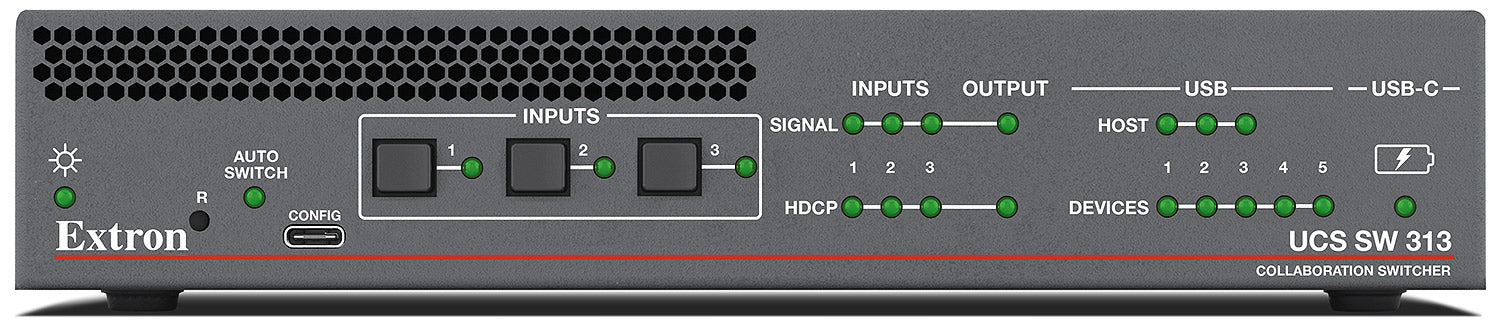

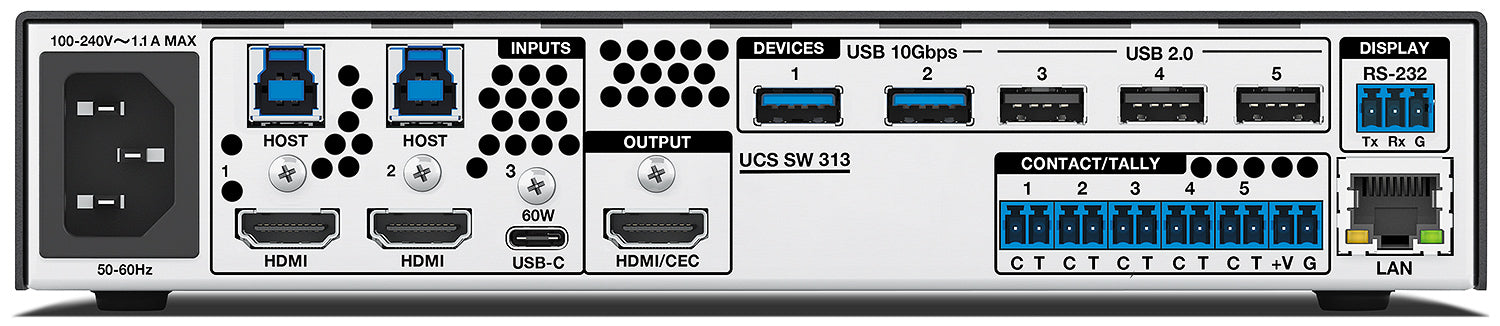

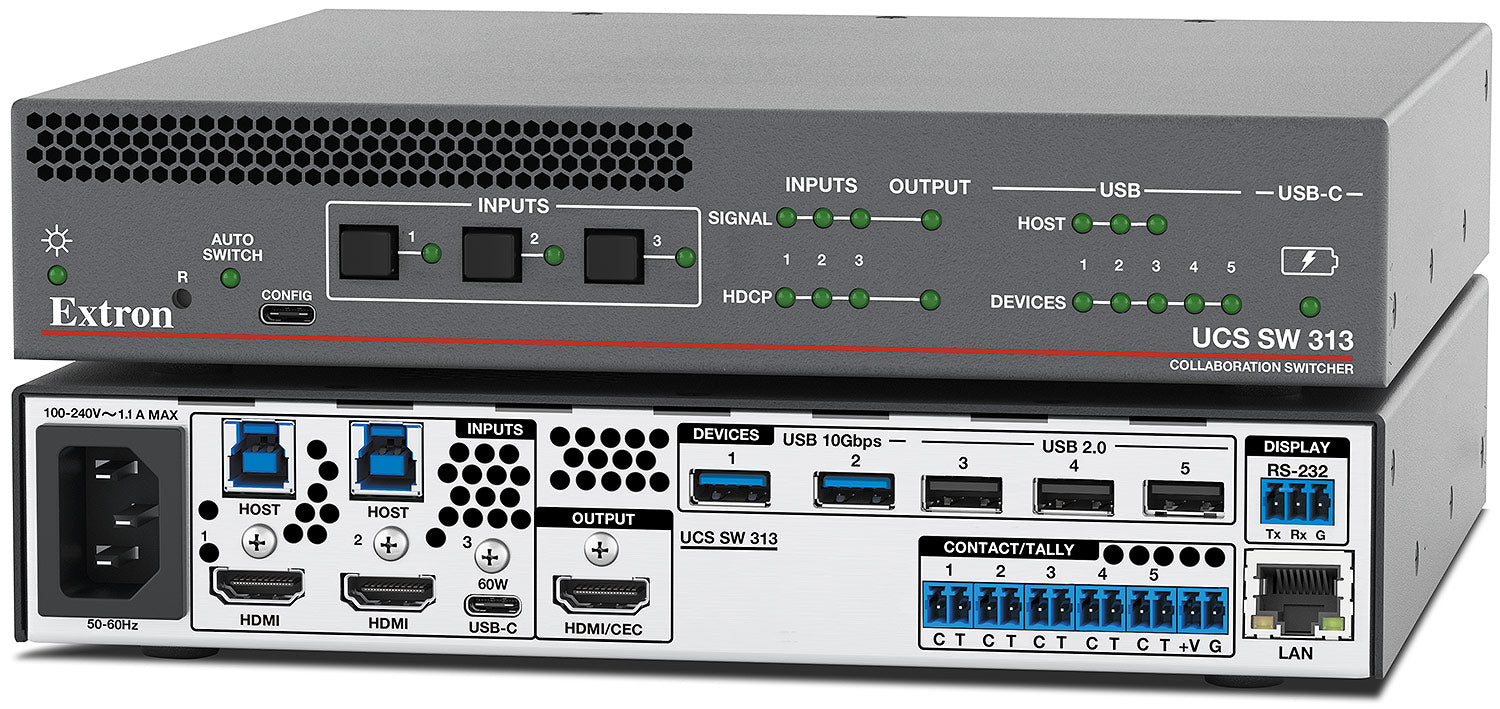

The Extron UCS SW 313 (60-1797-02) is a 3x1 collaboration switcher that combines 4K/60 AV switching with USB peripheral routing for Teams and Zoom rooms. It accepts two HDMI and one USB-C source, routes video to the display and USB peripherals to the active host, and operates automatically without a control system. Five USB peripheral ports connect cameras, microphones, and speakerphones. The USB-C input delivers up to 60 W laptop charging alongside data and video.

Key capabilities

3x1 switching: 2 HDMI and 1 USB-C input to 1 HDMI output
4K/60 4:4:4 video up to 4096x2160, HDCP 2.3 compliant
Five USB peripheral ports shared between all three hosts (USB 10 Gbps on USB-C input)
USB-C input delivers up to 60 W laptop power delivery
Auto-switching on connection, no control system required; Ethernet and RS-232 also supported

Where it is used

Small and medium conference rooms with a UC codec (Teams Room or Zoom Room) plus HDMI and USB-C laptop inputs, where seamless BYOD switching and camera/mic routing are needed without a dedicated control processor.

Specifications at a glance

Enclosure: half-rack, 1U metal
USB peripheral ports: 5 total (mix of USB-C and USB-A)
Switching: automatic plus RS-232 and Ethernet control
Warranty: 3-year Extron parts and labor

Also referenced as Extron UCSSW313, UCS-SW-313, part number 60179702.

Specifications

Part Number: 60-1797-02

Manufacturer: Extron

Condition: New

4096x2160 at 30 Hz: 10 bit

4096x2160 at 60 Hz: 4:2:0

5120x1440 at 60 Hz: 4:4:4

Height: 4.53" (11.5 cm)

Ambient temperature/humidity: Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensingOperating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing

Available USB power: USB-A 3.2: 900 mA per port USB-A 2.0: 500 mA per port

Baud rate and protocol (RS-232): 9600 (default), 19200, 38400, 57600, or 115,200 baud 8 (default) or 7 data bits 1 stop bit No parity (default), or even or odd parity

Built-in hubs: 1

Chroma sampling1: 4:4:4 or 4:2:0

Color bit depth: 8, 10, or 12 bits

Color bit depth1: 8, 10, or 12 bits per color

Connector: 1 female HDMI type A

Connectors: 2 female HDMI type A 1 female USB type C

Contact/tally ports: 5 sets (2 pins each) of contact and tally ports 1 set (1 pin each) of +V and G Tally output power +5 VDC, 0.2 A

Control standards: IP over USB (RNDIS)

Cooling: Convection, rear vents

Data transfer types: Bulk, control, interrupt, and isochronous

Enclosure dimensions: 1.75" H x 8.75" W x 8.5" D (1U high, half rack wide) (44 mm H x 222 mm W x 220 mm D) (Depth includes connectors.)

Enclosure type: Metal

Ethernet data rate: 10/100Base-T, half/full duplex with auto detect

Ethernet protocol: ARP, ICMP (ping), IP, TCP, DHCP, HTTP, SNMP, Telnet

Everlast power supply warranty: 7 years parts and labor

Formats: RGB and YCbCr digital video

Frame rate1: 24, 25, 30, 50, or 60 fps

Full load: 95.6 watts

HDR: HDR 10, HDR10+, Dolby Vision

Horizontal frequency range: 15 kHz to 270 kHz for resolutions up to 18 Gbps

Max. video data rate: 18 Gbps (6 Gbps per color)

Maximum data rate: 18 Gbps (6 Gbps per color)

Maximum pixel clock: 600 MHz

Number/signal type: 2 HDMI 2.0 (or single link DVI-D with appropriate DVI-HDMI adapters) 1 DisplayPort 1.2 USB-C Alt Mode (2 or 4 lanes) RBR/1.62 Gbps, HBR/2.7 Gbps, HBR2/5.4 Gbps

Output power for active cables: 1.25 watts max for HDMI port

Power save mode: 90.3 watts

Power supply: Internal Input: 100-240 VAC, 50-60 Hz

Product warranty: 3 years parts and labor

Product weight: 2.0 lbs (0.9 kg)

Program control: Extron Product Control Software (PCS) Extron Simple Instruction Set (SIS™)

Rack mount: Yes, with optional 1U rack shelf

Regulatory compliance: CE, c-UL, UL, FCC Class A, ICES, VCCI

Resolution and Refresh Rate: Chroma Sampling

Resolution range: Up to 1080p @ 120 Hz or 4K @ 60 Hz (4:4:4 chroma subsampling)

Serial control port: (1) 3.5 mm 3 pole captive screw connector

Signal Type: HDMI 2.0b, HDCP 2.3

Standards: HDMI 2.0b, DVI 1.0, HDCP 1.x, HDCP 2.3, CTA-861-F

Thermal dissipation: 87.1 BTU/hr

USB control port: 1 female USB-C on front panel

USB data rates: Low speed (1.5.Mbps), full speed (12 Mbps), high speed (480 Mbps), USB 5 Gbps, USB 10 Gbps

USB host support: xHCI (USB 3.2), EHCI (USB 2.0), OHCI/UHCI (USB 1.1)

USB standards: USB 2.0, low speed

USB-C power delivery: Up to 60 watts power delivery at the following power profiles: 5 VDC @ up to 3 A 9 VDC @ up to 3 A 12 VDC @ up to 3 A 15 VDC @ up to 3 A 20 VDC @ up to 3 A

Ultra Wide and 5K: 2560x1080, 5120x1080, 5120x1440, 5120x2160*, 5120x2560*, 5120x2880* *Supported at 30 Hz only

Vertical frequency range: 24 Hz to 240 Hz for resolutions up to 18 Gbps

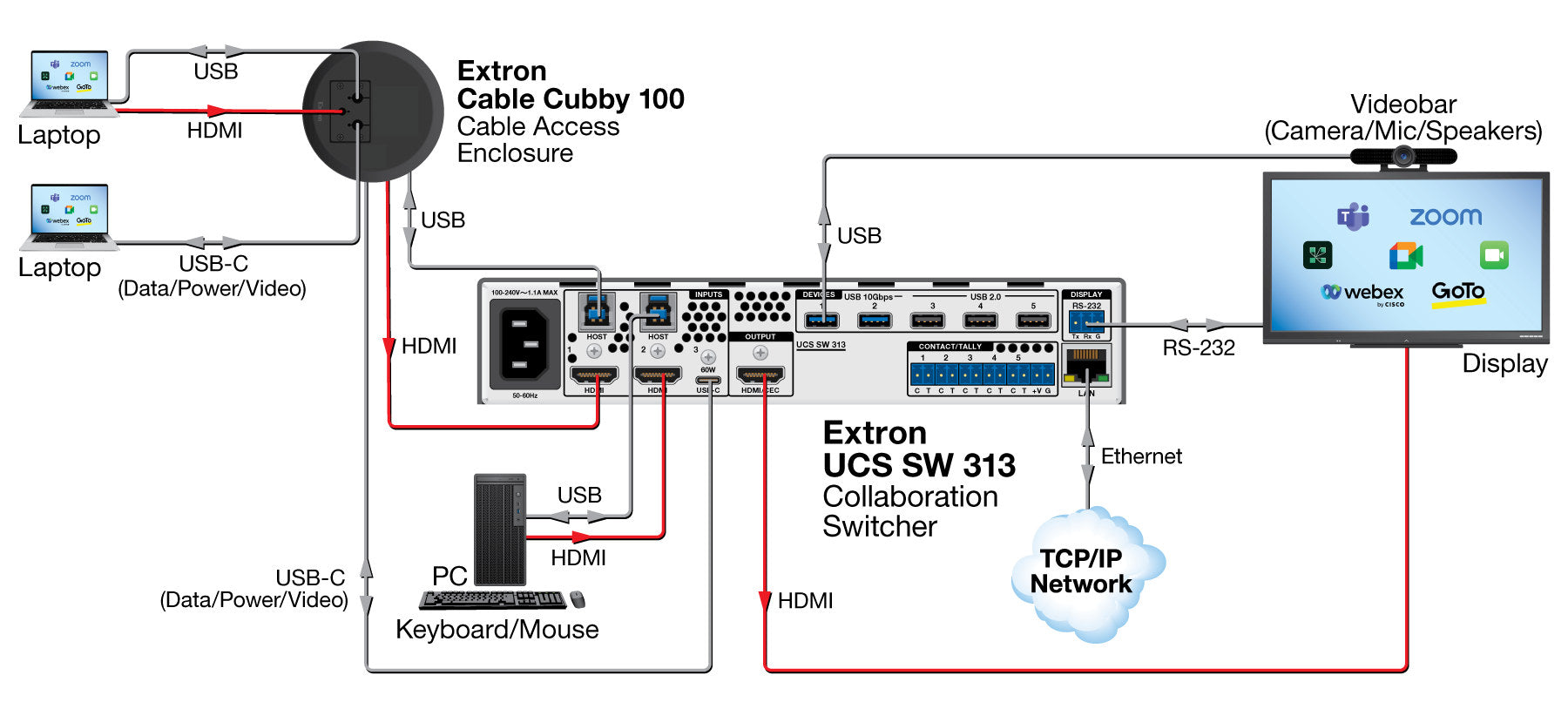

Diagram

Resources

Brochure | UCS SW 313 60-1797-02 | UCS SW 313 (ucs_sw_313_revA.pdf)

Brochure | UCS SW 313 60-1797-02 | UCS SW 313 (UCS_SW_313_Rev_A_CN_Online.pdf)

Brochure | UCS SW 313 60-1797-02 | UCS SW 313 - カタログ

Manual | UCS SW 313 60-1797-02 | UCS SW 313 Setup Guide

Manual | UCS SW 313 60-1797-02 | UCS SW 313 User Guide

Specifications | UCS SW 313 60-1797-02 | UCS SW 313

Panel Drawing | UCS SW 313 60-1797-02 | UCS SW 313
