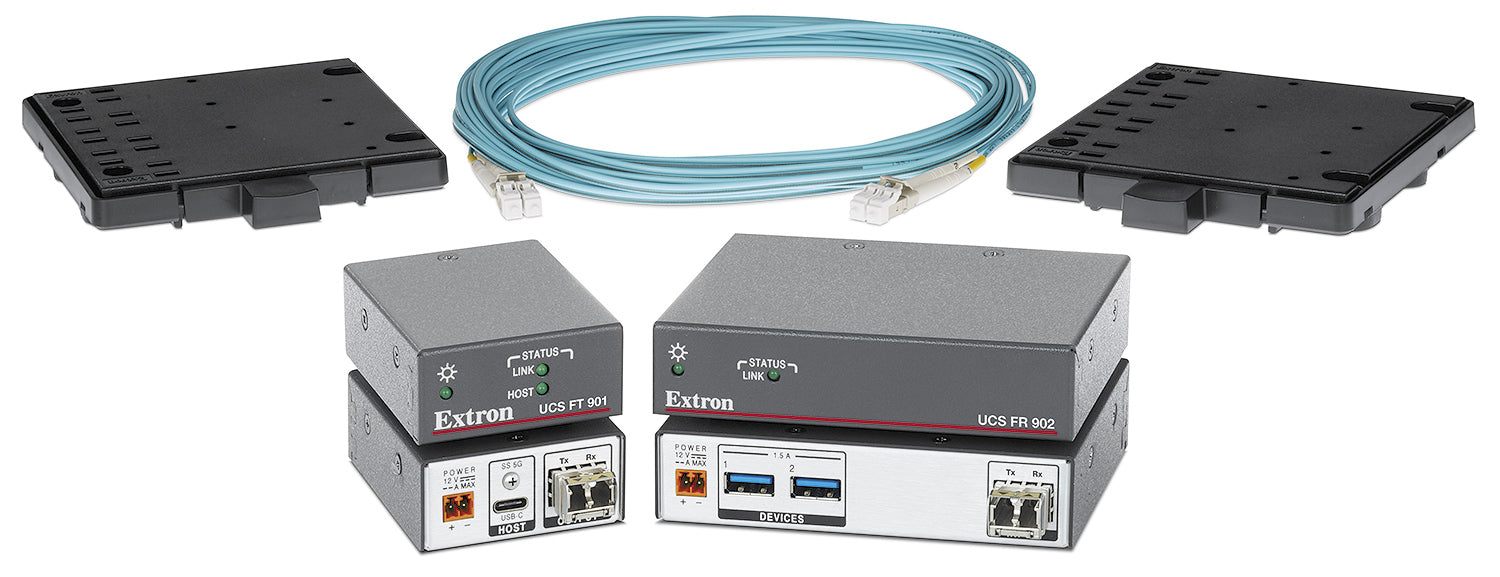

Part number 42-298-01 — Fiber Optic USB 5Gbps Extender Kit

The 42-298-01 supplies a transmitter and receiver pair that carries USB signals at data rates up to 5 Gbps over fiber optic cable for runs as long as 492 ft. Integrators select this kit to overcome length restrictions when linking a host computer to remote USB devices in permanent installations.

Conference rooms, boardrooms, classrooms, and lecture halls represent typical settings. Selection requires awareness that the kit contains a 10 m plenum-rated multimode fiber cable, ZipClip mounting brackets, and a receiver with 2-port hub rated at 5 V and 1.5 A per port. The transmitter accepts power from the host device or the included supply while the units consume 0.7 W and 1.1 W respectively in metal enclosures that rely on convection cooling.

Specifications

Part Number: 42-298-01

Manufacturer: Extron

Condition: New

Height: 4.75" (12.1 cm)

Available USB power: 1.5 A per USB port

Connectors: 1 female USB type C

Cooling: Convection, no vents

Data rate: 5 Gbps

Device: 0.7 watts

Device and power supply: 1.1 watts

Enclosure type: Metal

Everlast power supply warranty: 7 years parts and labor

Furniture or wall mount: Yes, with included Zipclip kits

Maximum built-in USB hubs: 0

Minimum built-in USB hubs: 0

Multimode: -12 dBm, typical

Nominal peak wavelength: 850 nm for multimode

Number/signal type: 1 USB

Power supply: External

Product warranty: 3 years parts and labor

Product weight: 2.28 lbs (1.3 kg)

Rack mount: Yes, with optional rack shelf or rack mounting brackets

Receiver: Input: 100-240 VAC, 50-60 HzOutput: 12 VDC, 2.0 A, 24 watts

Regulatory compliance: CE, c-UL, KCC, UL, C-tick, FCC, ICES, VCCI Class A, Complies with the appropriate requirements of RoHS, WEEE

Signal transmission distance: up to 150 m (493 feet) with 50 μm OM3/OM4, 4700 MHz bandwidth, laser-optimized multimode (MM) cables

Temperature/humidity: Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensingOperating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing

Transmission power: -5 dBm, typical

Transmitter: Input: 100-240 VAC, 50-60 HzOutput: 12 VDC, 0.5 A, 6 watts

USB Host support: xHCI (Transmitter must be connected to a USB 3.2 Gen 1, USB 3.1 Gen 1, or USB 3.0 Host PC port)

USB receiver support: USB 1.x low speed (1.5 Mbps), full speed (12 Mbps), USB 2.0 high speed (480 Mbps), USB 3.2 Gen 1, USB 3.1 Gen 1, or USB 3.0 SuperSpeed (5 Gbps)

Diagram

Resources

Brochure | UCS FTR 900 Kit 42-298-01 | UCS 900 Series

Brochure | UCS FTR 900 Kit 42-298-01 | Gamme UCS 900

Brochure | UCS FTR 900 Kit 42-298-01 | Serie UCS 900 (UCS-900-Series_BR_A4_IT_RevA.pdf)

Brochure | UCS FTR 900 Kit 42-298-01 | Serie UCS 900 (UCS-900-Series_BR_A4_SP_RevA.pdf)

Brochure | UCS FTR 900 Kit 42-298-01 | UCS 900-Serie

Manual | UCS FTR 900 Kit 42-298-01 | UCS FT 901 and UCS FR 902 Setup Guide

Manual | UCS FTR 900 Kit 42-298-01 | UCS FT 901 and UCS FR 902 User Guide

Specifications | UCS FTR 900 Kit 42-298-01 | UCS FT 901 and UCS FR 902

Panel Drawing | UCS FTR 900 Kit 42-298-01 | UCS 900 Series

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Extron UCS FTR 900 Kit 42-298-01

Name: Extron UCS FTR 900 Kit 42-298-01
Brand: Extron
SKU: EXTRON-UCSFTR900KIT-4229801
Availability: InStock

Manufacturer: Extron

Type: USB for Pro AV

Extron UCS FTR 900 Kit 42-298-01 Fiber USB Extension Kit

• Complete fiber USB 5Gbps extension kit including both FT 901 transmitter and FR 902 receiver
• Extends USB over multimode fiber for Pro AV cameras and peripherals
• Integrated two-port powered USB hub on the receiver end
• Supports USB 3.2 Gen 1 at up to 5 Gbps, backward compatible with USB 2.0 and 1.1
• ZipClip mounting hardware included for both units
