Details

Part number 60-1974-12 — Fiber Optic USB 5Gbps Transmitter

The 60-1974-12 supplies the transmitter unit in the UCS 900 Series to carry USB signals at data rates up to 5 Gbps over fiber optic cable for runs as long as 492 ft. Integrators select this transmitter to overcome length restrictions when linking a host computer to remote USB devices in permanent installations where only the sending end needs separate acquisition or replacement.

This model occupies a 3.0 in metal enclosure cooled by convection and accepts power from the host through its 1 female USB type C connector or from an external supply at 0.7 W for the device alone. It supports surface or furniture mounting with the included ZipClip hardware. Typical sites include conference rooms, boardrooms, classrooms, and lecture halls where the paired receiver provides the two-port hub.

Specifications

Part Number: 60-1974-12

Manufacturer: Extron

Condition: New

Height: 3.0" (7.6 cm)

Available USB power: 1.5 A per USB port

Connectors: 1 female USB type C

Cooling: Convection, no vents

Data rate: 5 Gbps

Device: 0.7 watts

Device and power supply: 1.1 watts

Enclosure type: Metal

Everlast power supply warranty: 7 years parts and labor

Furniture or wall mount: Yes, with included Zipclip kits

Maximum built-in USB hubs: 0

Minimum built-in USB hubs: 0

Multimode: -12 dBm, typical

Nominal peak wavelength: 850 nm for multimode

Number/signal type: 1 USB

Power supply: External

Product warranty: 3 years parts and labor

Product weight: 2.28 lbs (1.3 kg)

Rack mount: Yes, with optional rack shelf or rack mounting brackets

Receiver: Input: 100-240 VAC, 50-60 HzOutput: 12 VDC, 2.0 A, 24 watts

Regulatory compliance: CE, c-UL, KCC, UL, C-tick, FCC, ICES, VCCI Class A, Complies with the appropriate requirements of RoHS, WEEE

Signal transmission distance: up to 150 m (493 feet) with 50 μm OM3/OM4, 4700 MHz bandwidth, laser-optimized multimode (MM) cables

Temperature/humidity: Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensingOperating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing

Transmission power: -5 dBm, typical

Transmitter: Input: 100-240 VAC, 50-60 HzOutput: 12 VDC, 0.5 A, 6 watts

USB Host support: xHCI (Transmitter must be connected to a USB 3.2 Gen 1, USB 3.1 Gen 1, or USB 3.0 Host PC port)

USB receiver support: USB 1.x low speed (1.5 Mbps), full speed (12 Mbps), USB 2.0 high speed (480 Mbps), USB 3.2 Gen 1, USB 3.1 Gen 1, or USB 3.0 SuperSpeed (5 Gbps)

Diagram

Resources

Brochure | UCS FT 901 60-1974-12 | UCS 900 Series

Brochure | UCS FT 901 60-1974-12 | Gamme UCS 900

Brochure | UCS FT 901 60-1974-12 | Serie UCS 900 (UCS-900-Series_BR_A4_IT_RevA.pdf)

Brochure | UCS FT 901 60-1974-12 | Serie UCS 900 (UCS-900-Series_BR_A4_SP_RevA.pdf)

Brochure | UCS FT 901 60-1974-12 | UCS 900-Serie

Manual | UCS FT 901 60-1974-12 | UCS FT 901 and UCS FR 902 Setup Guide

Manual | UCS FT 901 60-1974-12 | UCS FT 901 and UCS FR 902 User Guide

Specifications | UCS FT 901 60-1974-12 | UCS FT 901 and UCS FR 902

Panel Drawing | UCS FT 901 60-1974-12 | UCS 900 Series

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

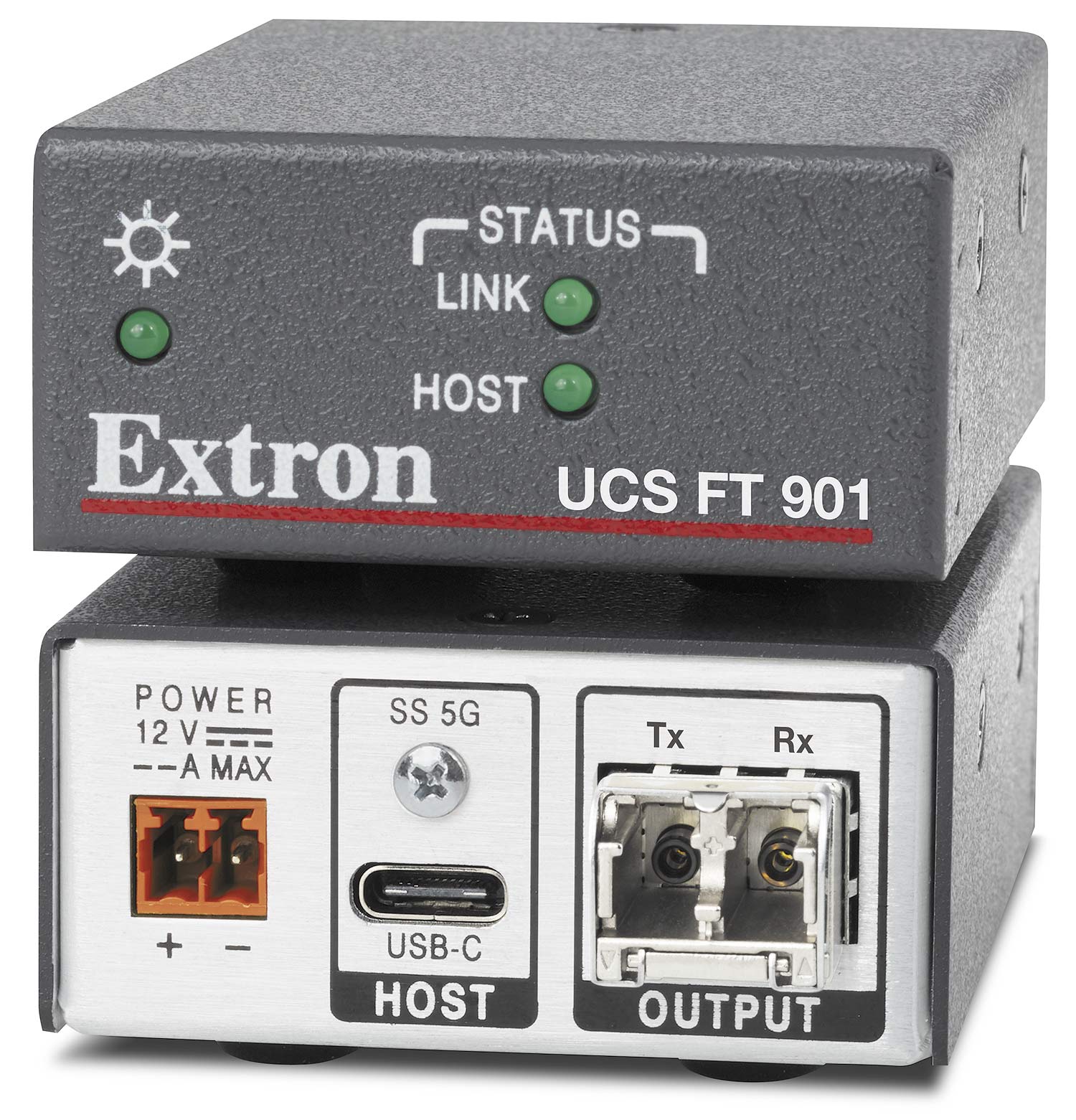

Extron UCS FT 901 60-1974-12

Name: Extron UCS FT 901 60-1974-12
Brand: Extron
SKU: EXTRON-UCSFT901-60197412
Availability: InStock

Manufacturer: Extron

Type: USB for Pro AV

Extron UCS FT 901 60-1974-12 Fiber USB Transmitter

• UCS FT 901: the transmitter end of the UCS FTR 900 fiber USB 5Gbps extension pair
• Connects the USB host at the source end over multimode fiber
• Supports USB 3.2 Gen 1 at up to 5 Gbps, backward compatible with USB 2.0 and 1.1
• PoE powered or local 12 VDC supply; compact ZipClip mounting included
• Pair with the UCS FR 902 receiver to complete the extension system
