Details

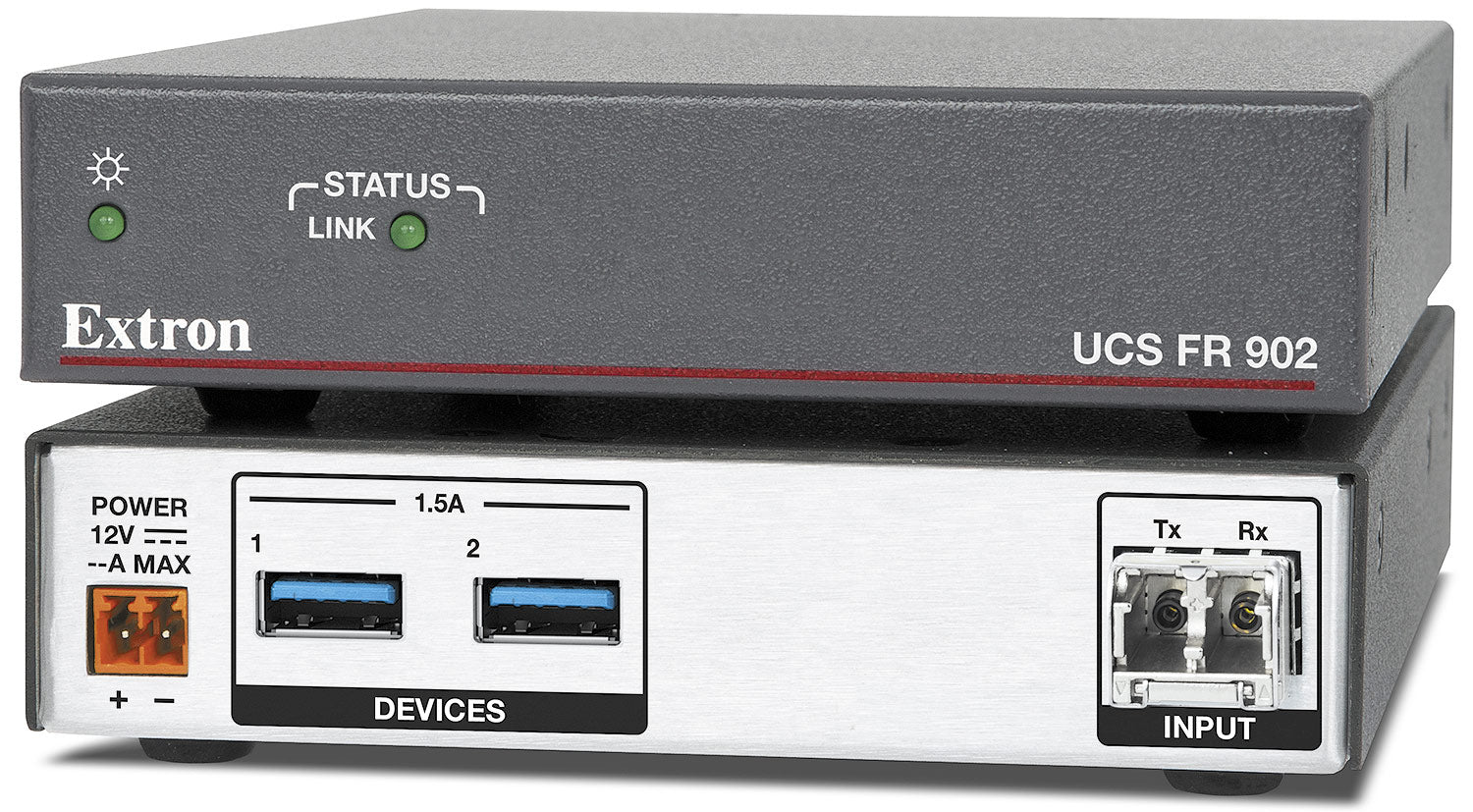

Part number 60-1974-13 — Fiber Optic USB 5Gbps Receiver

The 60-1974-13 supplies the receiver unit that completes a UCS 900 Series link carrying USB signals at data rates up to 5 Gbps over fiber optic cable for runs as long as 492 ft. Integrators select this receiver to overcome length restrictions when linking a host computer to remote USB devices in permanent installations.

The receiver fits conference rooms, boardrooms, classrooms, and lecture halls where an integrated two-port hub supplies 5 V and 1.5 A at each port. Its metal enclosure measures 3.0 in (7.6 cm), draws 0.7 W, and mounts with the included ZipClip kits on furniture or walls. Convection cooling requires no vents, and the unit supports USB 3 and prior standards at the full 5 Gbps rate.

Specifications

Part Number: 60-1974-13

Manufacturer: Extron

Condition: New

Height: 3.0" (7.6 cm)

Available USB power: 1.5 A per USB port

Connectors: 1 female USB type C

Cooling: Convection, no vents

Data rate: 5 Gbps

Device: 0.7 watts

Device and power supply: 1.1 watts

Enclosure type: Metal

Everlast power supply warranty: 7 years parts and labor

Furniture or wall mount: Yes, with included Zipclip kits

Maximum built-in USB hubs: 0

Minimum built-in USB hubs: 0

Multimode: -12 dBm, typical

Nominal peak wavelength: 850 nm for multimode

Number/signal type: 1 USB

Power supply: External

Product warranty: 3 years parts and labor

Product weight: 2.28 lbs (1.3 kg)

Rack mount: Yes, with optional rack shelf or rack mounting brackets

Receiver: Input: 100-240 VAC, 50-60 HzOutput: 12 VDC, 2.0 A, 24 watts

Regulatory compliance: CE, c-UL, KCC, UL, C-tick, FCC, ICES, VCCI Class A, Complies with the appropriate requirements of RoHS, WEEE

Signal transmission distance: up to 150 m (493 feet) with 50 μm OM3/OM4, 4700 MHz bandwidth, laser-optimized multimode (MM) cables

Temperature/humidity: Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensingOperating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing

Transmission power: -5 dBm, typical

Transmitter: Input: 100-240 VAC, 50-60 HzOutput: 12 VDC, 0.5 A, 6 watts

USB Host support: xHCI (Transmitter must be connected to a USB 3.2 Gen 1, USB 3.1 Gen 1, or USB 3.0 Host PC port)

USB receiver support: USB 1.x low speed (1.5 Mbps), full speed (12 Mbps), USB 2.0 high speed (480 Mbps), USB 3.2 Gen 1, USB 3.1 Gen 1, or USB 3.0 SuperSpeed (5 Gbps)

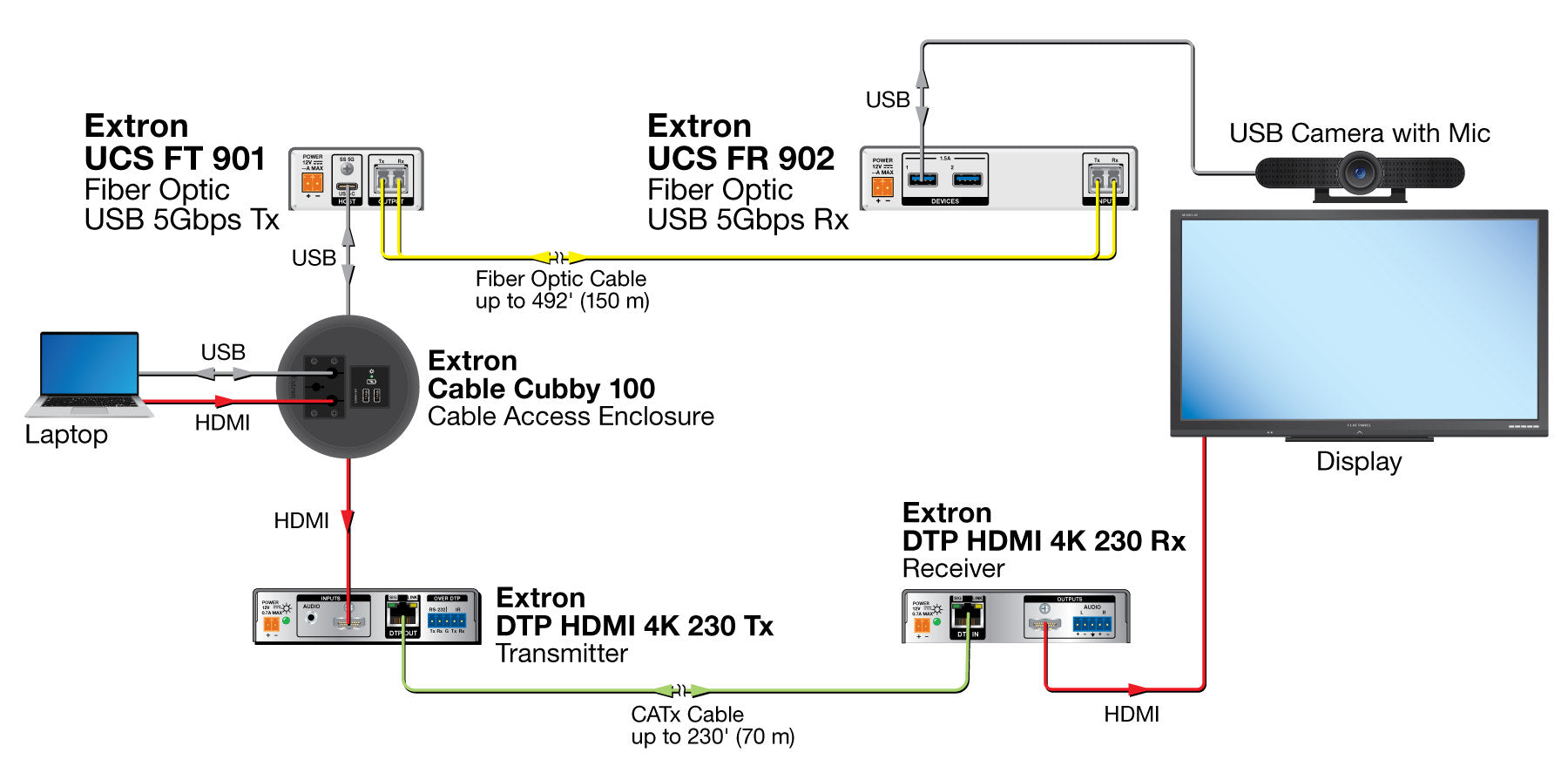

Diagram

Resources

Brochure | UCS FR 902 60-1974-13 | UCS 900 Series

Brochure | UCS FR 902 60-1974-13 | Gamme UCS 900

Brochure | UCS FR 902 60-1974-13 | Serie UCS 900 (UCS-900-Series_BR_A4_IT_RevA.pdf)

Brochure | UCS FR 902 60-1974-13 | Serie UCS 900 (UCS-900-Series_BR_A4_SP_RevA.pdf)

Brochure | UCS FR 902 60-1974-13 | UCS 900-Serie

Manual | UCS FR 902 60-1974-13 | UCS FT 901 and UCS FR 902 Setup Guide

Manual | UCS FR 902 60-1974-13 | UCS FT 901 and UCS FR 902 User Guide

Specifications | UCS FR 902 60-1974-13 | UCS FT 901 and UCS FR 902

Panel Drawing | UCS FR 902 60-1974-13 | UCS 900 Series

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Extron UCS FR 902 60-1974-13

Name: Extron UCS FR 902 60-1974-13
Brand: Extron
SKU: EXTRON-UCSFR902-60197413
Availability: InStock

Manufacturer: Extron

Type: USB for Pro AV

Extron UCS FR 902 60-1974-13 Fiber USB Receiver

• UCS FR 902: the receiver end of the UCS FTR 900 fiber USB 5Gbps extension pair
• Provides USB connectivity at the display end over multimode fiber
• Integrated two-port powered USB hub for cameras and peripherals
• Supports USB 3.2 Gen 1 at up to 5 Gbps, backward compatible with USB 2.0 and 1.1
• Pair with the UCS FT 901 transmitter to complete the extension system
