Manufacturer: Extron | Model: UCS 601 | Part number: 60-2042-01 (also written 60204201)

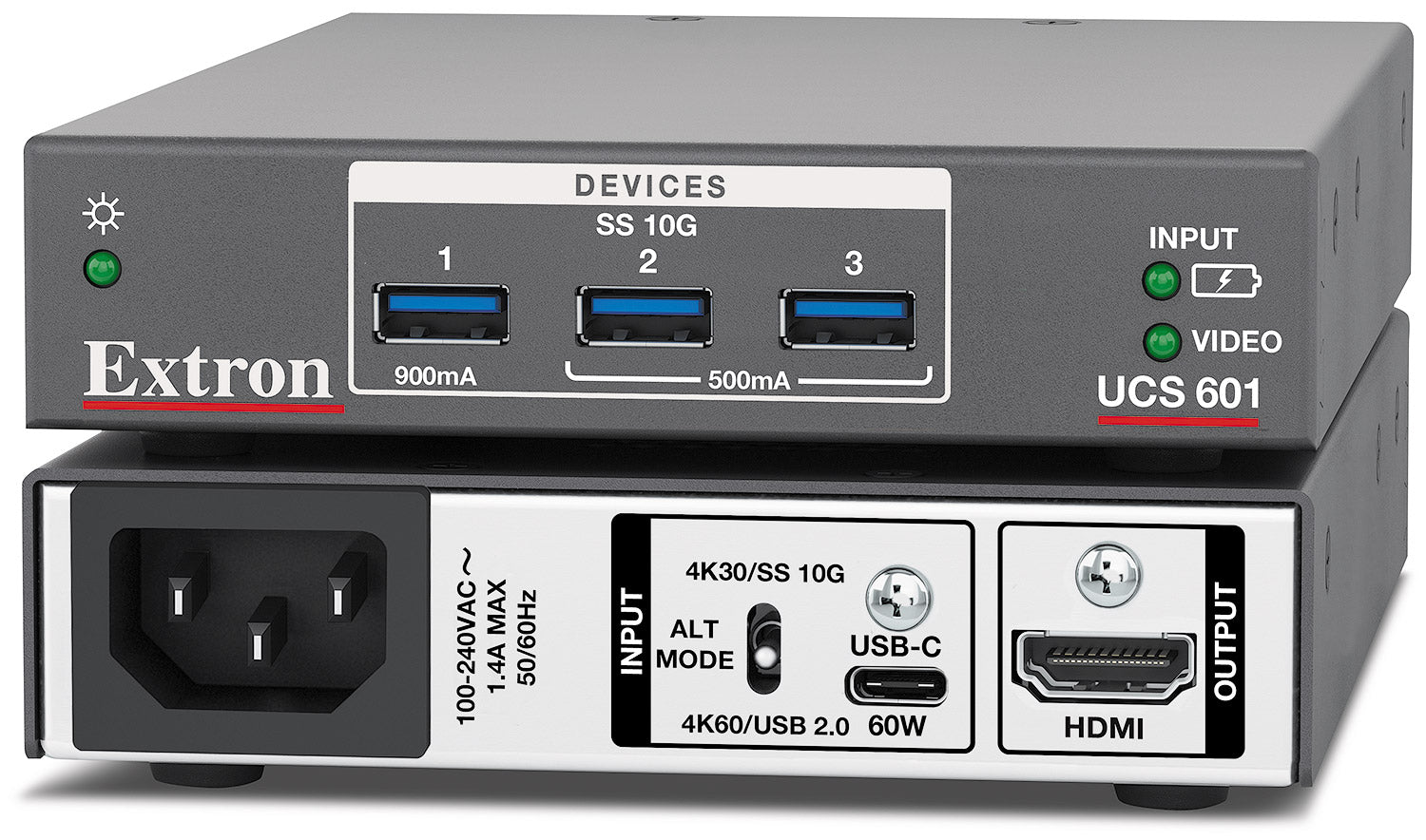

The Extron UCS 601 (60-2042-01) is a single-cable USB-C collaboration dock for meeting rooms. One USB-C cable from a laptop simultaneously delivers 4K HDMI video to the room display, connects to USB peripherals through three 10 Gbps USB ports, and charges the laptop at up to 60 W. This eliminates the cluster of individual adapters and cables at the table and keeps the connection point clean for the next presenter.

Key capabilities

Single USB-C cable connection consolidates 4K video, USB 10 Gbps data, and 60 W charging
HDMI output up to 4096x2160 at 60 Hz for 4:2:0 content, or 5120x1440 at 60 Hz at 4:4:4
Three USB 10 Gbps ports for cameras, headsets, and peripherals
USB-C power delivery up to 60 W charges the connected laptop
ZipClip 200 bracket included for under-table or surface mounting

Where it is used

BYOD conference rooms, huddle spaces, and Teams or Zoom-equipped meeting rooms where presenters connect a single USB-C laptop cable and immediately have video, audio, and room peripherals available without a control system or IT configuration.

Specifications at a glance

Enclosure: 1.125 in H x 4.3 in W x 6.0 in D, metal, convection cooled
Host connection: 1 USB-C (USB 10Gbps + DisplayPort Alt Mode)
USB ports: 3 x USB Type A, 10 Gbps each
Warranty: 3-year Extron parts and labor

Also referenced as Extron UCS601, UCS-601, part number 60204201.

Specifications

Part Number: 60-2042-01

Manufacturer: Extron

Condition: New

4096x2160 at 30 Hz: 12 bit

4096x2160 at 60 Hz: 4:2:0

5120x1440 at 60 Hz: 4:4:4

Height: 2.5" (6.4 cm)

Chroma sampling1: 4:4:4, 4:2:2, or 4:2:0

Color bit depth: 8, 10, or 12 bits

Color bit depth1: 8, 10, or 12 bits per color

Connector: 1 female USB type-C

Connectors: 1 female USB Type-C

Cooling: Convection, no vents

Data transfer types: Bulk, Control, Interrupt, and Isochronous

Enclosure dimensions: 1.125" H x 4.3" W x 6.0” D (1.125" high, one quarter rack wide) (2.86 cm H x 10.9 cm W x 15.2 cm D)

Enclosure type: Metal

Formats: RGB and YCbCr digital video

Frame rate1: 24, 25, 30, 50, or 60 fps

Horizontal frequency range: 15 kHz to 270 kHz for resolutions up to 18 Gbps

Max. video data rate: 18 Gbps (6 Gbps per color)

Maximum built-in USB hubs: 1

Maximum data rate: 18 Gbps (6 Gbps per color)

Maximum pixel clock: 600 MHz

Minimum built-in USB hubs: 1

Number/signal type: 1 DisplayPort Alt Mode, DP 1.2 (2 or 4 lanes), RBR/1.62 Gbps, HBR/2.7 Gbps, HBR2/5.4 Gbps

Optional built-in USB hubs: 0

Port 1: 900 mA

Port 2: 500 mA

Port 3: 500 mA

Power: Internal Input: 100-240 VAC, 50-60 Hz

Power consumption: 71.9 W

Product warranty: 3 years parts and labor

Rack mount: Yes, with optional rack shelf, with the included ZipClip 200 mounting clip

Regulatory compliance: CE, c-UL, UL, C-Tick, FCC Class A, ICES, VCCI, AS/NZS, RoHS, WEEE

Resolution and Refresh Rate: Chroma Sampling

Resolution range: Up to 1080p @ 120 Hz or 4K @ 60 Hz (4:4:4 chroma subsampling)

Signal Type: HDMI 2.0b, DisplayPort 1.2, HDCP 2.3

Standards: HDMI 2.0, DisplayPort 1.2 (Alt Mode), DVI 1.0, HDCP 1.x, HDCP 2.3, CTA-861

Temperature/humidity: Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing

Thermal dissipation: 43.5 BTU/hr

USB data rates: Low speed (1.5 Mbps), full speed (12 Mbps), high speed (480 Mbps),USB 5Gbps (5 Gbps), USB 10Gbps (10 Gbps)

USB specification: xHCl (USB 3.2 Gen 1/2, USB 3.1 Gen 1/2, USB 3.0), EHCl (USB 2.0), OHCl/UHCl (USB 1.1) compatible

USB-C power delivery: Up to 60 W power delivery at the following power profiles: 5 VDC @ up to 3 A, 9 VDC @ up to 3 A, 12 VDC @ up to 3 A, 15 VDC @ up to 3 A 20 VDC @ up to 2.25 A or 20 VDC @ up to 3.0 A

Ultra Wide and 5K: 2560x1080, 5120x1080, 5120x1440, 5120x2160*, 5120x2560*, 5120x2880* *Supported at 30 Hz only

Vertical frequency range: 24 Hz to 240 Hz for resolutions up to 18 Gbps

Video output power for active cables (HDMI pin 18): 1.25 W max for HDMI port

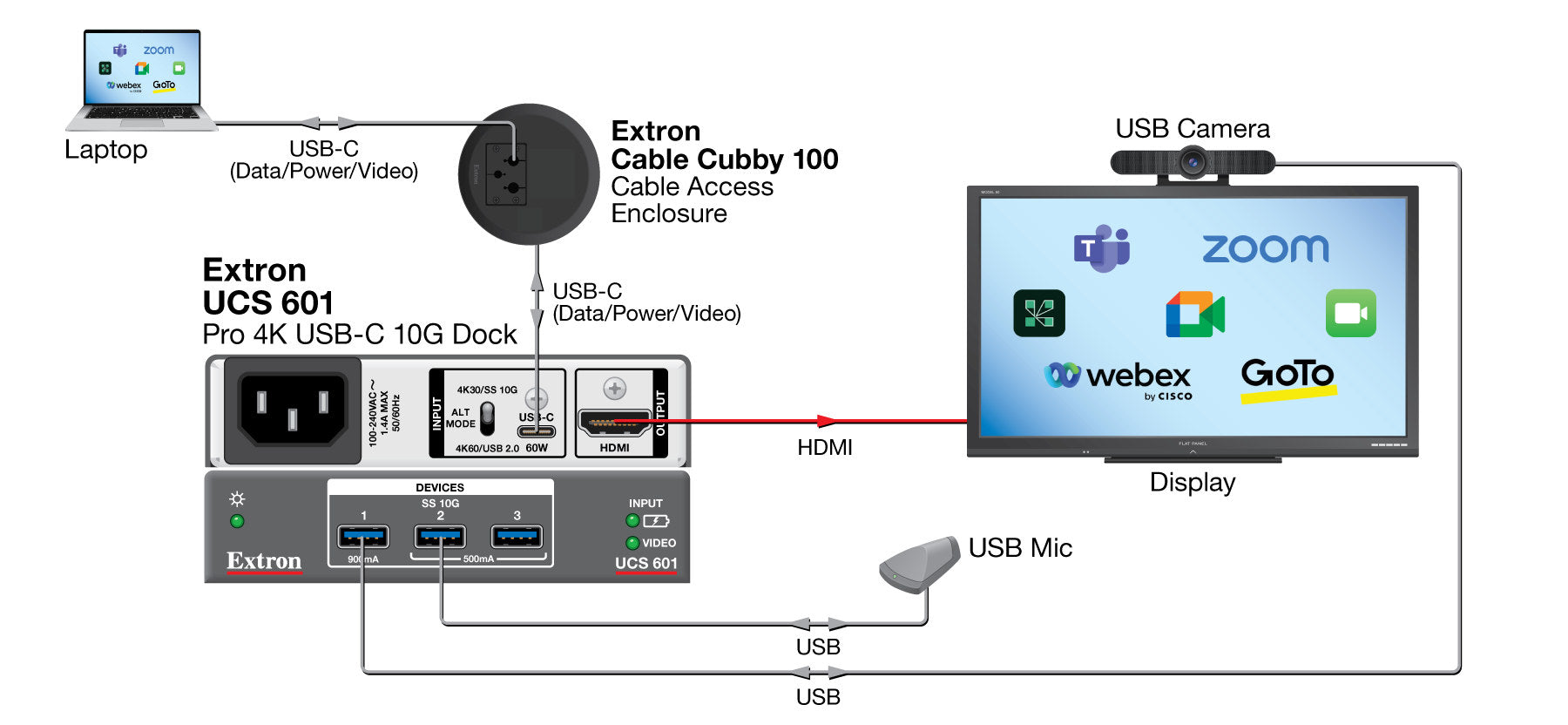

Diagram
