Part Number: 42-361-01
Manufacturer: Extron

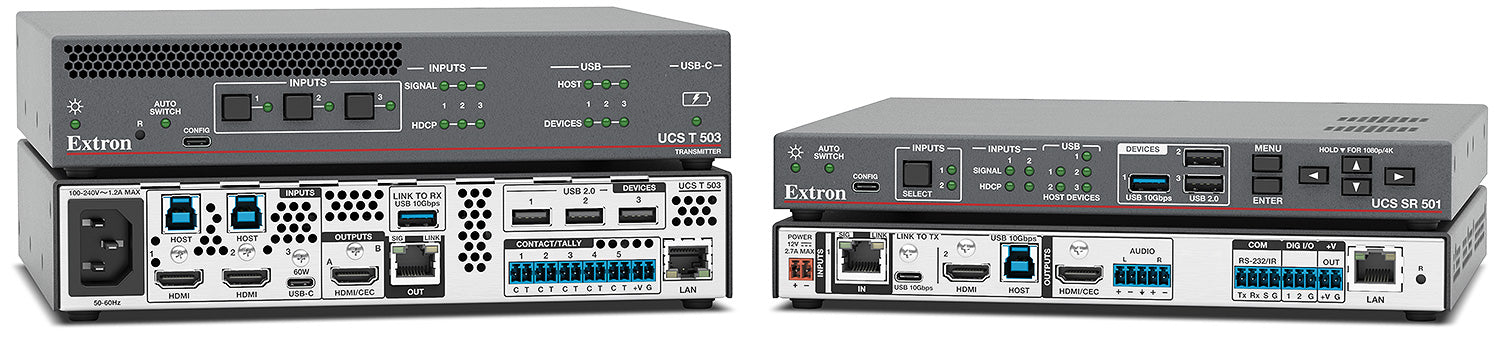

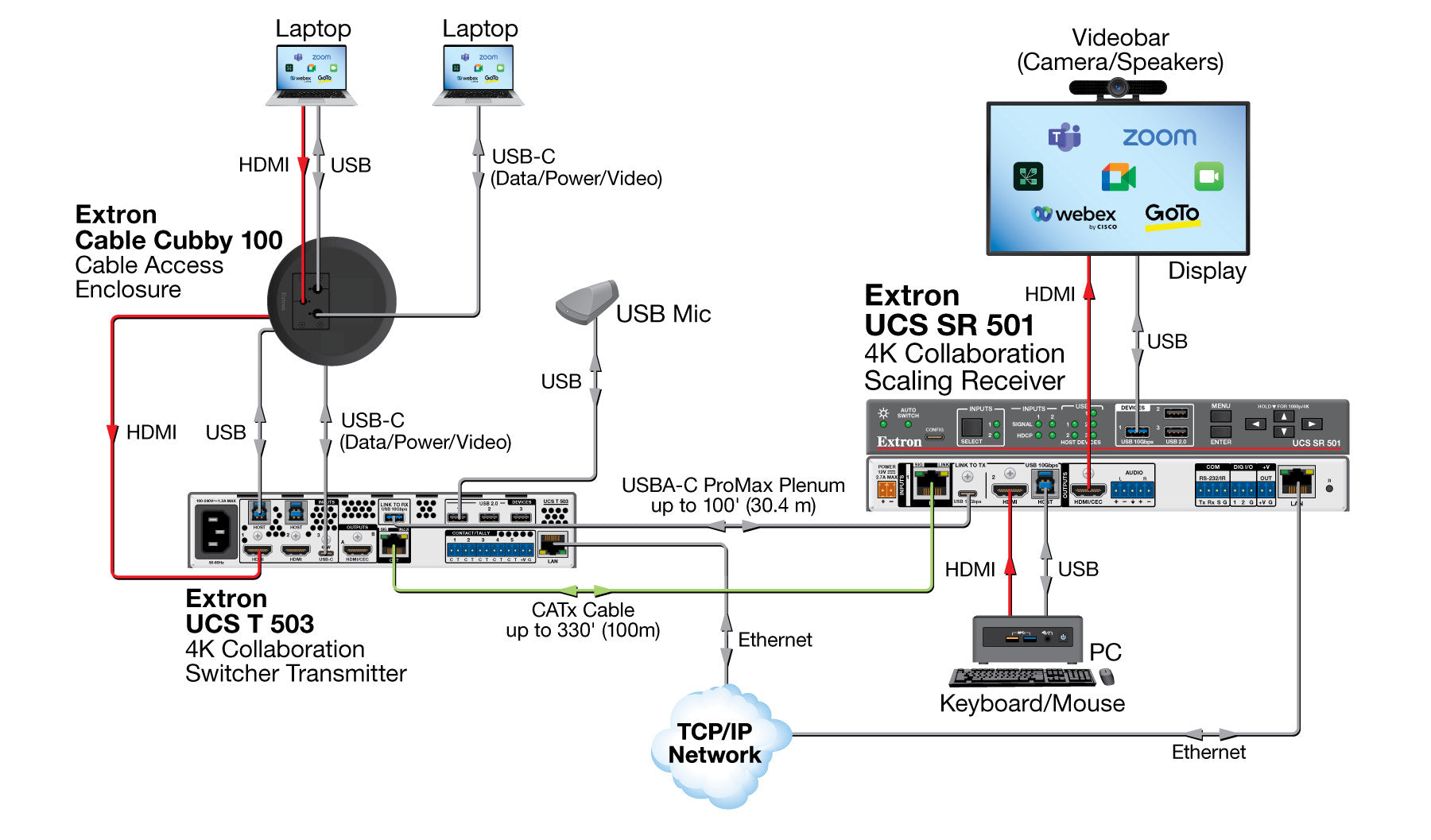

Model: UCS 504 (UCS T 503 transmitter + UCS SR 501 receiver kit)
Condition: New
Frame rate: 24, 25, 30, 50, or 60 fps
Chroma sampling: 4:4:4 or 4:2:0
Color bit depth: 8, 10, or 12 bits per color
Signal type: HDMI 2.0b, HDCP 2.3
Max. video data rate: 18 Gbps (6 Gbps per color)
HDMI resolution range: Up to 1080p @ 120 Hz or 4K @ 60 Hz (4:4:4 chroma subsampling)
HDMI standards: HDMI 2.0b, DisplayPort 1.2 (Alt Mode), DVI 1.0, HDCP 1.x, HDCP 2.3, CTA-861-F
HDR: HDR10, HDR10+, Dolby Vision
Formats: RGB and YCbCr digital video
Maximum pixel clock: 600 MHz
Video input (Transmitter): 2 HDMI 2.0 (or single-link DVI-D with adapter), 1 DisplayPort 1.2 USB-C Alt Mode (2 or 4 lanes); connectors: 2 female HDMI type A, 1 female USB type C
Horizontal/vertical frequency range (Transmitter): 15 kHz to 270 kHz horizontal, 24 Hz to 240 Hz vertical, for resolutions up to 18 Gbps
Video input (Receiver): 1 digital twisted pair, 1 HDMI; connectors: 1 female RJ-45 jack, 1 female HDMI type A
Video output (Transmitter): 1 digital twisted pair, 1 HDMI; connectors: 1 female RJ-45 jack, 1 female HDMI type A
Video output (Receiver): 1 HDMI (or single-link DVI-D with adapter); connector: 1 female HDMI type A
Transmission distance (Tx-Rx video): Up to 330' (100 m) using shielded twisted pair (STP) or XTP DTP 22 cable
Cable requirements: Solid conductor, 22 AWG or better
Cable recommendations: 500 MHz bandwidth, S/FTP
Output power for active cables: 1.25 watts max for HDMI port
Audio gain: Unbalanced output: 0 dB; balanced output: +6 dB
Audio frequency response: 20 Hz to 20 kHz, ±0.05 dB
Audio THD + Noise: <0.1% @ 20 Hz to 20 kHz at nominal level
Audio S/N: >90 dB at maximum balanced output (unweighted)
Audio crosstalk: ≤-80 dB @ 1 kHz, fully loaded
Stereo channel separation: >80 dB @ 1 kHz
Audio sampling rates: 32 kHz, 44.1 kHz, 48 kHz, 96 kHz, 192 kHz
Audio bit depths: 16, 20, 24 bit
Audio output: 1 analog stereo (2-channel), balanced/unbalanced (Receiver); 1 digital audio, embedded with HDMI output (Receiver and Transmitter)
Audio output connectors: Analog stereo: (1) 3.5 mm captive screw connector, 5 pole, 3 pole. Digital audio: (1) female HDMI type A (shared with video output)
Supported HDMI audio formats: LPCM up to 7.1/24-bit/192 kHz, Dolby Atmos, Dolby TrueHD, Dolby Digital Plus, Dolby Digital EX, Dolby Digital 5.1, Dolby Digital 2/0 Surround, Dolby Digital 2/0, DTS-HD Master Audio, DTS-HD, DTS-ES Discrete 6.1, DTS-ES Matrix 6.1, DTS Digital Surround 5.1, DTS 2 Channel
Audio impedance: Analog: 50 ohms unbalanced, 100 ohms balanced. Maximum level (Hi-Z): >+12 dBV balanced, +6 dBV unbalanced. Gain error: ±0.5 dB channel to channel
USB-C features (Transmitter): DisplayPort alt-mode video (2-lane, 4-lane), USB data, USB-C power delivery
USB max data rate (Transmitter host): Up to USB 10Gbps
USB data transfer types: Bulk, Control, Interrupt, and Isochronous
Built-in USB hubs (Transmitter): Maximum 2, Minimum 1, Optional 0
USB host ports (Transmitter): 3 USB; connectors: 2 female USB 3.2 type B, 1 female USB 3.2 type C
USB host support: xHCI (USB 3.2), EHCI (USB 2.0), OHCI/UHCI (USB 1.1)
USB-C power delivery (Transmitter host port): Up to 60 watts: (15 W) 5 VDC @ up to 3 A, (27 W) 9 VDC @ up to 3 A, (36 W) 12 VDC @ up to 3 A, (45 W) 15 VDC @ up to 3 A, (60 W) 20 VDC @ up to 3 A
USB device ports (Transmitter): 4 USB; connectors: 1 female USB 3.2 type A (Link to Rx), 3 female USB 2.0 type A, 1 female USB 2.0 RJ-45 (twisted pair extension port)
USB standards (Transmitter device ports): USB 3.2, USB 2.0, USB 1.x
USB max data rates (Transmitter device ports): Up to High speed (480 Mbps) local USB 2.0/twisted pair extension port; up to USB 10Gbps local Link to Rx
Available USB device power (Transmitter): USB-A 3.2: 900 mA (Link to Rx); USB-A 2.0: 500 mA/port
Built-in USB hubs (Receiver): Maximum 1, Minimum 1, Optional 0
USB host ports (Receiver): 2 USB; connectors: 1 female USB 3.2 type C (Link to Tx), 1 female USB 3.2 type B, 1 female USB 2.0 RJ-45 (twisted pair extension port)
USB device ports (Receiver): 3 USB; connectors: 1 female USB 3.2 type A, 2 female USB 2.0 type A
USB standards (Receiver device ports): USB 3.2, USB 2.0, USB 1.x
USB max data rates (Receiver device ports): Up to High speed (480 Mbps) local USB 2.0; up to USB 10Gbps local Link to Rx
Available USB power (Receiver device ports): USB-A 3.2: 900 mA; USB-A 2.0: 500 mA/port
Tx-Rx USB interconnection: Connectors: 1 female RJ-45, 1 USB-A to USB-C. Termination standard: T568B. Signal transmission distance: RJ-45 330' (100 m), USB up to 100' (30.4 m)
Communications (Transmitter): 1 female USB-C on front panel; control standard IP over USB (RNDIS); contact/tally ports: 5 sets (2 pins each) of contact and tally ports, 1 set (1 pin each) of +V and G, tally output power +5 VDC 0.2 A
Communications (Receiver USB): 1 female USB-C on front panel; control standard IP over USB (RNDIS)
Serial control port (Receiver): 1 bidirectional RS-232; connector (1) 3.5 mm captive screw, 5 pole; baud rate 300-115200 (9600 default), 8 or 7 data bits, 1 or 2 stop bits, no/even/odd parity
IR/serial (Receiver): 1 programmable: unidirectional RS-232 (±5 V), TTL (0-5 V), or IR (carrier/non-carrier up to 300 kHz); connector (1) 3.5 mm captive screw, 2 pole; pin config Pin 1 = Signal, 2 = Gnd; IR output/learning carrier frequency 30-300 kHz; IR learning capture distance 2" to 12" from front panel; on 5 pole captive screw Pin 4 = Signal, 5 = Gnd
Digital I/O (Receiver): 2 digital input/output (configurable); connector (1) 3.5 mm captive screw, 3 pole; input voltage range 0-24 VDC clamped at +30 VDC; input impedance >10k ohms; programmable pullup 1k ohms to +5 VDC; threshold low-to-high 2.8 VDC, high-to-low 2.0 VDC; digital outputs 250 mA sink from 24 VDC max; pin config 1,2 = Digital I/Os, 1,2,3 = Gnd
Ethernet control port (Tx/Rx): Data rate 10/100Base-T, half/full duplex with autodetect; protocol DHCP, DNS, HTTP, HTTPS, ICMP, NTP, SFTP, SMTP, SNMP, SSH, TCP/IP, UDP/IP; default IP 169.168.254.250, subnet 255.255.255.0, gateway 0.0.0.0, DHCP off
Program control: Extron Product Control Software (PCS), Extron Simple Instruction Set (SIS)
Power supply (Transmitter): Internal; Input: 100-240 VAC, 50-60 Hz
Power supply (Receiver): External (included); Input: 100-240 VAC, 50-60 Hz; Output: 12 VDC, 4.2 A, 50 watts
Power consumption (Transmitter): 92.4 watts
Power consumption (Receiver, device): 28.5 watts
Power consumption (Receiver, device and power supply): 31.1 watts
Ambient temperature/humidity: Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing. Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing
Cooling (Transmitter): 2 fans, air flows front to rear
Cooling (Receiver): 2 fans, air flows top to side
Thermal dissipation (Transmitter): 102.5 BTU/hour
Thermal dissipation (Receiver, device): 67.4 BTU/hour
Thermal dissipation (Receiver, device and power supply): 83.8 BTU/hour
Mounting: Rack mount yes (optional 1U rack shelf); Furniture mount yes (optional under-desk mounting kit)
Enclosure type: Metal
Enclosure dimensions (Transmitter): 1.75" H x 8.75" W x 8.5" D (1U high, half rack wide) (44 mm H x 222 mm W x 216 mm D); depth includes connectors
Enclosure dimensions (Receiver): 1.0" H x 8.75" W x 8.5" D (1 inch high, half rack wide) (25 mm H x 222 mm W x 216 mm D); depth includes connectors
Product weight (Transmitter): 4.1 lbs (1.9 kg)
Product weight (Receiver): 2.0 lbs (0.9 kg)
Regulatory compliance: CE, C-tick, c-UL, UL, FCC Class A, ICES, VCCI, RoHS, WEEE
Product warranty: 3 years parts and labor
Everlast power supply warranty: 7 years parts and labor
