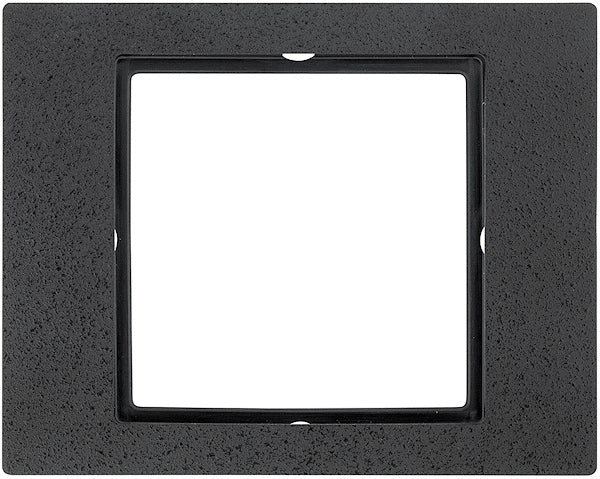

Extron UCM 100 (part number 70-903-02) — a universal controller mount that lets Flex55 and EU modules be installed into a standard four-space AAP AV connectivity opening.

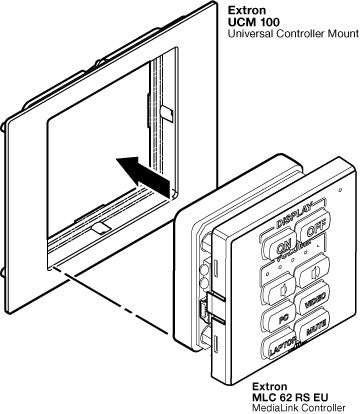

Flex55 and EU devices are built for European junction boxes, while AAP openings follow a different geometry — which normally means a room has to commit to one system or the other. The UCM 100 removes that fork in the road. It is a frame that occupies a four-space AAP cutout and accepts a Flex55 or EU module inside it, so a controller designed for an EU box can land in a rack panel, lectern plate, Hideaway surface access enclosure or any other AV connectivity mounting frame. Extron's own instruction card shows a controller such as the MLC 62 RS EU mounted either horizontally or vertically within the frame, which matters when the surrounding panel is tight in one axis.

Key Capabilities

• Adapts Flex55 and EU modules to a four-space AAP AV connectivity opening

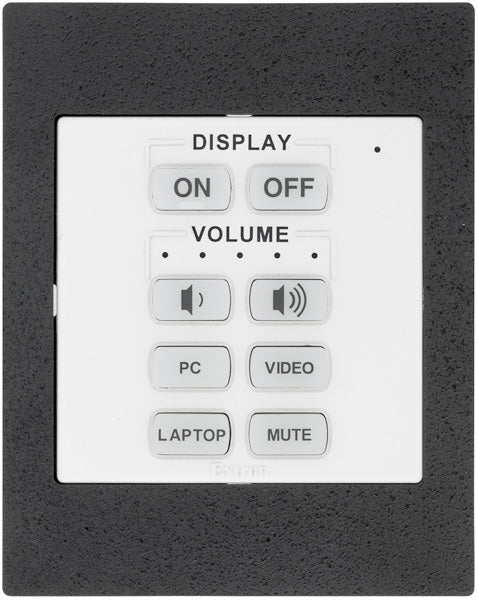

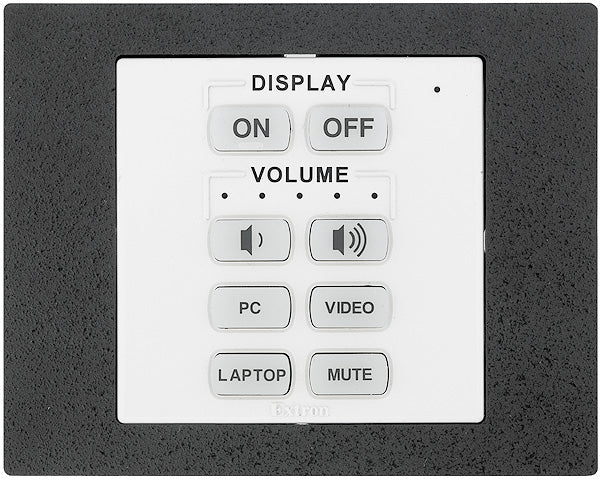

• Accepts the mounted device in either horizontal or vertical orientation
• Compact 2.8 in. H x 3.5 in. W x 0.1 in. D plate (7.1 x 8.9 x 0.3 cm)
• Works with select Hideaway surface access enclosures and other AAP mounting frames
• Suits rack, lectern and table installations
• Black finish

Where It Is Used

Classrooms and meeting rooms where an EU-format MediaLink controller has to appear in a lectern plate or rack panel rather than a wall box. It is also common in retrofit work and in mixed-standard estates where one building uses EU junction boxes and another uses AAP frames, letting a single controller model be specified across both.

Specifications at a Glance

• Function: universal controller mount for Flex55 and EU modules
• Opening required: four-space AAP AV connectivity module opening
• Dimensions: 2.8 in. H x 3.5 in. W x 0.1 in. D (7.1 x 8.9 x 0.3 cm)
• Device orientation: horizontal or vertical within the frame
• Finish: black

Also referenced as Extron UCM100, UCM-100, part number 7090302.
