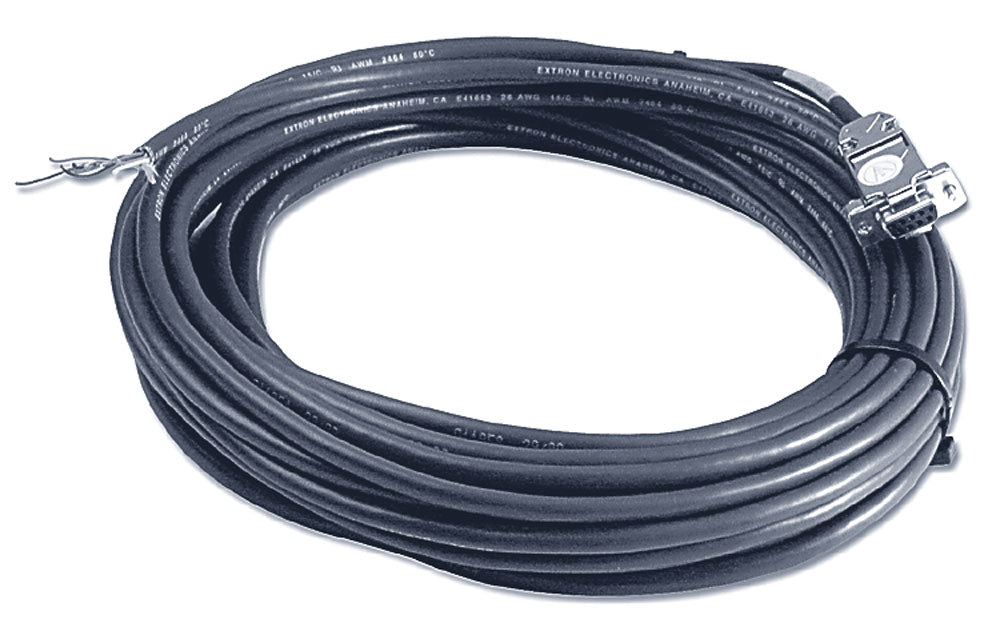

Extron UC100' (part number 26-518-02) — a 100 ft (30.4 m) universal projector control cable with a female 9-pin D connector at the display end and an unterminated, captive screw ready end at the controller. Extron has retired this part number.

Where the UC50' covers a normal room, this is the version for a hall: a hundred feet of serial control run from a rack or wall plate to a projector at the far end of the space. The termination scheme is the same — plug into the display's RS-232 port at one end, strip and land the other on captive screws at the controller — so nothing about the install method changes, only the reach. Because Extron lists the part as retired, check availability before specifying it on new work.

Key Capabilities

• 100 ft (30.4 m) of universal projector control cable in a single run.
• Intended for control communications with most RS-232 controllable displays.
• Compatible with Extron IN1808 IPCP switchers and DTP CrossPoint IPCP matrix switchers.
• Also used with the projector control port on many MediaLink Controllers.
• Display end terminated with a female 9-pin D connector.
• Controller end unterminated and ready for captive screw connection.
• Retired Extron part number 26-518-02.

Where It Is Used

Auditoriums, large lecture theatres and multi-purpose halls where the projector hangs well away from the equipment position; also service and replacement work on installed MediaLink and IPCP systems originally built around this cable.

Specifications at a Glance

• Length: 100 ft (30.4 m)
• Display end: female 9-pin D connector
• Controller end: unterminated, captive screw ready
• Application: RS-232 projector and display control
• Lifecycle: retired by Extron

Also referenced as Extron UC100, UC-100, part number 2651802.
