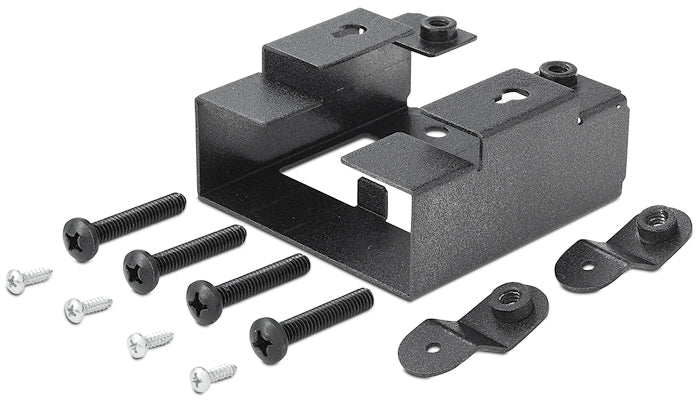

Extron TMK 120 R (part number 70-1031-05) — under-table mount kit that carries two Extron Retractor cable retraction modules.

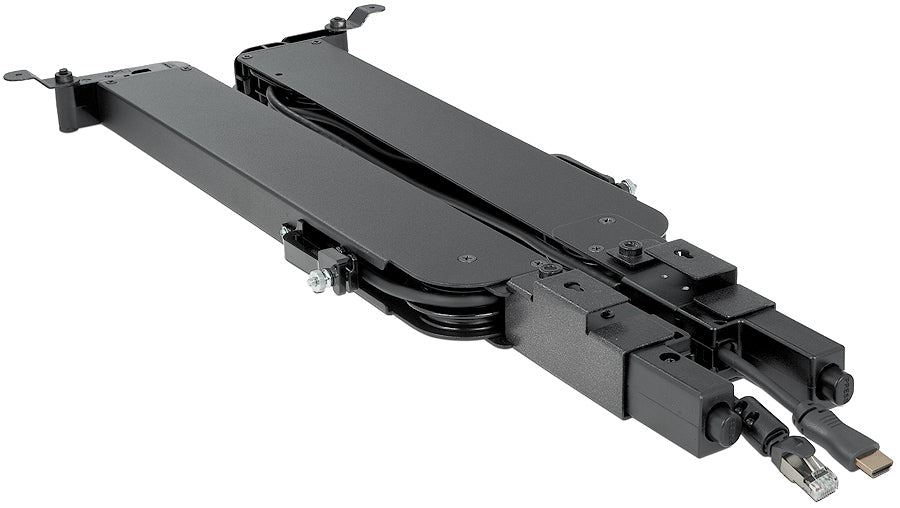

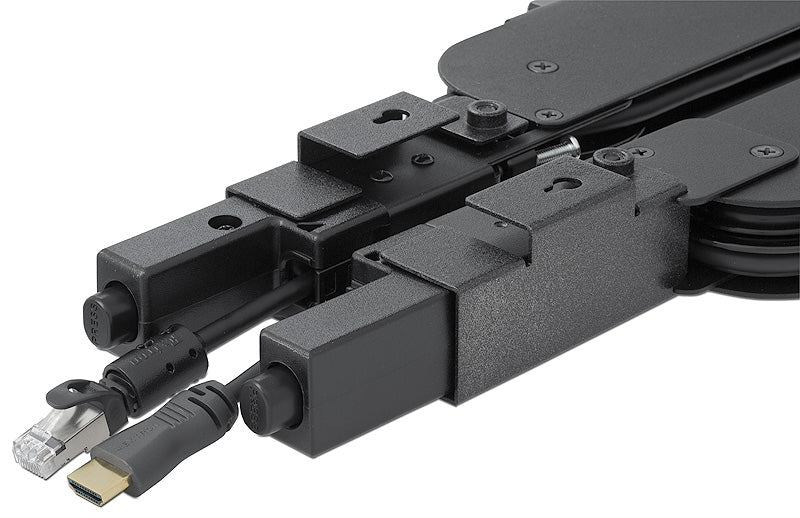

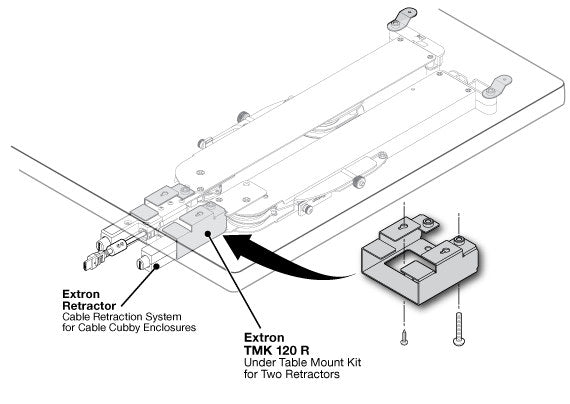

A Retractor only works well if both ends of it are held properly. That is what this kit does: one bracket supports the user end where the cable emerges at the table edge, a second supports the housing that sits beneath the surface, and the module ends up clamped close to the underside rather than hanging into the leg space. Extron lists it as compatible with Retractor Series, Retractor Series XL and Retractor SM Series modules, and with Show Me cables. The sides are flush, so two, four or six retractors can be lined up along a table edge with no visible break, and the black powder coat matches the TMK 100 AAP Series and TMK 110 D mounts if the same table also carries plate-based connections.

Key Capabilities

• Mounts two Retractor Series, Retractor Series XL or Retractor SM modules

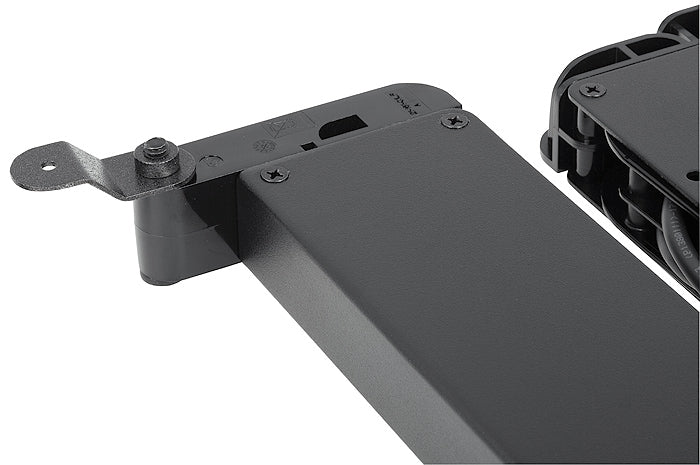

• Brackets support both the user end and the under-table housing
• Holds modules tight to the surface for maximum leg clearance
• Flush sides for seamless multi-unit runs along a table edge
• Steel bracket 3.5 x 3.4 x 1.6 in; hanger 1.8 x 0.8 x 0.4 in
• 0.4 lbs (0.2 kg); black powder coat; works with Show Me cables

Where It Is Used

Conference and boardroom tables, huddle furniture, university lecture benches, training rooms and clinical review desks where users need to pull an HDMI, USB-C or network cable out of the table edge and have it retract cleanly when the meeting ends.

Specifications at a Glance

• Model: Extron TMK 120 R, part number 70-1031-05
• Bracket: 3.5 in L x 3.4 in W x 1.6 in H (8.9 x 8.7 x 4.1 cm)
• Hanger: 1.8 in L x 0.8 in W x 0.4 in H (4.4 x 1.9 x 1.0 cm)
• Weight: 0.4 lbs (0.2 kg); steel
• Compliance CE, RoHS; Extron Limited Lifetime Performance warranty

Also referenced as Extron TMK120R, TMK-120-R, part number 70103105.
