Extron TMK 110 D (part number 70-1031-12) — a compact under-table mount that carries one single-gang decorator-style module.

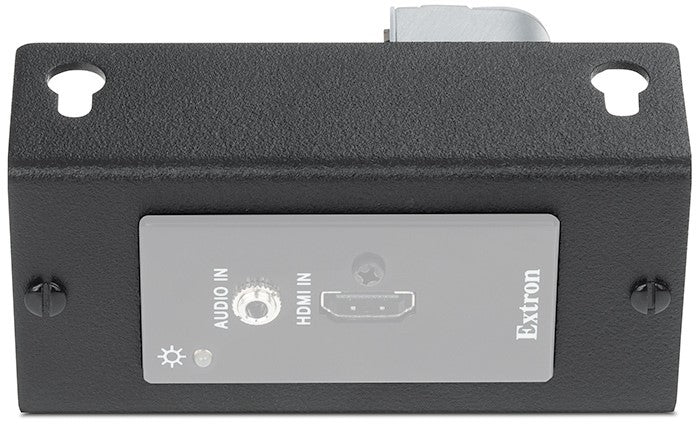

Putting AV and control connections where a user can actually reach them usually means cutting into the table. The TMK 110 D avoids that: the module sits tight under the work surface, held by a two-piece steel mount whose upper section has keyhole slots so it can be hung and then drawn up against the underside. Corners and edges are radiused so nothing catches on sleeves or trouser legs, and the sides are flat, so several mounts can be run in a line with no gaps between them. Extron confirms compatibility with active modules including the DTP T HWP 4K 231 D transmitter and the NBP 108 D eBUS button panel, as well as pass-through WPD Series wallplates. The finish is black powder coat, matched to the TMK 100 AAP Series and the TMK 120 R so a mixed row still looks like one assembly.

Key Capabilities

• Holds one single-gang decorator-style module under the table

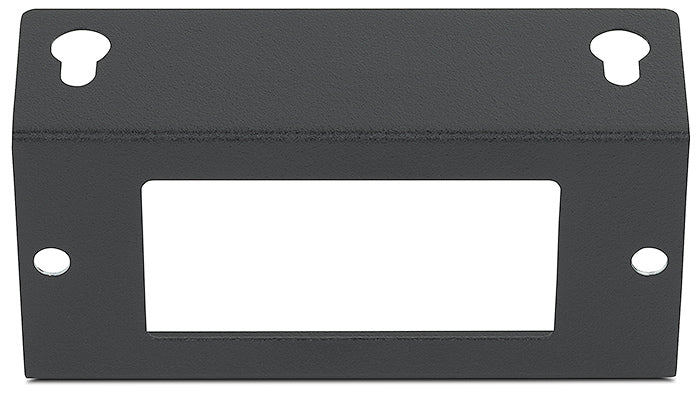

• Keyhole openings in the top section for quick surface attachment
• Flush sides allow multiple mounts to sit directly side by side
• Rounded edges and corners reduce the risk of clothing snags
• Steel construction, 0.3 lbs (0.1 kg), black powder coat
• Takes Extron DTP T HWP 4K 231 D, NBP 108 D and WPD Series plates

Where It Is Used

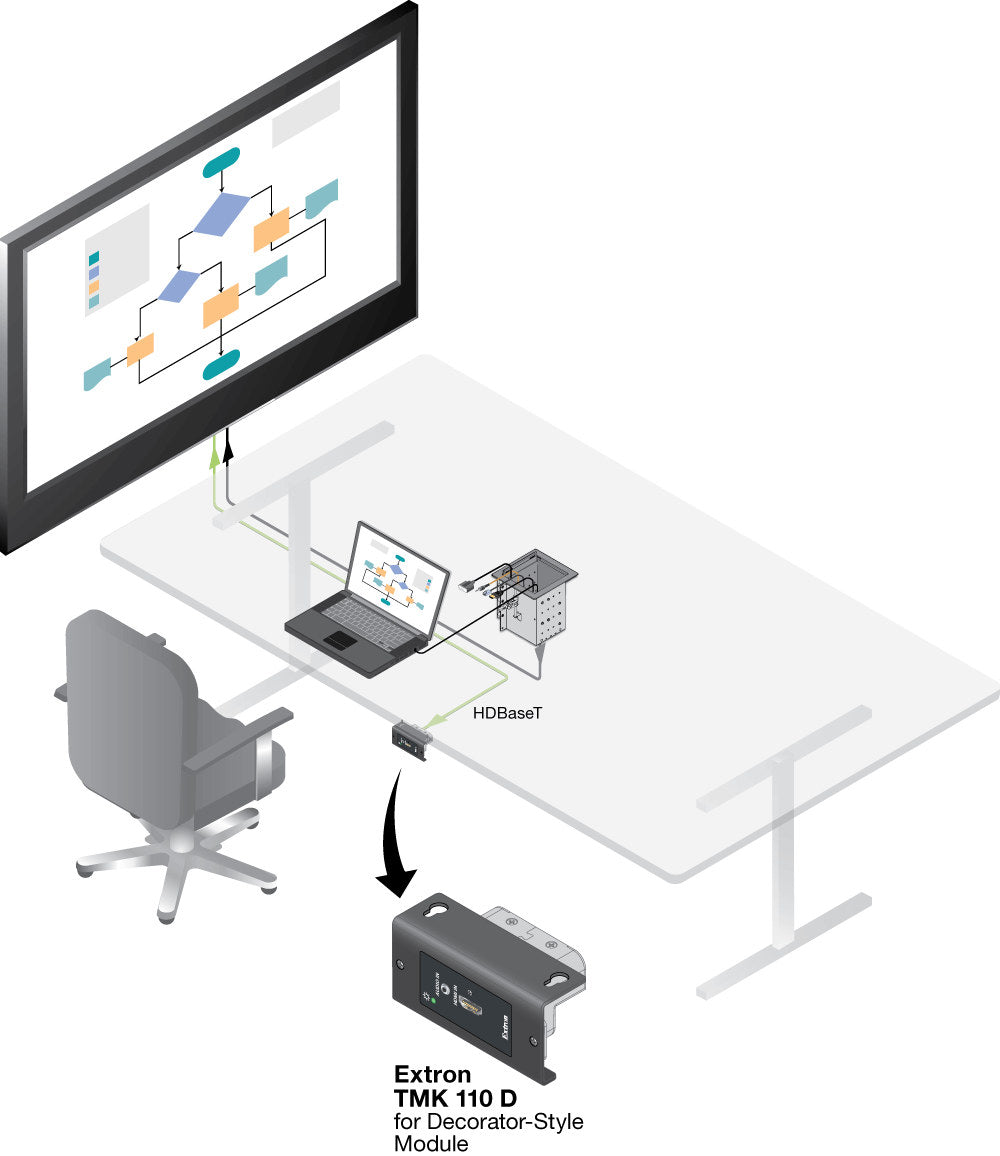

Conference and huddle tables, lecterns, training benches, classroom desks and clinical workstations — anywhere a single HDMI, network or control plate has to be within arm's reach of the person using the room, without a surface-mounted box in the way.

Specifications at a Glance

• Model: Extron TMK 110 D, part number 70-1031-12
• Enclosure dimensions: 1.3 in L x 4.25 in W x 2.0 in H (3.3 x 10.8 x 5.1 cm)
• Weight: 0.3 lbs (0.1 kg); steel
• Regulatory compliance: CE, RoHS
• Warranty: Extron Limited Lifetime Performance

Also referenced as Extron TMK110D, TMK-110-D, part number 70103112.
