Extron TLSI 201 Wayfinding Interface
- • Drives one HDMI display up to 4096x2160 at 30 Hz or 1080p at 60 Hz
- • Aggregates status from multiple TLS scheduling panels on one screen
- • Powered entirely over PoE+ (802.3at) — 10.5 W device draw
- • Half-rack metal chassis with included rack ears
- • Fan-cooled, rated to +122°F operating temperature
- • Configured through free Extron Room Agent software
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details

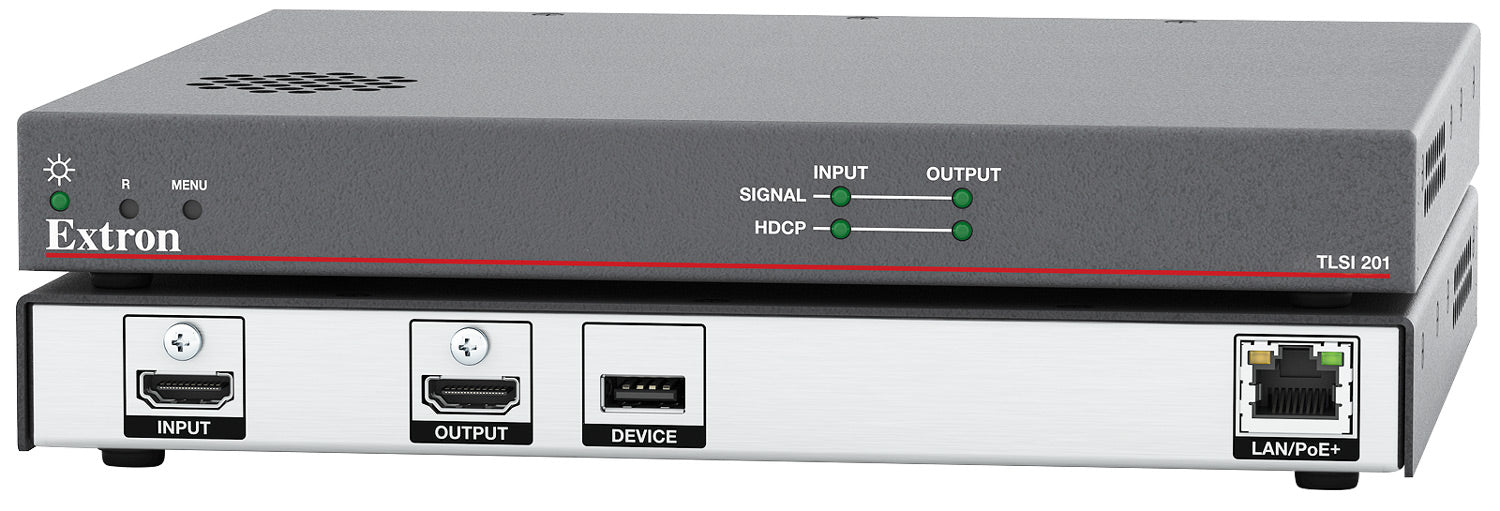

Extron TLSI 201 (part number 60-1669-101) — a PoE+ powered wayfinding processor that turns any large-format display into a centralized room-status board.

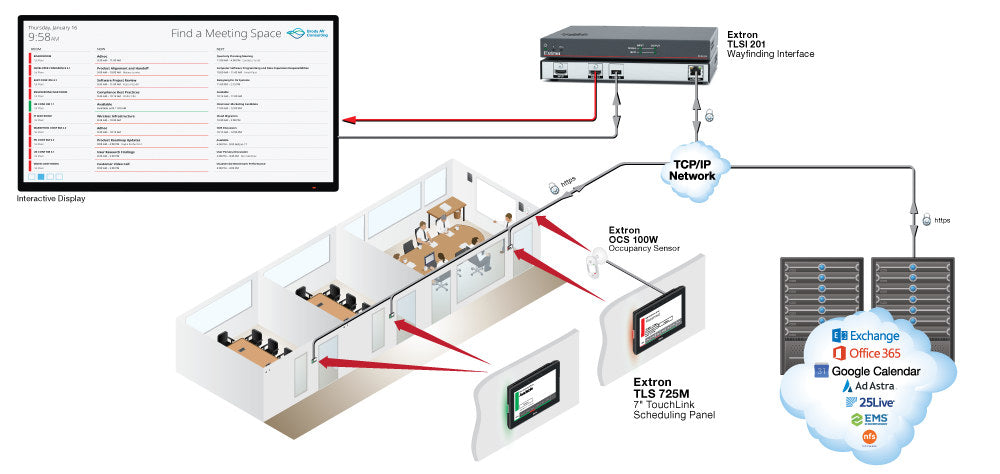

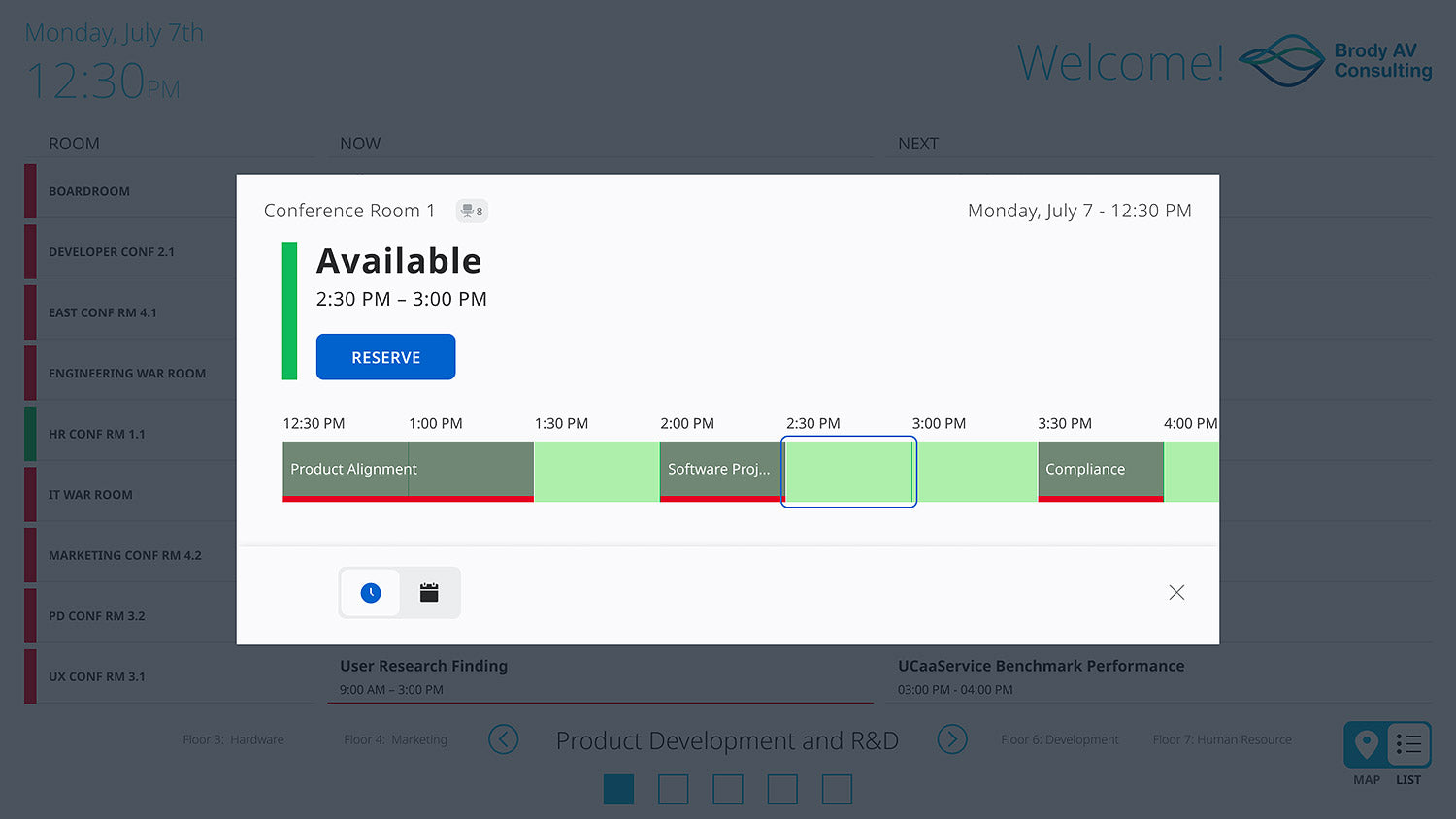

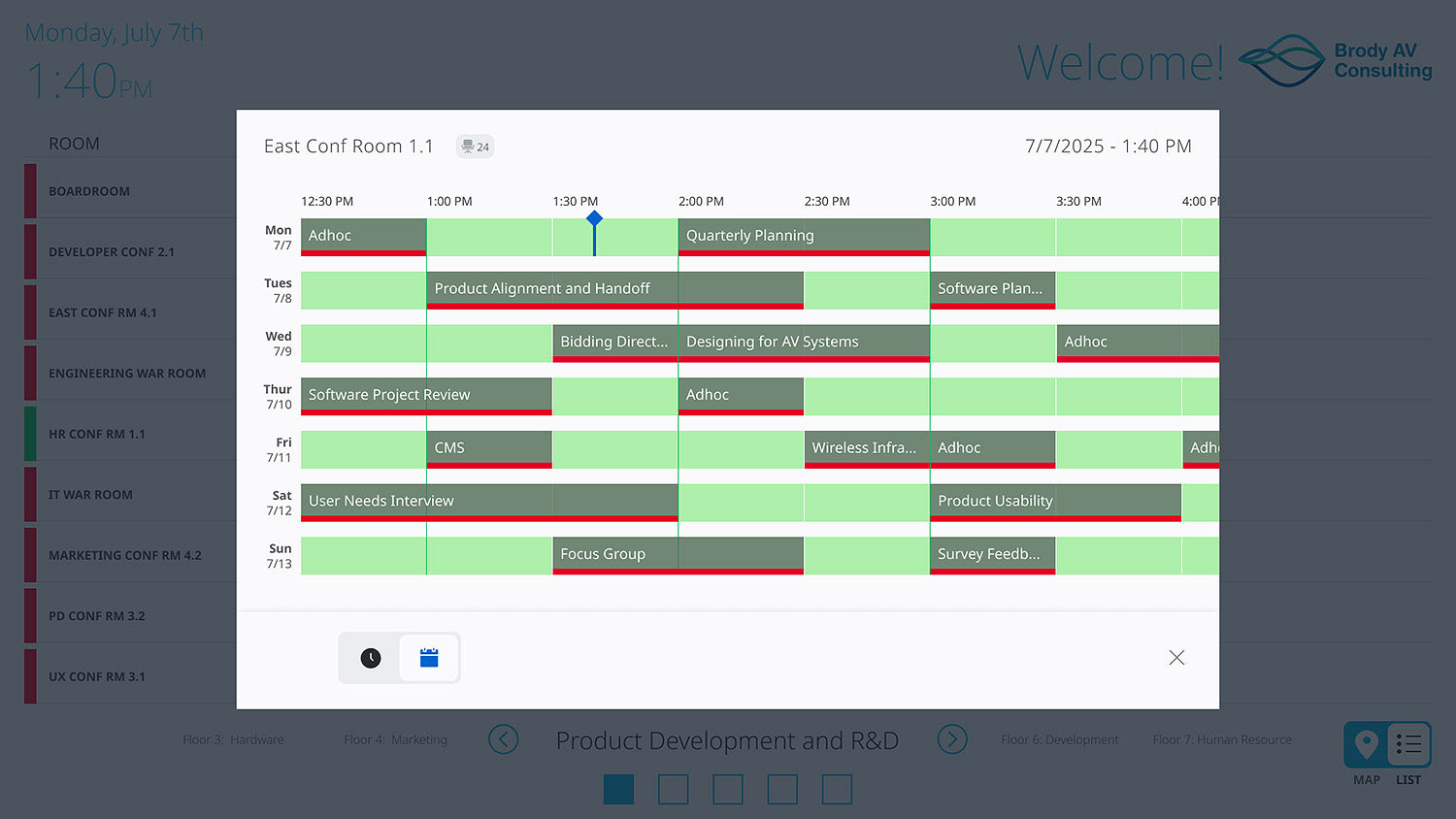

Instead of walking room to room, staff and visitors check one shared display fed by the TLSI 201, which pulls live data from the TLS scheduling panels across a floor or building. It drives a single third-party display over HDMI at resolutions up to 4K/30, and integrators configure the whole layout through Extron's free Room Agent software rather than a dedicated control processor.
Key Capabilities
- Drives one HDMI display up to 4096x2160 at 30 Hz or 1080p at 60 Hz
- Aggregates status from multiple TLS scheduling panels onto one screen
- Powered entirely over Power over Ethernet Plus (802.3at) — 10.5 W device draw
- Half-rack metal chassis with included rack ears for equipment room mounting
- Fan-cooled design rated to +122°F operating temperature
Where It Is Used

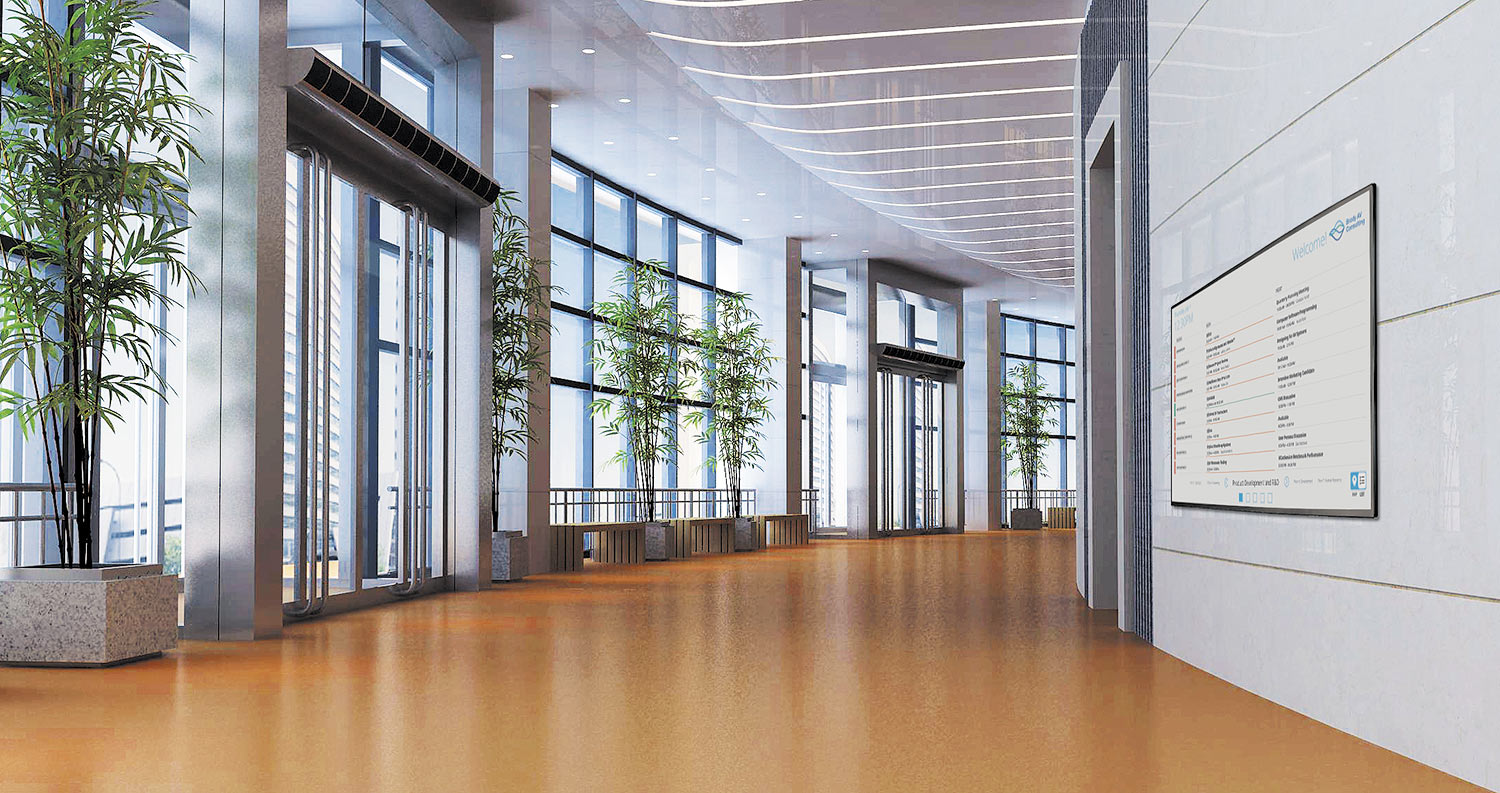

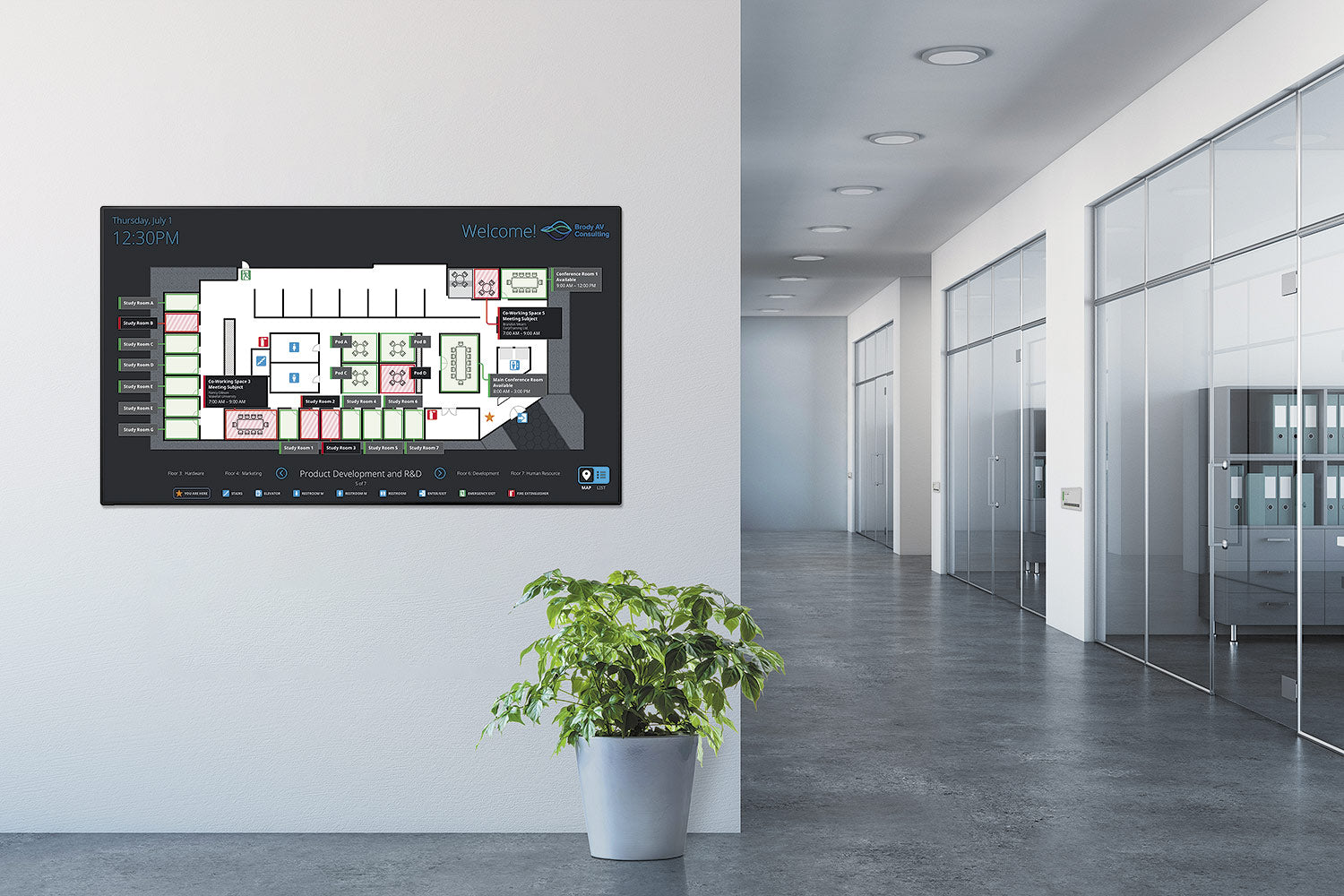

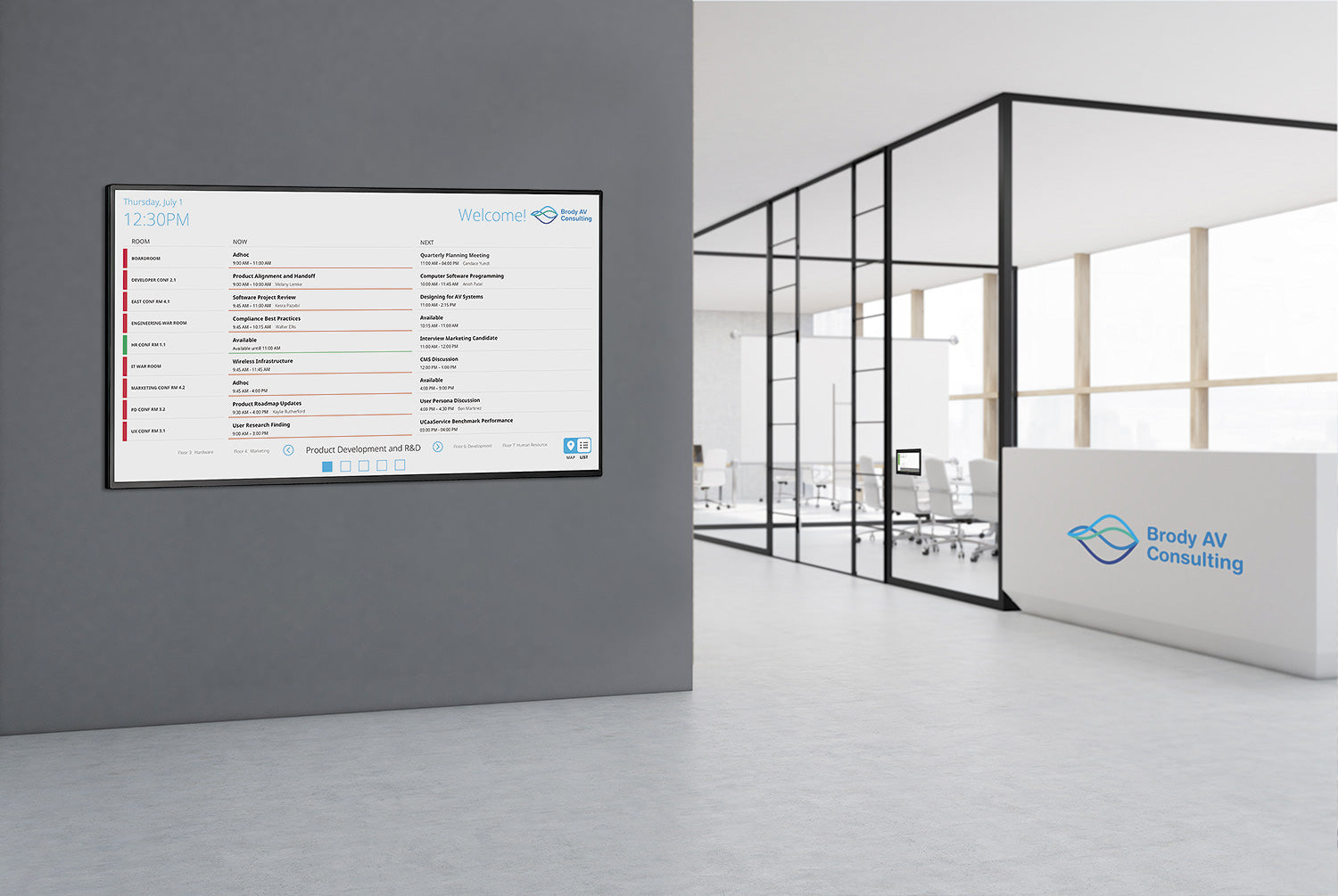

Building lobbies, corridor junctions, and multi-tenant floors use the TLSI 201 to post live room availability on a single large screen, cutting down on staff walking the floor to check individual room panels.
Specifications at a Glance
- 1 female HDMI type A output, HDMI 1.4b / HDCP 2.3
- PoE+ (802.3at) power, 10.5 W device / 15.6 W with injector
- Half-rack metal enclosure 1.00" H x 8.70" W x 8.00" D, 1.70 lbs
- Operating range +32 to +122°F, storage -40 to +158°F
Also referenced as Extron TLSI201, TLSI-201, part number 601669101.
