Extron TLS 725M Room Scheduling Panel
- • 7" 1024x600 capacitive touchscreen for easy at-a-glance status
- • Powered by PoE 802.3af class 3 — 8.5 W device draw
- • OAuth two-factor login and QR code booking for Microsoft 365 and Google
- • On-panel room capacity display for quick space planning
- • Auto light and motion sensors for adaptive brightness and presence
- • Configured with free Extron Room Agent software, no processor required
- • Compact 5.05 x 7.24 x 1.20 in plastic enclosure, 1.10 lbs
Product discontinued.
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details

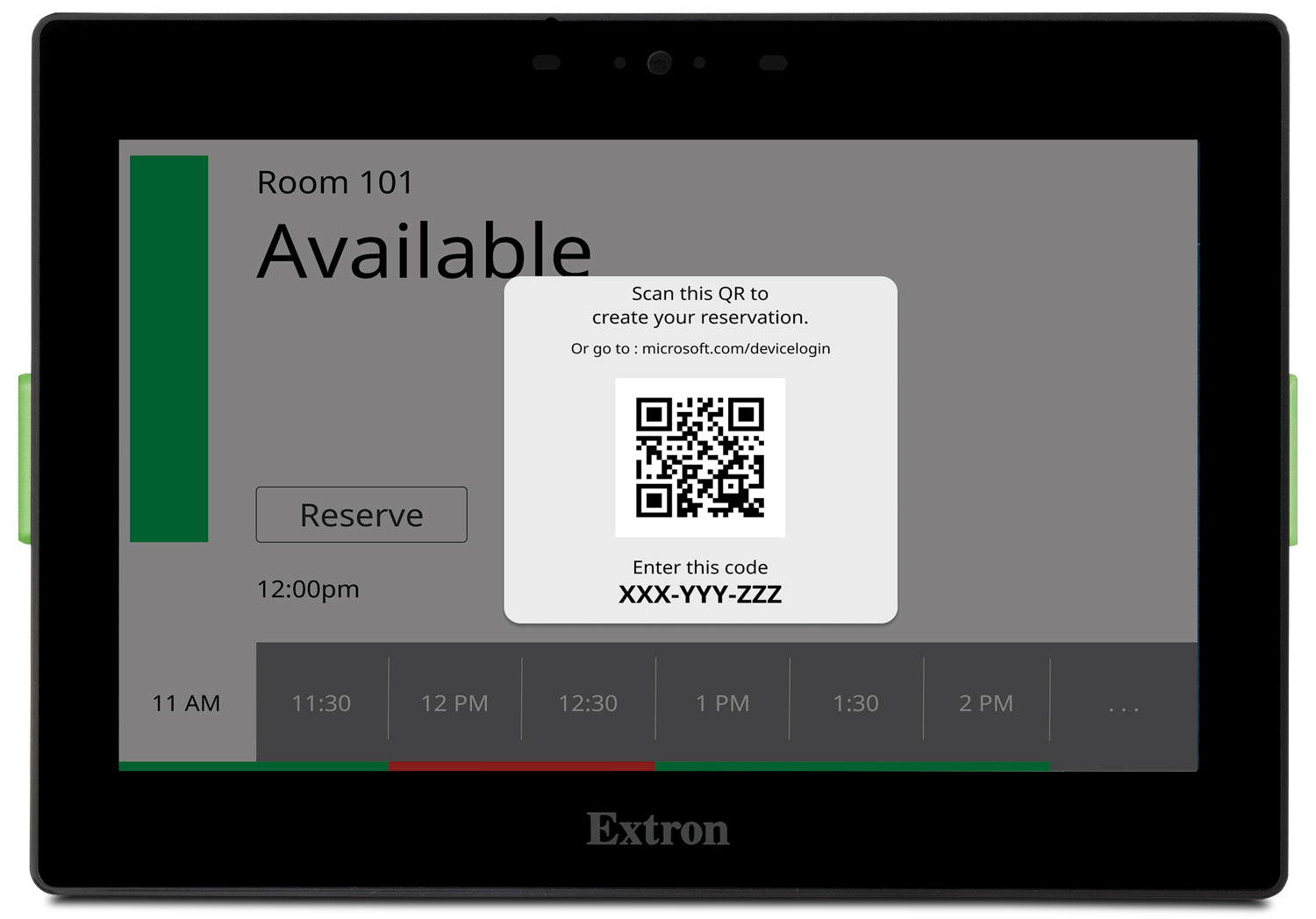

Extron TLS 725M (part number 60-1563-102) — a black 7 inch PoE scheduling touchpanel that runs a room booking system without any external processor.
This wall panel ties directly into Microsoft Exchange, Office 365, Google Calendar, 25Live, EMS, NFS, and Ad Astra so staff can confirm or grab a room from the panel itself or from a phone tied to those same calendars. A single Ethernet cable delivers power and data together, and red/green LEDs make occupancy visible from well down a corridor.
Key Capabilities
- 7" edge-to-edge capacitive touchscreen at 1024x600 resolution
- Runs on PoE (802.3af class 3) — 8.5 W device draw
- OAuth two-factor sign-in plus QR code booking for Microsoft 365 and Google Calendar
- On-panel room capacity display for quick space planning
- Ambient light and motion sensing built in for adaptive brightness and presence
Where It Is Used
Facilities and IT teams place the TLS 725M outside boardrooms, mid-size conference rooms, and classrooms that need a larger, easier-to-read status panel than a 5" model provides while keeping installation to a single Ethernet drop.
Specifications at a Glance
- 7" (17.8 cm) WSVGA capacitive touchscreen, 1024x600, 170 PPI
- PoE 802.3af class 3 power, 8.5 W device draw
- Enclosure 5.05" H x 7.24" W x 1.20" D, 1.10 lbs
- Operating range +32 to +104°F, storage -4 to +140°F
Also referenced as Extron TLS725M, TLS-725M, part number 601563102. Note: Extron lists this part number as retired; the TLS 725M NC (60-1563-112/113) is the current replacement configuration.
