Details

Manufacturer: Extron | Model: TLS 525M | Part number: 60-1561-103 (also written 60156110)

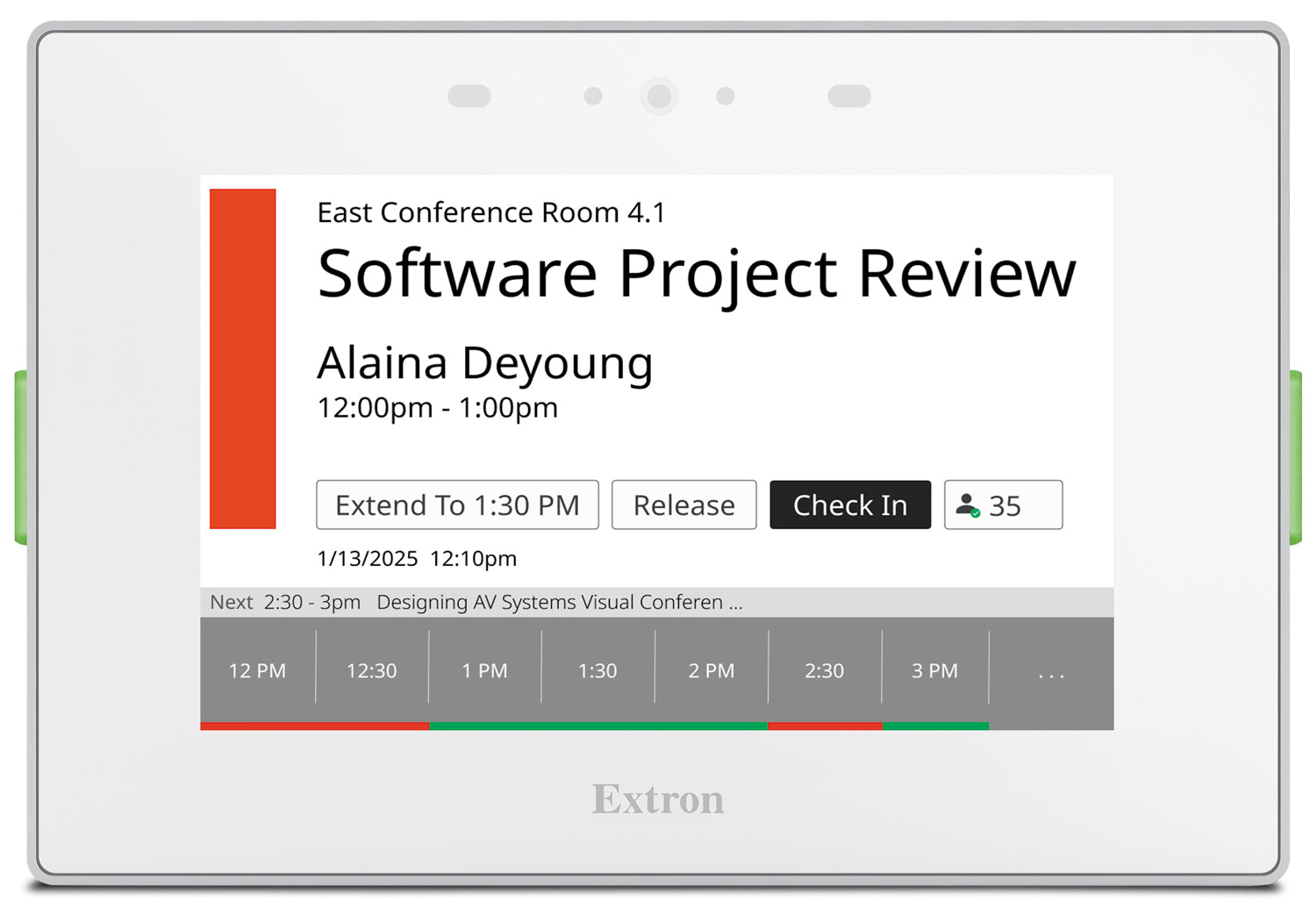

The Extron TLS 525M (60-1561-103) is the white wall-mount 5-inch room scheduling touchpanel. It connects directly to Microsoft 365 and Google Calendar over your network using PoE for power and data on one cable. Red/green LEDs signal room status from the corridor. QR code booking, two-factor authentication for Microsoft 365, and direct reservation from the panel are standard. Black version: 60-1561-102.

Key capabilities

5-inch capacitive touchscreen, 800x480, 850 nits, edge-to-edge Gorilla Glass
Direct Microsoft 365 and Google Calendar integration, no additional processor needed
PoE power and data on a single RJ-45 cable
Red/green status LEDs visible from a distance

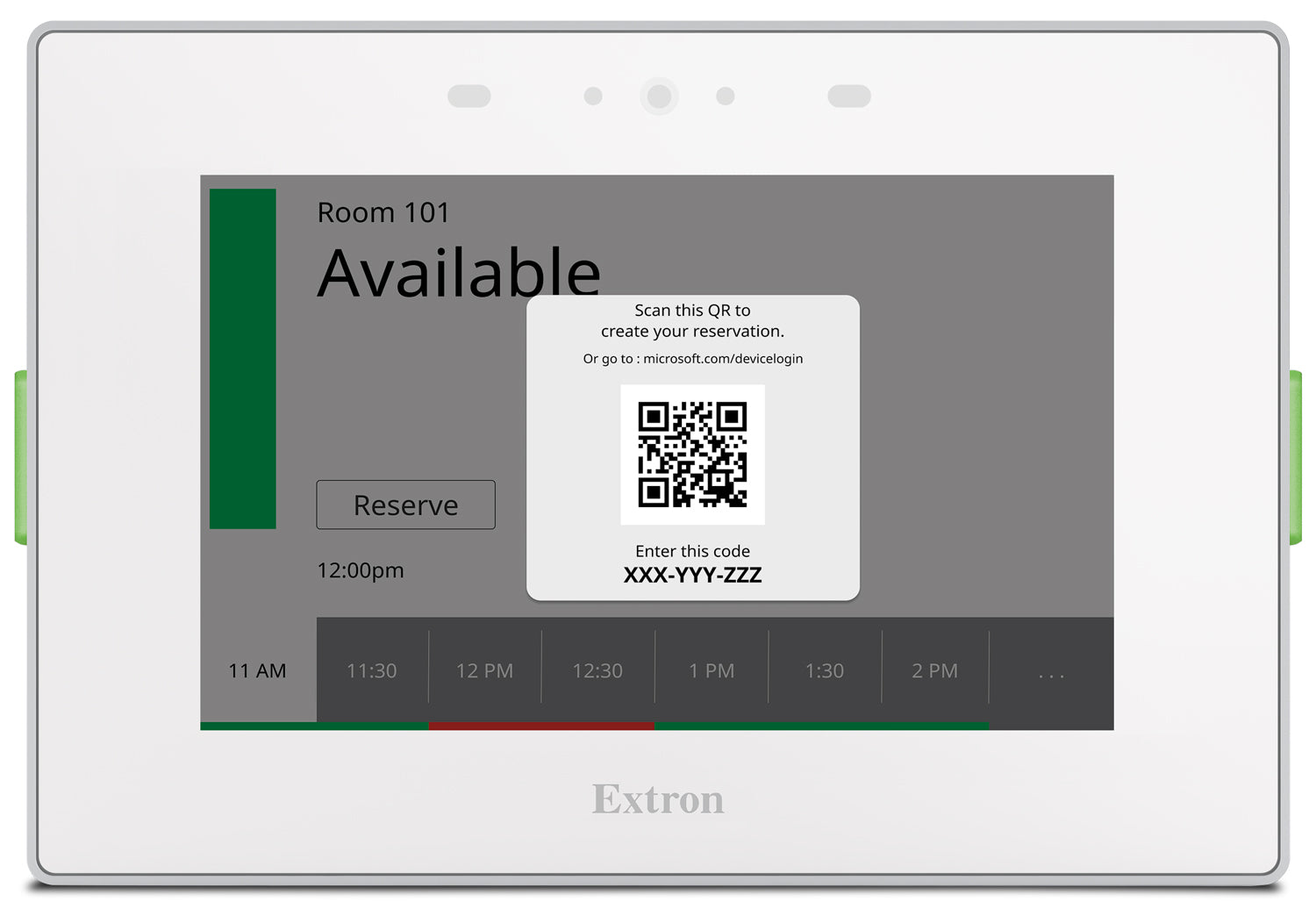

QR code booking and Microsoft 365 two-factor authentication support
Configured via Global Configurator Plus and Professional software

Where it is used

Conference rooms, boardrooms, huddle spaces, and classrooms with light-finish walls where calendar-integrated room scheduling needs a clean white panel outside the door.

Specifications at a glance

Screen: 5 in, 800x480, 850 nits, 24-bit color
Power: PoE (802.3af)
Depth: 2.75 in; operating temp: +32 to +104 F
Finish: white; black version is 60-1561-102

Also referenced as Extron TLS525M, TLS-525M, part number 60156110.

Specifications

Part Number: 60-1561-103

Manufacturer: Extron

Condition: New

60-1561-102: 2.75" (7.0 cm)

60-1561-103: 2.75" (7.0 cm)

60-1561-112: 2.75" (7.0 cm)

60-1561-113: 2.75" (7.0 cm)

Ambient temperature/humidity: Storage: -4 to +140 °F (-20 to +60 °C) / 10% to 90%, noncondensing Operating: +32 to +104 °F (0 to +40 °C) / 10% to 90%, noncondensing

Aspect ratio: 5:3

Audio channels: Mono or stereo

Backlight: LED

Bit depth: Unsigned 8-bit Signed 16-bit Signed 24-bit Signed 32-bit

Brightness: 850 nits (cd/m2)

Color depth: 24 bit, 16.7 million colors

Configuration software: Global Configurator Plus and Professional, GUI Designer

Connectors: 1 female RJ-45 connector

Container format: WAV (Microsoft RIFF)

Contrast: 700:1

Control apps: Extron Control

Cooling: Convection, vents on back

Data rate: 10/100/1000Base-T, half/full duplex with autodetect

Default settings: Link speed and duplex level = autodetected IP address = 192.168.254.251 Subnet mask = 255.255.255.0 Default gateway = 0.0.0.0 DHCP = off DNS = 127.0.0.1

Device: 6.5 watts

Device and power injector: 9.3 watts

Enclosure dimensions: 4.03" H x 6.08" W x 1.22" D (102 mm H x 154 mm W x 31 mm D) Touchpanel projects 0.97" (25 mm) from the mounting surface

Enclosure type: Plastic

Encoding: LPCM (uncompressed)

Flash: 8 GB

Frequency response: 750 Hz to 20 kHz, ±5 dB

Input impedance: ≥10k ohms

Input voltage range: 0 to 24 VDC, clamped at +30 VDC

Light sensor: Auto/manual

Max. data rates: Low speed (1.5 Mbps), full speed (12 Mbps), high speed (480 Mbps)

Motion sensor: On/off

Mounting: Wall, furniture, glass, or rack

Pin configuration: 1 = Digital input, 1 = Gnd

Pixel density: 186.6 PPI

Power input requirements: Power over Ethernet (PoE 802.3af, class 3)

Power supply: Not included

Product warranty: 3 years parts and labor; touchpanel display and overlay components are covered for 1 year

Product weight: 0.80 lbs (0.36 kg)

Programmable pullup: 1k ohms to +5 VDC

Programming software: ControlScript Programing

Protocols: DHCP, DNS, HTTP, HTTPS, ICMP, IEEE 802.1x, SFTP, SSH, TCP/IP, UDP/IP

Quantity/type: 1 high-speed USB 2.0

Regulatory compliance: BIS, CE, C-Tick, c-UL,FCC Class B, ICES, RoHS, UL, VCCI, WEEE

Resolution: 800x480 (WVGA)

Resource management software: GlobalViewer Enterprise

SDRAM: 2 GB

Sampling rate: Up to 192 kHz

Screen type: TFT Active matrix color LCD

Size: 5" (12.7 cm), measured diagonally

Speaker output: 1 mono, 89 dB Max. SPL @ 0.1 m

Standards: USB 2.0, USB 1.1, USB 1.0 compatible

Threshold high to low: 2.0 VDC

Threshold low to high: 2.8 VDC

Touch screen: Capacitive

Transparency: 8 bit

USB: 5 VDC, 275 mA

Utilities: Toolbelt, Embedded web page

Viewing angle: ±70° horizontal, ±70° vertical

Diagram

Resources

Brochure | TLS 525M 60-1561-103 | Room Scheduling (Room_Scheduling_revD1.pdf)

Brochure | TLS 525M 60-1561-103 | Collaborer en toute sécurité - Guide d'application pour les systèmes audiovisuels Extron

Brochure | TLS 525M 60-1561-103 | Creación de experiencias de reunión más seguras - Guía de aplicación para sistemas AV Extron

Brochure | TLS 525M 60-1561-103 | Raumbuchung

Brochure | TLS 525M 60-1561-103 | Reserva de salas

Brochure | TLS 525M 60-1561-103 | Réservation de salles

Brochure | TLS 525M 60-1561-103 | Room Scheduling (Room-Scheduling_BR_US_IT_RevD1.pdf)

Brochure | TLS 525M 60-1561-103 | Room Scheduling System (会議室予約システム)

Brochure | TLS 525M 60-1561-103 | Room Scheduling 系统

Brochure | TLS 525M 60-1561-103 | Sichere Zusammenarbeit in Meetingbereichen - Leitfaden für Extrons AV-Systeme

Brochure | TLS 525M 60-1561-103 | Una collaborazione più sicura negli spazi meeting - Guida applicativa per i sistemi AV di Extron

Brochure | TLS 525M 60-1561-103 | Бронирование переговорных

Brochure | TLS 525M 60-1561-103 | Создание более безопасных условий для проведения встреч - Руководство по применению для AV‑систем Extron

Manual | TLS 525M 60-1561-103 | Cleaning Instruction Card

Manual | TLS 525M 60-1561-103 | Room Agent User Guide

Manual | TLS 525M 60-1561-103 | TLP Pro x25 Series and TLS x25 Series User Guide

Manual | TLS 525M 60-1561-103 | TLP Pro x25M Series and TLS x25M Series Setup Guide

Manual | TLS 525M 60-1561-103 | TLS Scheduling Panels Ports, Protocols, and Licenses Document

Panel Drawing | TLS 525M 60-1561-103 | TLS 525M
