Details

Part number 60-1667-102 — Black

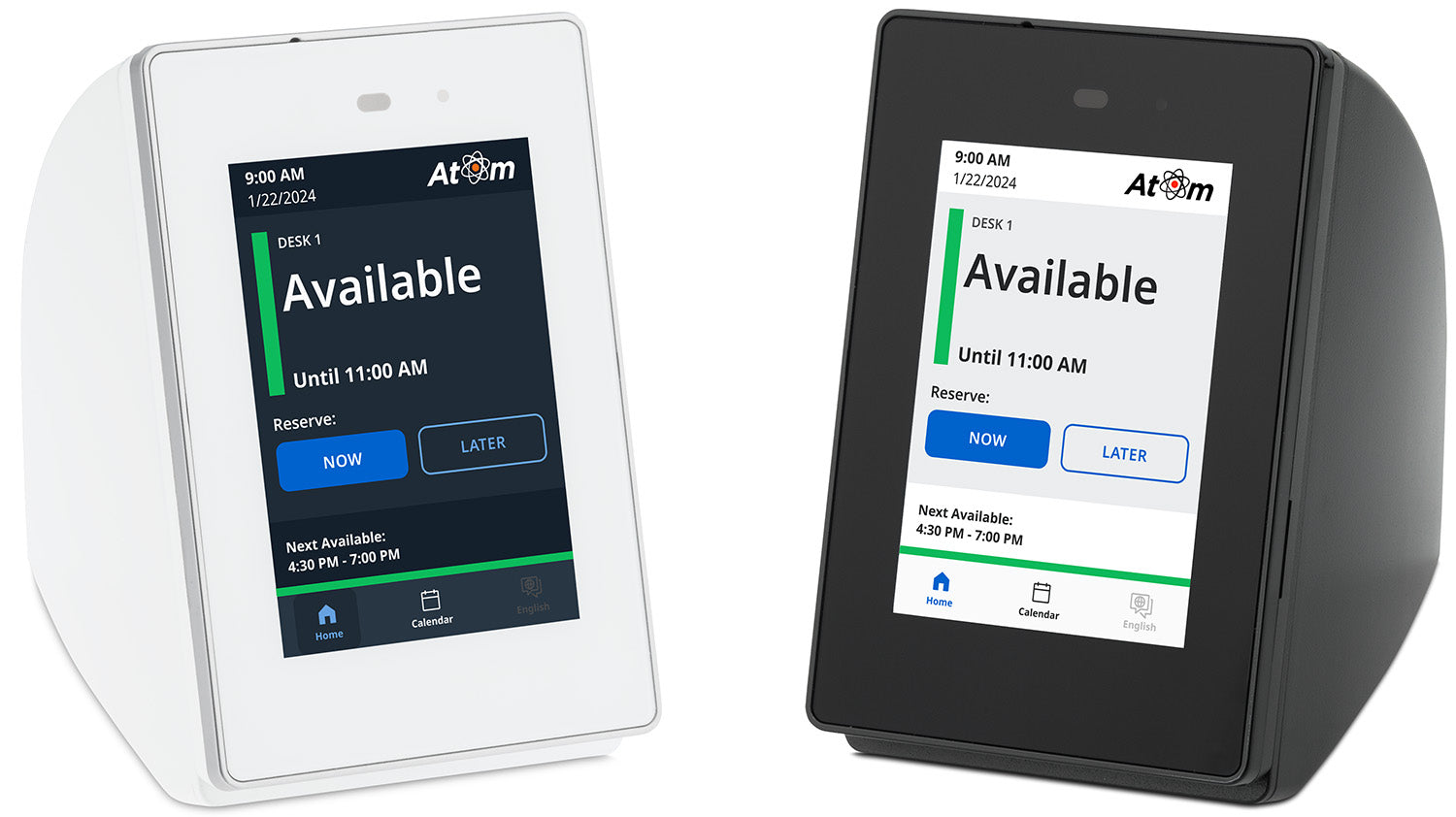

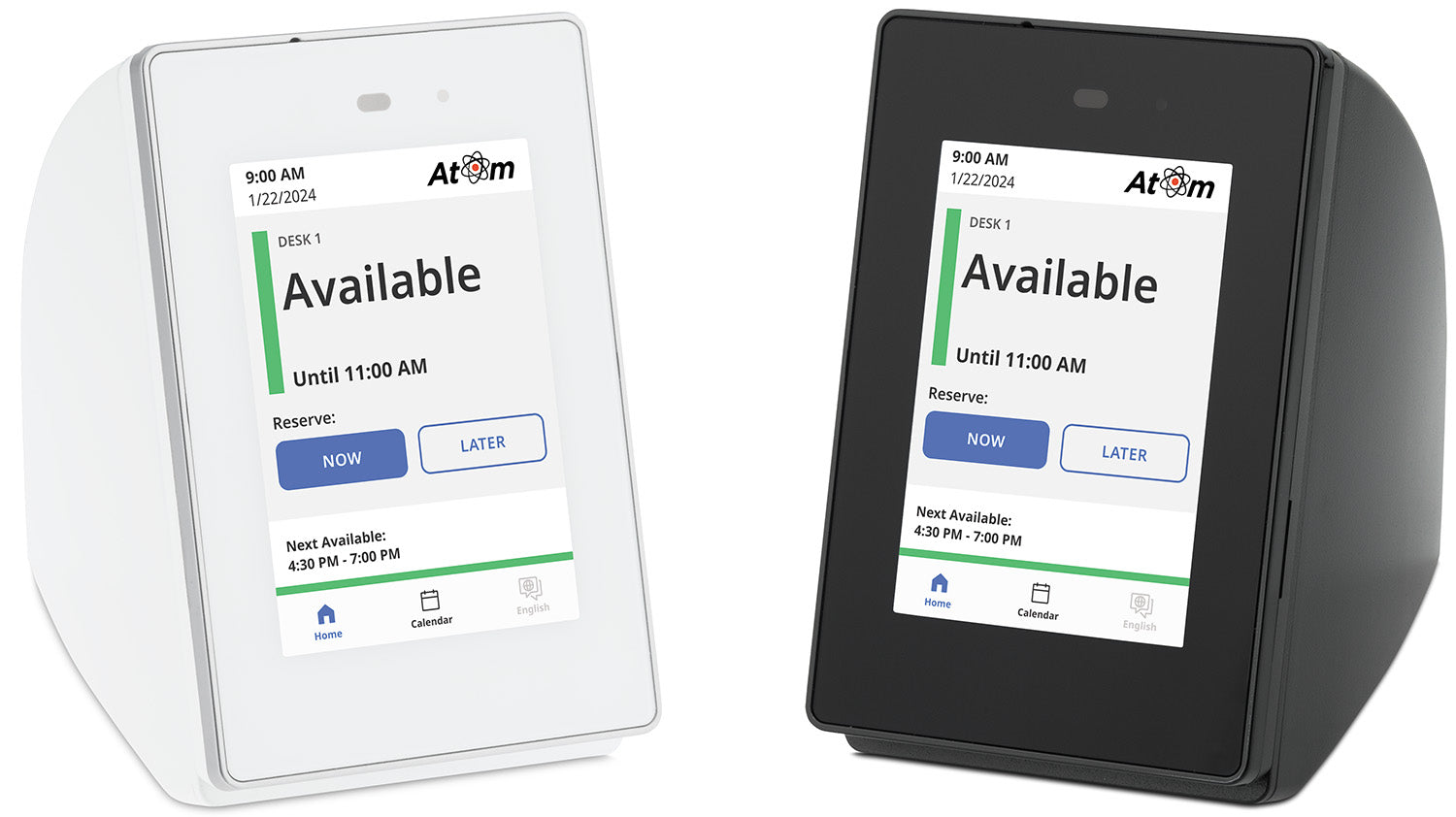

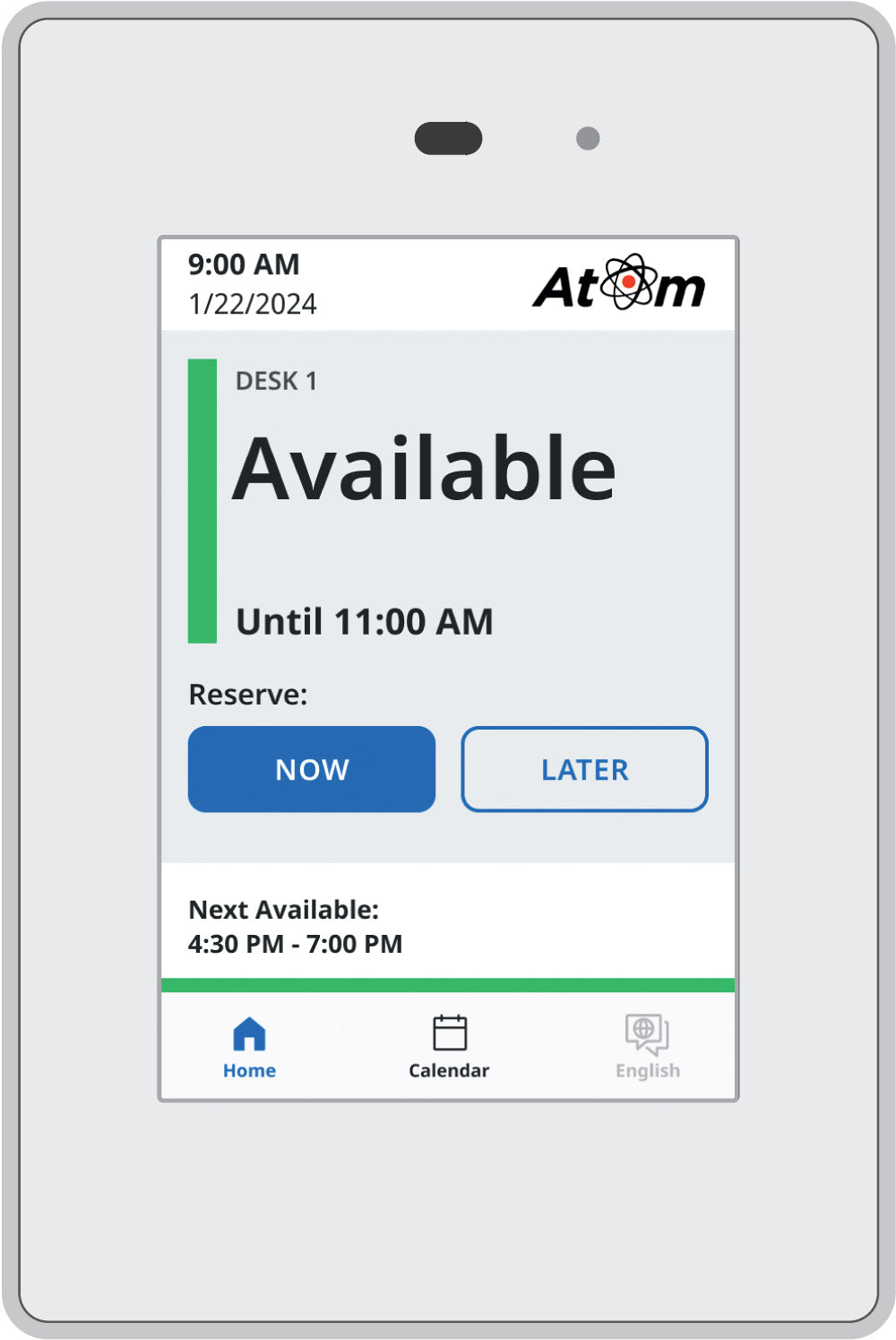

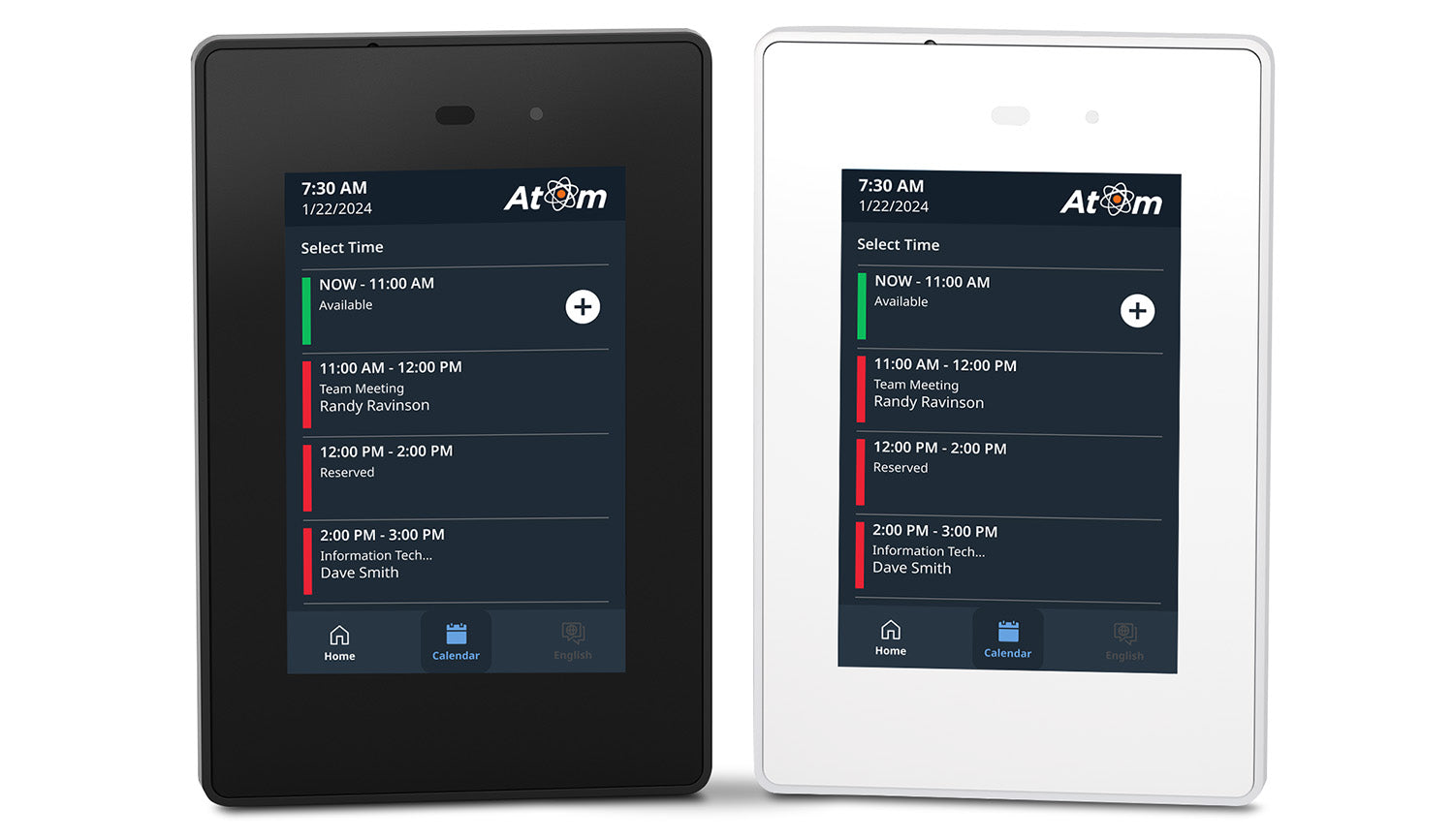

The part number 60-1667-102 identifies the black TLS 300M 3.5 inch desk scheduling touchpanel. Integrators deploy this surface-mounted unit to show space status with a red or green LED and to connect reservations directly to Microsoft Exchange, 365, Google Calendar, 25Live, EMS, NFS, and Ad Astra platforms. Touch controls manage check in, release, and extension functions. Setup requires no programming, and the unit accepts light or dark themes plus custom logos and background images.

This model fits huddle spaces and classrooms. Before selection note the 4.0 in depth, 2:3 aspect ratio, 490 nits brightness, 500:1 contrast, 18 bit color depth, and convection cooling through rear vents. Network access uses one female RJ-45 connector at 10/100Base-T rates. Room Agent software handles configuration. Audio output supports mono or stereo WAV files, while QR code functions remain limited to Microsoft 365 and Google Calendars.

Specifications

Part Number: 60-1667-102

Manufacturer: Extron

Condition: New

60-1667-102: 4.0" (10.2 cm)

60-1667-103: 4.0" (10.2 cm)

Aspect ratio: 2:3

Audio channels: Mono or stereo

Backlight: LED

Bit depth: Unsigned 8-bit Signed 16-bit Signed 24-bit Signed 32-bit

Brightness: 490 nits (cd/m2)

Color depth: 18 bit, 262k colors

Configuration software: Room Agent

Connectors: 1 female RJ-45 connector

Container format: WAV (Microsoft RIFF)

Contrast: 500:1

Cooling: Convection, vents on rear

Data rate: 10/100Base-T, half/full duplex with autodetect

Default settings: Link speed and duplex level = autodetected IP address = 192.168.254.251 Subnet mask = 255.255.255.0 Default gateway = 0.0.0.0 DHCP = off DNS = 127.0.0.1

Device: 4.0 watts

Device and power injector: 7.3 watts

Enclosure dimensions: 4.52" H x 3.02" W x 1.70" D (115 mm H x 77 mm W x 43 mm D)

Enclosure type: Plastic

Encoding: LPCM (uncompressed)

Frequency response: 750 Hz to 20 kHz, ±5 dB

Furniture or wall mount: Yes, in a standard US 1-gang electrical junction box or mud ring

Light sensor: Auto/manual

Max. data rates: Low speed (1.5 Mbps), full speed (12 Mbps), high speed (480 Mbps)

Motion sensor: On/off

Pixel density: 165 PPI

Power input requirements: Power over Ethernet (PoE 802.3af, class 2)

Power supply: Not included

Product warranty: 3 years parts and labor; touchpanel display and overlay components are covered for 1 year

Product weight: 0.4 lbs (0.2 kg)

Protocols: DHCP, DNS, HTTP, HTTPS, ICMP, IEEE 802.1X, SFTP, SSH, TCP/IP, UDP/IP

Quantity/type: 1 high-speed USB 2.0

RAM: 1 GB

Regulatory compliance: CE, C-Tick, c-UL,FCC Class A, ICES, RoHS, UL, VCCI, WEEE

Resolution: 320x480 (HVGA)

Resource management software: GlobalViewer Enterprise

Sampling rate: Up to 192 kHz

Screen type: TFT Active matrix color LCD

Size: 3.5" (89 mm), measured diagonally

Speaker output: 1 mono, 86 dB Max. SPL @ 0.1 m

Standards: USB 2.0, USB 1.1, USB 1.0 compatible

Storage: 8 GB

Temperature/humidity: Storage: -4 to +158 °F (-20 to +70 °C) / 5% to 90%, noncondensing Operating: +32 to +104 °F (0 to +40 °C) / 10% to 90%, noncondensing

Touch screen: Capacitive

Transparency: 8 bit

USB: 5 VDC, 275 mA

Utilities: Toolbelt, Embedded Web Page

Viewing angle: ±80° horizontal, ±80° vertical

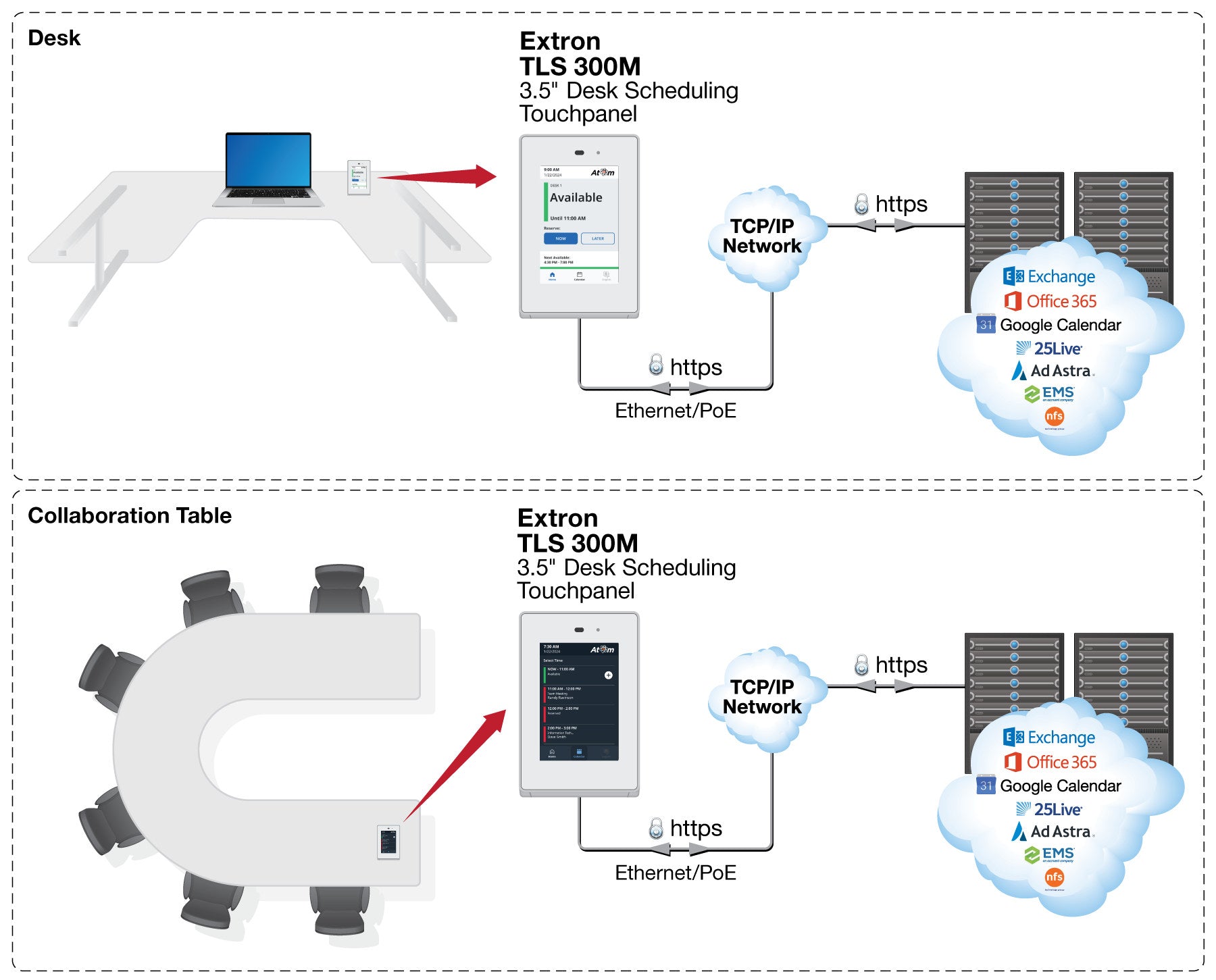

Diagram

Resources

Brochure | TLS 300M 60-1667-102 | TLS 300M - Desk Scheduling

Brochure | TLS 300M 60-1667-102 | TLS 300M (TLS-300M_BR_A4_IT_RevA.pdf)

Brochure | TLS 300M 60-1667-102 | TLS 300M (TLS-300M_BR_A4_FR_RevA.pdf)

Brochure | TLS 300M 60-1667-102 | TLS 300M (TLS-300M_BR_A4_SP_RevA.pdf)

Brochure | TLS 300M 60-1667-102 | TLS 300M (TLS-300M_BR_A4_GE_RevA.pdf)

Brochure | TLS 300M 60-1667-102 | TLS 300M - Desk Scheduling 触摸屏

Manual | TLS 300M 60-1667-102 | Cleaning Instruction Card

Manual | TLS 300M 60-1667-102 | Room Agent User Guide

Manual | TLS 300M 60-1667-102 | TLP Pro 300M and TLS 300M Setup Guide

Manual | TLS 300M 60-1667-102 | TLP Pro 300M and TLS 300M User Guide

Manual | TLS 300M 60-1667-102 | TLS Scheduling Panels Ports, Protocols, and Licenses Document

Specifications | TLS 300M 60-1667-102 | TLS 300M

Panel Drawing | TLS 300M 60-1667-102 | TLS 300M

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Extron TLS 300M 60-1667-102

Name: Extron TLS 300M 60-1667-102
Brand: Extron
SKU: EXTRON-TLS300M-60166702
Availability: InStock

Manufacturer: Extron

Type: Room Scheduling

Extron TLS 300M 60-1667-102 Black 3.5-Inch Desk Scheduling Panel

• Black 3.5-inch desk scheduling touchpanel, fits standard 1-gang electrical box
• PoE powered, no annual subscription fees
• Supports flexible workspaces, education, and corporate environments
• Mono speaker with WAV playback for audio alerts
• No programming required; configures via Extron room scheduling platform

Product discontinued.
