Part number 60-1998-103 — White, Wall Mount, Scheduling

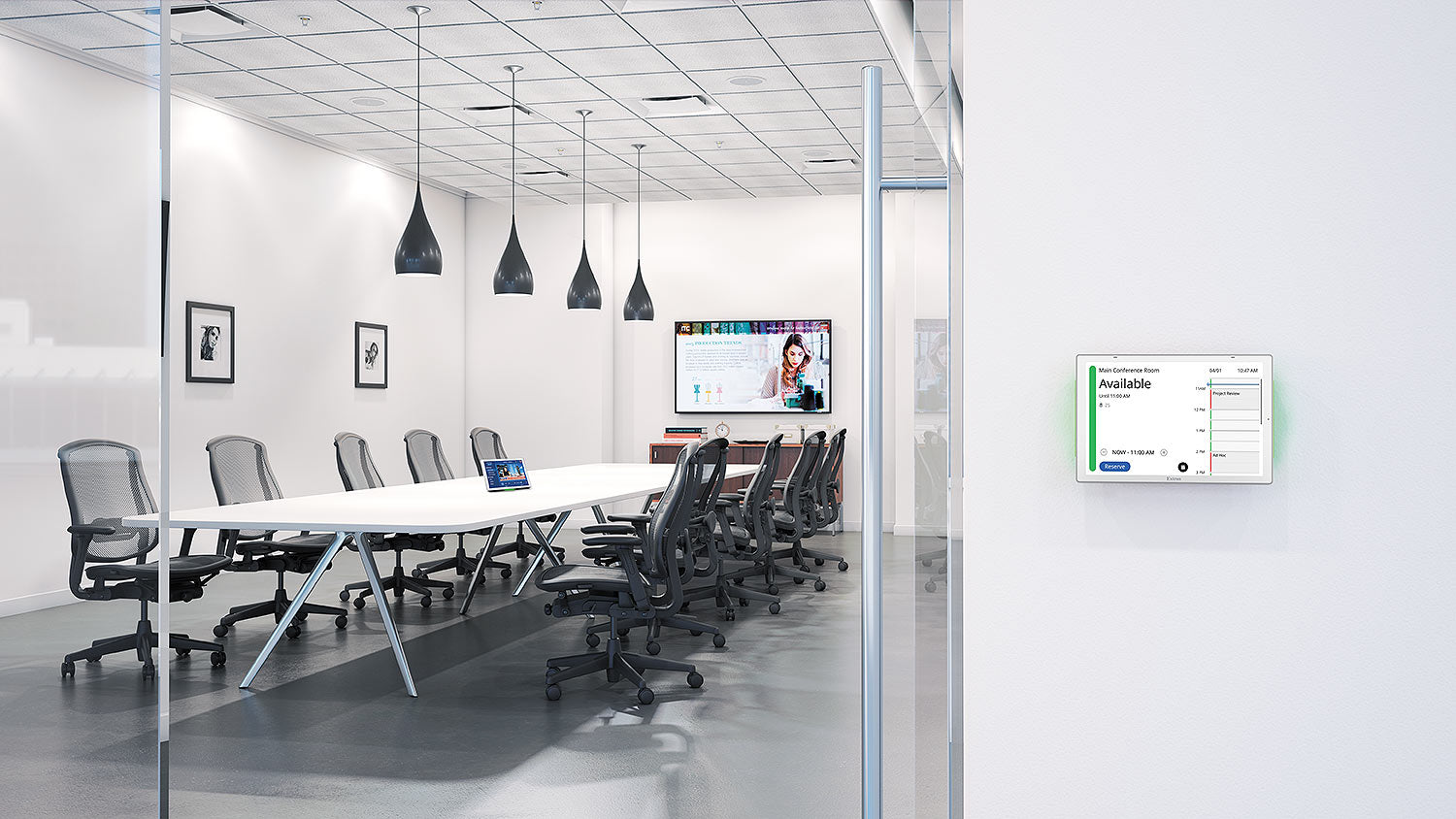

The 60-1998-103 provides the white wall mount scheduling panel in the TLS 1035M series. Integrators receive a device that connects directly to common calendar services for handling reservations in real time and interfaces with control systems to match room status with AV operations through a unified platform that supports scalable deployment.

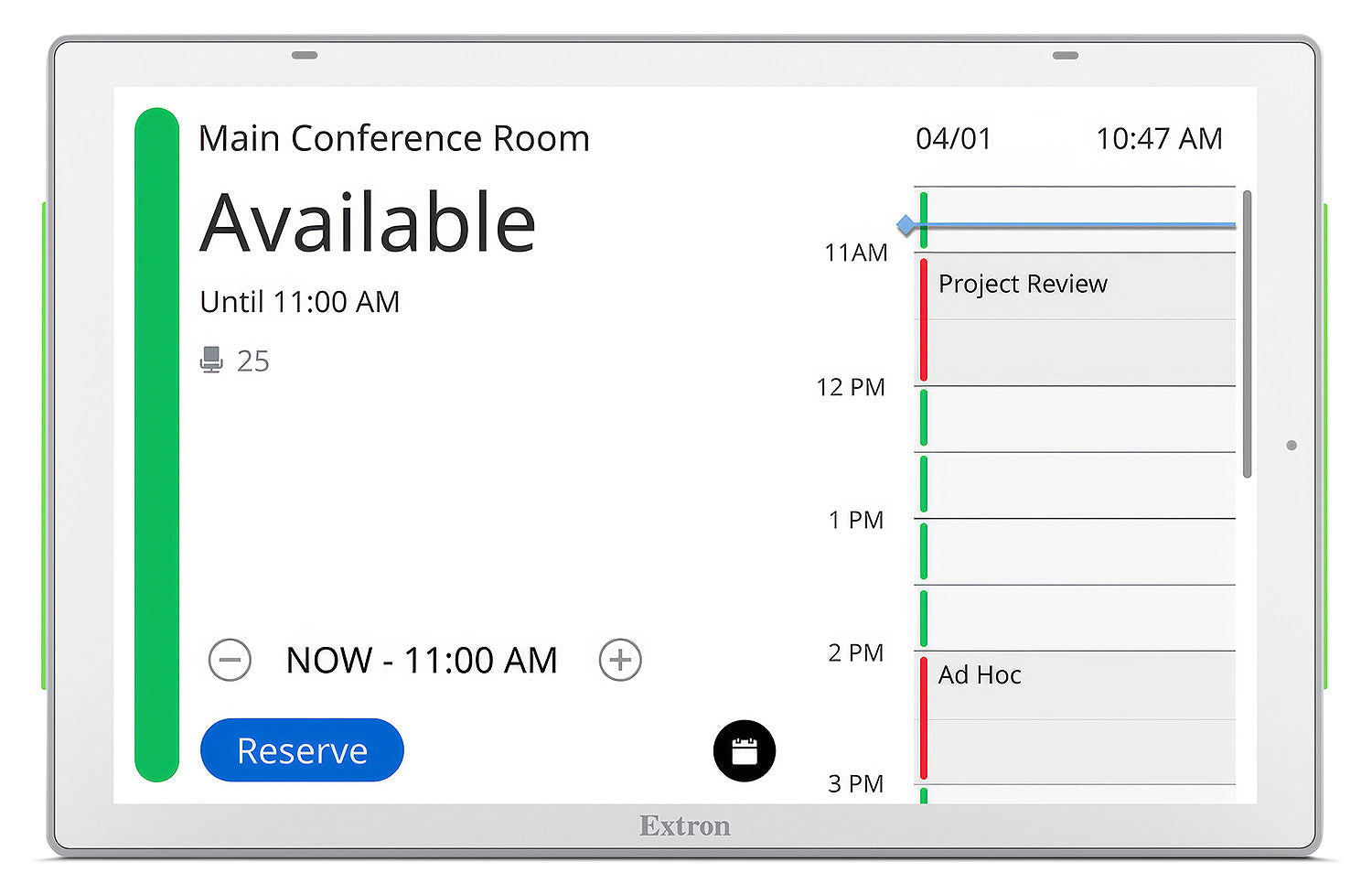

This panel suits conference rooms, boardrooms, huddle spaces and classrooms. It incorporates a 10.1 in IPS touchscreen offering 1280x800 resolution along with 24 bit color depth and auto brightness control, accepts PoE power via an RJ-45 connector, and displays red or green LED indicators for availability. The unit also enables users to make view check in and extend reservations from any connected device. Storage conditions allow -4 to +140 °F at 10% to 90% noncondensing humidity, while operating conditions cover +32 to +104 °F.

Specifications

Part Number: 60-1998-103

Manufacturer: Extron

Condition: New

60-1998-102: 2.75" (7.0 cm)

60-1998-103: 2.75" (7.0 cm)

Ambient temperature/humidity: Storage: -4 to +140 °F (-20 to +60 °C) / 10% to 90%, noncondensing Operating: +32 to +104 °F (0 to +40 °C) / 10% to 90%, noncondensing

Aspect ratio: 16:10

Audio channels: Mono or Stereo

Backlight: LED with auto brightness control

Bit depth: Unsigned 8-bitSigned 16-bitSigned 24-bitSigned 32-bit

Brightness: 370 nits (cd/m²)

Color depth: 24 bit, 16.7 million colors

Configuration software: Global Configurator Plus and Professional, GUI Designer

Connectors: 1 female RJ-45 connector

Container format: WAV (Microsoft RIFF)

Contrast: 900:1

Control apps: Extron Control

Cooling: Convection

Data rate: 10/100/1000Base-T, half/full duplex with autodetect

Default settings: Link speed and duplex level = autodetectedIP address = 192.168.254.251Subnet mask = 255.255.255.0Default gateway = 0.0.0.0DHCP = offDNS = 127.0.0.1

Device: 11.6 watts

Device and power supply: 8.64 watts

Device with PoE: 12.9 watts

Enclosure dimensions: 6.20" H x 9.74" W x 1.26" D 158 mm H x 247 mm W x 32.0 mm D Touchpanel projects 0.84" (21.3 mm) from the mounting surface.

Enclosure type: Plastic

Encoding: LPCM (uncompressed)

Input impedance: ≥10k ohms

Input voltage range: 0 to 24 VDC, clamped at +30 VDC

Light sensor: Auto/manual

Max. data rates: Low speed (1.5 Mbps), full speed (12 Mbps), high speed (480 Mbps)

Motion sensor: On/off

Mounting: Wall, furniture, or rack

Pin configuration: 1 = Digital input, 1 = Gnd

Pixel density: 149.5 PPI

Power input requirements: 9 VDC 3A (USB-C) or Power over Ethernet (802.3af, class 3)

Power supply: Not included

Product warranty: 3 years parts and labor; touchpanel display and overlay components are covered for 1 year

Product weight: 1.7 lb. (0.77 kg)

Programmable pullup: 1k ohms to +5 VDC

Programming software: ControlScript Programing

Protocols: DHCP, DNS, HTTP, HTTPS (redirect), ICMP, IEEE 802.1X, IPv4, LLDP, NTP, SFTP, SMTP, SNMP, SSH, SSL, TLS, TCP/IP, UDP/IP

Quantity/type: 1 high-speed USB 2.0

RAM: 4GB DDR4

Regulatory compliance: CE, C-Tick, c-UL,FCC Class A, ICES, RoHS, UKCA, UL, VCCI, WEEE

Resolution: 1280x800 (WXGA)

Resource management software: GlobalViewer Enterprise

Sampling rate: Up to 192 kHz

Screen type: IPS TFT active matrix color LCD

Size: 10.1" (25.7 cm) diagonal

Speaker output: 2 stereo

Standards: USB 2.0, USB 1.1, USB 1.0

Storage: 64GB eMMC

Threshold high to low: 2.0 VDC

Threshold low to high: 2.8 VDC

Touch screen: Projected capacitive

USB: 9 VDC, 3 A

Usable project storage: 32GB

Utilities: Toolbelt, Embedded web page

Viewing angle: ±80° horizontal, ±80° vertical

Diagram

Resources

Manual | TLS 1035M 60-1998-103 | Cleaning Instruction Card

Manual | TLS 1035M 60-1998-103 | TLP Pro 535M, 835M, 1035M and TLS 835M, 1035M Setup Guide

Manual | TLS 1035M 60-1998-103 | TLS Scheduling Panels Ports, Protocols, and Licenses Document

Specifications | TLS 1035M 60-1998-103 | TLP Pro 1035M Series and TLS 1035M

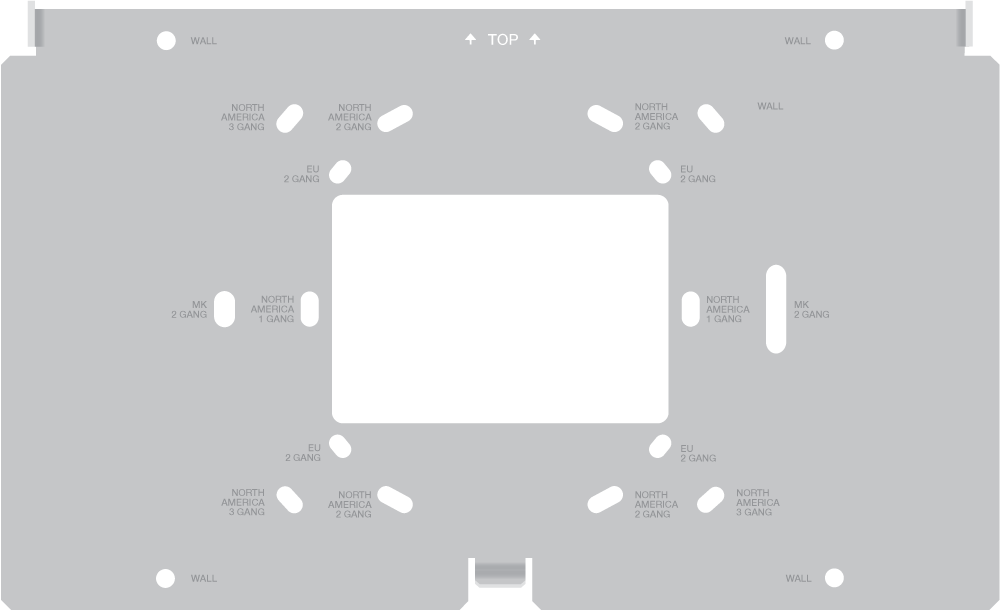

Panel Drawing | TLS 1035M 60-1998-103 | TLS 1035M

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Extron TLS 1035M 60-1998-103

Name: Extron TLS 1035M 60-1998-103
Brand: Extron
SKU: EXTRON-TLS1035M-60199803
Availability: InStock

Manufacturer: Extron

Type: Room Scheduling

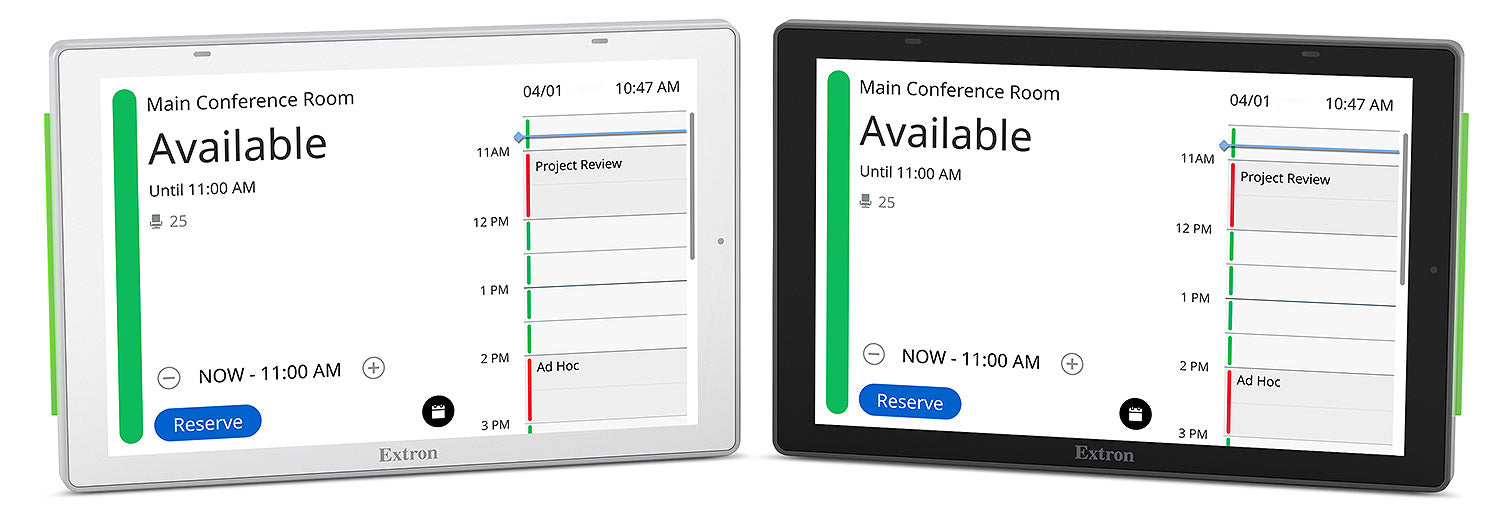

Extron TLS 1035M 60-1998-103 White Wall Mount Scheduling Panel
