Details

Part number 60-1998-102 — Black, Wall Mount, Scheduling

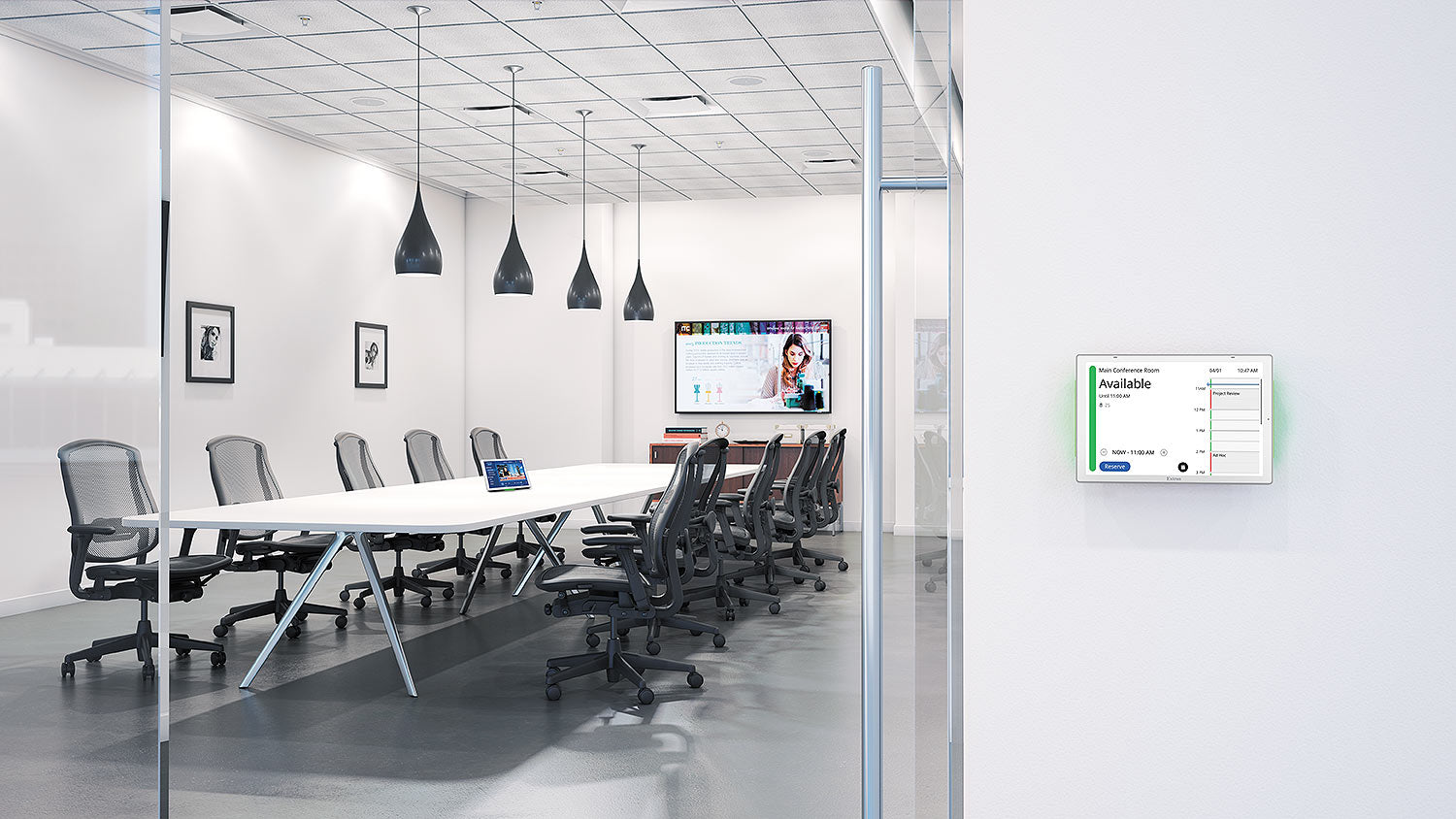

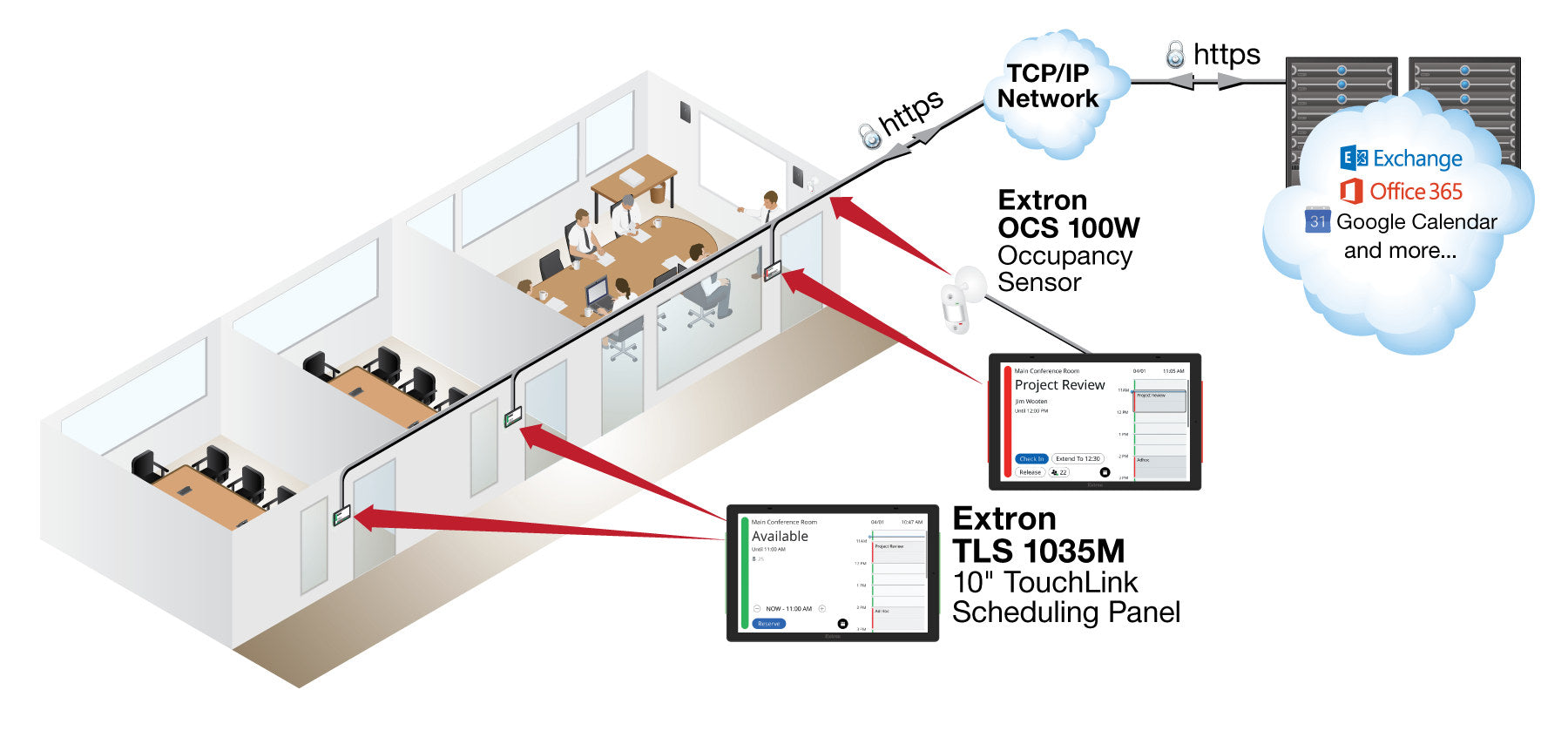

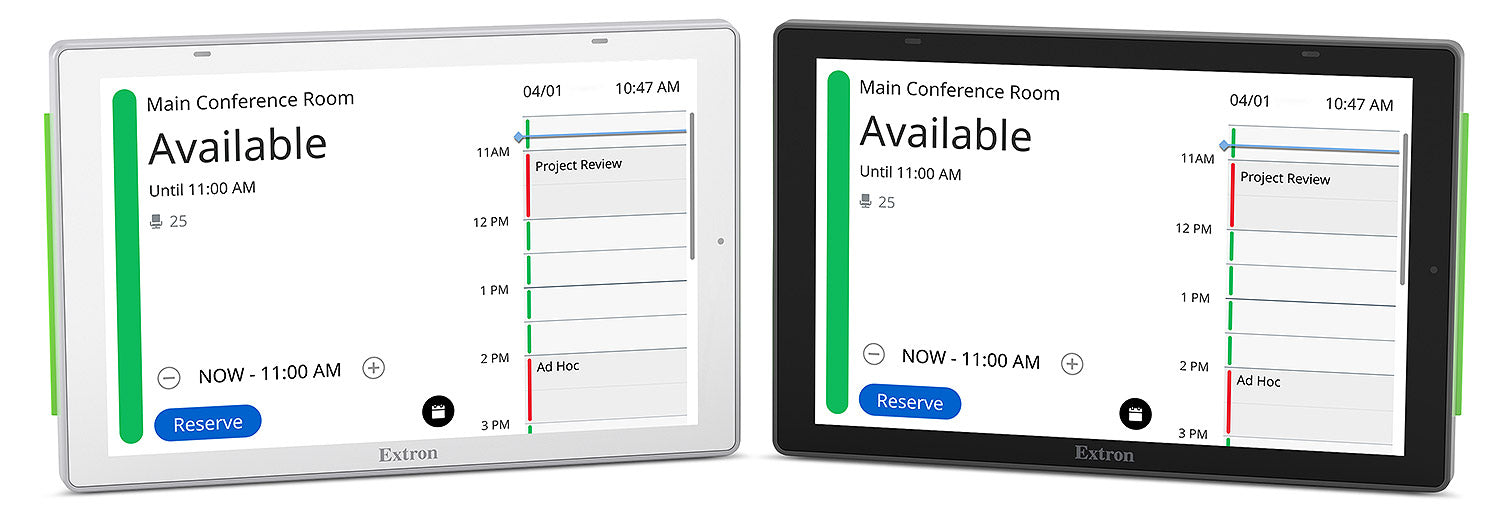

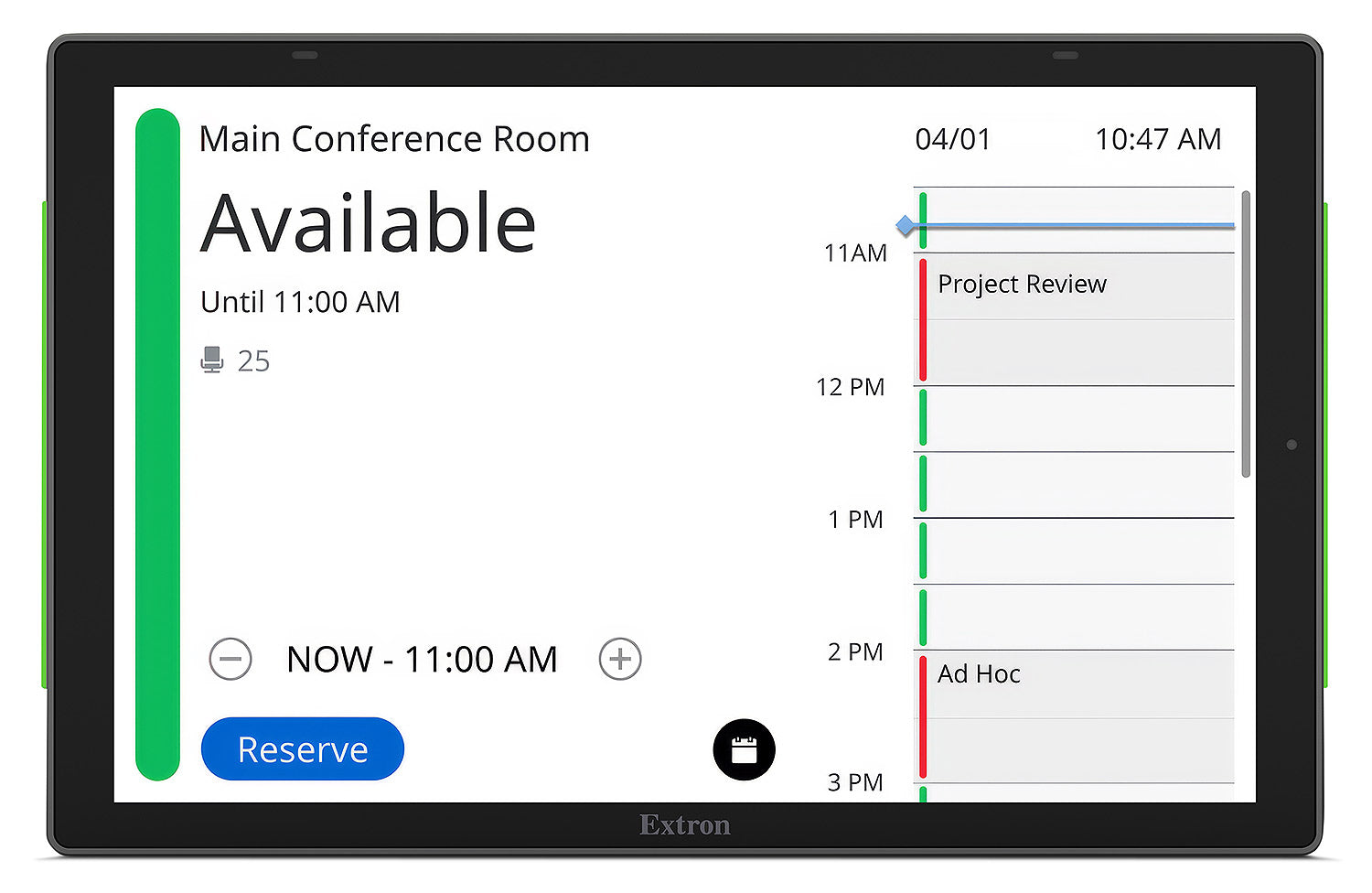

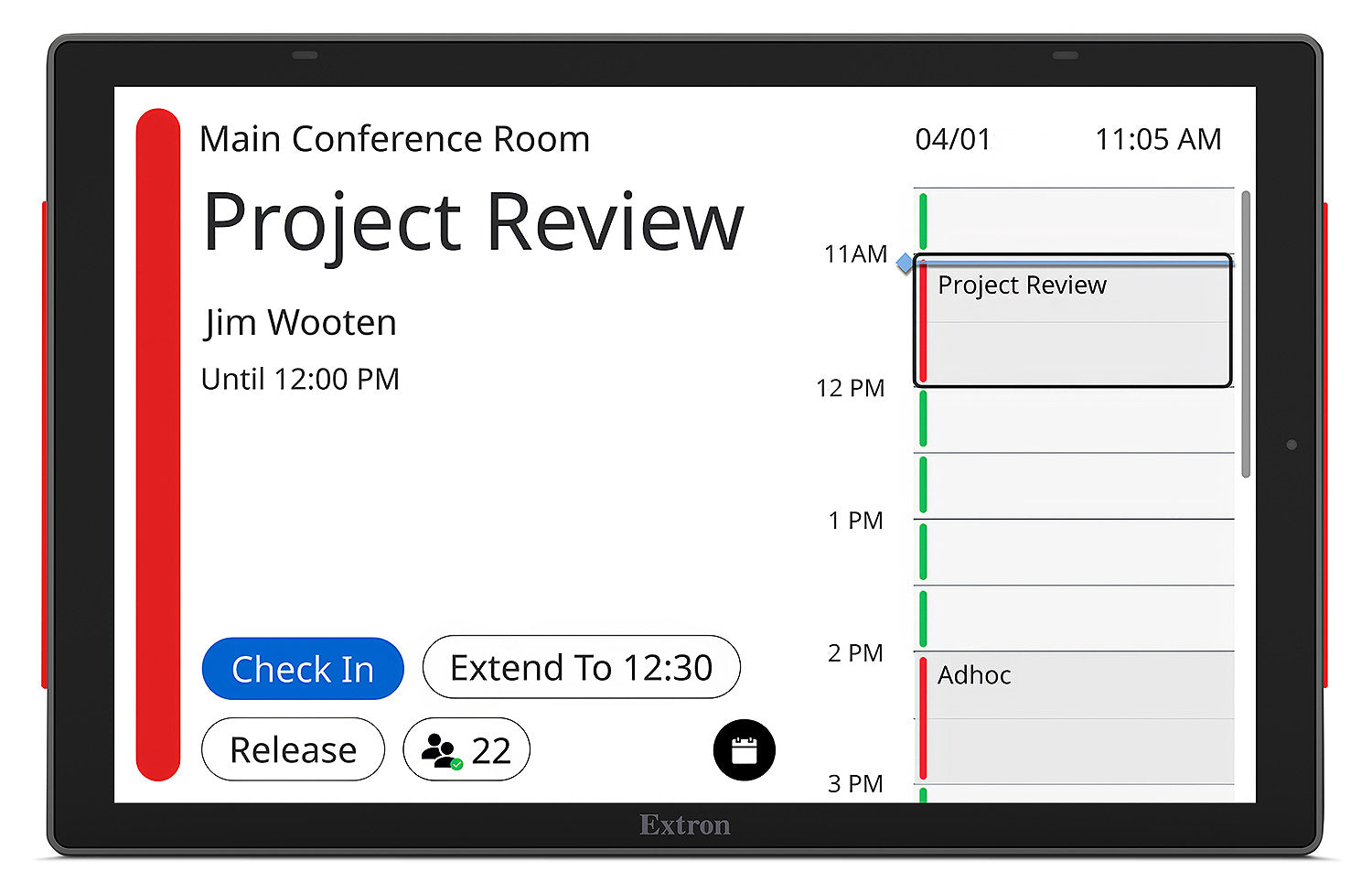

The 60-1998-102 supplies a black wall mount unit for scheduling tasks within the TLS 1035M series. Integrators gain a single device that links to common calendar services for live reservation handling while tying into existing control platforms to align room availability with AV operations.

This configuration suits conference rooms, boardrooms, huddle spaces and classrooms. Before selection note the 10.1 in capacitive IPS screen at 1280x800 resolution with 370 nits output and 900:1 contrast, PoE power through one RJ-45 port, red and green LEDs for status indication, storage range from -4 to +140 °F and operating range from +32 to +104 °F at up to 90% noncondensing humidity, plus 16:10 aspect ratio and 24 bit color depth with auto brightness control.

Specifications

Part Number: 60-1998-102

Manufacturer: Extron

Condition: New

60-1998-102: 2.75" (7.0 cm)

60-1998-103: 2.75" (7.0 cm)

Ambient temperature/humidity: Storage: -4 to +140 °F (-20 to +60 °C) / 10% to 90%, noncondensing Operating: +32 to +104 °F (0 to +40 °C) / 10% to 90%, noncondensing

Aspect ratio: 16:10

Audio channels: Mono or Stereo

Backlight: LED with auto brightness control

Bit depth: Unsigned 8-bitSigned 16-bitSigned 24-bitSigned 32-bit

Brightness: 370 nits (cd/m²)

Color depth: 24 bit, 16.7 million colors

Configuration software: Global Configurator Plus and Professional, GUI Designer

Connectors: 1 female RJ-45 connector

Container format: WAV (Microsoft RIFF)

Contrast: 900:1

Control apps: Extron Control

Cooling: Convection

Data rate: 10/100/1000Base-T, half/full duplex with autodetect

Default settings: Link speed and duplex level = autodetectedIP address = 192.168.254.251Subnet mask = 255.255.255.0Default gateway = 0.0.0.0DHCP = offDNS = 127.0.0.1

Device: 11.6 watts

Device and power supply: 8.64 watts

Device with PoE: 12.9 watts

Enclosure dimensions: 6.20" H x 9.74" W x 1.26" D 158 mm H x 247 mm W x 32.0 mm D Touchpanel projects 0.84" (21.3 mm) from the mounting surface.

Enclosure type: Plastic

Encoding: LPCM (uncompressed)

Input impedance: ≥10k ohms

Input voltage range: 0 to 24 VDC, clamped at +30 VDC

Light sensor: Auto/manual

Max. data rates: Low speed (1.5 Mbps), full speed (12 Mbps), high speed (480 Mbps)

Motion sensor: On/off

Mounting: Wall, furniture, or rack

Pin configuration: 1 = Digital input, 1 = Gnd

Pixel density: 149.5 PPI

Power input requirements: 9 VDC 3A (USB-C) or Power over Ethernet (802.3af, class 3)

Power supply: Not included

Product warranty: 3 years parts and labor; touchpanel display and overlay components are covered for 1 year

Product weight: 1.7 lb. (0.77 kg)

Programmable pullup: 1k ohms to +5 VDC

Programming software: ControlScript Programing

Protocols: DHCP, DNS, HTTP, HTTPS (redirect), ICMP, IEEE 802.1X, IPv4, LLDP, NTP, SFTP, SMTP, SNMP, SSH, SSL, TLS, TCP/IP, UDP/IP

Quantity/type: 1 high-speed USB 2.0

RAM: 4GB DDR4

Regulatory compliance: CE, C-Tick, c-UL,FCC Class A, ICES, RoHS, UKCA, UL, VCCI, WEEE

Resolution: 1280x800 (WXGA)

Resource management software: GlobalViewer Enterprise

Sampling rate: Up to 192 kHz

Screen type: IPS TFT active matrix color LCD

Size: 10.1" (25.7 cm) diagonal

Speaker output: 2 stereo

Standards: USB 2.0, USB 1.1, USB 1.0

Storage: 64GB eMMC

Threshold high to low: 2.0 VDC

Threshold low to high: 2.8 VDC

Touch screen: Projected capacitive

USB: 9 VDC, 3 A

Usable project storage: 32GB

Utilities: Toolbelt, Embedded web page

Viewing angle: ±80° horizontal, ±80° vertical

Diagram

Resources

Manual | TLS 1035M 60-1998-102 | Cleaning Instruction Card

Manual | TLS 1035M 60-1998-102 | TLP Pro 535M, 835M, 1035M and TLS 835M, 1035M Setup Guide

Manual | TLS 1035M 60-1998-102 | TLS Scheduling Panels Ports, Protocols, and Licenses Document

Specifications | TLS 1035M 60-1998-102 | TLP Pro 1035M Series and TLS 1035M

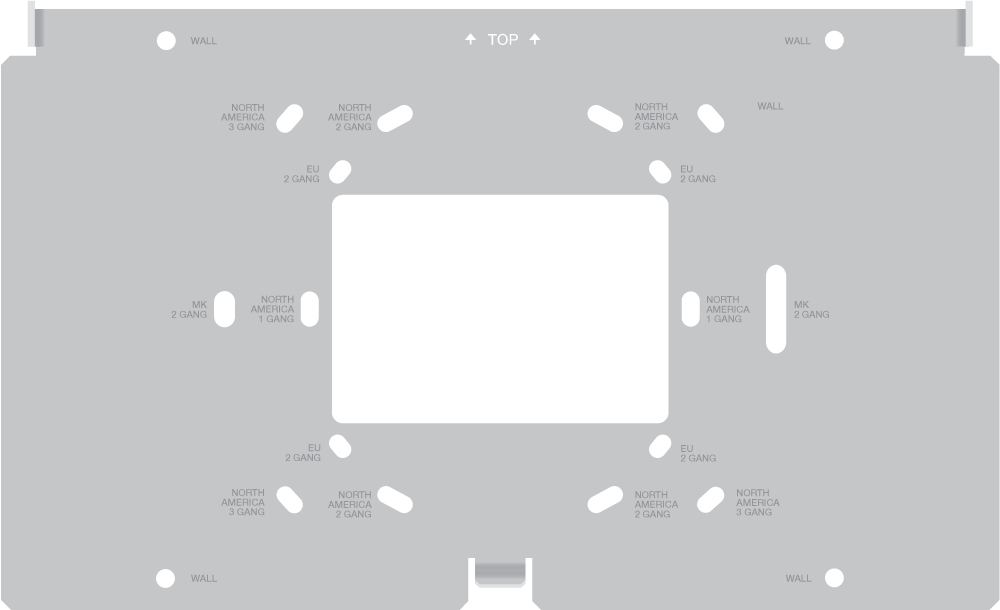

Panel Drawing | TLS 1035M 60-1998-102 | TLS 1035M
