Part number 60-1566-103 - White, Wall Mount, Scheduling

60-1566-103 supplies the white wall-mount version of the TLS 1025M. Integrators select this model to establish a direct calendar link without separate processors or added scheduling software, supporting Microsoft Exchange, Office 365, Google Calendar, 25Live, EMS, NFS, and Ad Astra. On-demand reservations work from the panel, computers, or mobile devices that reach those platforms.

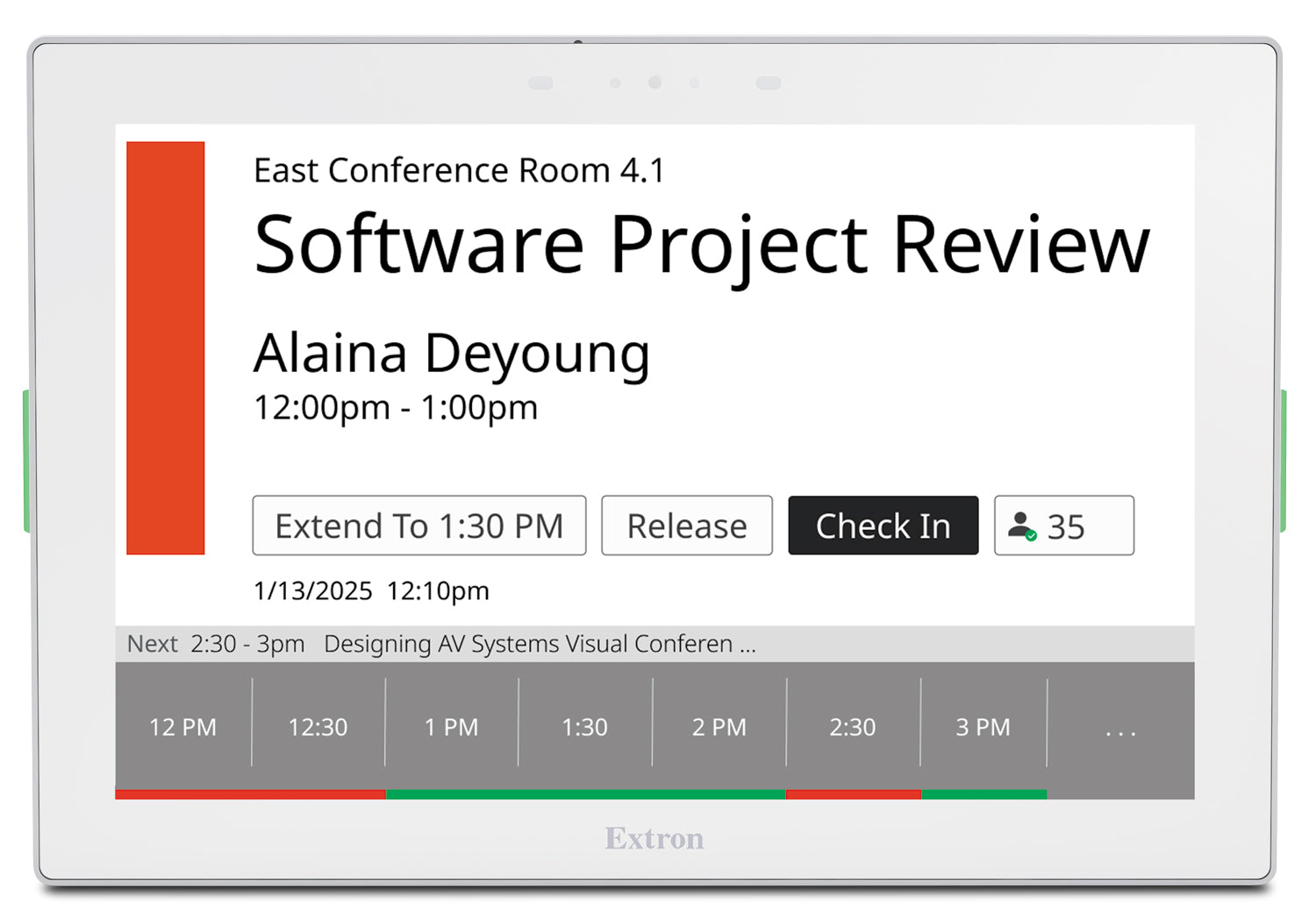

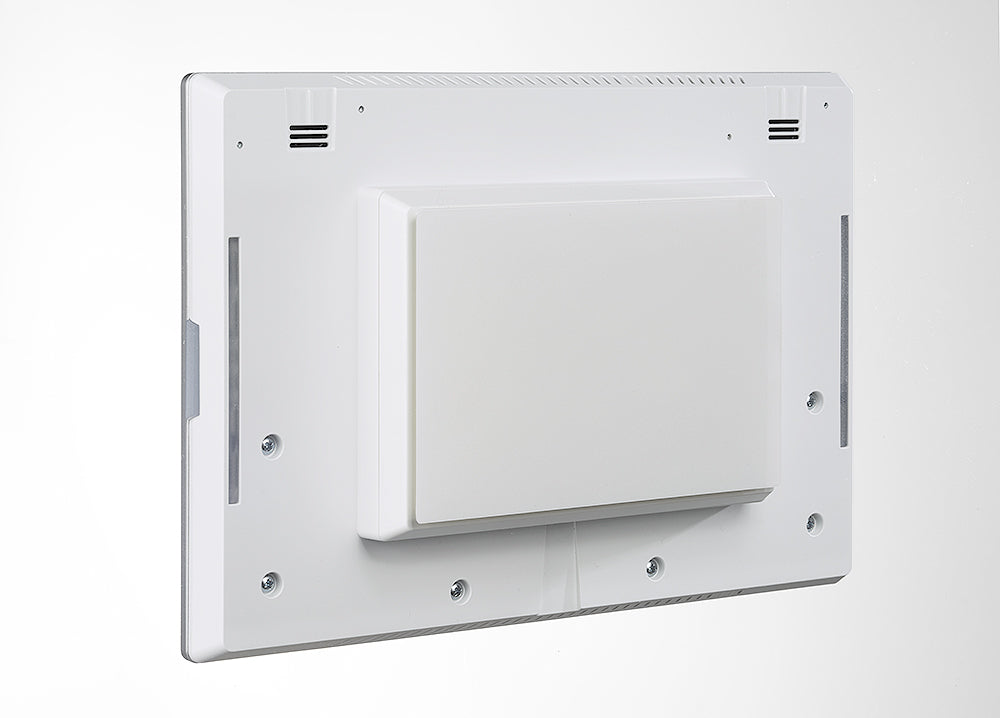

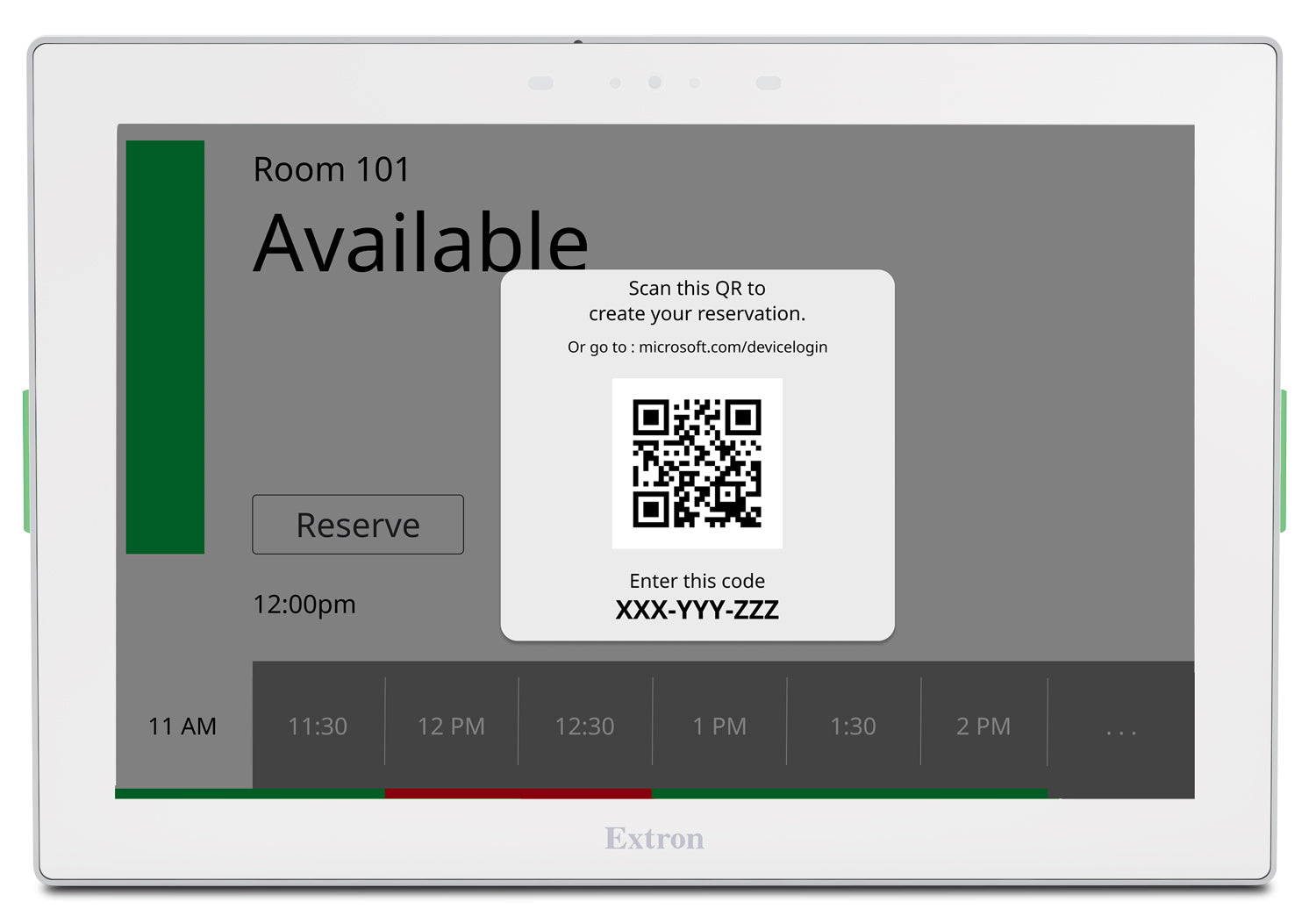

This configuration suits conference rooms, boardrooms, huddle spaces, and classrooms. The panel carries a 10" capacitive touchscreen at 1280x800 resolution with 16:10 aspect ratio, 420 nits brightness, 800:1 contrast, and 24-bit color depth behind Gorilla Glass. Power over Ethernet delivers both power and data on one cable while red and green LEDs show room status. QR code booking works with Microsoft 365 and Google Calendars. Storage operates from -4 to +140 °F at 10% to 90% humidity noncondensing. No subscription or maintenance fees apply.

Model: 60-1566-103 / 601566103

Frequently asked questions about the Extron TLS 1025M

Does Ampronix sell the Extron TLS 1025M?

Yes. Ampronix is an authorized Extron distributor and sells the Extron TLS 1025M (60-1566-103). Call Ampronix for a quote.

Does Ampronix offer replacement and exchange for the Extron TLS 1025M?

Yes. Ampronix provides sales, replacement and exchange for the Extron TLS 1025M. Call Ampronix for a quote.

What does the Extron TLS 1025M 60-1566-103 do?

Key details: 60-1566-103 supplies the white wall-mount version of the TLS 1025M. Integrators select this model to establish a direct calendar link without separate processors or added scheduling software, supporting Microsoft Exchange, Office 365, Google Calendar, 25Live, EMS, NFS, and Ad Astra. Call Ampronix to confirm it fits your installation.

How do I identify the correct Extron TLS 1025M 60-1566-103?

Share the model name and any part number from the unit label with Ampronix and the team will match it to the right Extron TLS 1025M 60-1566-103 before you order.

Will the Extron TLS 1025M 60-1566-103 work with my existing system?

Compatibility depends on your inputs, outputs and control setup. Send Ampronix your system details and the team will confirm the Extron TLS 1025M 60-1566-103 is the right fit before you order.

How do I get a quote or lead time for the Extron TLS 1025M 60-1566-103?

Call Ampronix with the model and quantity. Ampronix is an authorized Extron distributor and will quote pricing and availability.

Specifications

Part Number: 60-1566-103

Manufacturer: Extron

Condition: New

60-1566-112: 2.75" (7.0 cm)

60-1566-113: 2.75" (7.0 cm)

Ambient temperature/humidity: Storage: -4 to +140 °F (-20 to +60 °C) / 10% to 90%, noncondensing Operating: +32 to +104 °F (0 to +40 °C) / 10% to 90%, noncondensing

Aspect ratio: 16:10

Audio channels: Mono or stereo

Backlight: LED

Bit depth: Unsigned 8-bit Signed 16-bit Signed 24-bit Signed 32-bit

Brightness: 420 nits (cd/m2)

Color depth: 24 bit, 16.7 million colors

Configuration software: Global Configurator Plus and Professional, GUI Designer

Connectors: 1 female RJ-45 connector

Container format: WAV (Microsoft RIFF)

Contrast: 800:1

Control apps: Extron Control

Cooling: Convection, vents on back

Data rate: 10/100/1000Base-T, half/full duplex with autodetect

Default settings: Link speed and duplex level: autodetectedIP address = 192.168.254.251Subnet mask = 255.255.255.0Default gateway = 0.0.0.0DHCP = offDNS = 127.0.0.1

Device: 12.9 watts

Device and power injector: 14.7 watts

Enclosure dimensions: 6.84" H x 10.13" W x 1.26" D (174 mm H x 257 mm W x 32 mm D) Touchpanel projects 0.65" (17 mm) from the mounting surface

Enclosure type: Plastic

Encoding: LPCM (uncompressed)

Frequency response: 750 Hz to 20 kHz, ±5 dB

Input impedance: ≥10k ohms

Input voltage range: 0 to 24 VDC, clamped at +30 VDC

Light sensor: Auto/manual

Max. data rates: Low speed (1.5 Mbps), full speed (12 Mbps), high speed (480 Mbps)

Motion sensor: On/off

Mounting: Wall, furniture, glass, or rack

Pin configuration: 1 = Digital input, 1 = Gnd

Pixel density: 149 PPI

Power input requirements: Power over Ethernet (PoE 802.3af, class 3)

Power supply: Not included

Product warranty: 3 years parts and labor; touchpanel display and overlay components are covered for 1 year

Product weight: 2.05 lbs (0.92 kg)

Programmable pullup: 1k ohms to +5 VDC

Programming software: ControlScript Programming

Protocols: DHCP, DNS, HTTP, HTTPS, ICMP, IEEE 802.1x, SFTP, SSH, TCP/IP, UDP/IP

Quantity/type: 1 high-speed USB 2.0 device

RAM: 2 GB

Regulatory compliance: BIS, CE, c-UL, UL, C-Tick, FCC Class A, ICES, KC, VCCI, RoHS, and WEEE.

Resolution: 1280x800 (WXGA)

Resource management software: GlobalViewer Enterprise

Sampling rate: Up to 192 kHz

Screen type: TFT Active matrix Color LCD

Size: 10.1" (25.7 cm), measured diagonally

Speaker output: 2 mono, 89 dB Max. SPL @ 0.1 m

Standards: USB 2.0, USB 1.1, USB 1.0 compatible

Storage: 8 GB

Threshold high to low: 2.0 VDC

Threshold low to high: 2.8 VDC

Touch screen: Capacitive

Transparency: 8 bit

USB: 5 VDC, 275 mA

Utilities: Toolbelt, Embedded web page

Viewing angle: ±85° horizontal, ±85° vertical

Diagram

Resources

Brochure | TLS 1025M 60-1566-103 | Room Scheduling (Room_Scheduling_revD1.pdf)

Brochure | TLS 1025M 60-1566-103 | Collaborer en toute sécurité - Guide d'application pour les systèmes audiovisuels Extron

Brochure | TLS 1025M 60-1566-103 | Creación de experiencias de reunión más seguras - Guía de aplicación para sistemas AV Extron

Brochure | TLS 1025M 60-1566-103 | Raumbuchung

Brochure | TLS 1025M 60-1566-103 | Reserva de salas

Brochure | TLS 1025M 60-1566-103 | Réservation de salles

Brochure | TLS 1025M 60-1566-103 | Room Scheduling (Room-Scheduling_BR_US_IT_RevD1.pdf)

Brochure | TLS 1025M 60-1566-103 | Room Scheduling System (会議室予約システム)

Brochure | TLS 1025M 60-1566-103 | Room Scheduling 系统

Brochure | TLS 1025M 60-1566-103 | Sichere Zusammenarbeit in Meetingbereichen - Leitfaden für Extrons AV-Systeme

Brochure | TLS 1025M 60-1566-103 | Una collaborazione più sicura negli spazi meeting - Guida applicativa per i sistemi AV di Extron

Brochure | TLS 1025M 60-1566-103 | Бронирование переговорных

Brochure | TLS 1025M 60-1566-103 | Создание более безопасных условий для проведения встреч - Руководство по применению для AV‑систем Extron

Manual | TLS 1025M 60-1566-103 | Cleaning Instruction Card

Manual | TLS 1025M 60-1566-103 | Room Agent User Guide

Manual | TLS 1025M 60-1566-103 | TLP Pro x25 Series and TLS x25 Series User Guide

Manual | TLS 1025M 60-1566-103 | TLS Scheduling Panels Ports, Protocols, and Licenses Document

Specifications | TLS 1025M 60-1566-103 | TLP Pro 1025M Series and TLS 1025M

Panel Drawing | TLS 1025M 60-1566-103 | TLS 1025M
